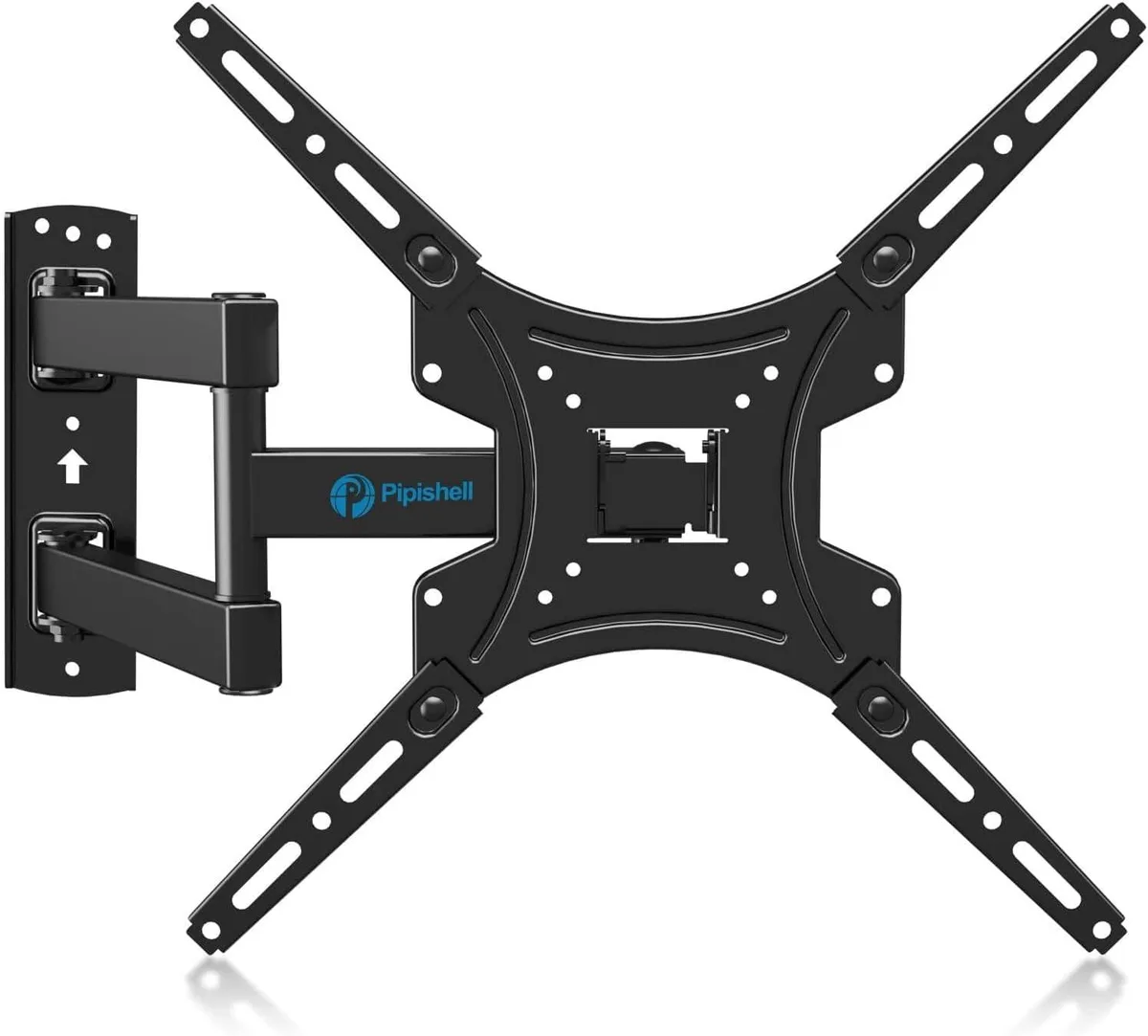

Black articulating TV wall mount with dual folding arms, rectangular wall plate, and exposed joint mechanisms

Pipishell PIMF2 Full Motion TV Mount 24-55" 66lbs VESA 400x400mm

SKU CH-0D7F-4K1RH

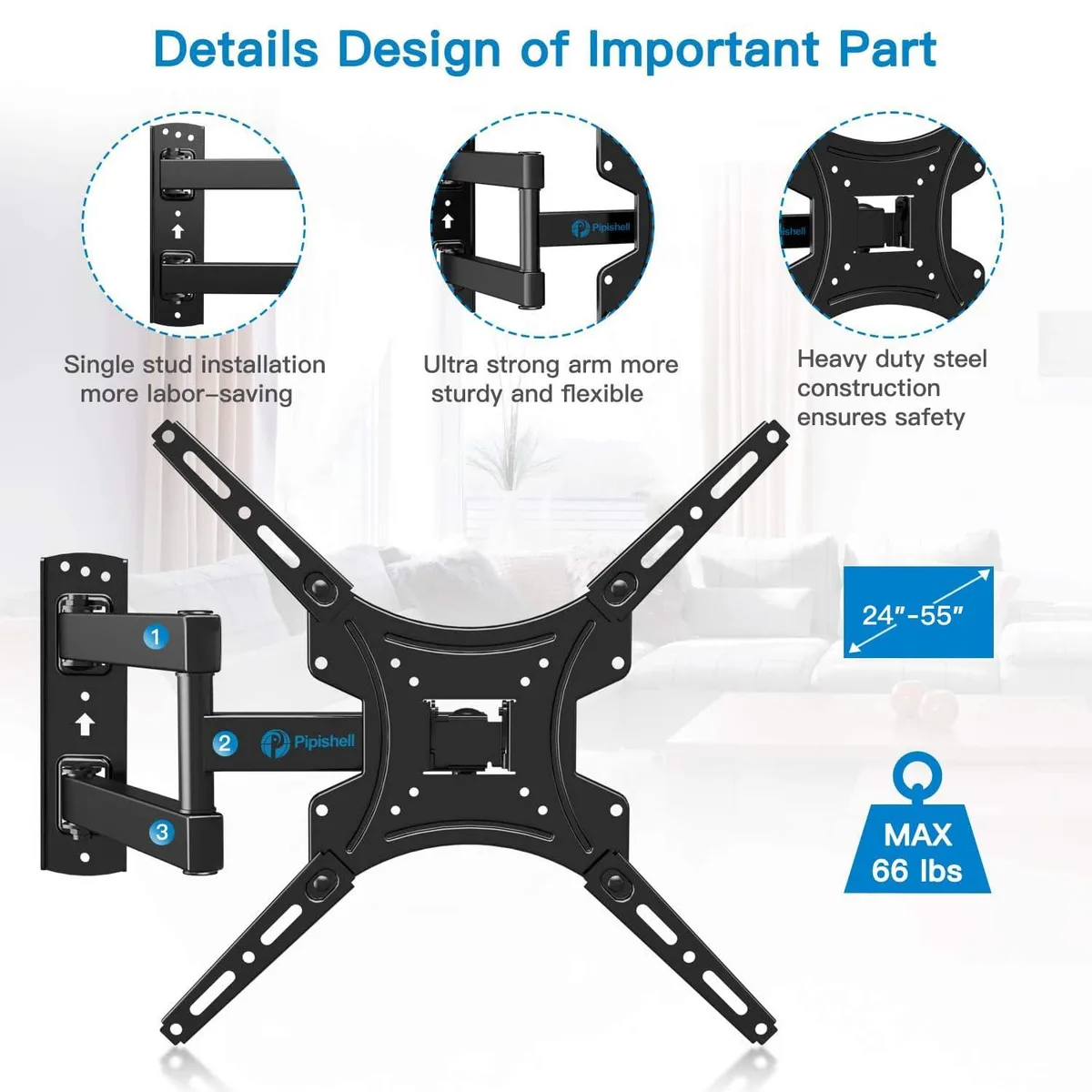

Full-motion wall mount holds 24-55 inch TVs up to 66 lbs, tilts 15° down, swivels 90°, extends 17 inches

  • NameFits 24-55 Inch TVs up to 66lbs
  • Mount StyleArticulating/Full motion/swivel/tilt
  • ColorBlack
  • TV Size CapacityFits 24-55 Inch TVs up to 66lbs
  • Height5.3 in
  • Width22.4 in

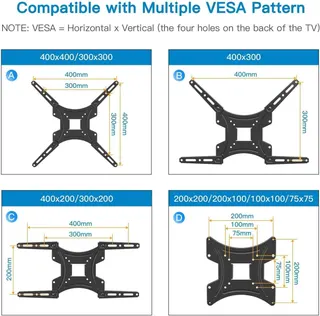

  • Fits 24-55 inch TVs up to 66 lbs with VESA 75x75 to 400x400mm
  • Tilts 5° up and 15° down plus swivels 90° left or right for glare-free viewing
  • Extends up to 17 inches from wall and retracts to 2.2 inches for flexible positioning
  • Built from premium steel stress-tested to hold four times rated weight per UL standards
  • Includes all hardware and a step-by-step graphical guide for straightforward installation

Fits 24-55 Inch TVs up to 66lbs

The Pipishell PIMF2 is a full-motion TV wall mount designed for screens from 24 to 55 inches weighing up to 66 lbs. It supports VESA patterns ranging from 75x75 mm to 400x400 mm and works with most major television brands. The articulating arm extends up to 17 inches from the wall and retracts to 2.2 inches. It is suitable for mounting on single wood studs or concrete and brick walls.

Installation ease and common issues

The package includes all necessary hardware and a graphical English installation guide intended to simplify the 1-2-3 step process. The mount tilts 5 degrees up and 15 degrees down to reduce glare and swivels left or right up to 90 degrees, though the maximum swivel angle depends on the specific TV size. Heavier screens near the 66 lb limit may require two people to lift and secure safely onto the brackets.

Check your setup before ordering

Verify that your television's VESA mounting holes fall between 75x75 mm and 400x400 mm and that its weight does not exceed 66 lbs. Confirm the screen diagonal is within the 24 to 55 inch range. Ensure your wall type is either a single wood stud or solid concrete/brick, as other structures like metal studs or hollow drywall alone are not supported. Check that 17 inches of extension clearance is available.

Highlights

  • Fits 24-55 inch TVs up to 66 lbs with VESA 75x75 to 400x400mm
  • Tilts 5° up and 15° down plus swivels 90° left or right for glare-free viewing
  • Extends up to 17 inches from wall and retracts to 2.2 inches for flexible positioning
  • Built from premium steel stress-tested to hold four times rated weight per UL standards
  • Includes all hardware and a step-by-step graphical guide for straightforward installation

Specifications

BrandPipishell
ModelPIMF2
NameFits 24-55 Inch TVs up to 66lbs
Mount StyleArticulating/Full motion/swivel/tilt
ColorBlack
TV Size CapacityFits 24-55 Inch TVs up to 66lbs
Height5.3 in
Width22.4 in
Weight2.191 kilograms

Questions about this item

How do I know the PIMF2 mount is holding my TV securely after installation?

The arms should retract to 2.2 inches from the wall and extend smoothly to 17 inches, tilt 5° up or 15° down, and swivel up to 90° left or right without binding; the TV must stay level and not sag when positioned at any angle.

What hardware comes in the box and what must I supply myself?

The package includes the mount, all screws and spacers for VESA patterns from 75x75 mm to 400x400 mm, and lag bolts for wood stud or concrete walls; you only need to provide a drill, level and socket wrench.

My TV is 55 inches and weighs 66 lbs with a 400x400 mm VESA — will the PIMF2 support it?

Yes, the mount is rated for screens from 24 to 55 inches, up to 66 lbs, and accepts VESA patterns up to 400x400 mm, so your TV fits every listed limit.
