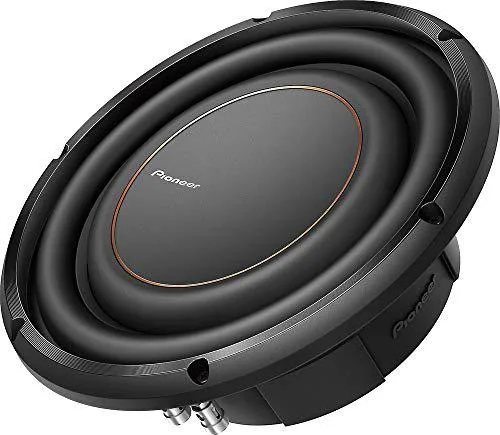

Black 10-inch shallow subwoofer with grey cone and rubber surround

Pioneer

Pioneer TS-D10LS4 10" 1300W 4-ohm Shallow Subwoofer

SKU CH-EQHN-F74EQ

A 10" shallow-mount subwoofer delivering 1300W max power from a 3.3" depth for tight vehicle spaces

  • TypeSubwoofer
  • Features1300W Max / 350W RMS power handling for powerful bass
  • 1300W max power delivers powerful bass
  • 3-inch shallow depth fits tight vehicle spaces
  • Aramid Fiber IMPP cone ensures accurate sound reproduction
  • Single 4-ohm voice coil simplifies amplifier matching
  • 20 Hz to 3.4 kHz range covers deep low frequencies

Compact Bass for Tight Spaces

The Pioneer TS-D10LS4 is a 10-inch shallow-mount subwoofer built for vehicles where installation depth is limited. Its 3.3-inch mounting profile allows it to fit behind seats or in slim enclosures while still delivering 1300W maximum and 350W RMS power handling. The single 4-ohm voice coil simplifies wiring for a wide range of amplifiers.

Sustained Output and Cone Control

Under continuous demand the Aramid Fiber Interlaced IMPP cone and butyl rubber surround with dual Meta-Aramid fiber spider keep distortion low and motion linear. The 8 mm Xmax and 37 Hz free-air resonance support deep, controlled bass down to 20 Hz without bottoming out. Sensitivity of 76 dB means the subwoofer converts amplifier power into sound efficiently during extended listening sessions.

Upgrade Path From Factory Systems

This unit replaces thin, under-powered factory woofers that cannot reach 20 Hz or handle 350W RMS. The jump is worth it when you need authoritative low-frequency impact in a sealed enclosure of 0.6 cu. ft. but lack the depth for a standard subwoofer. Buyers who require higher sensitivity or greater excursion for ported designs should consider other models.

Highlights

  • 1300W max power delivers powerful bass
  • 3-inch shallow depth fits tight vehicle spaces
  • Aramid Fiber IMPP cone ensures accurate sound reproduction
  • Single 4-ohm voice coil simplifies amplifier matching
  • 20 Hz to 3.4 kHz range covers deep low frequencies

Specifications

BrandPioneer
TypeSubwoofer
Features1300W Max / 350W RMS power handling for powerful bass

Questions about this item

How much heat and power does the 350W RMS subwoofer draw when running all day?

The subwoofer handles 350W RMS continuous power. Its 76 dB sensitivity means it produces strong output with moderate amplifier demand, keeping thermal load manageable during extended use.

What amplifier and enclosure does the single 4-ohm voice coil require to work?

You need an amplifier stable at 4 ohms that can deliver around 350W RMS. A sealed enclosure of 0.6 cu. ft. is recommended for proper operation and bass response.

Will the 3.3-inch mounting depth fit alongside my factory door speakers?

At 3.3 inches deep with a 9-inch cutout, the shallow design fits tight spaces where standard subwoofers cannot. It leaves room for existing speakers and avoids deep cavity modifications.
