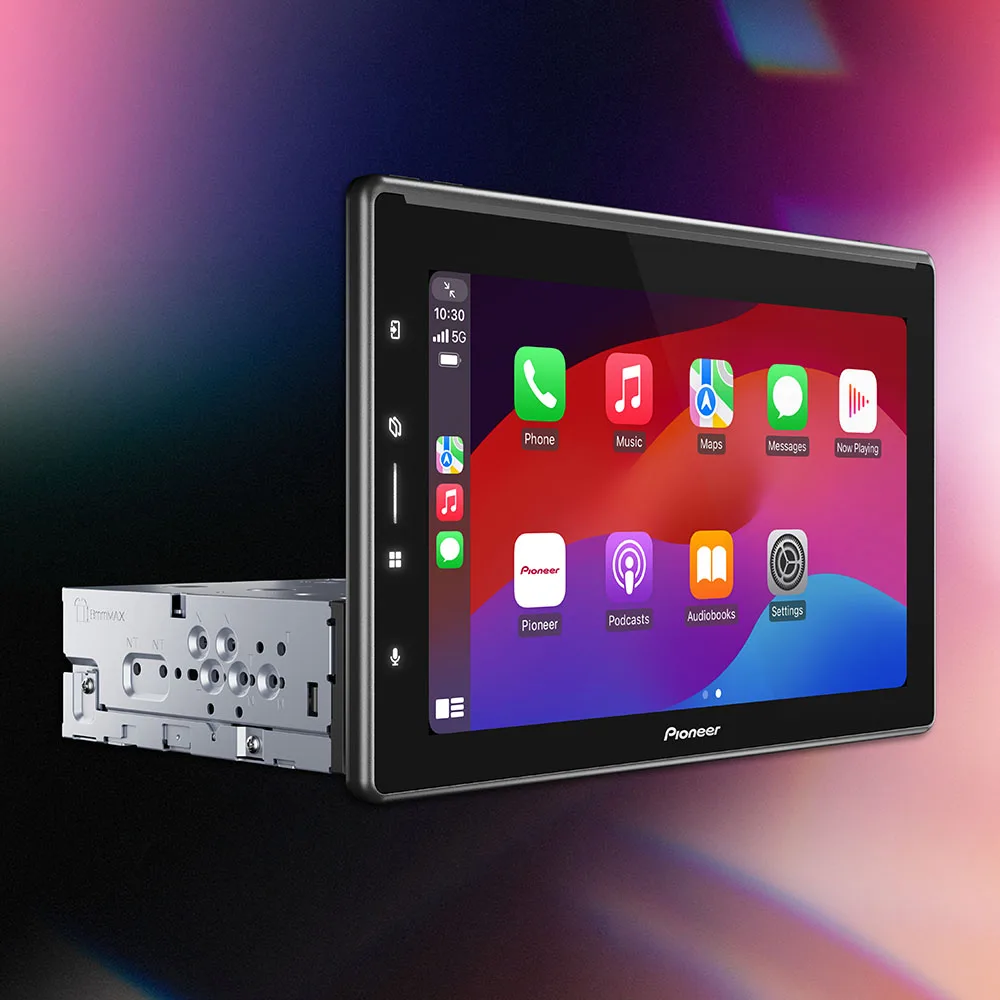

Large 10.1 inch floating touchscreen mounted on a single DIN chassis

Pioneer

Pioneer DMH-WT6000NEX 10.1" 1-DIN Multimedia Receiver

SKU CH-S9Z3-APFDW

A 10.1-inch capacitive touch screen with 1280 x 720 resolution fits a 1-DIN dash opening and adds wireless Android Auto, CarPlay and Alexa voice control

  • TypeReceiver
  • Features10.1-inch capacitive touch screen with HD resolution (1280 x
  • 1-inch HD capacitive touch screen delivers crisp visuals at 1280 x 720
  • Wireless and wired Android Auto plus CarPlay keep smartphones integrated hands-free
  • Built-in Bluetooth enables dual-phone connection for calls and audio streaming
  • 13-band graphic equalizer with 24-bit DA converter tailors sound precisely
  • 50 W x 4 MOSFET amplifier powers speakers with clean output

Floating 10.1-inch display for 1-DIN dash

The Pioneer DMH-WT6000NEX is a single-DIN multimedia receiver with a 10.1-inch capacitive touchscreen at 1280 x 720 resolution. It targets drivers who want modern smartphone integration without a double-DIN opening. Wireless and wired Android Auto plus CarPlay are supported alongside Amazon Alexa via Pioneer Vozsis. A built-in satellite radio tuner and HD Radio expand listening options beyond streaming.

Single-DIN chassis with floating screen clearance

Installation fits a standard 1-DIN slot but the large floating display extends above the dashboard face. Verify that steering-wheel stalks, instrument-cluster visors or climate vents will not collide with the 10.1-inch panel when tilted. The high-gain Wi-Fi antennas and satellite-radio antenna require routing to clear roof lines. Professional fitting is recommended to secure the floating mechanism and hide wiring behind the dash.

Check dash depth steering clearance

Confirm the dashboard cavity behind the 1-DIN opening is deep enough for the receiver body plus harness bundles. Measure vertical travel between the mounting plane and any overhead trim so the floating screen moves freely. Ensure a clear path exists for the satellite-radio antenna cable to the roof or rear deck. Factory steering-wheel controls need a compatible adapter module not included in the box.

Highlights

  • 1-inch HD capacitive touch screen delivers crisp visuals at 1280 x 720
  • Wireless and wired Android Auto plus CarPlay keep smartphones integrated hands-free
  • Built-in Bluetooth enables dual-phone connection for calls and audio streaming
  • 13-band graphic equalizer with 24-bit DA converter tailors sound precisely
  • 50 W x 4 MOSFET amplifier powers speakers with clean output

Specifications

BrandPioneer
TypeReceiver
Features10.1-inch capacitive touch screen with HD resolution (1280 x 720)

Questions about this item

How do I confirm the 10.1-inch capacitive touch screen is displaying HD resolution after installation?

The screen should show a crisp 1280 x 720 image; test by playing a known HD video file via USB and verify text and icons appear sharp without scaling artefacts.

What accessories are included and what must I source separately for installation?

The receiver ships with a high-gain Wi-Fi antenna and wiring harness; you will need a 1-DIN dash kit, steering-wheel control adapter if required, and a SiriusXM antenna for satellite radio.

Which Pioneer Vozsis Alexa integration should I choose between wireless and wired CarPlay or Android Auto?

Use wireless CarPlay or Android Auto for daily convenience; switch to a wired USB connection when you need stable Hi-Res FLAC or DSD playback over the 24-bit converter.
