Rectangular black car stereo with 8.0 inch touchscreen and backup camera

Pioneer

Pioneer DMH-C5500NEX 8.0" Digital Media Receiver with Backup Camera

SKU CH-7B71-HRYR4

An 8.0" WXGA capacitive display with modular chassis supports wired CarPlay, Android Auto and Alexa, plus HD Radio, satellite radio, built-in Bluetooth.

  • TypeDigital Media Receiver
  • Features8.0" WXGA capacitive display with modular chassis
  • Crisp visuals from an 8.0" WXGA capacitive touchscreen
  • Wired CarPlay and Android Auto mirror your phone
  • Alexa voice control keeps hands on the wheel
  • HD Radio plus satellite radio expand listening choices
  • Built-in 50 W x 4 MOSFET amplifier drives speakers directly

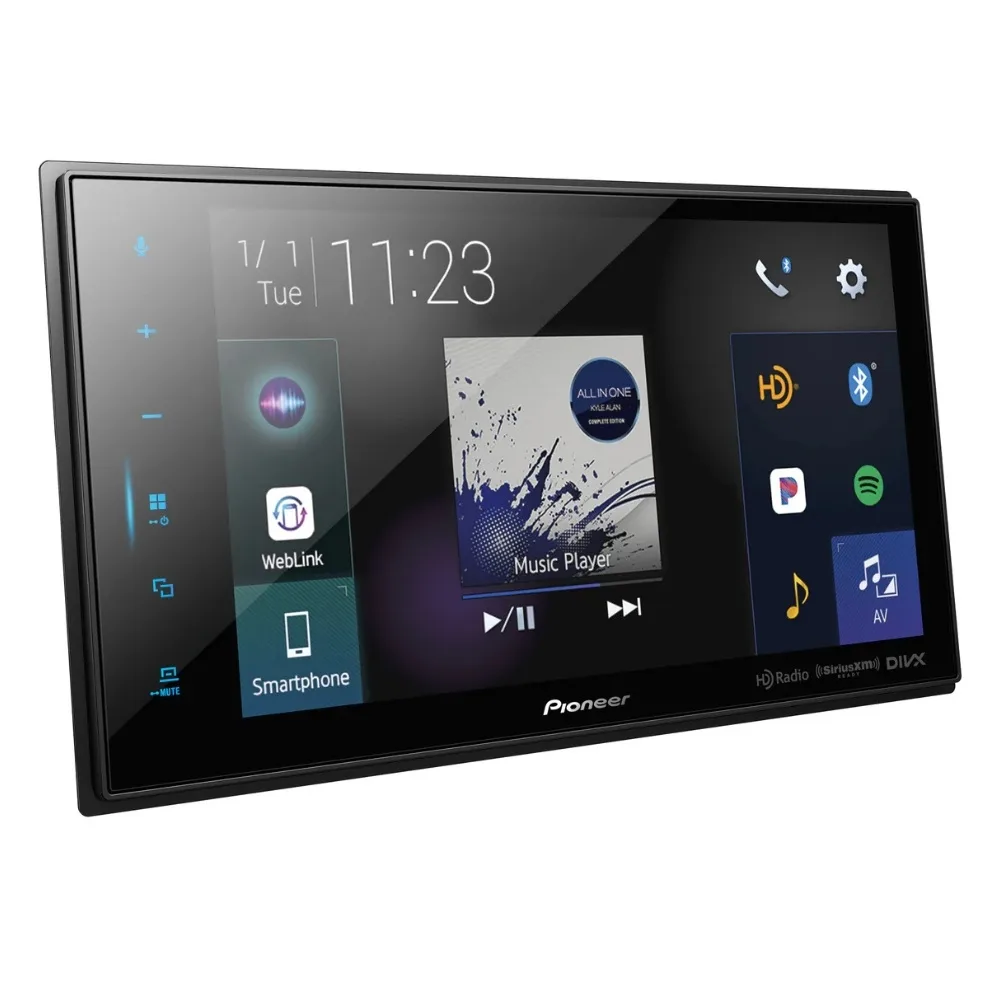

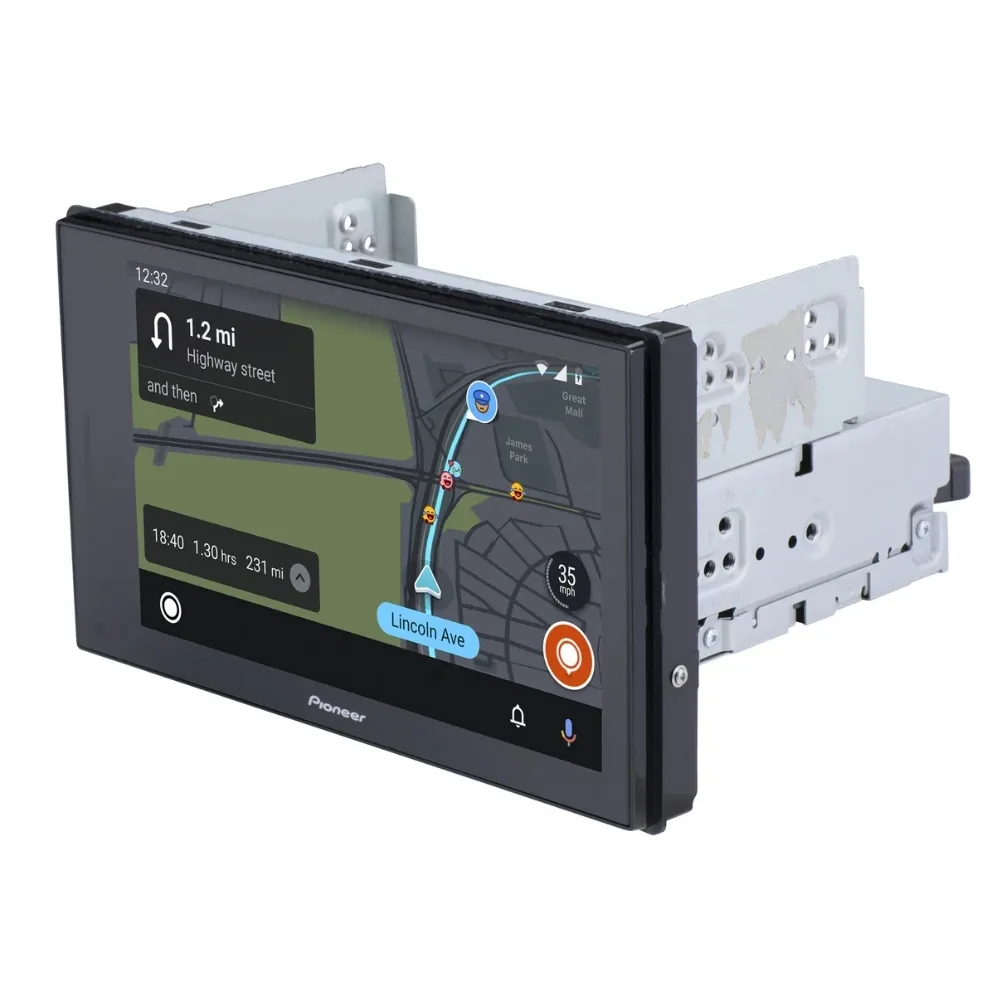

Modular 8.0" WXGA Display

The Pioneer DMH-C5500NEX is a digital media receiver built around an 8.0" WXGA capacitive touchscreen mounted on a modular chassis. It targets drivers who want smartphone integration and expanded audio sources in a single-din opening. Wired CarPlay and Android Auto bring familiar apps to the dash, while HD Radio and satellite radio support widen the listening options. Alexa voice control adds hands-free operation for compatible services.

Wiring and Dash Checks

Verify that your vehicle can accommodate the modular chassis layout and that a wired USB connection is available for CarPlay and Android Auto operation. The included backup camera requires a reverse-light trigger and a clear routing path to the display unit. Confirm that the existing speaker wiring can handle the built-in 50 W x 4 MOSFET amplifier without additional adapters. An optional CD-MC20 microphone is needed if you plan to use the Auto EQ calibration feature.

System Integration

The receiver fills a single-din slot while the display floats above the dash, freeing the lower cavity for HVAC controls or storage. Built-in Bluetooth supports dual-phone pairing for calls and audio streaming without extra modules. iDatalink Maestro compatibility retains factory features such as steering-wheel controls and vehicle data displays. The unit plays MP3, WMA, WAV, AAC and FLAC files, including Hi-Res WAV and FLAC, plus video formats such as MP4, MKV and MOV from USB sources.

Highlights

  • Crisp visuals from an 8.0" WXGA capacitive touchscreen
  • Wired CarPlay and Android Auto mirror your phone
  • Alexa voice control keeps hands on the wheel
  • HD Radio plus satellite radio expand listening choices
  • Built-in 50 W x 4 MOSFET amplifier drives speakers directly

Specifications

BrandPioneer
TypeDigital Media Receiver
Features8.0" WXGA capacitive display with modular chassis

Questions about this item

Does the Pioneer DMH-C5500NEX include the backup camera in the box or must it be purchased separately?

The product title and description list the unit with a backup camera, indicating the camera is included with the receiver.

Which wired smartphone integration does the DMH-C5500NEX support — CarPlay, Android Auto, or both?

The receiver is compatible with both CarPlay and Android Auto using a wired connection.

What does the 50 W x 4 MOSFET amplifier rating mean for everyday listening volume?

The built-in amplifier delivers 50 watts per channel to four speakers, providing ample power for clear, loud playback in a typical vehicle cabin.
