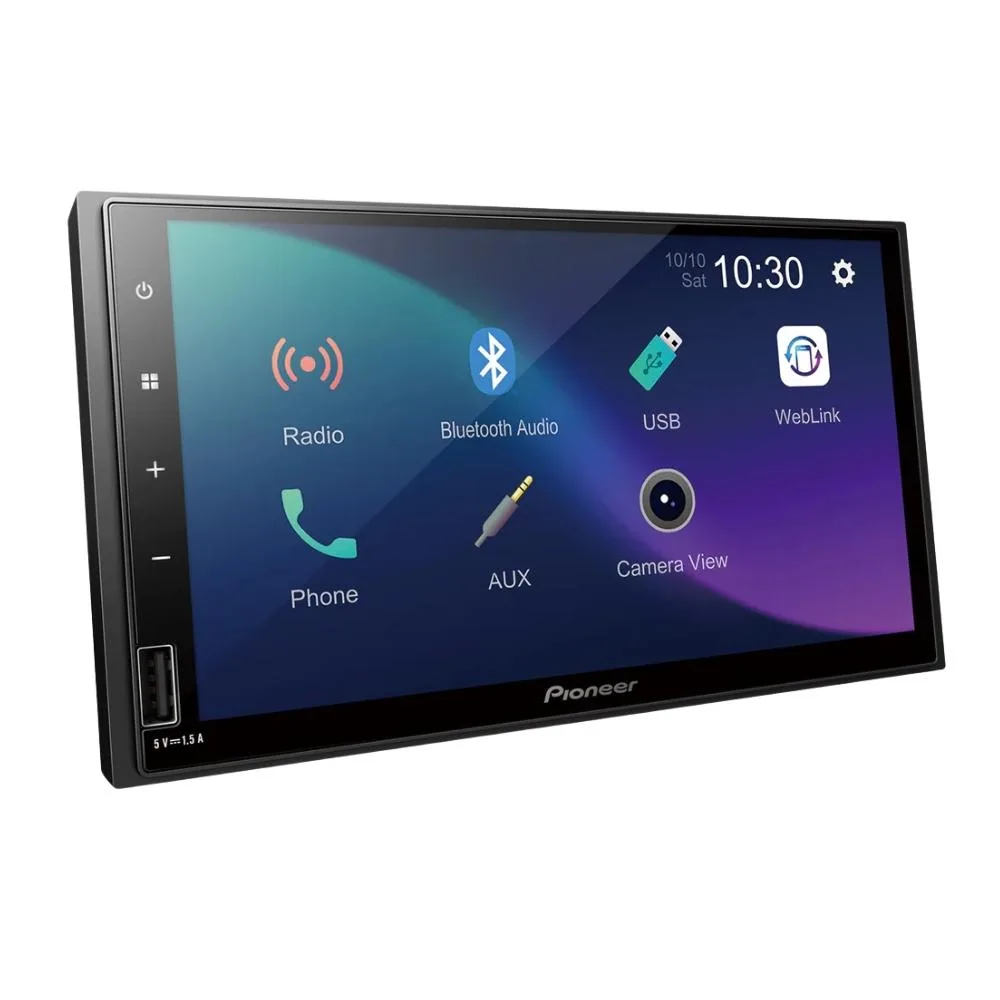

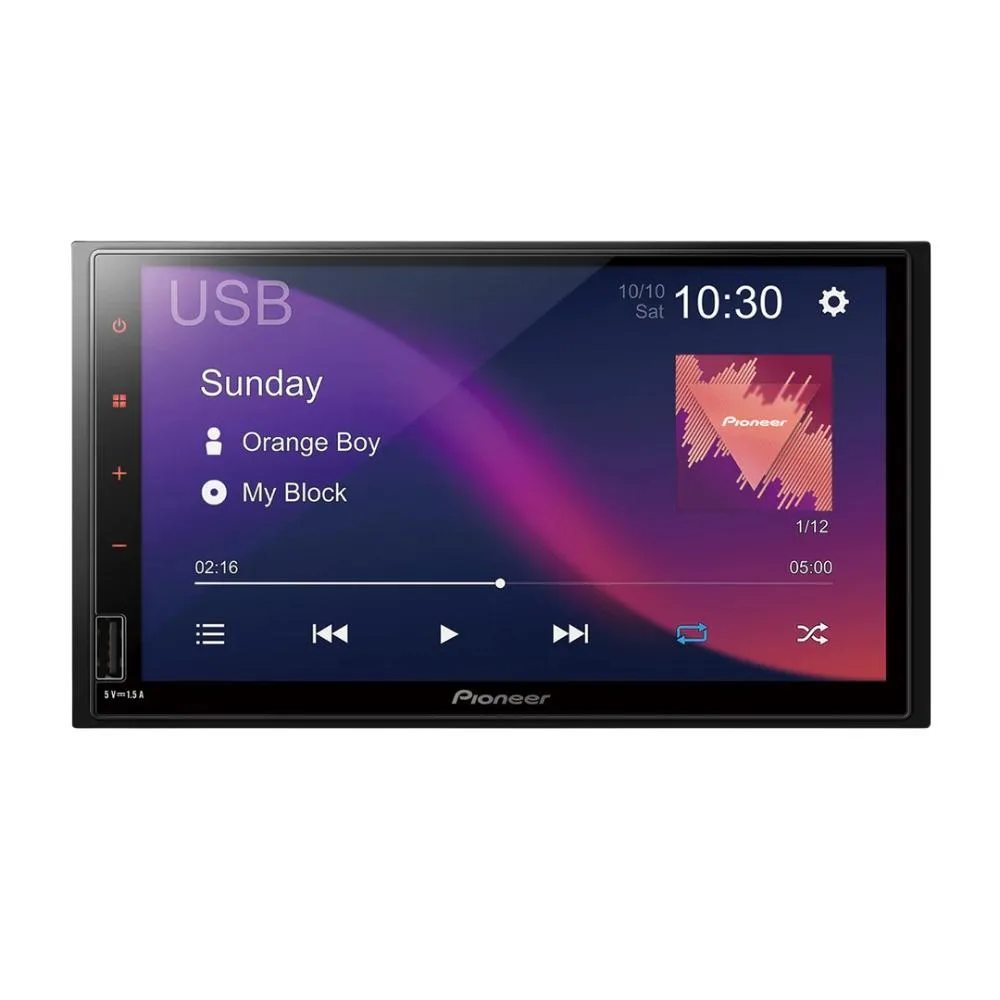

Pioneer DMH-470EX double-DIN head unit with 7-inch capacitive touchscreen

Pioneer

Pioneer DMH-470EX 7" Double-DIN Digital Media Receiver

SKU CH-W3A8-TKDB5

A 7" capacitive touchscreen digital media receiver with built-in Bluetooth, 13-band EQ, 24-bit DA converter and 22 W x 4-Ch continuous power

  • TypeMedia Receiver
  • Features7" capacitive touchscreen, LED backlight, multi-language dis
  • 7" capacitive touchscreen with LED backlight for clear, responsive control
  • Built-in Bluetooth with included microphone enables hands-free calls and wireless audio streaming
  • 22 W × 4 continuous power from built-in MOSFET amplifier drives speakers cleanly
  • 13-band EQ, 24-bit DAC and DSP with subwoofer control shape sound precisely
  • WebLink 2.0 integration plus USB front port with 1.5 A charging supports smartphone apps and iPhone 5s+ direct control

Double-DIN Media Receiver for Vehicle Upgrades

The Pioneer DMH-470EX is a 7-inch capacitive touchscreen receiver designed to replace a factory double-DIN head unit. It adds modern connectivity including Bluetooth hands-free calling, audio streaming, and WebLink 2.0 smartphone integration. The fixed-monitor chassis fits standard dash openings without motorised mechanisms. This unit suits drivers who want app access and camera support without a complex installation.

Installation Notes and Common Issues

The short 2-DIN chassis simplifies fitting behind the dash, and the fixed screen avoids moving parts that can jam. Steering-wheel controls require a separate vehicle-specific adapter, which is not included in the box. Firmware is upgradeable via USB to maintain compatibility with newer phones. Installers should verify dash depth and wiring harness compatibility before starting the job.

Interface and Power Limits

The built-in MOSFET amplifier delivers 22 watts by four channels continuous and 50 watts maximum per channel into four ohms. RMS power rated to CTA-2006 is 14 watts by four channels, which may not drive demanding aftermarket speakers to high volumes without an external amplifier. The 13-band EQ and 24-bit DA converter shape sound within those power limits. USB charging is limited to 5 volts at 1.5 amps.

Highlights

  • 7" capacitive touchscreen with LED backlight for clear, responsive control
  • Built-in Bluetooth with included microphone enables hands-free calls and wireless audio streaming
  • 22 W × 4 continuous power from built-in MOSFET amplifier drives speakers cleanly
  • 13-band EQ, 24-bit DAC and DSP with subwoofer control shape sound precisely
  • WebLink 2.0 integration plus USB front port with 1.5 A charging supports smartphone apps and iPhone 5s+ direct control

Specifications

BrandPioneer
TypeMedia Receiver
Features7" capacitive touchscreen, LED backlight, multi-language display

Questions about this item

How can I confirm the 22 W x 4-Ch continuous power is delivering clean sound after installation?

Use the built-in 13-band EQ and 24-bit DA converter to adjust each frequency; listen for distortion-free output at normal volume levels across all four channels.

Which accessories are included and which must be purchased separately for the DMH-470EX?

The box includes the receiver, a microphone for Bluetooth calls, and mounting hardware; a steering-wheel control adapter and backup camera are sold separately.

Should I choose the 22 W RMS or 50 W max version of this receiver?

This single model delivers both ratings — 22 W x 4-Ch continuous and 50 W x 4-Ch max — so no separate version choice is required.
