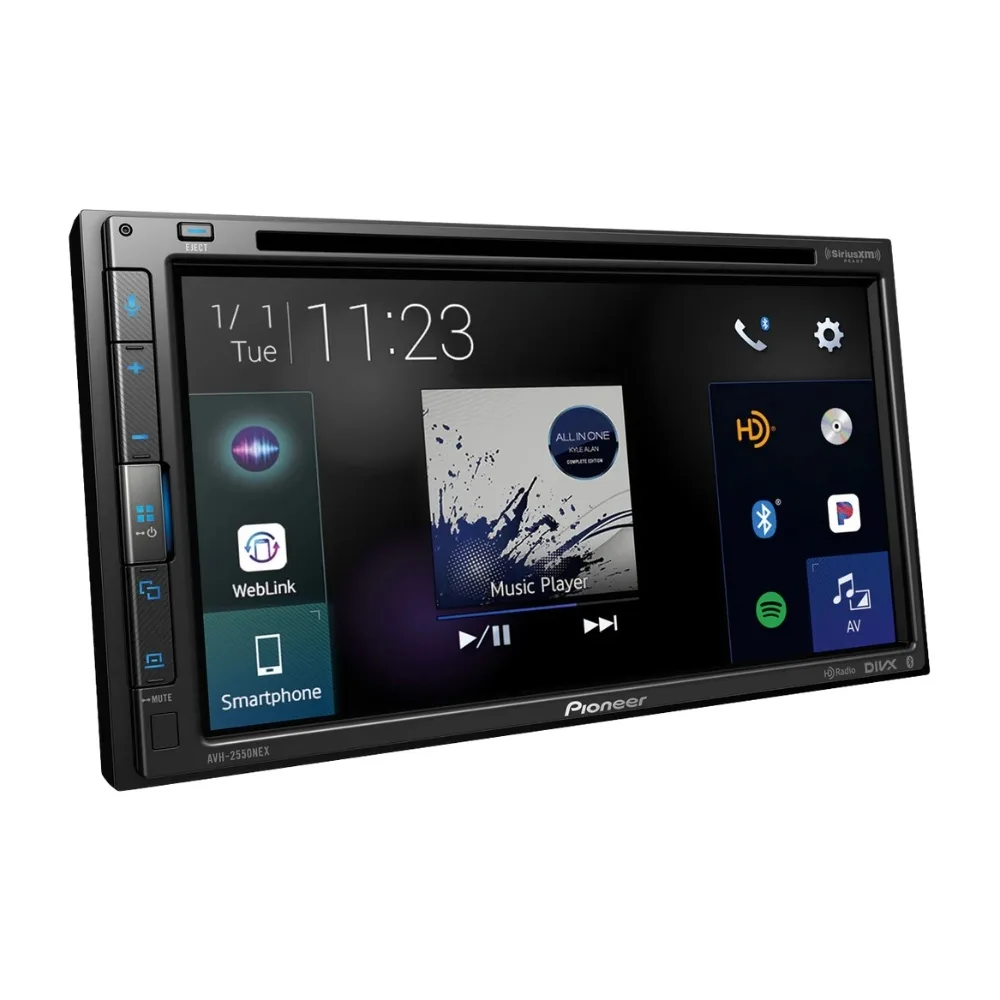

Pioneer AVH-2550NEX double-DIN head unit with 6.8 inch touchscreen and bullet camera

Pioneer

Pioneer AVH-2550NEX 6.8" Double-Din Receiver with Bullet Camera

SKU CH-3999-5WWY9

A 6.8" WXGA double-DIN receiver with wired CarPlay, Android Auto, HD and Satellite Radio, 22 W RMS four-channel power and an included bullet camera

  • TypeReceiver
  • Features6.8" WXGA display for clear and vibrant visuals
  • 8" WXGA display for clear and vibrant visuals
  • Double-Din chassis for easy installation in most vehicles

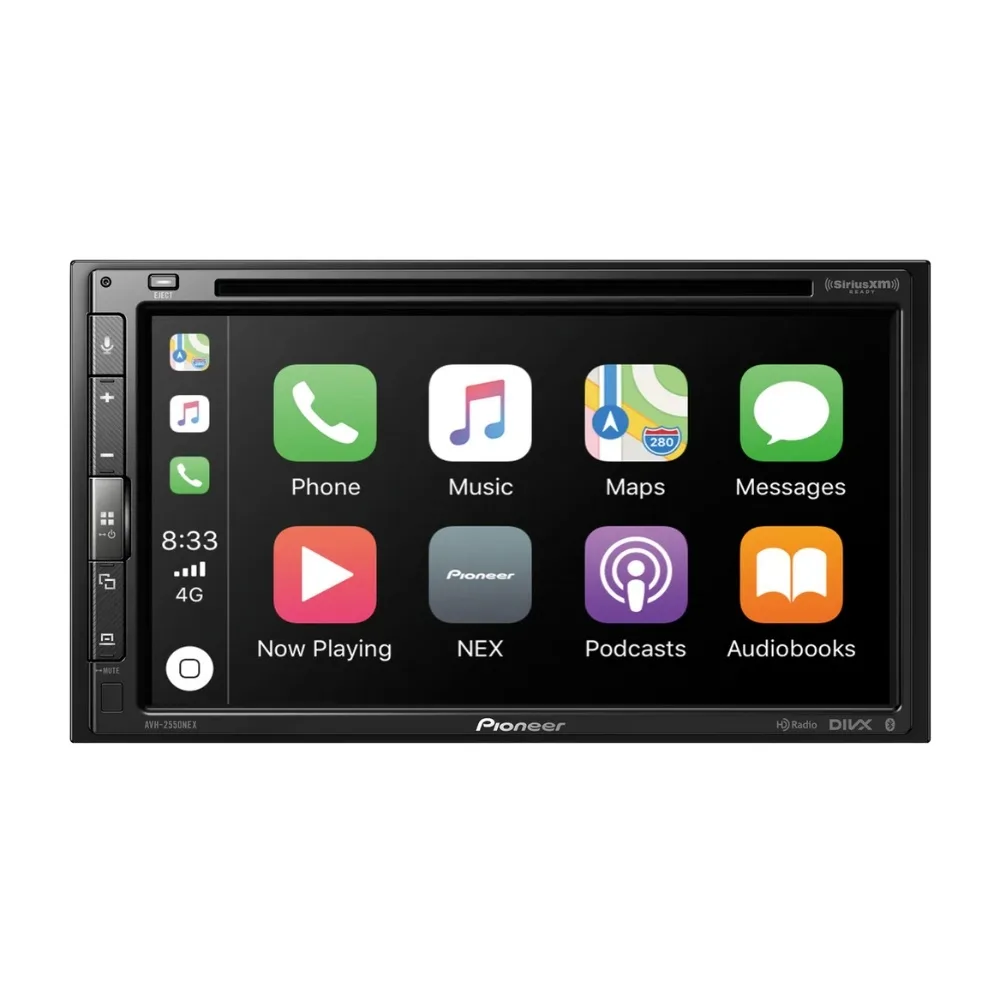

  • Compatible with CarPlay and Android Auto via wired connection
  • Bluetooth connectivity for hands-free calling and media streaming
  • 14W RMS x 4-ch continuous power output (CTA-2006)

Product overview

The Pioneer AVH-2550NEX is a 6.8" double-din multimedia receiver built for drivers who want wired CarPlay and Android Auto on a resistive touchscreen. It includes a bullet camera for rear-view assistance and supports HD Radio plus satellite radio. The unit delivers 14W RMS per channel and 22W continuous power across four channels.

Installation notes

The double-din chassis fits standard openings, but steering-wheel controls need a separate adapter that is not supplied. Wiring the 6 RCA preamp outputs and the camera feed takes time, so allow extra cable length behind the dash. The resistive screen responds to gloved fingers, yet the 800x480 resolution limits fine map detail compared with higher-density panels.

Compatibility checklist

Verify that your vehicle has a double-din aperture and that the factory wiring harness matches the receiver's connector pin-out. Confirm the 4V preout level suits your external amplifiers, and check whether the included microphone position works with your cabin layout. The unit requires a wired phone link for CarPlay or Android Auto; wireless projection is not supported.

Highlights

  • 8" WXGA display for clear and vibrant visuals
  • Double-Din chassis for easy installation in most vehicles
  • Compatible with CarPlay and Android Auto via wired connection
  • Bluetooth connectivity for hands-free calling and media streaming
  • 14W RMS x 4-ch continuous power output (CTA-2006)

Specifications

BrandPioneer
TypeReceiver
Features6.8" WXGA display for clear and vibrant visuals

Questions about this item

How can I verify the 6.8" WXGA touchscreen is functioning correctly after installation?

Power the unit and confirm the 800 x 480 resistive display lights up, then test touch response on the home-screen icons and check that CarPlay or Android Auto launches when a phone is connected via USB.

What accessories are included in the box and what must be purchased separately?

The package contains the double-din receiver, a bullet camera, a microphone, and mounting hardware; a steering-wheel-control adapter is not included and must be bought separately.

Which audio-output configuration should I choose between the built-in amplifier and the preamp outputs?

Use the internal 14 W RMS x 4 (CTA-2006) amplifier for direct speaker wiring, or connect external amplifiers to the six 4 V RCA preamp outputs for a more powerful system.
