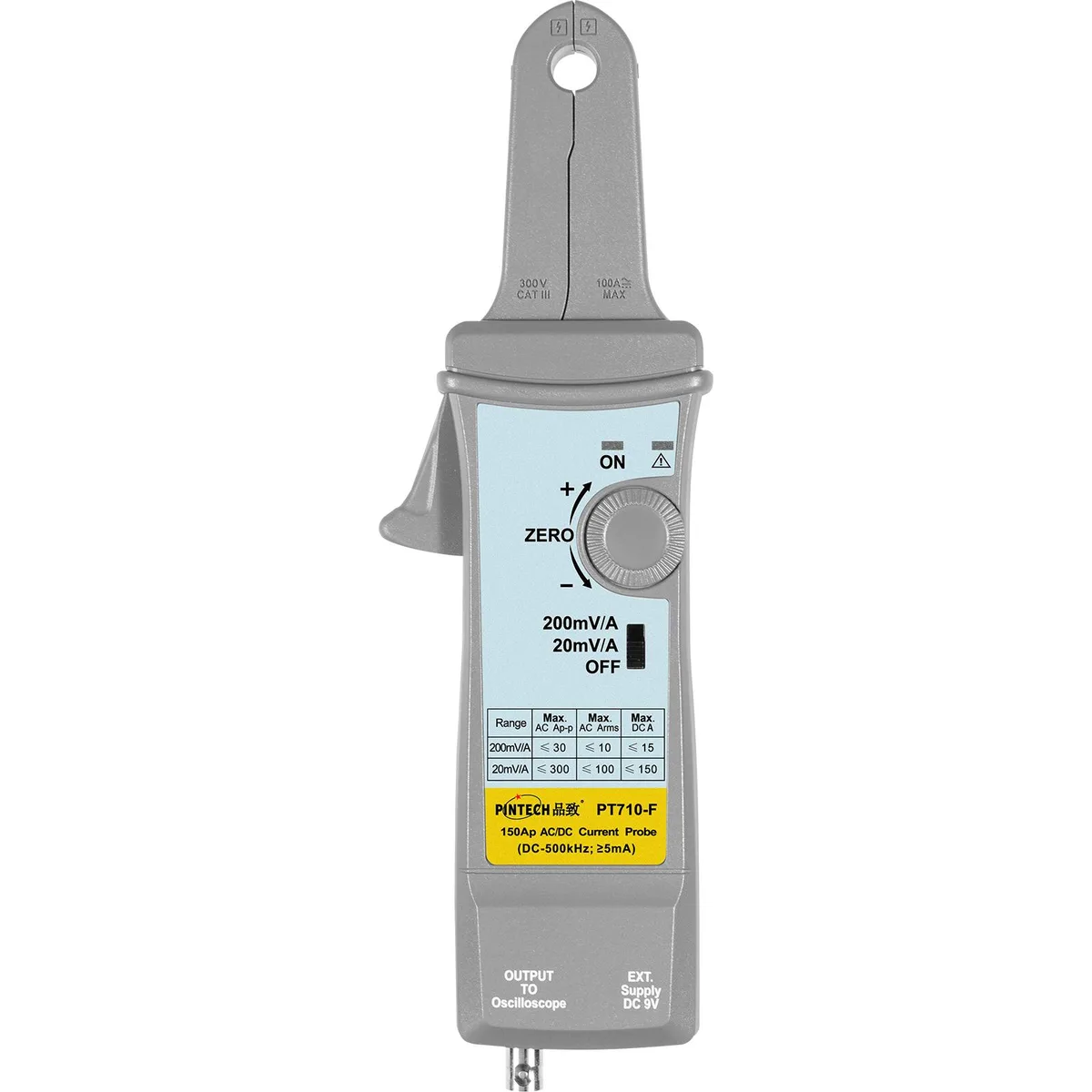

Grey rectangular current probe with hinged jaw and BNC cable, 280 by 70 by 32 mm

Pintech

Pintech PT710-F 300A 500kHz AC/DC current probe measurement tool

SKU CH-QJBS-S2FE7 MPN PT710-F

Measures AC up to 300A and DC up to 150A with 500kHz bandwidth and BNC output for oscilloscopes

  • Size/Dimensions280*70*32 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±3%
  • Standards/CertificationsCE
  • Measure AC up to 300A peak and DC up to 150A peak for high-power circuits
  • 500kHz bandwidth captures fast transients with 0.7s rise time
  • ±3% accuracy from 30mA to 15A peak at 200mV/A range
  • Standard BNC output plus multimeter adapter fits any oscilloscope or DMM
  • 11mm jaw opens for thick conductors while weighing only 260g

Measurement Scope

The Pintech PT710-F is a 300A AC/DC current probe built for engineers and technicians who need to capture waveforms on an oscilloscope. It measures AC peak-to-peak currents up to 300A and DC currents up to 150A with a 500kHz bandwidth and ±3% accuracy on the low range.

Build Integration

A standard BNC cable connects directly to any oscilloscope, while the included adapter allows multimeter use. The clamp opens to 11mm for conductors up to that diameter. Operation requires a 300V CAT III or 600V CAT II environment and the unit weighs 260g.

Upgrade Path

This model replaces the PT710-B with higher current capability and an overload display. The jump is worthwhile when measuring above the older unit's range or when the visual overload indicator prevents saturation. Buyers needing bandwidth beyond 500kHz or CAT IV ratings should look elsewhere.

Highlights

  • Measure AC up to 300A peak and DC up to 150A peak for high-power circuits
  • 500kHz bandwidth captures fast transients with 0.7s rise time
  • ±3% accuracy from 30mA to 15A peak at 200mV/A range
  • Standard BNC output plus multimeter adapter fits any oscilloscope or DMM
  • 11mm jaw opens for thick conductors while weighing only 260g

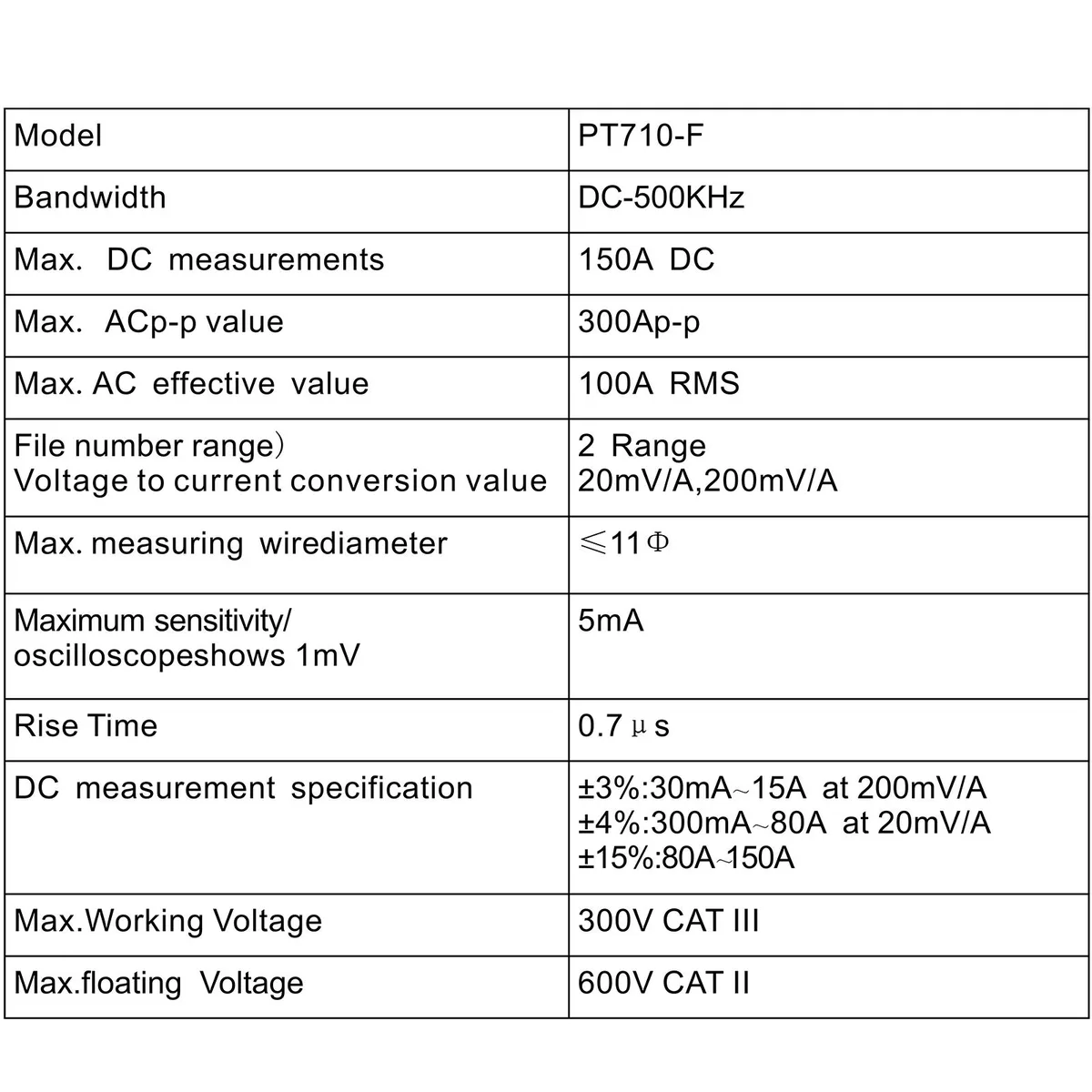

Specifications

BrandPINTECH
ModelPT710-F
Size/Dimensions280*70*32 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±3%
Standards/CertificationsCE

Questions about this item

How much current can the PT710-F measure continuously before the 300 V CAT III limit applies?

The probe handles up to 100 A RMS AC or 150 A DC while staying within the 300 V CAT III rating.

What heat or noise should I expect if I leave the PT710-F clamped on a live conductor all day?

The probe has no fan or active cooling; it runs silently and stays at ambient temperature during continuous use.

Which oscilloscope input do I need to connect the PT710-F's BNC cable?

Any oscilloscope with a standard BNC connector works; the probe includes a BNC cable and a multimeter adapter for 4 mm banana sockets.
