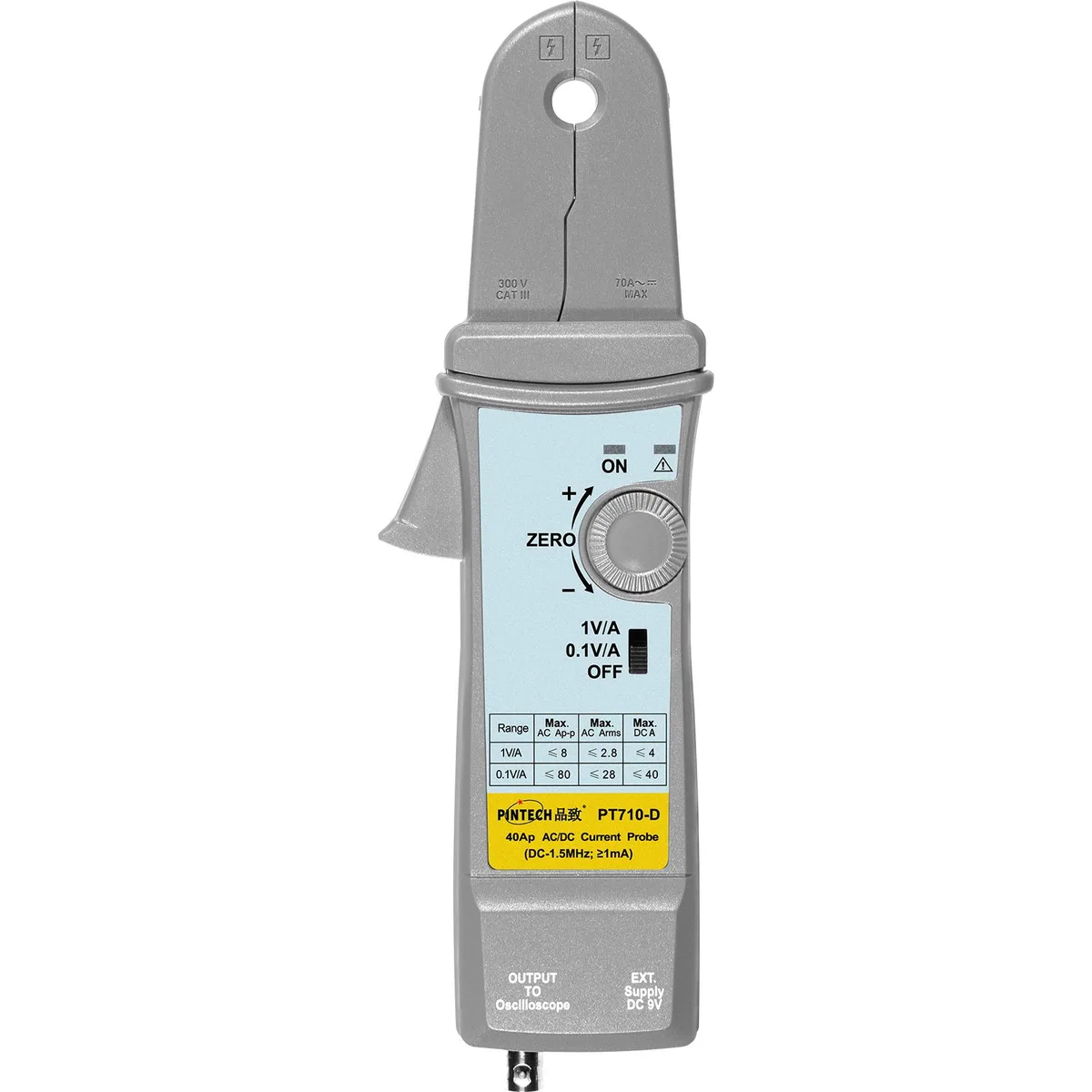

Handheld dark grey current probe with hinged jaw and BNC cable attached

Pintech

Pintech PT710-D Current Probe 1.5MHz 10mA-80A BNC measurement tool

SKU CH-1SCV-4S6XJ MPN PT710-D

Measures AC current up to 80 A and DC current up to 4 A with 1.5 MHz bandwidth and ±3 % accuracy via BNC connector

  • Size/Dimensions262*81*36 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±3%
  • Standards/CertificationsCE
  • Measures AC up to 80A and DC up to 40A for versatile current analysis
  • 5MHz bandwidth captures fast transients with 0.23s rise time
  • ±3% accuracy from 10mA to 4A peak ensures reliable readings
  • Standard BNC connector plus multimeter adapter fits all oscilloscopes
  • Jaw opens to 10.3mm for conductors up to 300V CAT III

Current probe for oscilloscopes and multimeters

The PT710-D is a split-core current probe with a BNC connector for oscilloscopes and a supplied adapter for multimeters. It measures AC currents up to 80A peak-to-peak and DC currents up to 40A peak. The tool targets technicians who need non-invasive current waveform capture on conductors up to 10.3mm diameter.

Bandwidth and range selection define suitability

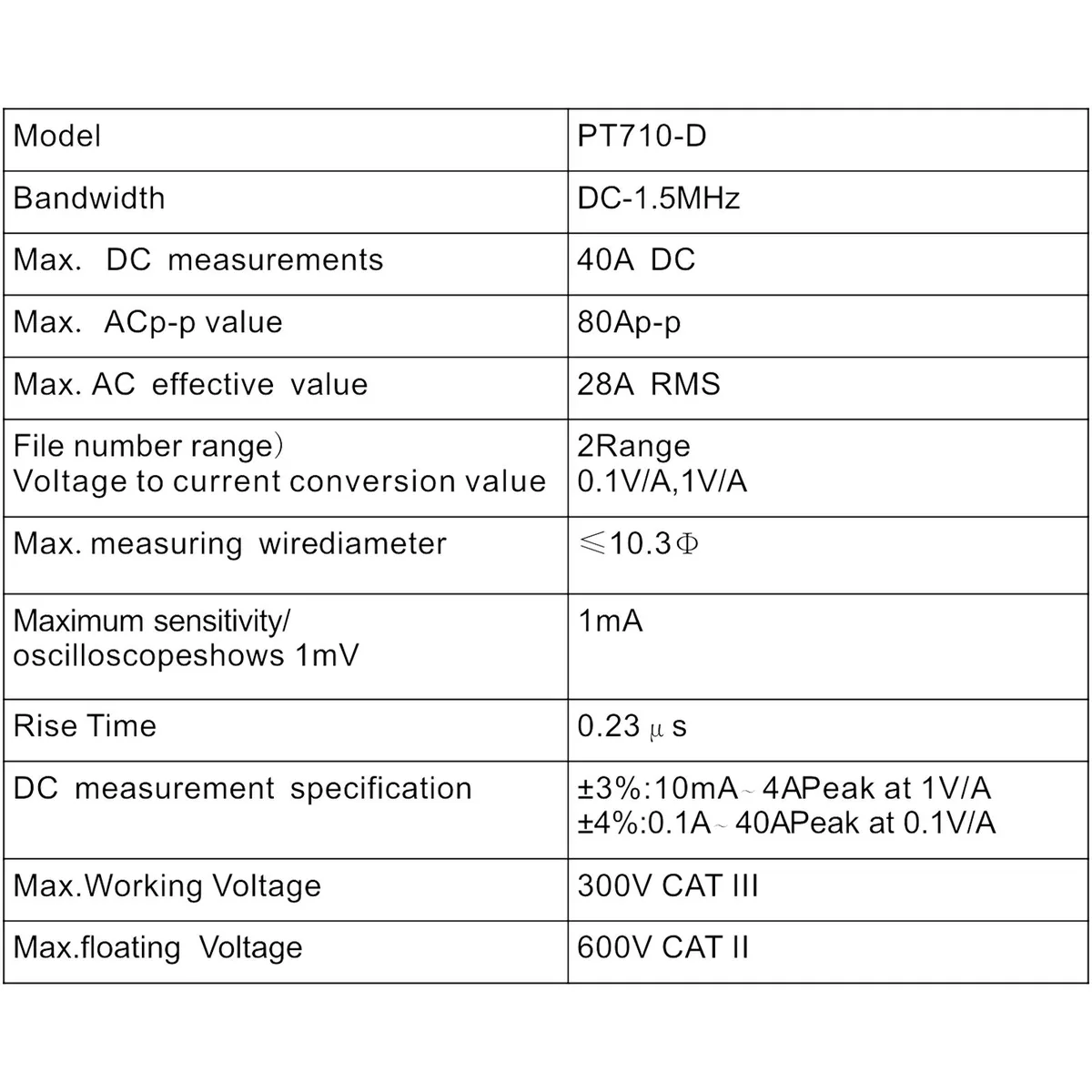

The probe operates from DC to 1.5MHz with two switchable conversion ratios of 0.1V/A and 1V/A. Accuracy is ±3% from 10mA to 4A peak at the 1V/A setting and ±4% from 0.1A to 40A peak at the 0.1V/A setting. Maximum working voltage is 300V CAT III with a 600V CAT II floating rating.

Split-core jaws simplify conductor access

The hinged jaw opens to clamp around live wires without breaking the circuit, and the 262 x 81 x 36 mm body weighs 260g for handheld use. A 0.23s rise time limits the probe to lower-frequency transients. Users must select the correct range gear to avoid saturation or excessive noise on small signals.

Highlights

  • Measures AC up to 80A and DC up to 40A for versatile current analysis
  • 5MHz bandwidth captures fast transients with 0.23s rise time
  • ±3% accuracy from 10mA to 4A peak ensures reliable readings
  • Standard BNC connector plus multimeter adapter fits all oscilloscopes
  • Jaw opens to 10.3mm for conductors up to 300V CAT III

Specifications

BrandPINTECH
ModelPT710-D
Size/Dimensions262*81*36 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±3%
Standards/CertificationsCE

Questions about this item

How does the 1.5 MHz bandwidth translate when I connect the probe to my oscilloscope?

The probe passes signals from DC up to 1.5 MHz, so any current waveform within that range appears on the scope with its true shape and rise time.

What does the standard BNC connector mean for compatibility and maximum signal level?

The BNC output plugs directly into any oscilloscope input; the probe delivers up to 1 V per ampere on the 10 mA–4 A range and 0.1 V per ampere on the 0.1 A–40 A range.

What is the largest conductor the clamp jaws can fit around?

The maximum measurable wire diameter is 10.3 mm, allowing the split-core jaws to close on typical automotive and industrial cables.
