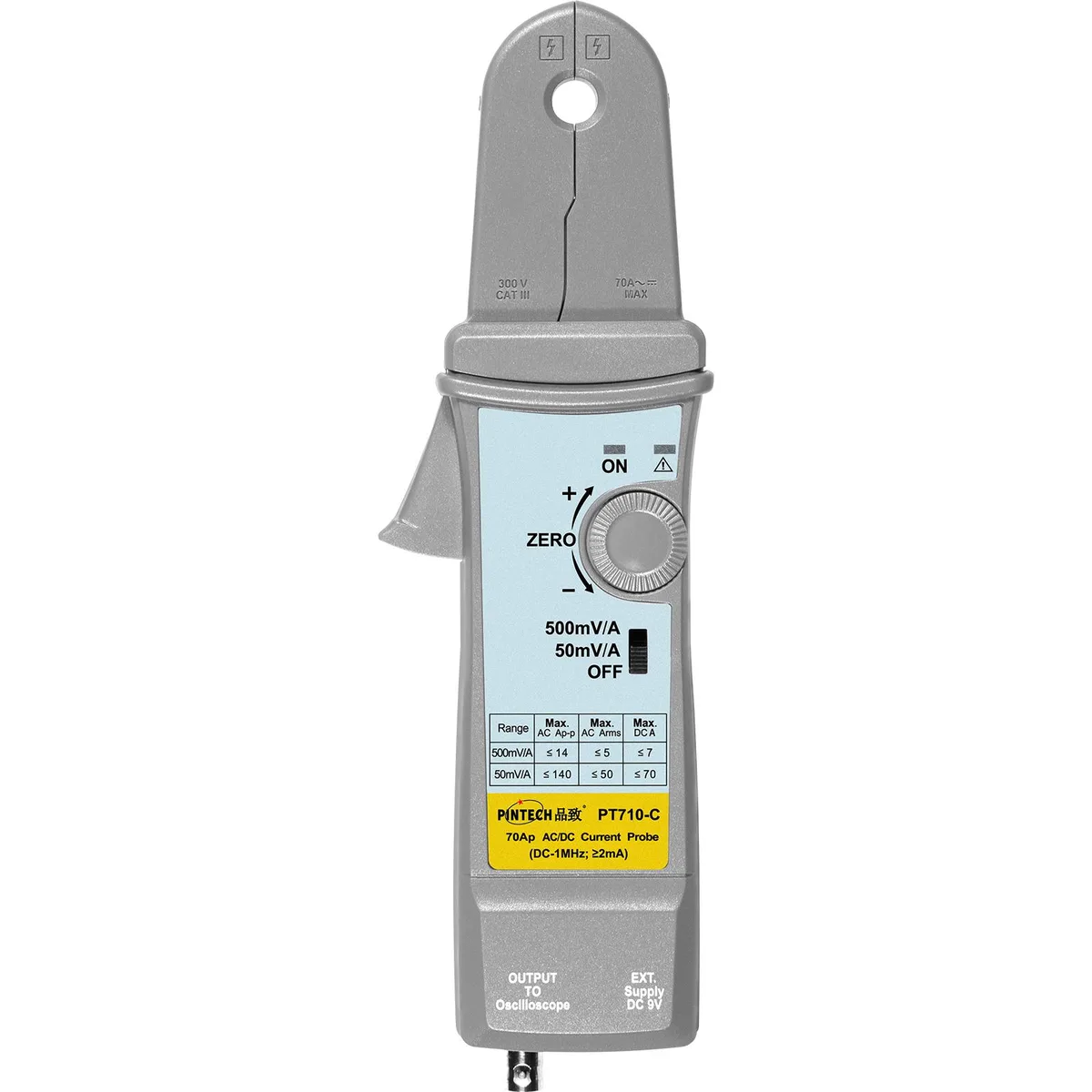

Grey current probe with split jaws BNC cable and adapter 262x81x36mm

Pintech

Pintech PT710-C AC/DC Current Probe 1MHz 20mA-140A BNC measurement tool

SKU CH-HCDM-K0BXV MPN PT710-C

AC/DC current probe measures up to 140 A peak AC or 70 A DC with 1 MHz bandwidth and BNC output for oscilloscopes or multimeters

  • Size/Dimensions262*81*36 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±3%
  • Standards/CertificationsCE
  • Measures AC up to 140 A peak and DC up to 70 A
  • DC-to-1 MHz bandwidth captures fast transients with 0.35 µs rise time
  • ±3 % accuracy on 20 mA–14 A range at 500 mV/A sensitivity
  • Standard BNC output plus multimeter adapter fits any oscilloscope or DMM
  • Compact split-core 262 × 81 × 36 mm, 260 g, CAT III 300 V safety

Current probe for oscilloscopes and multimeters

The PT710-C is a BNC current probe that measures AC up to 140A peak and DC up to 70A with 1MHz bandwidth. It offers two switchable ranges at 500mV/A and 50mV/A, a maximum sensitivity of 2mA and ±3% accuracy on the low range. The split-jaw design accepts conductors up to 10.3mm and is rated for 300V CAT III and 600V CAT II.

Suited for engineers needing wide dynamic range

Users who must capture both milliamp-level signals and higher currents up to 140A peak on a standard oscilloscope will benefit from the dual-range output and BNC compatibility. The probe is not for applications requiring measurement beyond 70A DC or 140A AC peak, nor for voltages above the 300V CAT III rating.

Simple connection with split-jaw access

The probe clamps around a conductor without breaking the circuit, connects via BNC to any oscilloscope and includes an adapter for multimeter use. Common issues include exceeding the 10.3mm jaw limit, selecting the wrong range for the expected current level, or applying voltage beyond the CAT III 300V rating.

Highlights

  • Measures AC up to 140 A peak and DC up to 70 A
  • DC-to-1 MHz bandwidth captures fast transients with 0.35 µs rise time
  • ±3 % accuracy on 20 mA–14 A range at 500 mV/A sensitivity
  • Standard BNC output plus multimeter adapter fits any oscilloscope or DMM
  • Compact split-core 262 × 81 × 36 mm, 260 g, CAT III 300 V safety

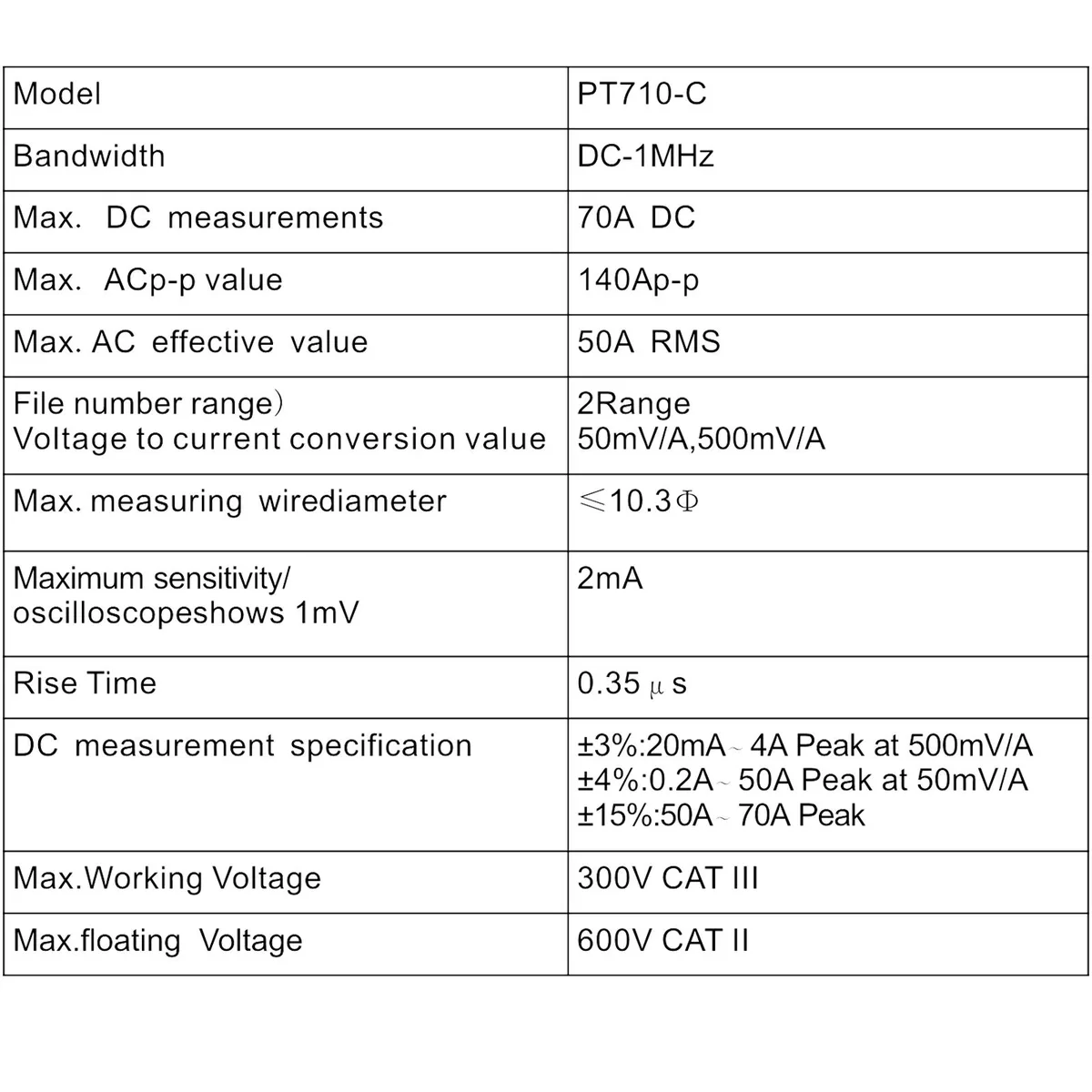

Specifications

BrandPINTECH
ModelPT710-C
Size/Dimensions262*81*36 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±3%
Standards/CertificationsCE

Questions about this item

What oscilloscope input does the PT710-C's standard BNC connector require?

The PT710-C connects to any oscilloscope with a standard BNC input and provides two voltage-output ranges of 500mV/A and 50mV/A for the scope to measure.

Can I use the PT710-C with a multimeter instead of an oscilloscope?

Yes, the package includes an adapter that lets you plug the probe's BNC output into a multimeter's voltage jacks for AC/DC current readings.

How do I verify the PT710-C is measuring correctly after connecting it?

Apply a known current within the 20mA to 140A peak range and confirm the oscilloscope or multimeter shows the expected voltage at the selected 500mV/A or 50mV/A conversion ratio.
