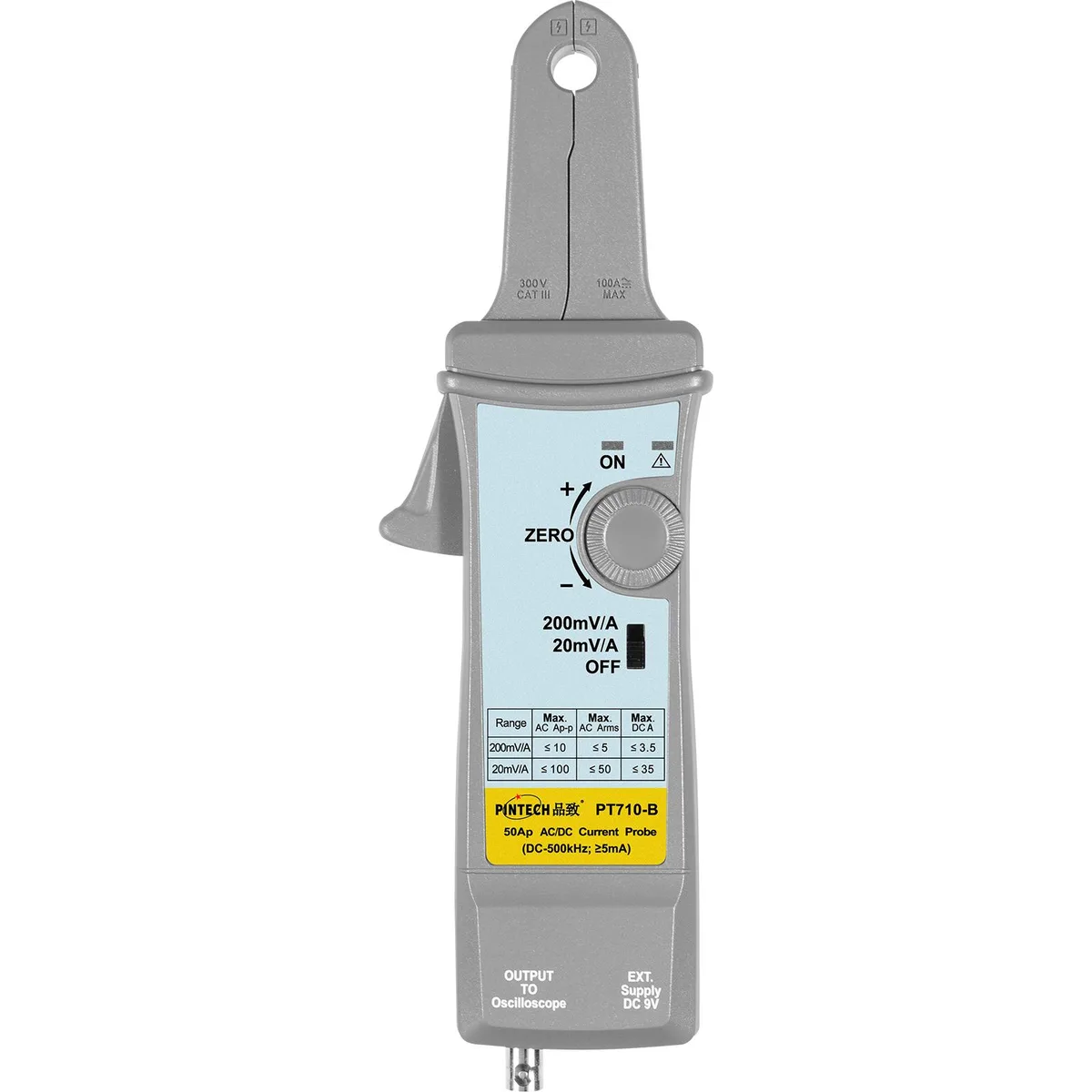

Grey handheld current probe with split jaw, BNC cable and adapter, 280 x 70 x 32 mm

Pintech

Pintech PT710-B AC/DC current probe 100Ap-p 500kHz BNC measurement tool

SKU CH-5ESM-QBCXT MPN PT710-B

AC/DC current probe measures up to 100 A peak AC and 50 A DC with 500 kHz bandwidth, BNC output and ±3 % accuracy

  • Size/Dimensions280*70*32 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±3%
  • Standards/CertificationsCE
  • Measures AC peaks to 100 A and DC to 50 A for high-current circuits
  • Bandwidth reaches 500 kHz capturing fast transients
  • Standard BNC output plus multimeter adapter fits any oscilloscope
  • Split-jaw design opens to 11 mm for quick wire access
  • Accuracy within ±3 % on the 200 mV/A range for reliable readings

AC/DC current probe for oscilloscopes

The Pintech PT710-B measures AC current up to 100A peak-to-peak and DC current up to 50A. It connects to any oscilloscope through a standard BNC connector and includes an adapter for multimeter use. Bandwidth reaches 500kHz with a maximum sensitivity of 5mA. The split-jaw design accepts conductors up to 11mm in diameter.

Suited for bench and field current checks

Technicians who need to view current waveforms on an oscilloscope or take quick clamp readings with a multimeter will find the dual-range output of 20mV/A and 200mV/A convenient. The probe is rated for 300V CAT III and 600V CAT II working voltages. Users requiring measurements above 50A DC or 100A AC peak, or bandwidth beyond 500kHz, should look at higher-rated probes.

11 mm maximum conductor diameter

The split-core jaw opens to accommodate wires up to 11mm across, which determines whether a given cable or bus-bar fits without disconnection. Accuracy is ±3% from 30mA to 5A peak on the 200mV/A range and ±4% from 300mA to 20A peak on the 20mV/A range.

Highlights

  • Measures AC peaks to 100 A and DC to 50 A for high-current circuits
  • Bandwidth reaches 500 kHz capturing fast transients
  • Standard BNC output plus multimeter adapter fits any oscilloscope
  • Split-jaw design opens to 11 mm for quick wire access
  • Accuracy within ±3 % on the 200 mV/A range for reliable readings

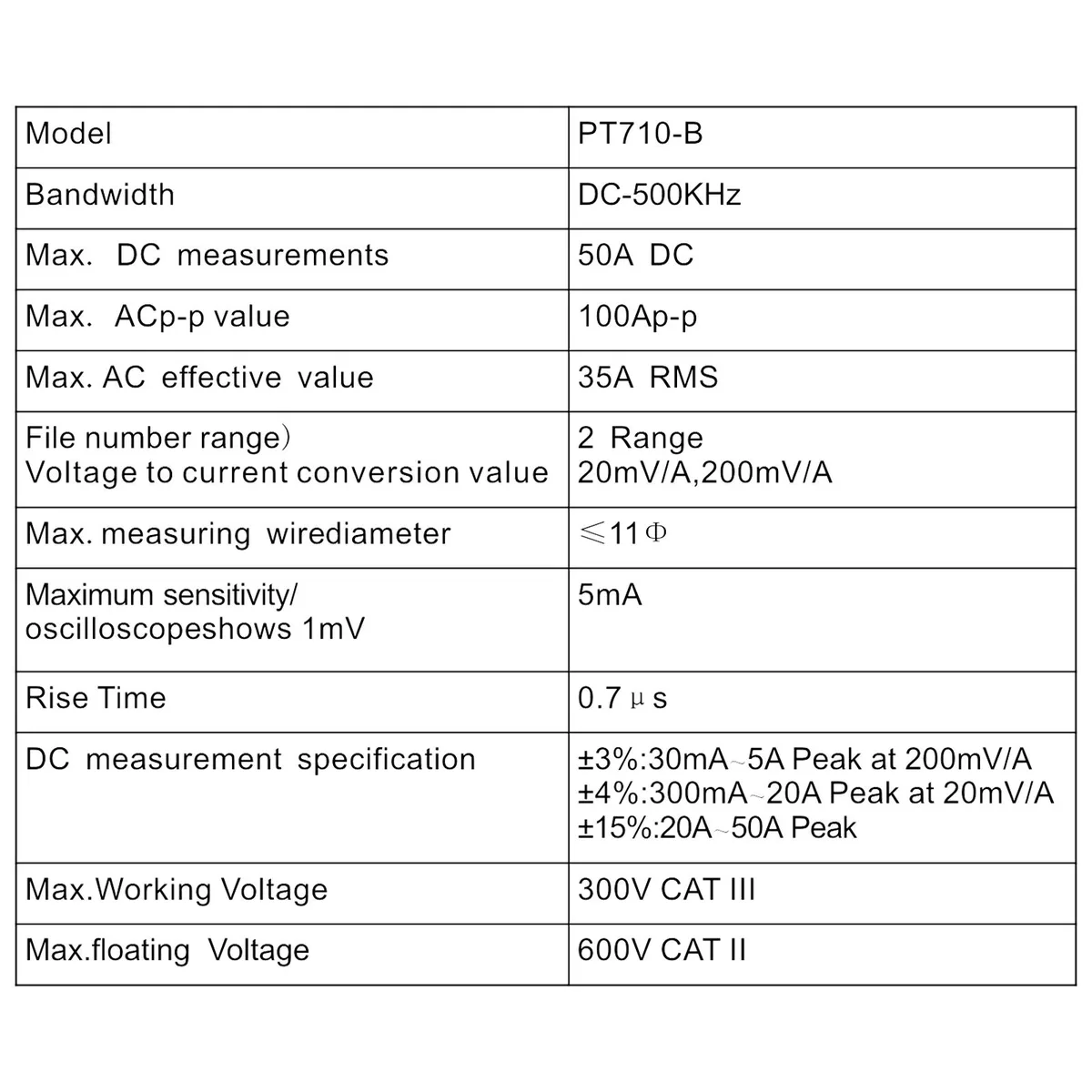

Specifications

BrandPINTECH
ModelPT710-B
Size/Dimensions280*70*32 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±3%
Standards/CertificationsCE

Questions about this item

What is the maximum conductor diameter that fits inside the 11 mm jaw opening?

The split-core jaws accept wires up to 11 mm in diameter, so any insulated conductor smaller than that will clamp cleanly.

How do I select the correct 20 mV/A or 200 mV/A range before clamping the probe?

Set the range switch on the probe body to match the expected current, then connect the BNC to the oscilloscope and zero the offset before clamping.

When should the 9 V battery inside the probe be replaced?

Replace the battery when the low-battery indicator lights or the output drifts beyond the stated accuracy limits.
