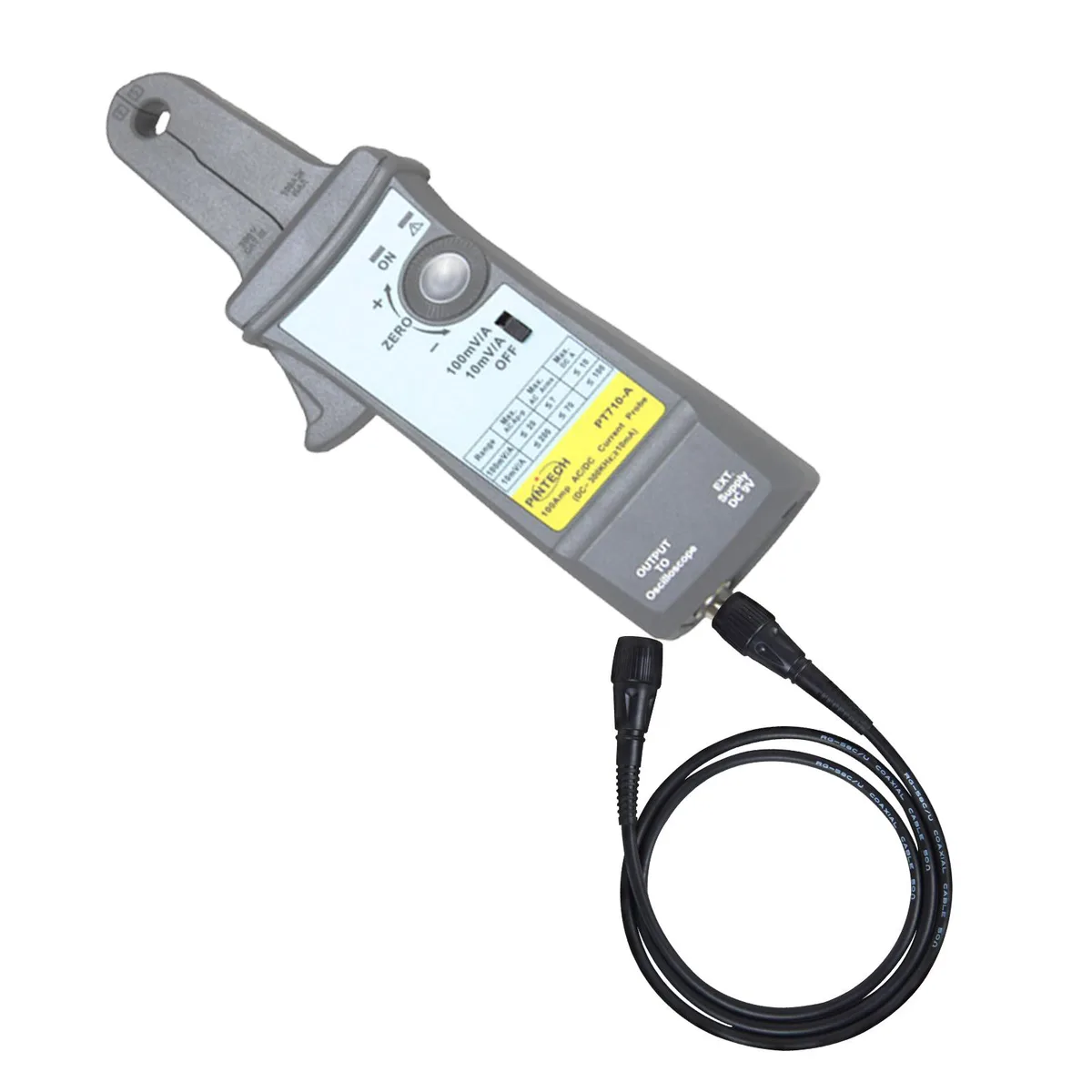

Black handheld current probe with split jaw and BNC cable

Pintech

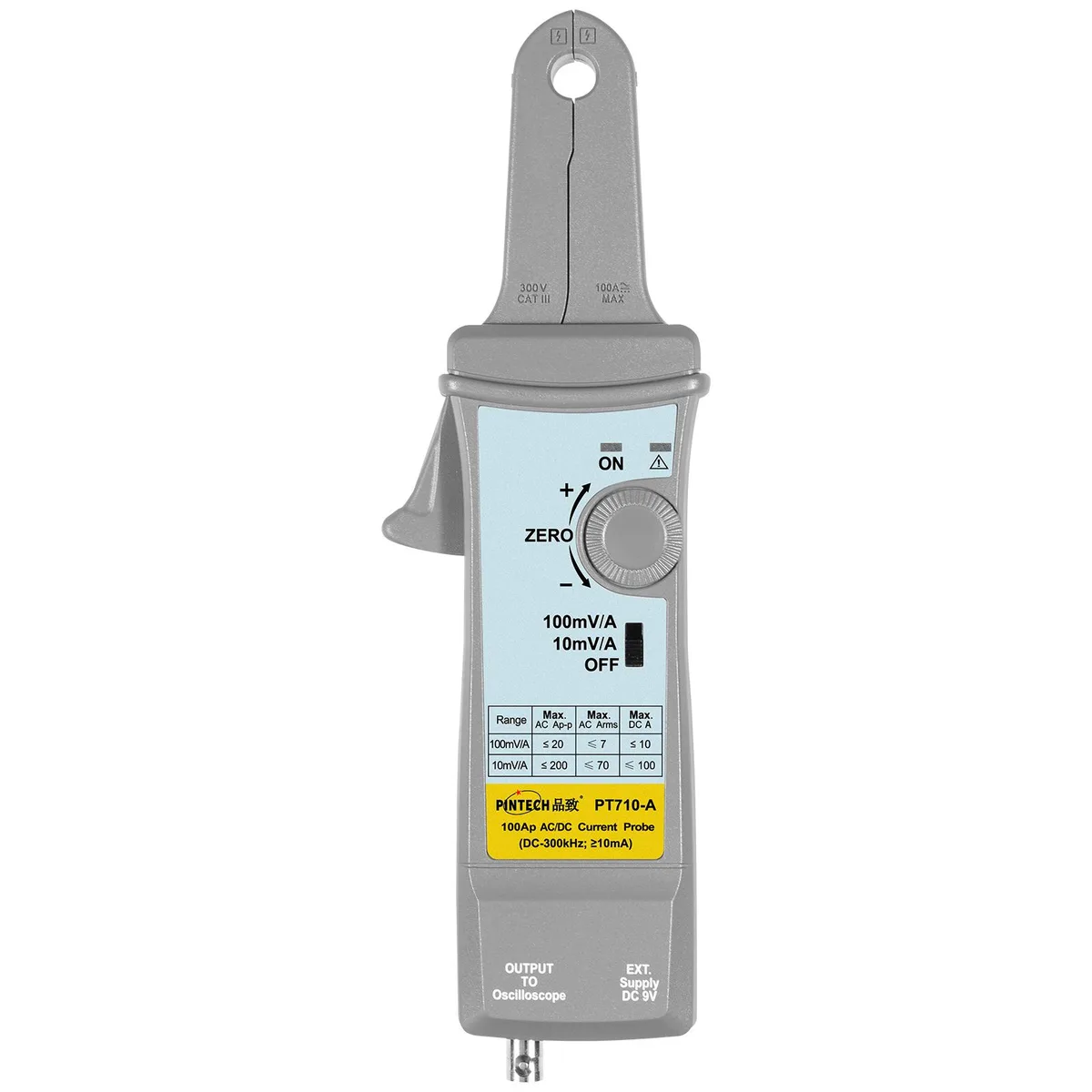

Pintech PT710-A 200A AC/DC current probe 300kHz measurement tool

SKU CH-2MBY-VZPET MPN PT710-A

Measures AC up to 200A and DC up to 100A with 300kHz bandwidth and BNC output

  • Size/Dimensions280*70*32 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±3%
  • Standards/CertificationsCE
  • Measures AC up to 200 A peak and DC up to 100 A
  • Bandwidth from DC to 300 kHz for fast signals
  • Standard BNC output fits any oscilloscope plus multimeter adapter
  • Split jaw opens to 11 mm for quick wire access
  • ±3 % accuracy from 50 mA to 10 A at 100 mV/A

200A AC/DC current probe for oscilloscopes

The Pintech PT710-A is a new test and measurement tool that measures AC currents up to 200A peak-to-peak and DC currents up to 100A. It connects to any oscilloscope via a standard BNC interface and includes an adapter for multimeter use. Bandwidth reaches 300kHz with a maximum sensitivity of 10mA.

Suits technicians measuring mixed AC/DC currents

This probe serves engineers and technicians who need to capture both AC and DC waveforms on an oscilloscope or multimeter. The split-core design allows quick clamping on conductors up to 11mm diameter. Buyers who require measurements above 200A peak or bandwidth beyond 300kHz should consider a different instrument.

300kHz bandwidth defines the measurable signal speed

The single specification that decides fit is the 300kHz bandwidth (-3dB), which sets the highest frequency component the probe can accurately reproduce. Rise time is specified at 1.2s. Accuracy varies by range: ±3% from 50mA to 10A at 100mV/A, ±4% from 500mA to 40A at 10mV/A, and ±15% from 40A to 100A at 10mV/A. Maximum working voltage is 300V CAT III.

Highlights

  • Measures AC up to 200 A peak and DC up to 100 A
  • Bandwidth from DC to 300 kHz for fast signals
  • Standard BNC output fits any oscilloscope plus multimeter adapter
  • Split jaw opens to 11 mm for quick wire access
  • ±3 % accuracy from 50 mA to 10 A at 100 mV/A

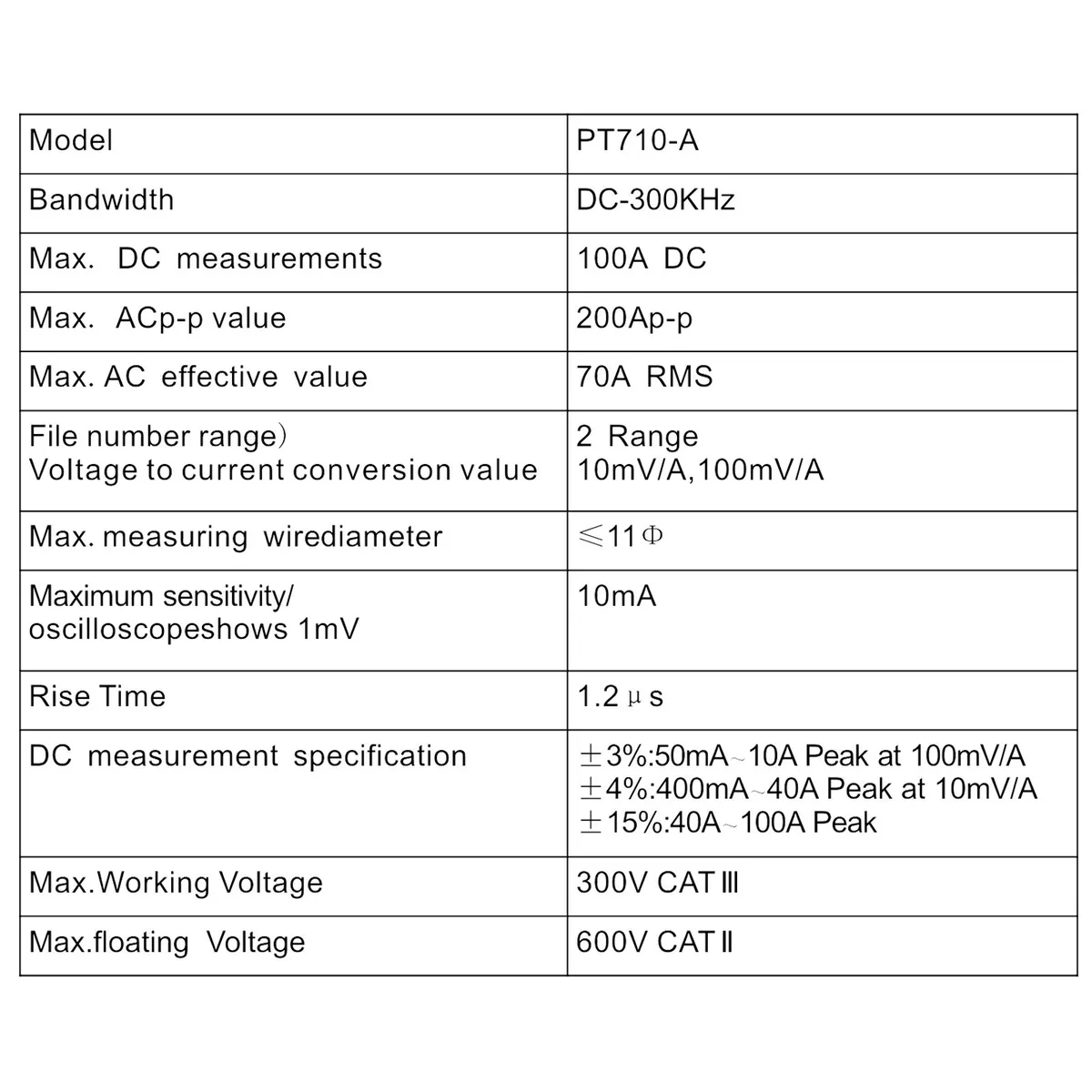

Specifications

BrandPINTECH
ModelPT710-A
Size/Dimensions280*70*32 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±3%
Standards/CertificationsCE

Questions about this item

How do I verify the PT710-A is measuring correctly after connecting it to my oscilloscope?

Apply a known DC current up to 100 A or AC up to 200 A peak; the probe should output 10 mV/A or 100 mV/A with accuracy of ±3 % from 50 mA to 10 A at the 100 mV/A range.

What comes in the box and what must I supply separately?

The package includes the PT710-A probe, one BNC cable, one multimeter adapter, one additional adapter and a manual; you must provide an oscilloscope or multimeter with a BNC input.

Which range setting — 10 mV/A or 100 mV/A — should I select for my measurement?

Use 100 mV/A for currents between 50 mA and 10 A peak for ±3 % accuracy; switch to 10 mV/A for higher currents up to 100 A DC or 200 A AC peak, accepting wider tolerances above 40 A.
