White rectangular handheld probe body with BNC connector and two hook tips, 187 by 83 by 41 mm

Pintech

Pintech PT-8110 differential probe 100MHz 100X/1000X 1400V measurement tool

SKU CH-59RR-FCTAW MPN PT-8110

Measures differential signals up to 1400 V with 100 MHz bandwidth and selectable 100X or 1000X attenuation

  • Size/Dimensions187*83*41 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • Standards/CertificationsCE
  • Measures up to 1400 V peak-to-peak at 1000X attenuation
  • 100 MHz bandwidth at 1000X for fast signal capture
  • 5 ns rise time resolves rapid transients
  • >80 dB CMRR at 60 Hz rejects common-mode noise
  • BNC interface works with any oscilloscope input

High-voltage differential probe for oscilloscopes

The Pintech PT-8110 converts two-point signals to ground-referenced outputs for oscilloscopes, meters and data-acquisition gear. It covers DC to 100 MHz at 1000X attenuation and DC to 50 MHz at 100X attenuation with a 3.5 ns rise time. Typical accuracy is ±2%.

Thermals noise and power draw

The probe operates from the oscilloscope supply and adds no fan noise or significant heat to the bench. Input impedance is 8 MΩ // 0.59 pF differentially and 4 MΩ // 1.18 pF single-ended. Common-mode rejection exceeds 80 dB at 60 Hz and 50 dB at 100 kHz.

Bundled adapter and hooks

A BNC adapter connects the probe to any oscilloscope with a standard BNC input. Two probe hooks attach to component leads for hands-free measurement. The printed manual explains attenuation selection and voltage limits.

Highlights

  • Measures up to 1400 V peak-to-peak at 1000X attenuation
  • 100 MHz bandwidth at 1000X for fast signal capture
  • 5 ns rise time resolves rapid transients
  • >80 dB CMRR at 60 Hz rejects common-mode noise
  • BNC interface works with any oscilloscope input

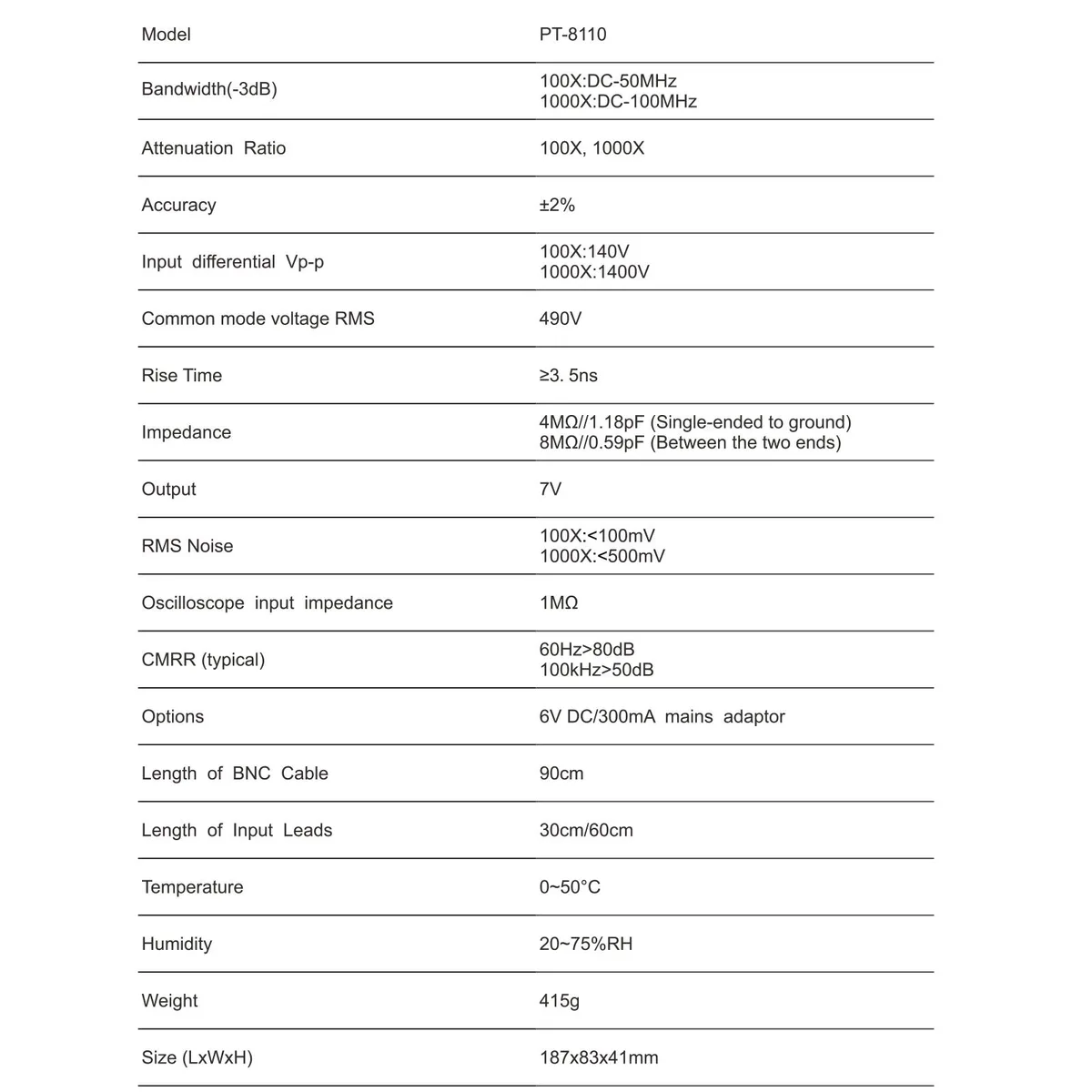

Specifications

BrandPINTECH
ModelPT-8110
Size/Dimensions187*83*41 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%
Standards/CertificationsCE

Questions about this item

How do I connect the PT-8110 probe to my oscilloscope, and what setting do people forget?

Plug the BNC connector into any oscilloscope with a 1 M input impedance, then slide the switch to 100X or 1000X to match the expected voltage range; forgetting to match the attenuation setting is the common error.

Which parts of the PT-8110 will need replacement after extended use?

The two probe hooks and the supplied adapter are the only consumable accessories; the probe body itself has no user-replaceable modules.

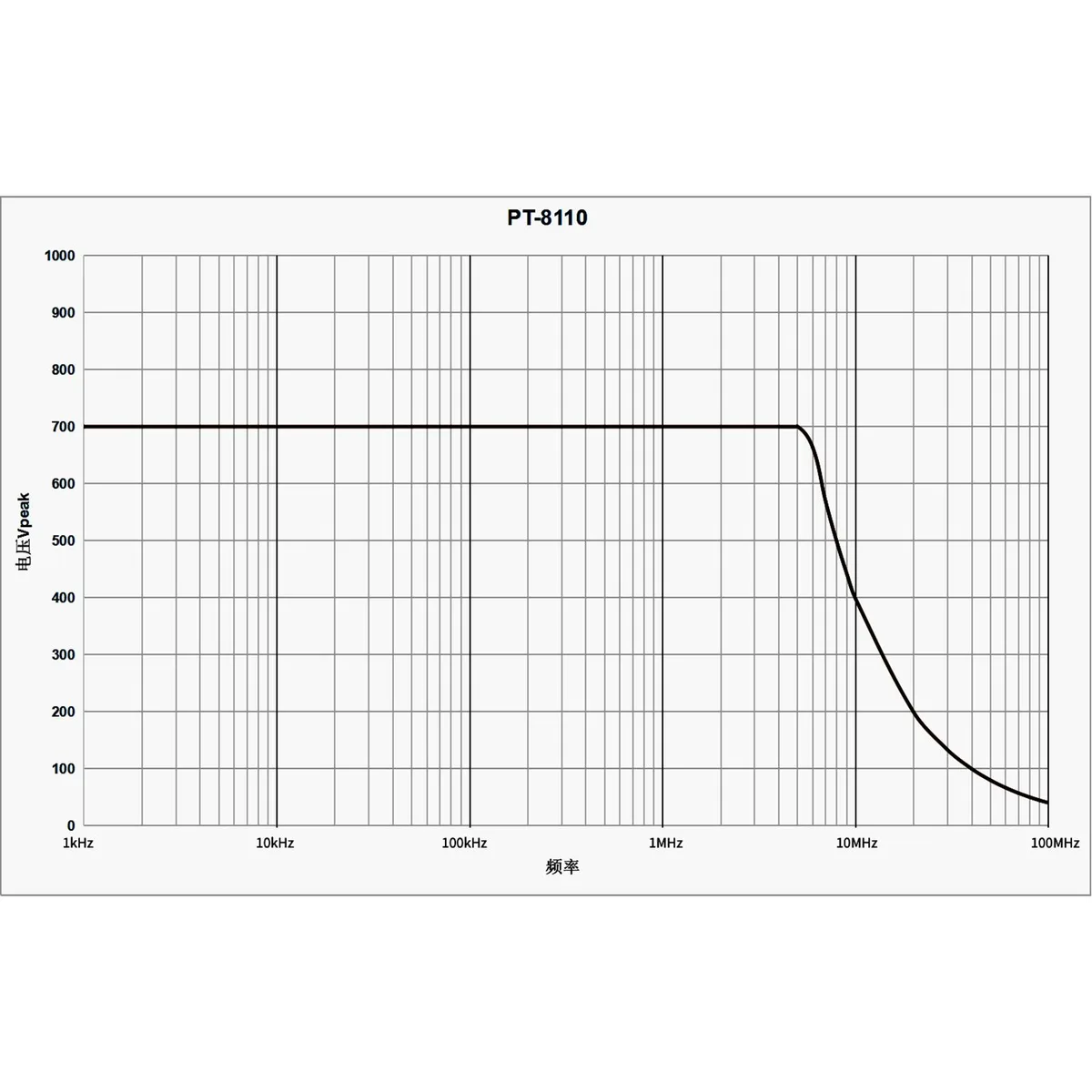

At what voltage does the PT-8110 hit its measurement ceiling during long captures?

The common-mode RMS limit is 490 V, and the single-ended DC limits are 70 V at 100X or 700 V at 1000X; exceeding any of these first will clip the signal.
