Pintech PT-8101 100MHz 700V differential measurement tool

SKU CH-2BGQ-KS60M MPN PT-8101

A 100 MHz differential probe with selectable 10X or 100X attenuation measures up to 700 V peak-to-peak and connects via BNC to any oscilloscope

  • Size/Dimensions187*83*41 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • Standards/CertificationsCE
  • Measures 700 V differential signals with 100 MHz bandwidth
  • 5 ns rise time captures fast transients accurately
  • Switchable 10X/100X attenuation suits varied voltage ranges
  • BNC connector works with any oscilloscope input
  • High CMRR rejects common-mode noise effectively

What it is and who it is for

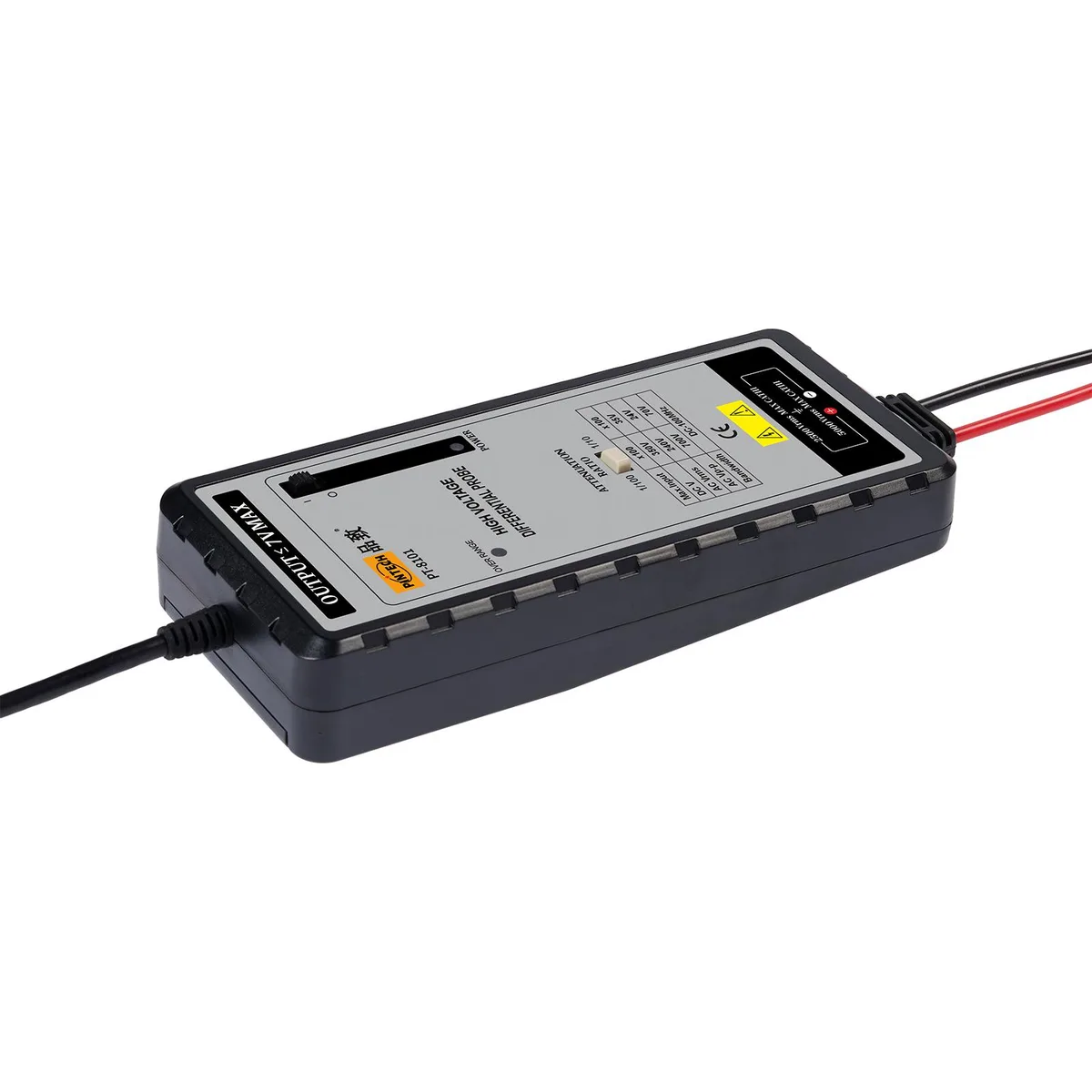

The Pintech PT-8101 is a new active differential probe built for oscilloscope users who need to convert two-point signals to ground-referenced measurements. It connects through a standard BNC interface and works with any oscilloscope presenting a 1M input impedance. The probe is intended for general circuit testing and is especially suited for motor-drive diagnostics.

The specification that decides fit

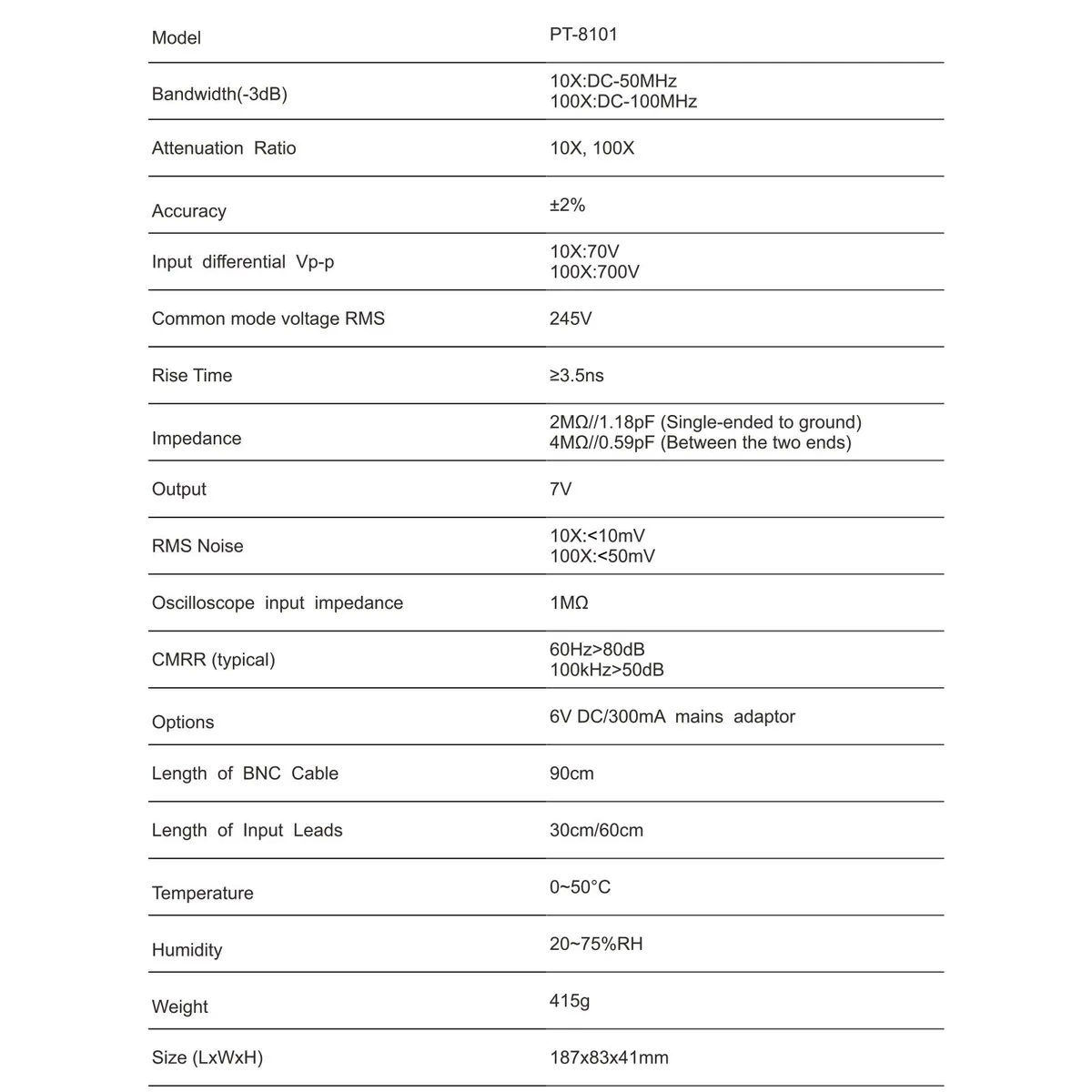

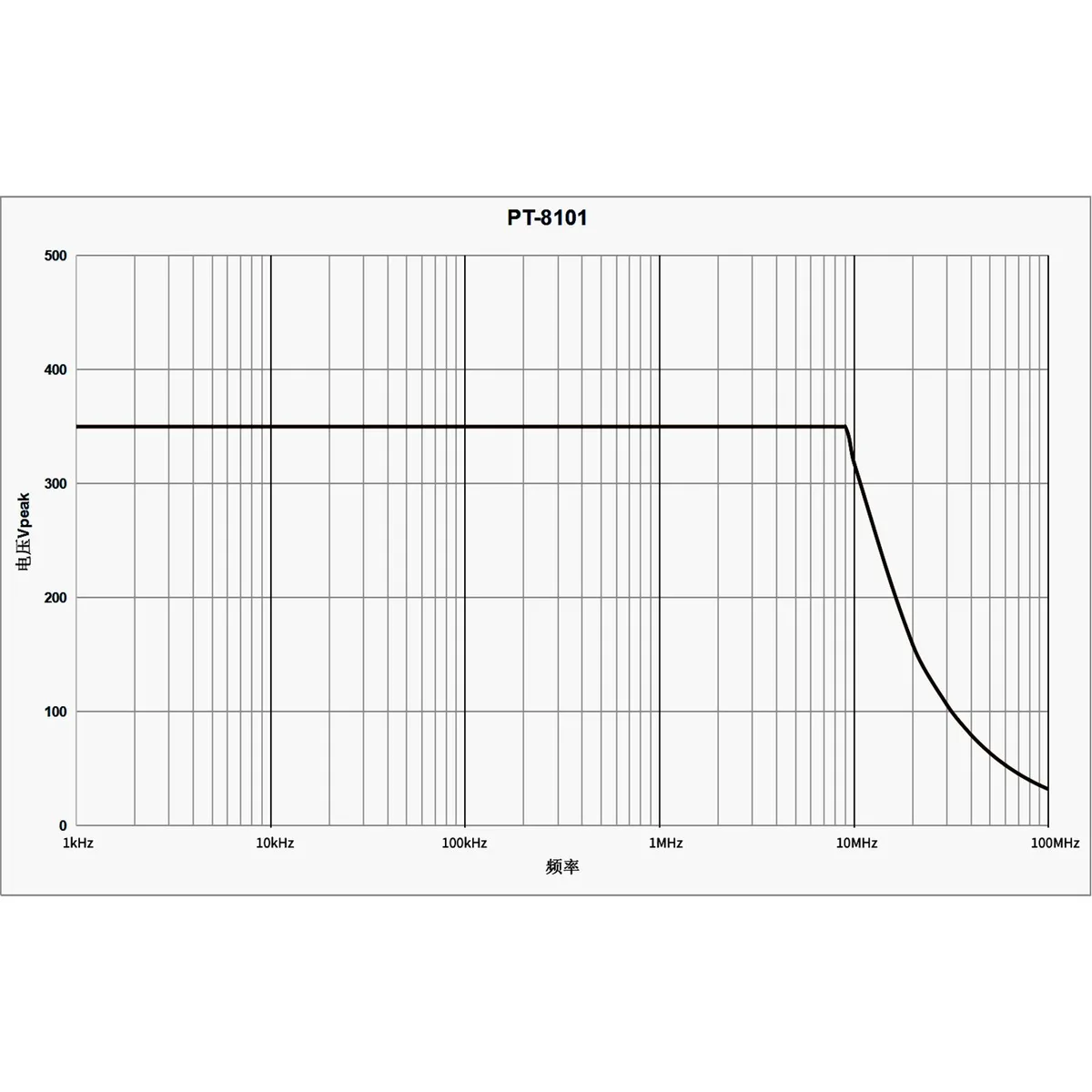

Bandwidth and attenuation are linked: the 10X setting covers DC to 50 MHz while the 100X setting extends to DC-100 MHz. Maximum measurable voltage follows the same split at 70 V peak-to-peak on 10X and 700 V peak-to-peak on 100X, with corresponding DC limits of 35 V and 350 V. Common-mode RMS voltage is rated at 245 V. Accuracy is ±2 % and rise time is 3.5 ns. CMRR exceeds 80 dB at 60 Hz and 50 dB at 100 kHz.

What the bundled items change

The package adds a BNC adapter, two probe hooks and a printed manual to the single PT-8101 unit. The adapter secures the BNC connection to the oscilloscope, while the hooks provide hands-free attachment to test points on dense boards or motor terminals. The manual documents the dual-range attenuation settings, input impedance values of 4 MΩ//0.59 pF differential and 2 MΩ//1.18 pF single-ended, and the 7 V output into a 50 kΩ load.

Highlights

  • Measures 700 V differential signals with 100 MHz bandwidth
  • 5 ns rise time captures fast transients accurately
  • Switchable 10X/100X attenuation suits varied voltage ranges
  • BNC connector works with any oscilloscope input
  • High CMRR rejects common-mode noise effectively

Specifications

BrandPINTECH
ModelPT-8101
Size/Dimensions187*83*41 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%
Standards/CertificationsCE

Questions about this item

What does the 100 MHz bandwidth actually deliver when I hook the probe to a real oscilloscope?

At the 100X setting the probe passes signals from DC to 100 MHz with a 3.5 ns rise time; at 10X the usable range drops to 50 MHz.

How does the BNC interface limit what I can measure?

The BNC output drives a 50 Ω oscilloscope input up to 7 V peak-to-peak, so the oscilloscope must present a 1 MΩ input impedance and accept that voltage swing.

What clearance does the 187×83×41 mm probe body need on a crowded board?

The unit measures 187 mm long, 83 mm wide and 41 mm deep and weighs 400 g; allow that footprint plus the hook leads and cable bend radius.
