Pintech PT-8010 Differential Probe 7000V 70MHz 100X/1000X BNC

High-Voltage Differential Probe 7000V

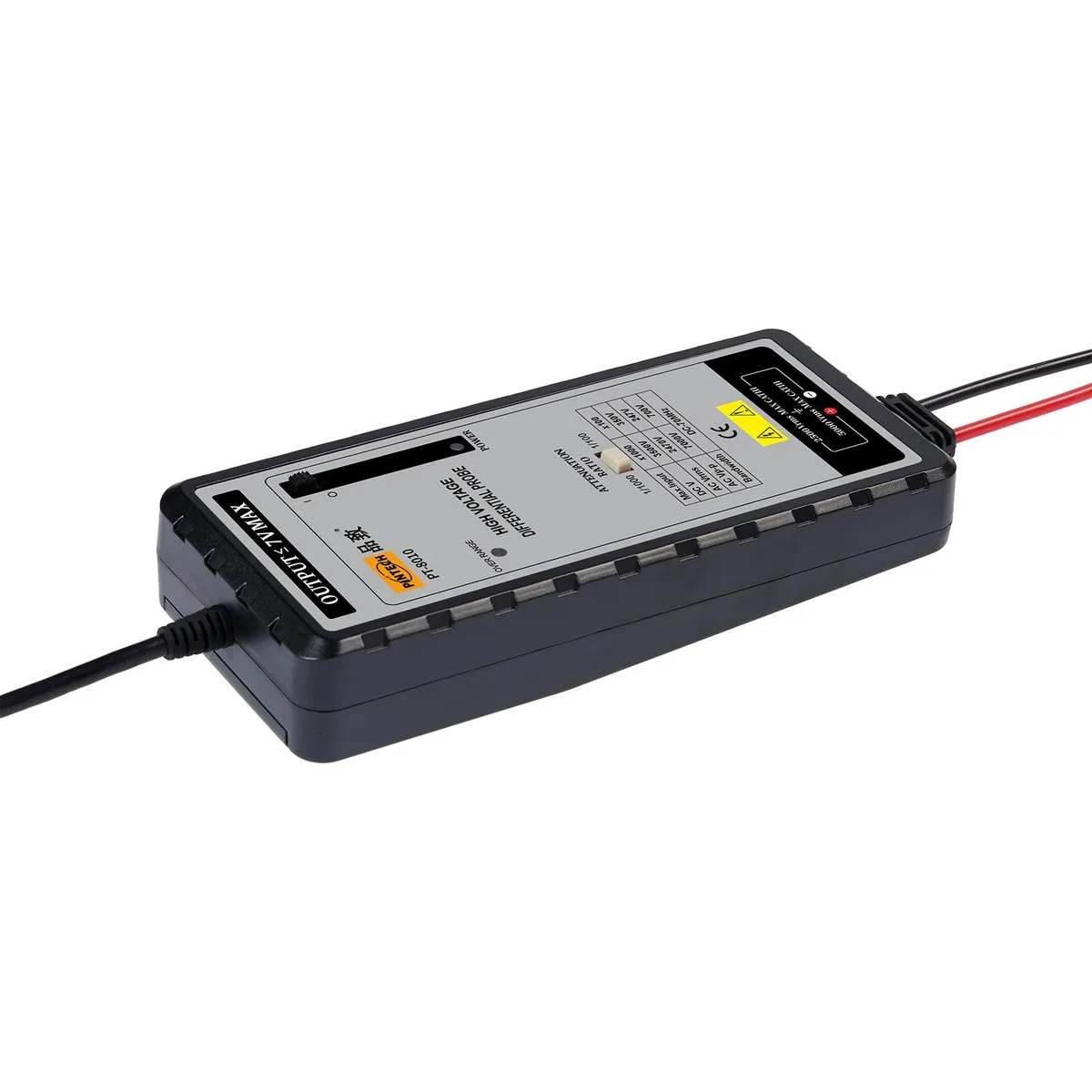

The Pintech PT-8010 is a differential oscilloscope probe rated for 7000 V peak-to-peak at 1000X attenuation. It targets engineers and technicians who need to measure high-voltage signals such as motor drives, power converters or floating circuits without grounding the oscilloscope. The BNC output connects directly to any scope with a 1 MΩ input.

Upgrading from single-ended or lower-voltage probes

Single-ended probes reference ground and can create short circuits on floating circuits; this probe avoids that risk. The jump is worth it when the circuit under test exceeds the common-mode or differential voltage limits of standard passive probes, or when safety isolation is required. At 100X the probe handles 700 V peak-to-peak and 350 V DC input; at 1000X it handles 7000 V peak-to-peak and 3.5 kV DC input.

Bandwidth and loading limits

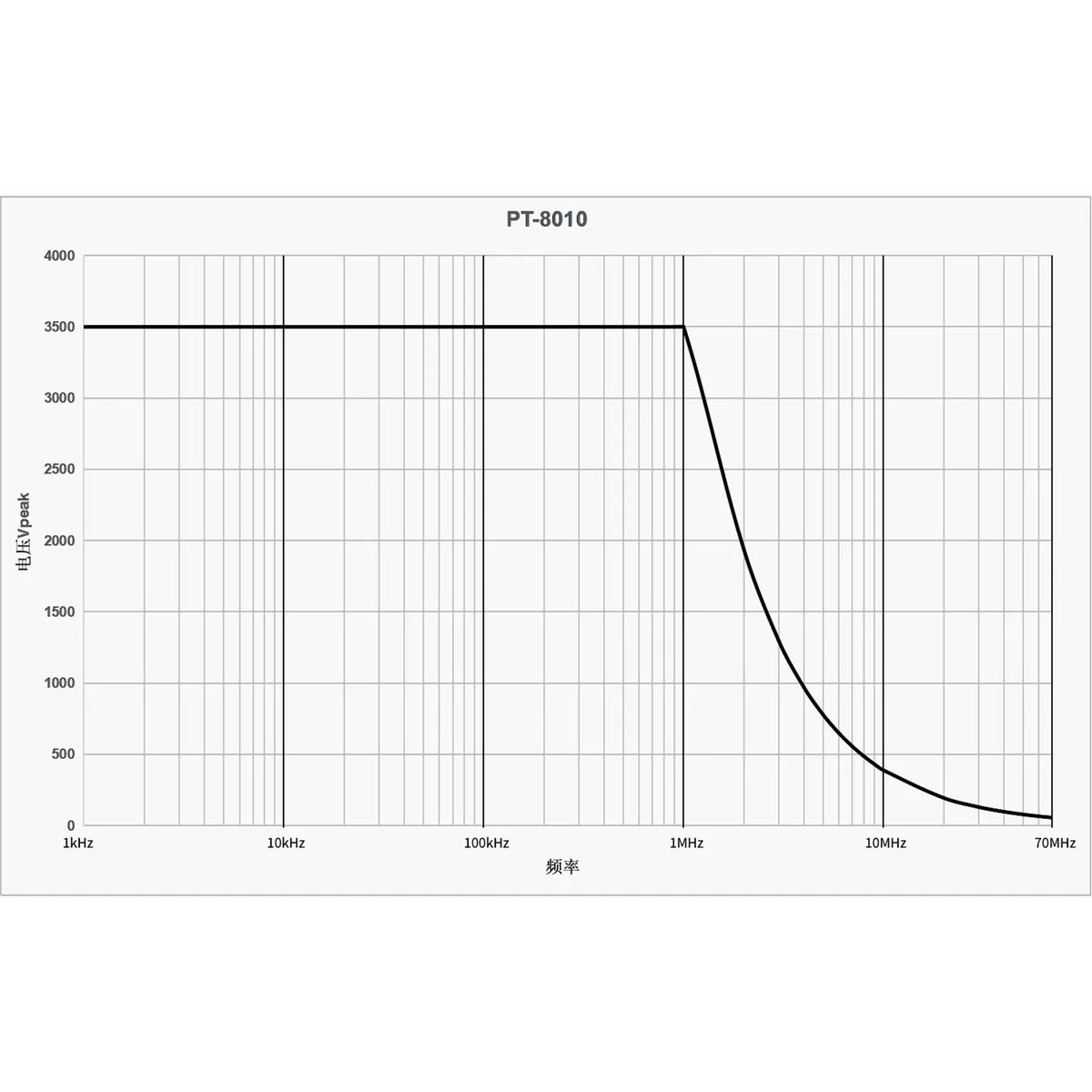

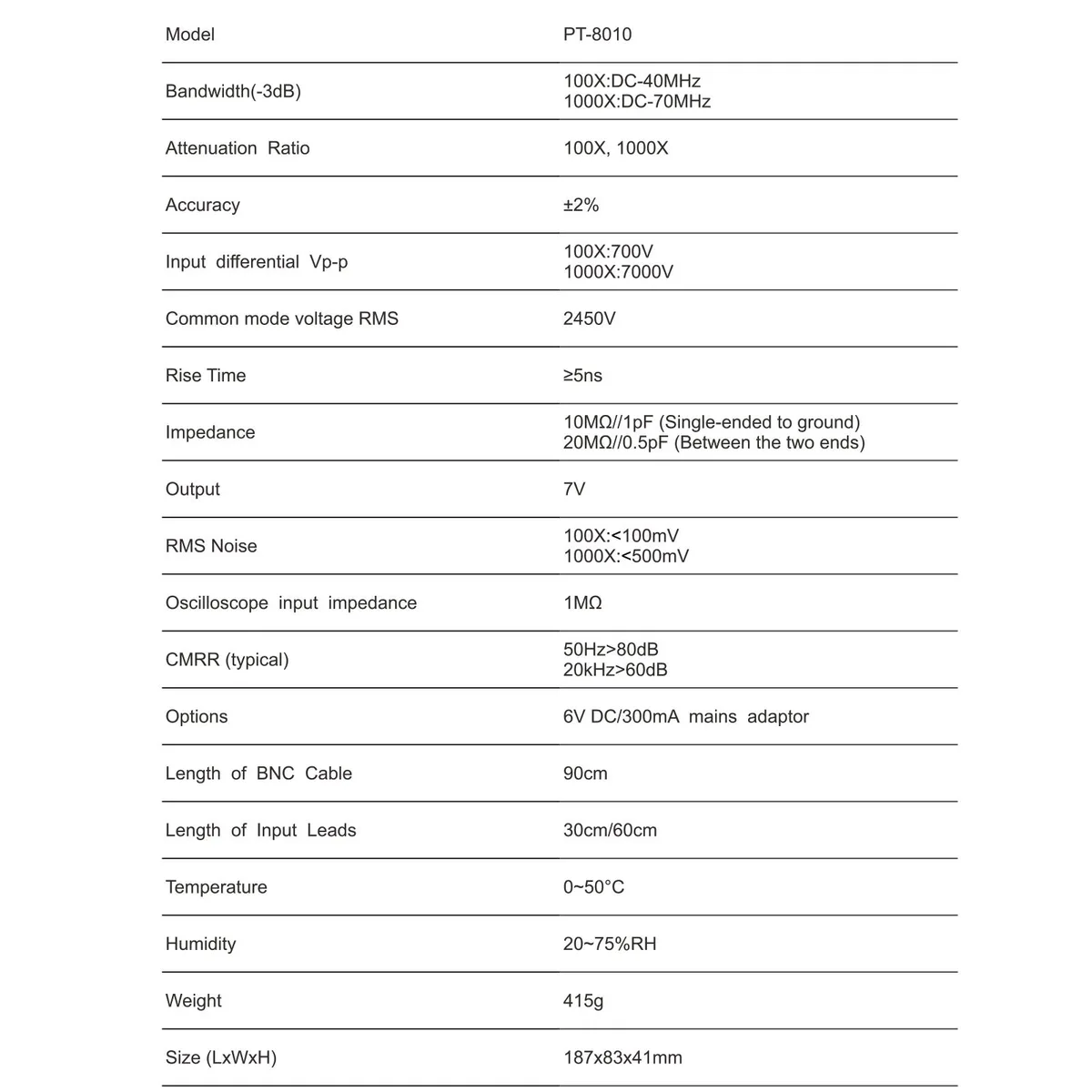

Bandwidth is 40 MHz at 100X and 70 MHz at 1000X, with a 5 ns rise time. Differential input impedance is 20 MΩ in parallel with 0.5 pF; single-ended to ground it is 10 MΩ and 1 pF. Common-mode rejection exceeds 80 dB at 50 Hz and 60 dB at 20 kHz. The probe drives a 7 V output into a 50 kΩ load with ±2 % typical accuracy.
