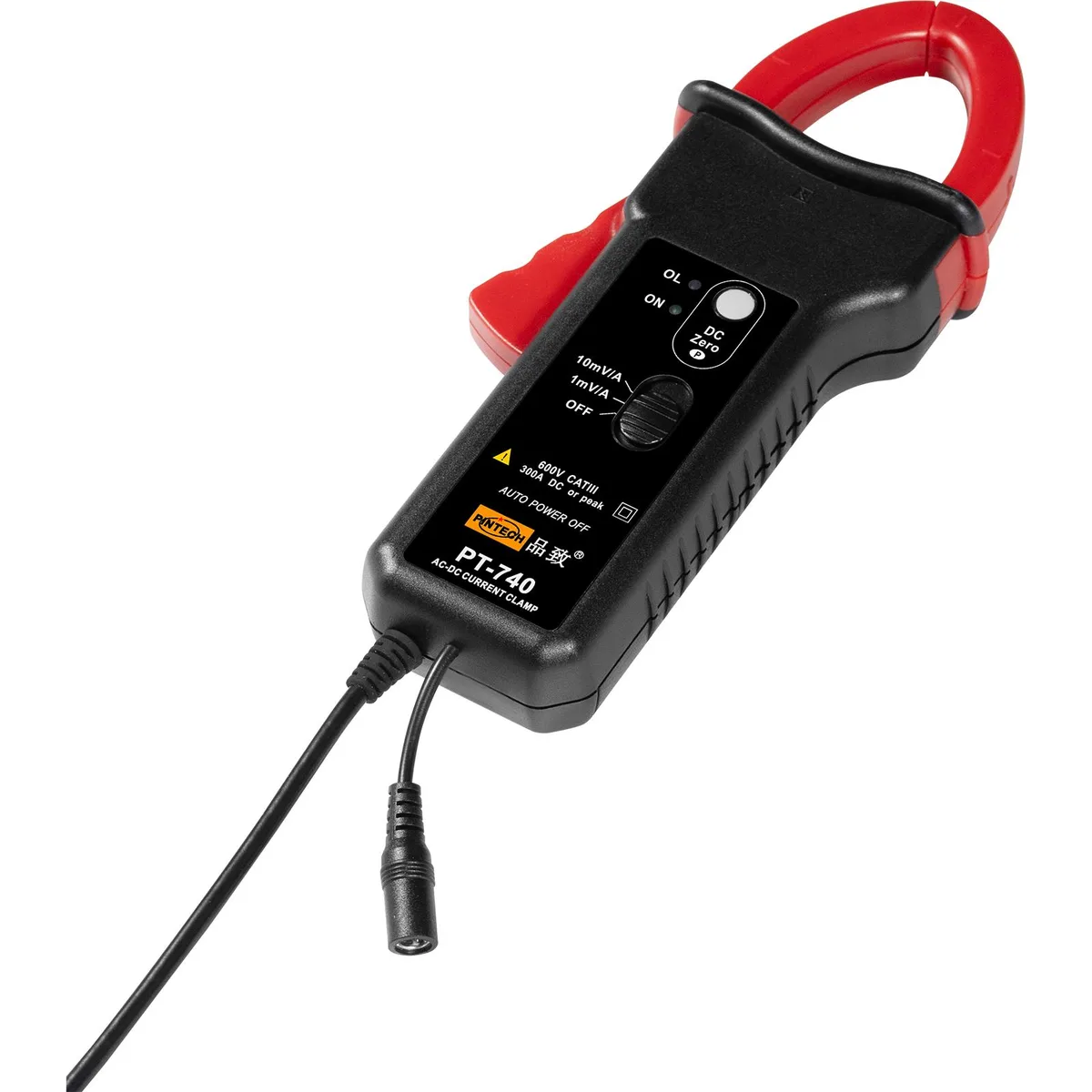

Dark grey current clamp probe with hinged jaw, BNC output cable and control body, shown closed on light background

Pintech

Pintech PT-740 AC/DC Current Probe 300A 150kHz measurement tool

SKU CH-KJ4D-TBVMK MPN PT-740

Measures AC and DC current up to 300A with 150kHz bandwidth and BNC output for oscilloscopes

  • Size/Dimensions224*97*44mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±1.5%+5mV
  • Standards/CertificationsCE
  • Measures AC and DC up to 300A for high-current diagnostics
  • 150kHz bandwidth captures fast transients on power lines
  • ±1.5% accuracy with 5mV offset ensures reliable readings
  • BNC output connects directly to any oscilloscope

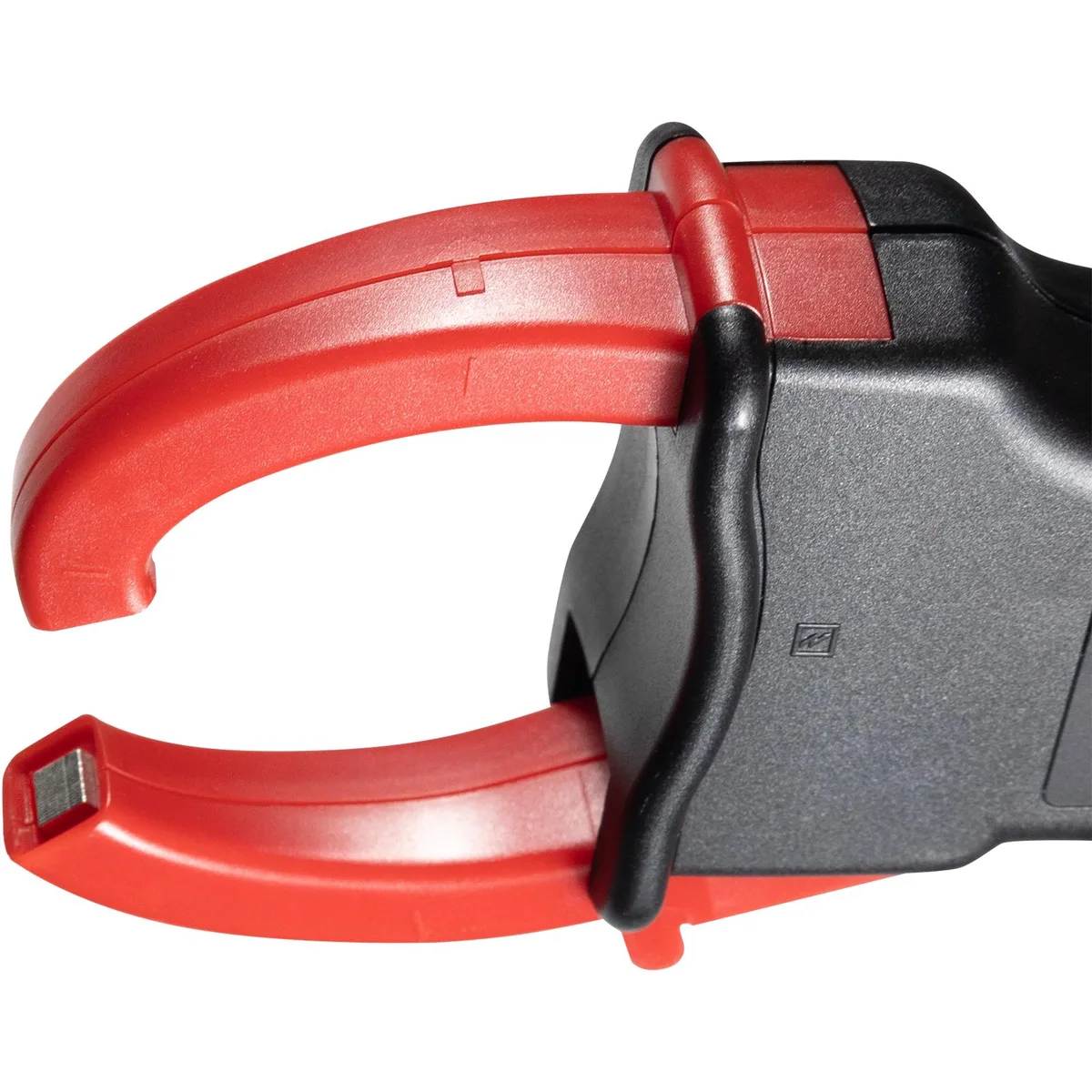

  • 30mm jaw fits large cables and busbars up to 31.5mm

AC/DC current probe up to 300 A

The Pintech PT-740 is a clamp-on current probe that measures both AC and DC currents up to 300 A with a bandwidth of 150 kHz. It connects to any oscilloscope through a BNC output cable and provides two selectable sensitivity ranges of 10 mV/A and 1 mV/A.

Suited for power and automotive testing.

Engineers measuring power circuits, motor drives or automotive currents will find the dual ranges and 600 V rms working voltage useful. The 150 kHz bandwidth and 2.3 s rise time make it unsuitable for users who need to capture fast switching transients or signals above 150 kHz.

Dual-range sensitivity selects measurement

The probe offers two fixed output ratios — 10 mV/A for currents up to 30 A and 1 mV/A for currents up to 300 A — and the chosen ratio directly determines the smallest current change the oscilloscope can resolve.

Highlights

  • Measures AC and DC up to 300A for high-current diagnostics
  • 150kHz bandwidth captures fast transients on power lines
  • ±1.5% accuracy with 5mV offset ensures reliable readings
  • BNC output connects directly to any oscilloscope
  • 30mm jaw fits large cables and busbars up to 31.5mm

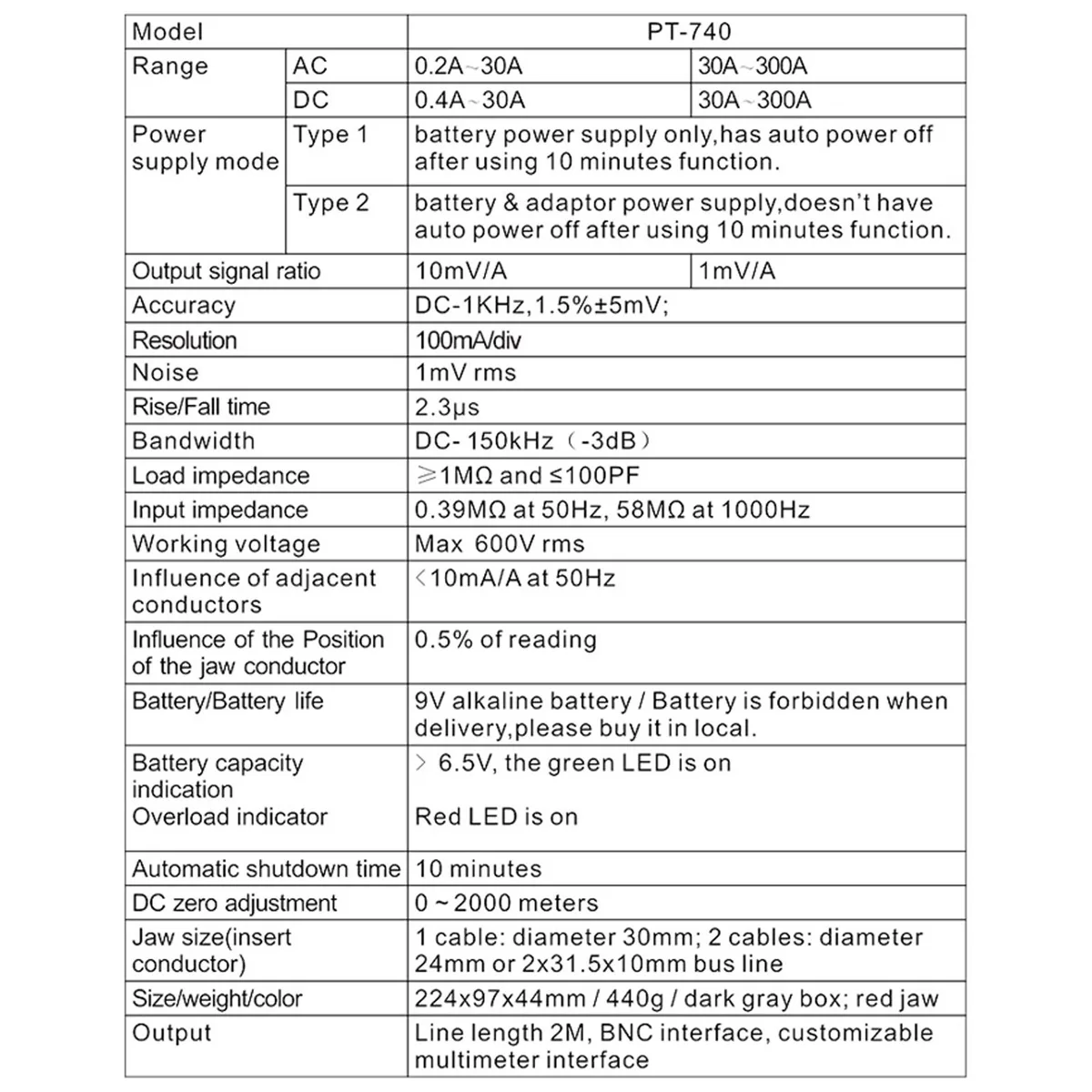

Specifications

BrandPINTECH
ModelPT-740
Size/Dimensions224*97*44mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±1.5%+5mV
Standards/CertificationsCE

Questions about this item

What oscilloscope input impedance does the PT-740's BNC output require for accurate readings?

The probe is designed for a load impedance of 1 MΩ and 100 pF, which matches standard oscilloscope inputs.

Will the 30 mm jaw opening accommodate the same busbars I measure with my existing clamp?

The jaw accepts one 30 mm cable, two 24 mm cables, or a 2 × 31.5 × 10 mm busbar.

How can I confirm the PT-740 is powered and not overloaded after connecting it?

A green LED indicates sufficient battery voltage above 6.5 V, while a red LED signals an overload condition.
