Pintech PT-615 high-voltage differential probe, 187x83x41 mm, BNC connector, probe hooks included

Pintech

Pintech PT-615 100 MHz 1500 V differential measurement tool

SKU CH-YCYQ-Q7ANC MPN PT-615

Measures high-voltage differential signals up to 1500 V with 100 MHz bandwidth, 3.5 ns rise time and selectable 20X/200X attenuation

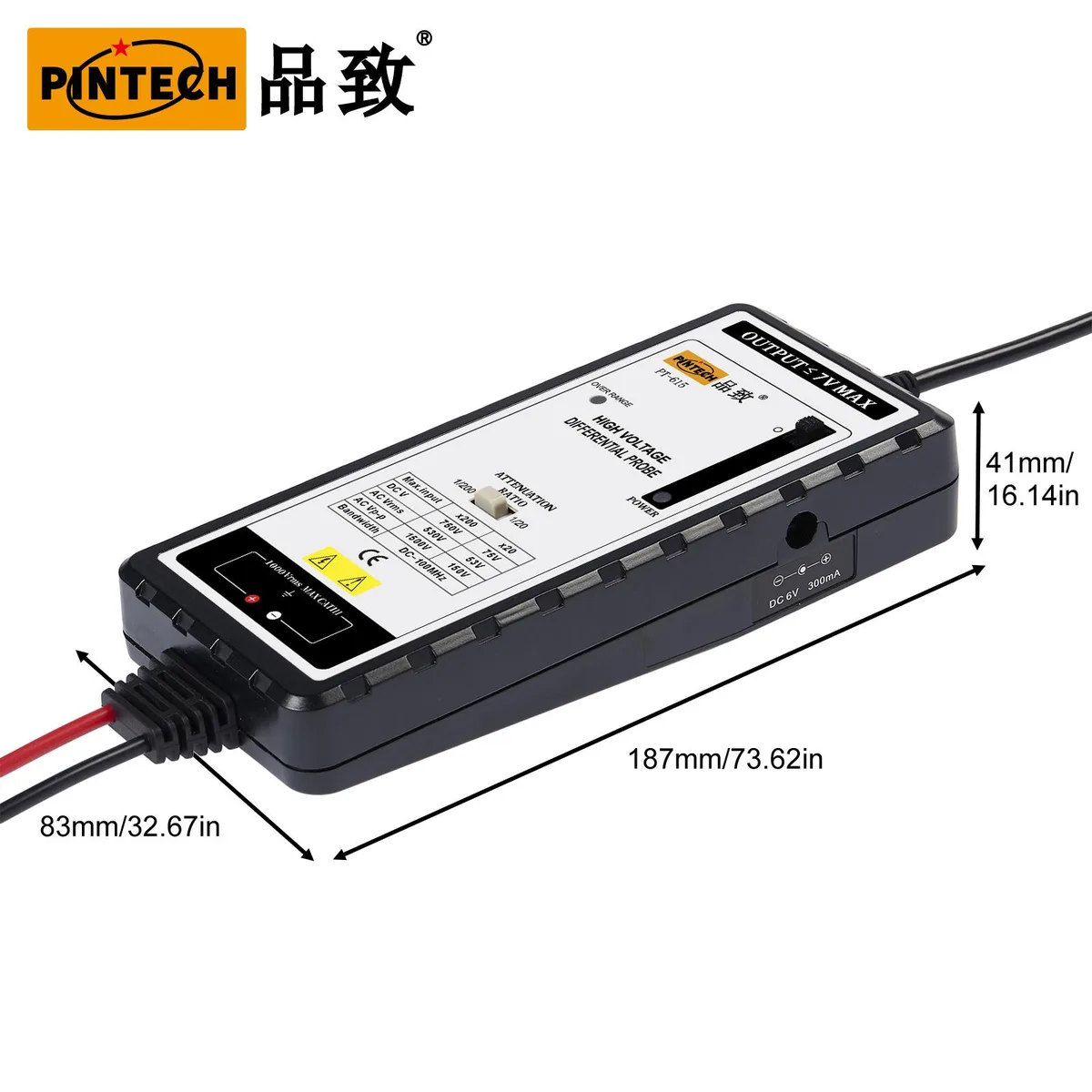

  • Size/Dimensions187x83x41 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • 100 MHz bandwidth captures fast signals
  • 5 ns rise time resolves rapid edges
  • 1500 V differential range handles high-voltage circuits
  • 20X and 200X attenuation ratios suit varied amplitudes
  • BNC connector fits any oscilloscope input

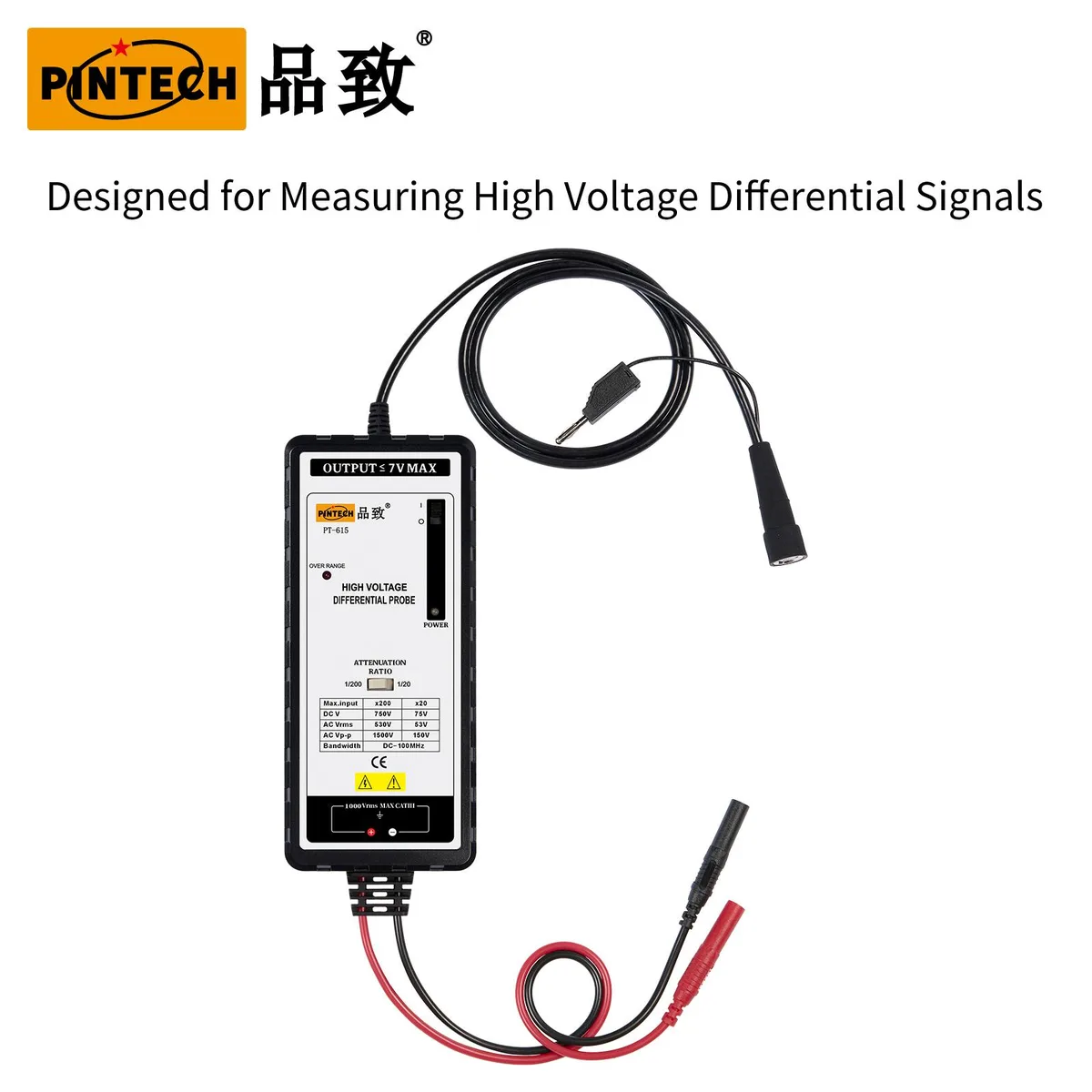

High-voltage differential probe for fast signals

The Pintech PT-615 is a 100 MHz differential probe rated for 1500 V. It captures signals with a 3.5 ns rise time and provides ±2 % accuracy. Engineers measuring motor drives or floating circuits can convert two-point signals to a ground-referenced output for any oscilloscope with a BNC input. It is not for users who need higher bandwidth or greater common-mode voltage.

Ships with hooks adapter and manual

The kit includes two probe hooks, one adapter and a user manual so the probe can be connected and used immediately. A battery is not included; the probe also accepts an external adapter for power. These accessories let technicians attach to test points quickly without sourcing extra parts. Buyers who want a carry case or additional attenuation tips must purchase them separately.

BNC interface and 100 MHz bandwidth limit

The BNC connector works with every oscilloscope that has a standard BNC input, but the 100 MHz bandwidth caps the measurable signal frequency. Attenuation ratios of 20X and 200X extend the dynamic range while the CMRR reaches 80 dB at 50 Hz and 60 dB at 20 kHz. Users requiring wider bandwidth or higher CMRR at high frequencies will need a different instrument.

Highlights

  • 100 MHz bandwidth captures fast signals
  • 5 ns rise time resolves rapid edges
  • 1500 V differential range handles high-voltage circuits
  • 20X and 200X attenuation ratios suit varied amplitudes
  • BNC connector fits any oscilloscope input

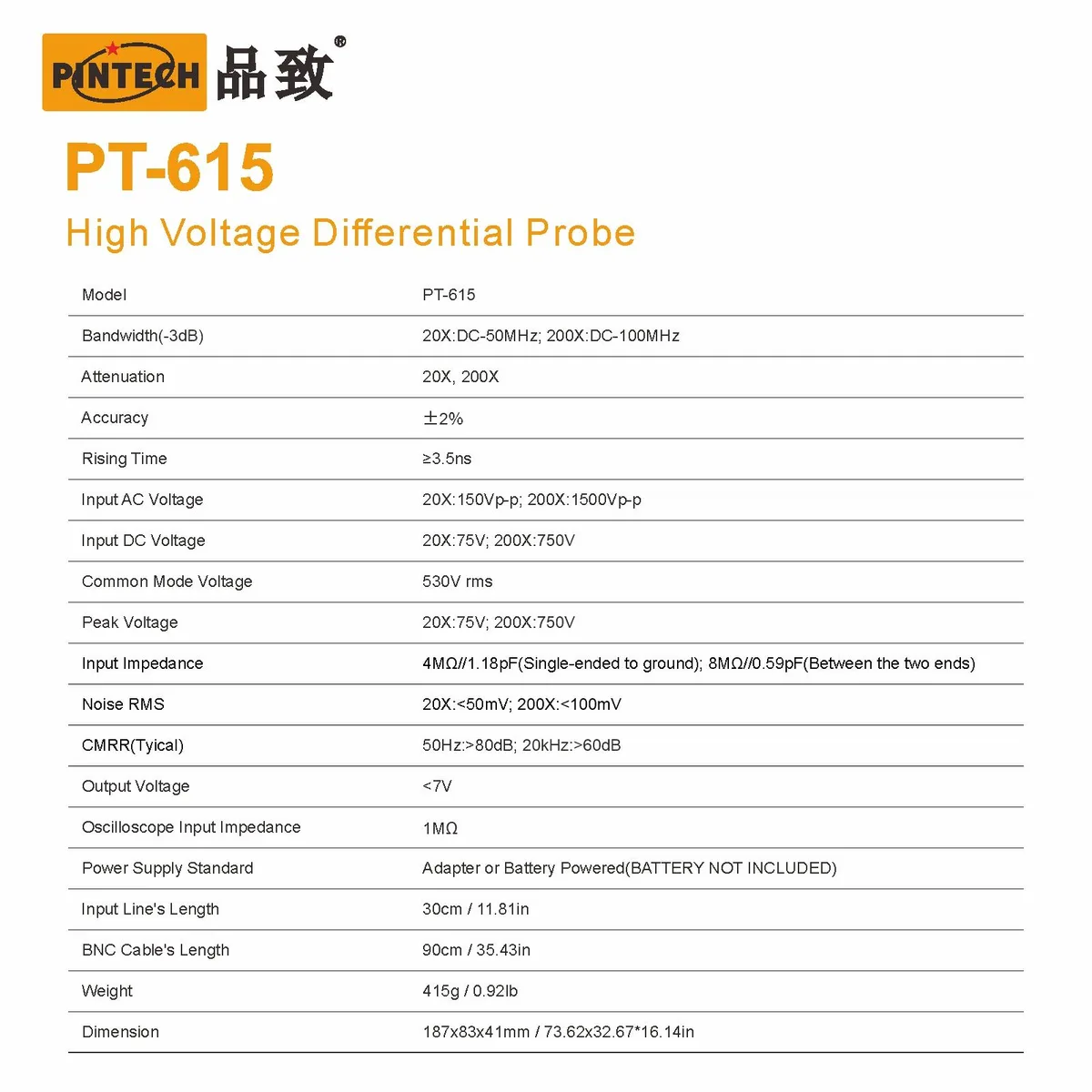

Specifications

BrandPINTECH
ModelPT-615
Size/Dimensions187x83x41 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%

Questions about this item

Does the probe need batteries replaced or an external adapter for continuous use?

It supports both battery and adapter power, so you can run it from the supplied adapter for long sessions without swapping cells.

At what frequency does the common-mode rejection drop below 60 dB on the PT-615?

CMRR is specified as greater than 80 dB at 50 Hz and greater than 60 dB at 20 kHz; above 20 kHz the rejection falls under 60 dB.

How much heat or fan noise does the probe generate during all-day motor-circuit testing?

The probe body is passive with no fan, so it produces negligible heat and no audible noise even during extended measurements.
