White rectangular probe body with BNC connector and two test leads, 187 by 83 by 41 millimetres

Pintech

Pintech PT-6140 100MHz 14kV differential measurement tool

SKU CH-Y8A0-ZV0G9 MPN PT-6140

Measures differential signals up to 14 kV peak-to-peak with 100 MHz bandwidth and 3.5 ns rise time

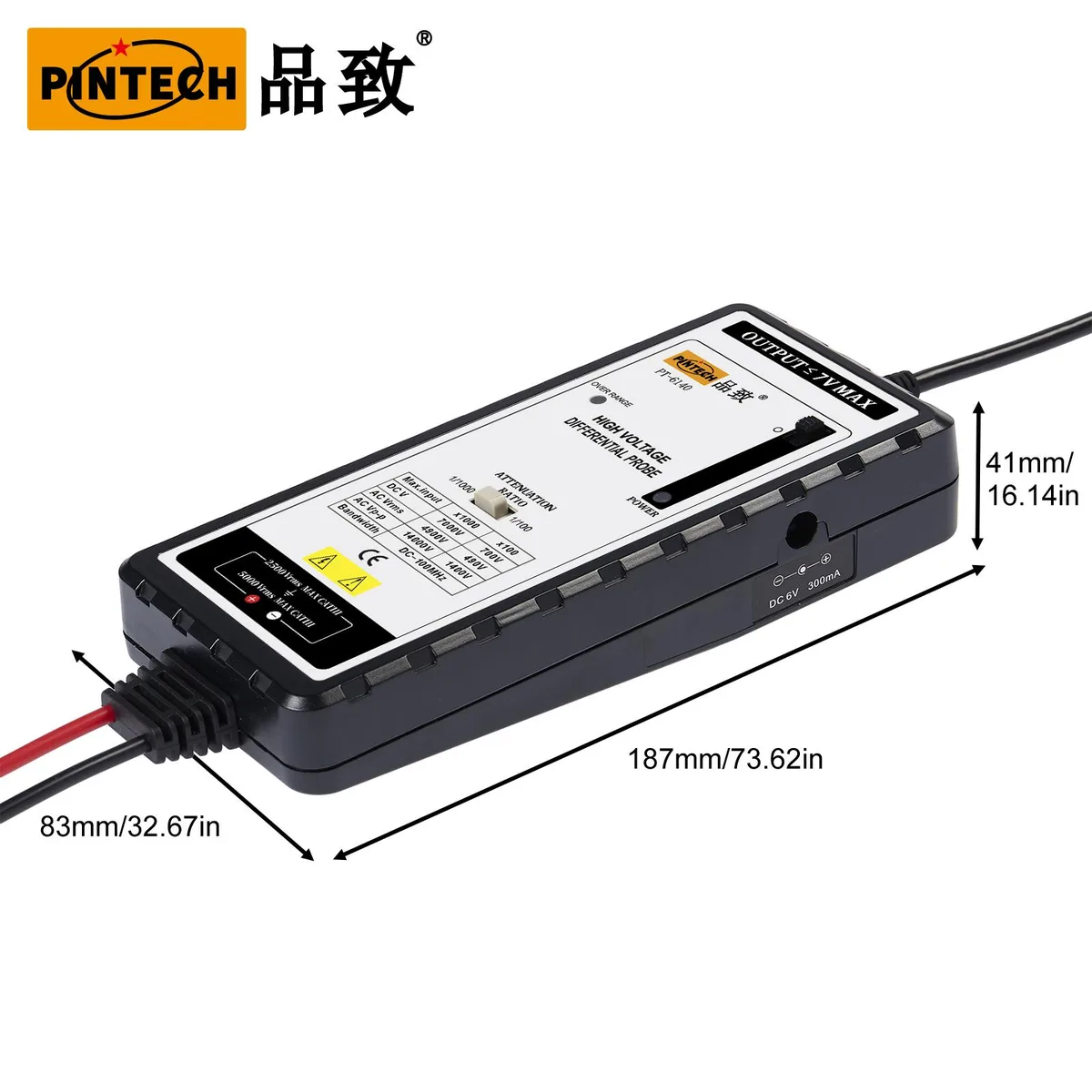

  • Size/Dimensions187x83x41 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • Standards/CertificationsCE
  • Measures fast edges with 3.5ns rise time
  • Captures 14kV peaks at 1000X attenuation
  • ±2% accuracy for reliable readings
  • Works with any oscilloscope via BNC
  • Battery or adapter powered for flexible use

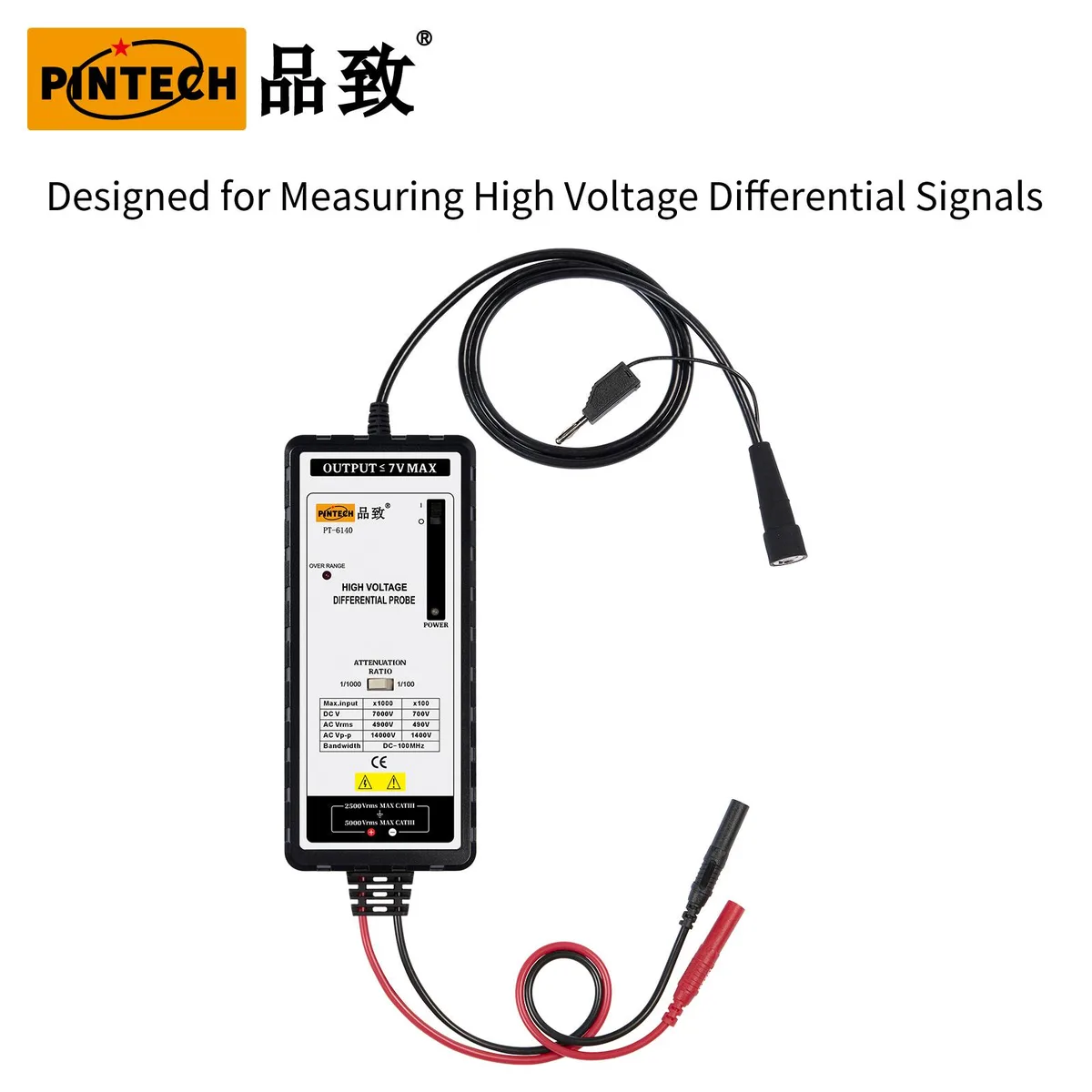

14 kV differential probe for oscilloscopes

The Pintech PT-6140 is a high-voltage differential probe designed to convert floating two-point signals into ground-referenced outputs for oscilloscopes and data-acquisition equipment. It operates from DC to 100 MHz at 1000X attenuation with a 3.5 ns rise time and ±2% typical accuracy. A BNC interface ensures compatibility with standard oscilloscope inputs.

Engineers measuring motor drives

The probe suits technicians who need to safely capture fast transients on circuits referenced up to 4 900 V RMS common-mode voltage with CMRR exceeding 80 dB at 50 Hz and 60 dB at 20 kHz. It is not intended for users who require bandwidth beyond 100 MHz or who need a probe powered directly from the oscilloscope without an external adapter or battery.

Adapter, hook tips and manual extend usability

The kit includes a power adapter, two probe hooks and a printed manual so the probe can be powered and connected immediately. Adapter power or battery operation gives flexibility for bench or field use. The 30 cm input leads and 90 cm BNC cable provide reach without excessive loading on the device under test.

Highlights

  • Measures fast edges with 3.5ns rise time
  • Captures 14kV peaks at 1000X attenuation
  • ±2% accuracy for reliable readings
  • Works with any oscilloscope via BNC
  • Battery or adapter powered for flexible use

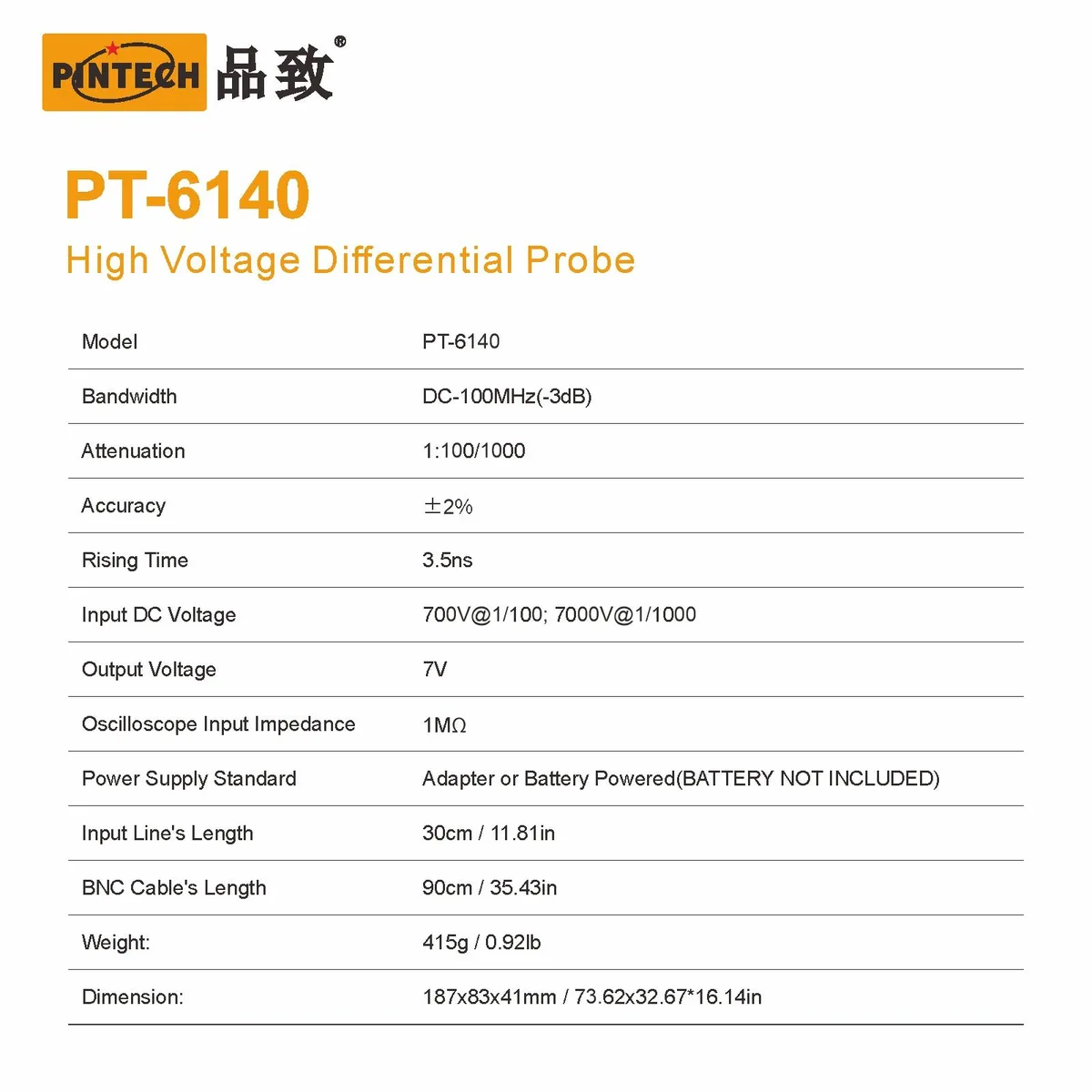

Specifications

BrandPINTECH
ModelPT-6140
Size/Dimensions187x83x41 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%
Standards/CertificationsCE

Questions about this item

Does the PT-6140 need an oscilloscope with a 1 MΩ BNC input to work?

Yes, the probe outputs through a BNC cable and is designed for oscilloscopes that present a 1 MΩ input impedance.

Can I keep using my existing BNC cables with the PT-6140?

The probe includes a 90 cm BNC cable; you can connect additional BNC cables if needed, but the supplied cable is the direct output path.

How do I verify the probe is measuring correctly after connecting it?

Check that the attenuation switch matches the expected range (100X or 1000X) and that a known test signal appears within the ±2 % accuracy specification.
