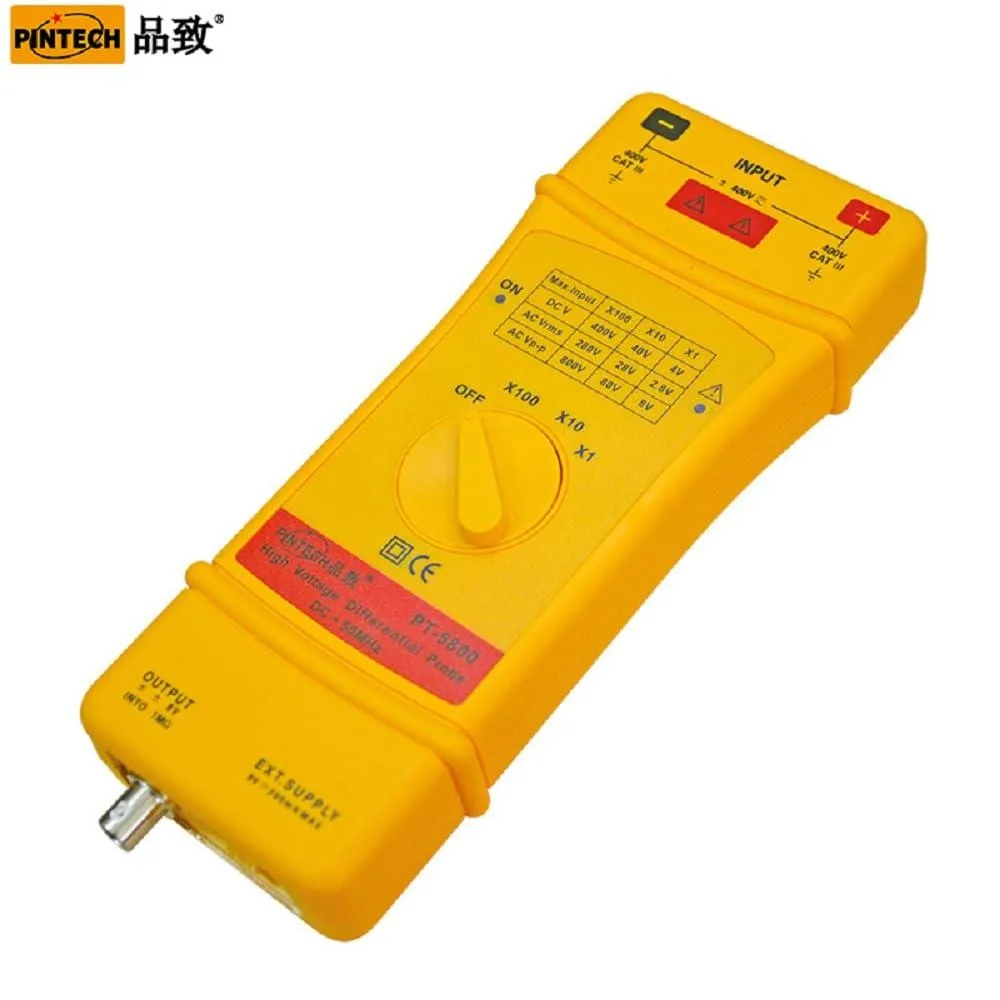

Pintech PT-5800 800V 50MHz differential measurement tool

SKU CH-6X49-7ZKP1 MPN PT-5800

An 800 V differential probe for oscilloscopes up to 50 MHz with 1X, 10X and 100X attenuation and 7 ns rise time

  • Selling UnitEach
  • Size/Dimensions218*83*30 mm
  • IncludesDifferential probe host unit x 1, Probe Hook x 2
  • Accuracy±2%
  • Measures up to 800 V peak-to-peak differential signals
  • 50 MHz bandwidth captures fast transients accurately
  • 7 ns rise time resolves sharp switching edges
  • Switchable 1X, 10X, 100X attenuation ratios adapt to signal levels
  • BNC connector fits any oscilloscope directly

Differential probe for oscilloscopes

The Pintech PT-5800 converts floating two-point signals into ground-referenced outputs for any oscilloscope with a BNC input. It targets engineers and technicians who need to measure motor drives, power converters or other circuits where neither test point is at earth potential. The kit includes the probe host, two hook clips and two alligator clips for secure connections.

Thermals noise and power draw

The probe draws its operating power from the oscilloscope through the BNC connector, adding negligible load to the circuit under test. With a 7 ns rise time and DC-to-50 MHz bandwidth it introduces minimal phase shift, so measurements remain accurate without audible fan noise or noticeable self-heating during normal bench use.

Sustained load behaviour

At the maximum 800 Vp-p rating the ±2 % accuracy specification holds across the full bandwidth, and the 1X, 10X and 100X attenuation settings let you match the oscilloscope vertical range without over-driving the input. The low-load-effect design prevents the probe from distorting high-impedance nodes even during long acquisition runs.

Highlights

  • Measures up to 800 V peak-to-peak differential signals
  • 50 MHz bandwidth captures fast transients accurately
  • 7 ns rise time resolves sharp switching edges
  • Switchable 1X, 10X, 100X attenuation ratios adapt to signal levels
  • BNC connector fits any oscilloscope directly

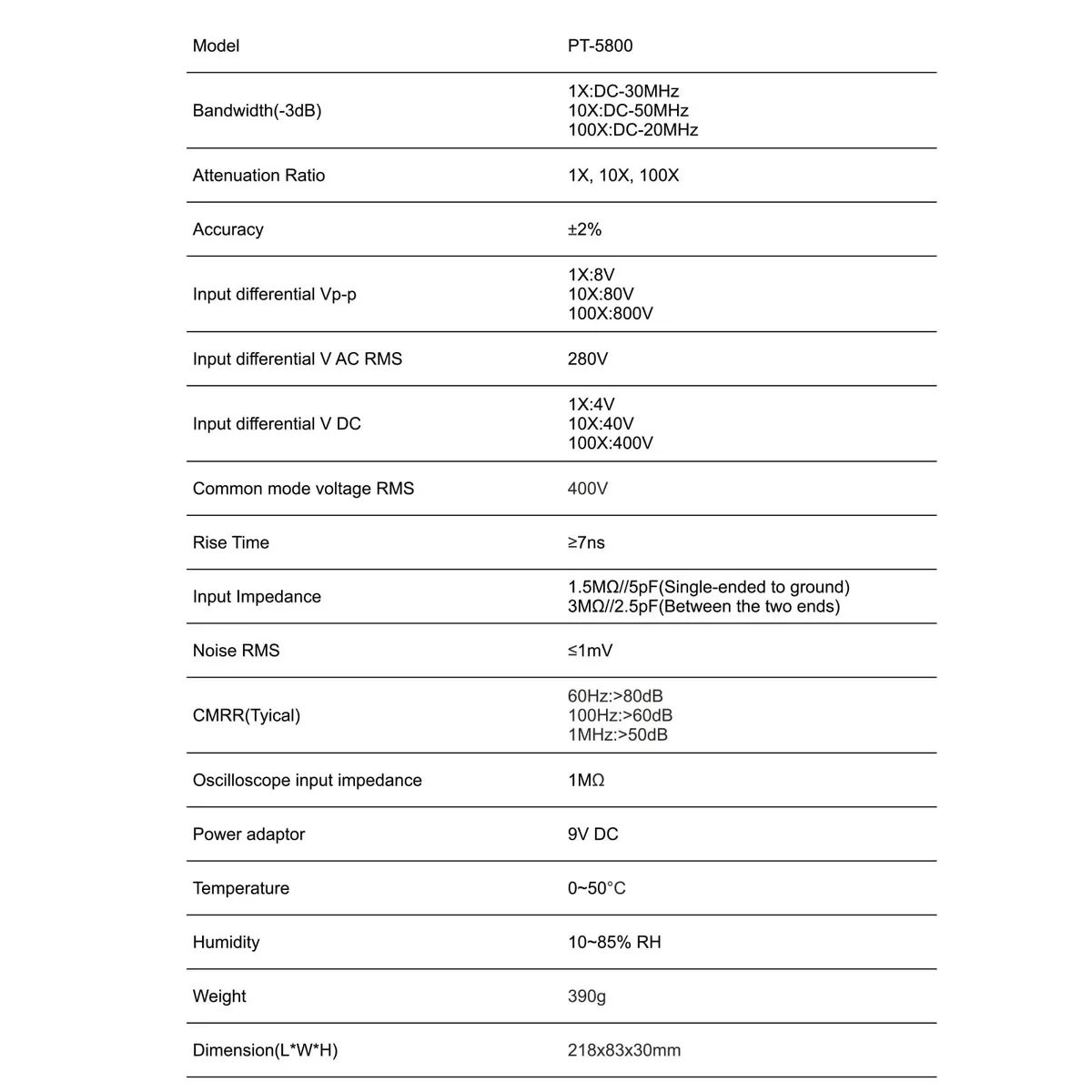

Specifications

Selling UnitEach
BrandPINTECH
ModelPT-5800
Size/Dimensions218*83*30 mm
IncludesDifferential probe host unit x 1, Probe Hook x 2
Accuracy±2%

Questions about this item

How do I connect the PT-5800 to my oscilloscope and which attenuation setting should I choose first?

Plug the BNC connector into any oscilloscope channel, then select 1X, 10X or 100X attenuation on the probe to match the signal amplitude you are measuring.

What parts of the PT-5800 kit will wear out and need replacement over time?

The two probe hooks and two alligator clips are the only consumable accessories; the host unit and BNC adapter have no user-serviceable parts.

At what voltage or frequency does the PT-5800 hit its measurement limit first during continuous use?

The probe reaches its 800 Vp-p maximum voltage rating before the 50 MHz bandwidth limit under sustained high-voltage signals.
