Pintech PT-5230 differential probe, grey rectangular body, BNC connector, 220 by 85 by 30 mm

Pintech

Pintech PT-5230 30kV 75MHz 200X/2000X differential probe measurement tool

SKU CH-SJBM-3DNBK MPN PT-5230

Measures up to 30 kV differential signals with 75 MHz bandwidth and 200X/2000X attenuation for oscilloscope use

  • Size/Dimensions220*85*30 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • Standards/CertificationsCE
  • Safely measure up to 30kV peak-to-peak signals
  • 75MHz bandwidth captures fast transients accurately
  • Selectable 200X or 2000X attenuation ratios suit different voltage ranges
  • BNC connector works with any oscilloscope input
  • ±2% typical accuracy ensures reliable measurements

Purpose and Users

The Pintech PT-5230 is a high-voltage differential probe kit built for oscilloscope users who must measure signals up to 30 kV peak-to-peak. It targets engineers and technicians working on motor drives, power electronics and other floating circuits where ground-referenced probing is unsafe. The BNC interface fits any standard oscilloscope input.

Thermals Noise and Power

The probe operates passively from the oscilloscope’s 1 MΩ input, so it adds no fan noise or separate power draw to the bench. Specified noise is 1 mV rms, and common-mode rejection reaches 80 dB at 60 Hz, 60 dB at 100 Hz and 50 dB at 1 MHz. Accuracy is rated at ±2 % across the DC to 75 MHz bandwidth at 200X attenuation.

Bundled Accessories Impact

Included items are the probe body, a BNC cable, two probe hooks, two alligator clips, an adapter and a printed manual. The hooks and clips let you connect to test points or component leads without soldering, while the adapter and cable complete the signal path to the oscilloscope. The manual provides the attenuation setting tables and safety limits for each range.

Highlights

  • Safely measure up to 30kV peak-to-peak signals
  • 75MHz bandwidth captures fast transients accurately
  • Selectable 200X or 2000X attenuation ratios suit different voltage ranges
  • BNC connector works with any oscilloscope input
  • ±2% typical accuracy ensures reliable measurements

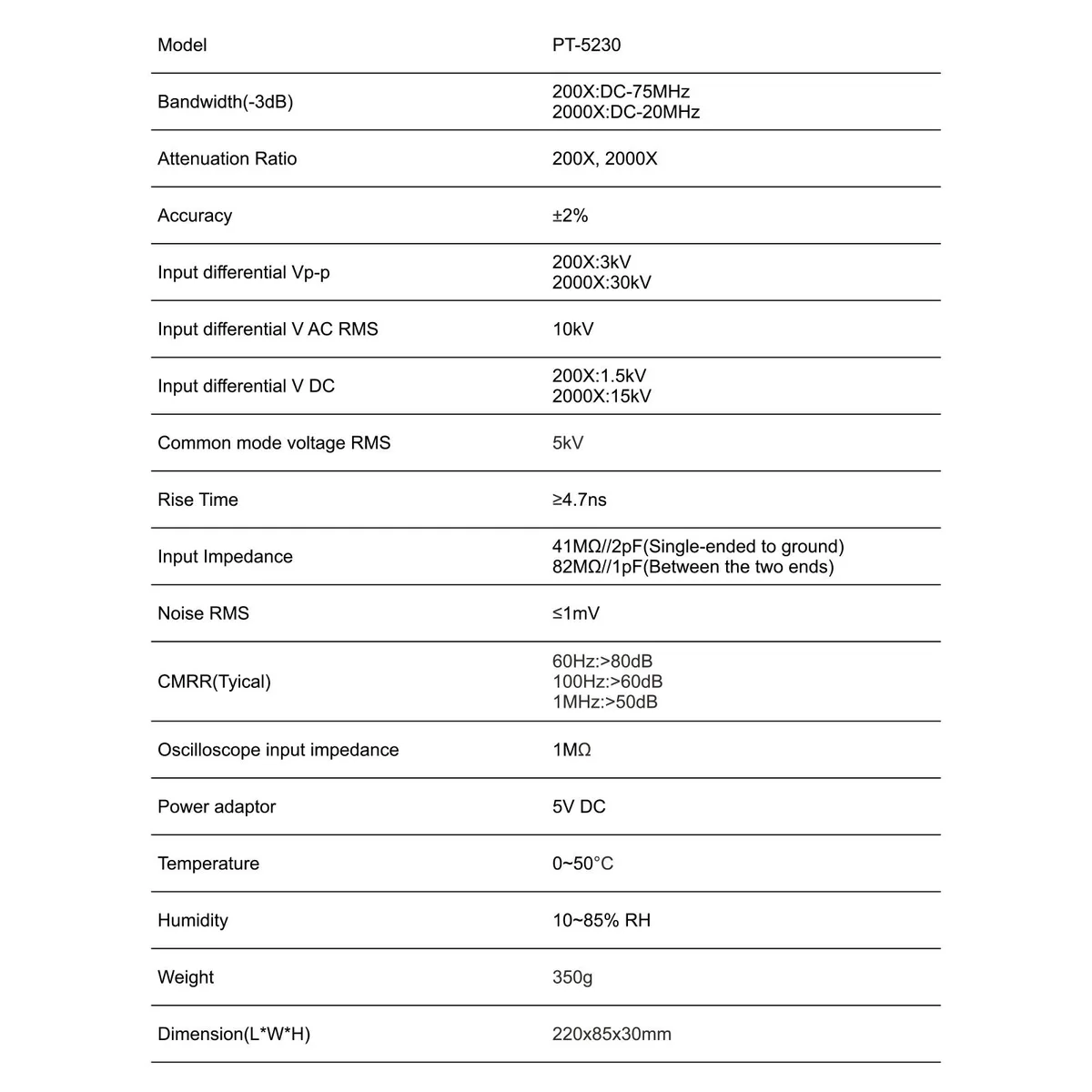

Specifications

BrandPINTECH
ModelPT-5230
Size/Dimensions220*85*30 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%
Standards/CertificationsCE

Questions about this item

How do I connect the PT-5230 probe to my oscilloscope and which step is often missed?

Connect the BNC cable to the probe output and the oscilloscope 1M input, then select the 200X or 2000X attenuation setting on the probe to match the oscilloscope channel.

What parts of the PT-5230 kit will need replacement after extended use?

The two probe hooks and two alligator clips are the consumable contact accessories; the probe body and BNC cable are not user-serviceable.

At what point does the PT-5230 reach its measurement limit during continuous high-voltage testing?

The common-mode voltage RMS limit is 5kV, and the input DC voltage limits are 1.5kV at 200X or 15kV at 2000X; exceeding these degrades accuracy.
