Grey handheld differential probe with BNC cable and hook clips, 220 by 85 by 30 mm

Pintech

Pintech PT-5215 High Voltage Differential Probe 15kV 35MHz 100X/1000X measurement tool

SKU CH-PQZC-AG51S MPN PT-5215

Measures high-voltage differential signals up to 15 kV with 35 MHz bandwidth and selectable 100X or 1000X attenuation

  • Size/Dimensions220*85*30 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • Standards/CertificationsCE
  • Measures up to 15kV peak-to-peak safely
  • 35MHz bandwidth captures fast transients
  • 100X and 1000X attenuation ratios selectable
  • ±2% accuracy for reliable readings
  • BNC connector fits any oscilloscope

High-Voltage Differential Probe for Oscilloscopes

The PT-5215 is a new active differential probe designed for engineers and technicians who need to measure high-voltage signals safely with a standard oscilloscope. It converts any two-point signal into a ground-referenced output, making it suitable for motor drives, power supplies and other floating circuits where ground clips cannot be used. The probe ships with a BNC cable, hook tips, alligator clips and an adapter so it is ready for immediate bench use.

15 kV Peak-to-Peak at 1000× Attenuation

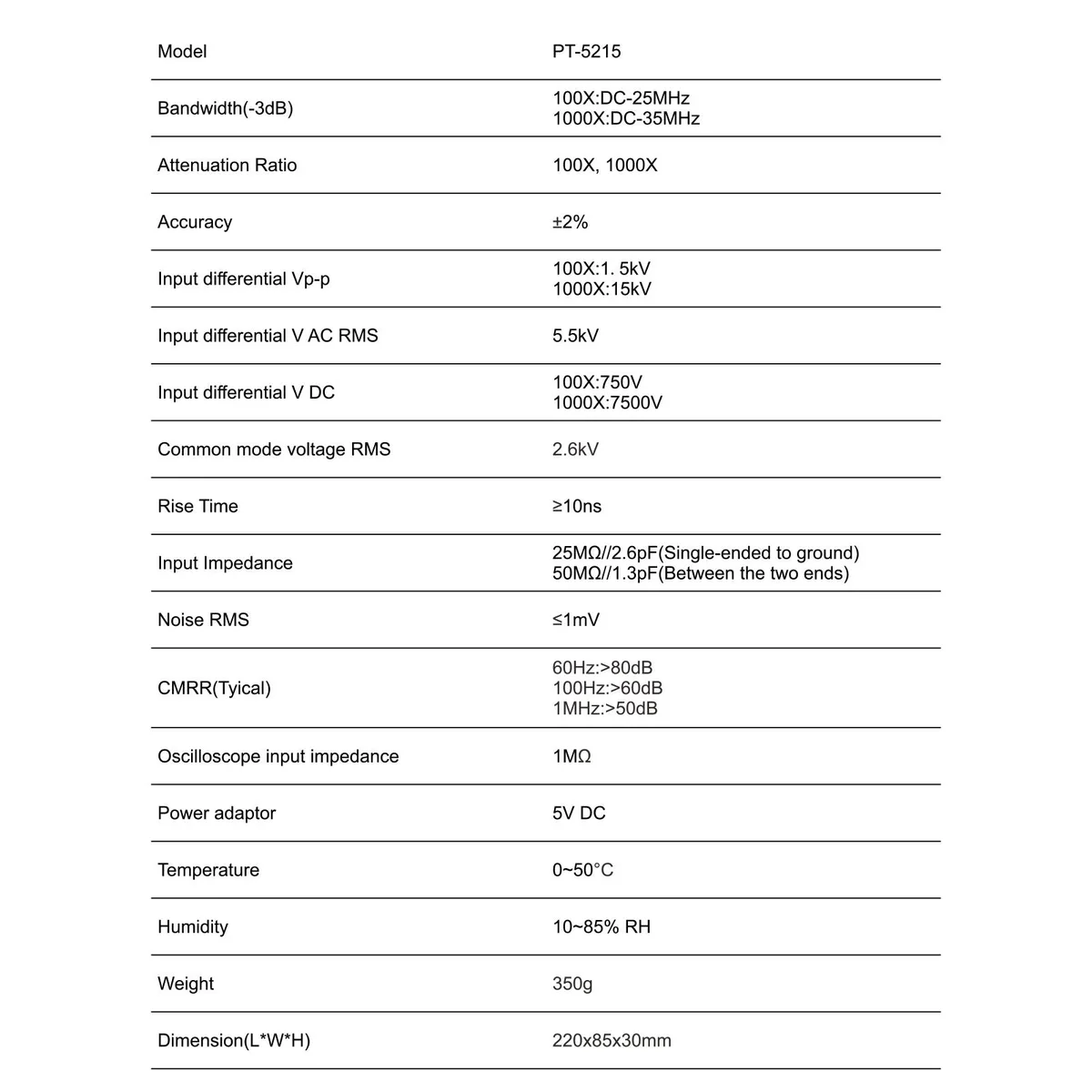

The single specification that determines suitability is the maximum differential test voltage of 15 kV peak-to-peak when the 1000× attenuation setting is selected, with a 35 MHz bandwidth at that ratio. At 100× attenuation the probe handles 1.5 kV peak-to-peak and extends bandwidth to 25 MHz, while accuracy remains ±2 % across both ranges. Input impedance is 50 MΩ in parallel with 1.3 pF differentially and 25 MΩ with 2.6 pF single-ended to ground, and common-mode rejection reaches 80 dB at 60 Hz.

Bundled Accessories Enable Direct Connection

The included BNC cable connects directly to any oscilloscope with a 1 MΩ input, eliminating the need for extra adapters. Two probe hooks and two alligator clips provide secure attachment to test points or component leads in tight motor-drive layouts. A printed manual covers the 100× and 1000× switching procedure and safety limits, so users can configure the probe correctly without guesswork.

Highlights

  • Measures up to 15kV peak-to-peak safely
  • 35MHz bandwidth captures fast transients
  • 100X and 1000X attenuation ratios selectable
  • ±2% accuracy for reliable readings
  • BNC connector fits any oscilloscope

Specifications

BrandPINTECH
ModelPT-5215
Size/Dimensions220*85*30 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%
Standards/CertificationsCE

Questions about this item

What does the 15kV rating mean when the probe is connected to an oscilloscope?

At the 1000X attenuation setting the probe can measure differential signals up to 15kV peak-to-peak, delivering a safe low-voltage waveform to the oscilloscope input.

How does the BNC interface limit the usable bandwidth?

The probe bandwidth is 35MHz at 1000X and 25MHz at 100X; the BNC connection passes these frequencies to any oscilloscope with a 1M input.

What clearance is needed to fit the 220 mm long probe body?

The probe measures 220 mm by 85 mm by 30 mm and weighs 350 g, so allow at least that length and width on the bench or in the test fixture.
