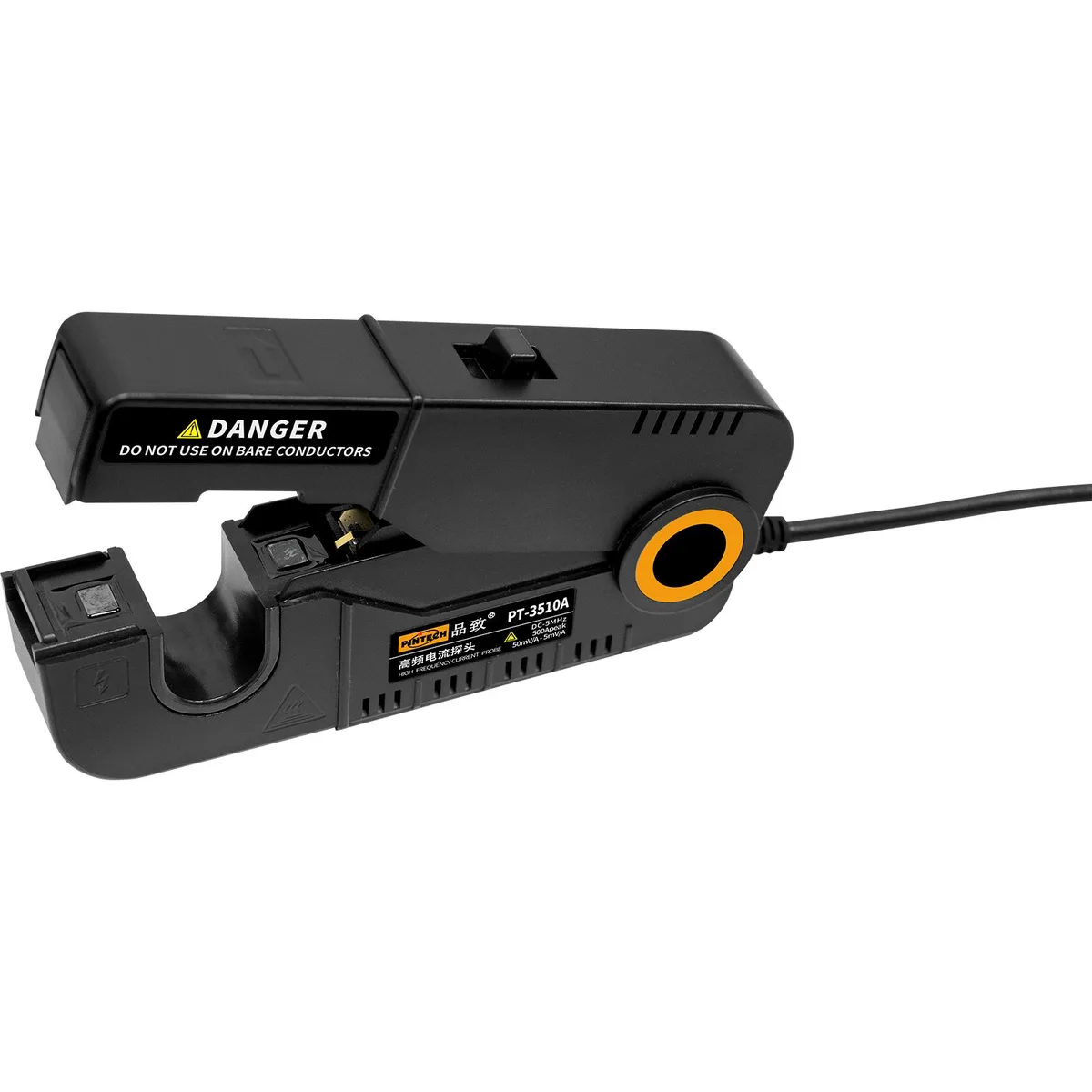

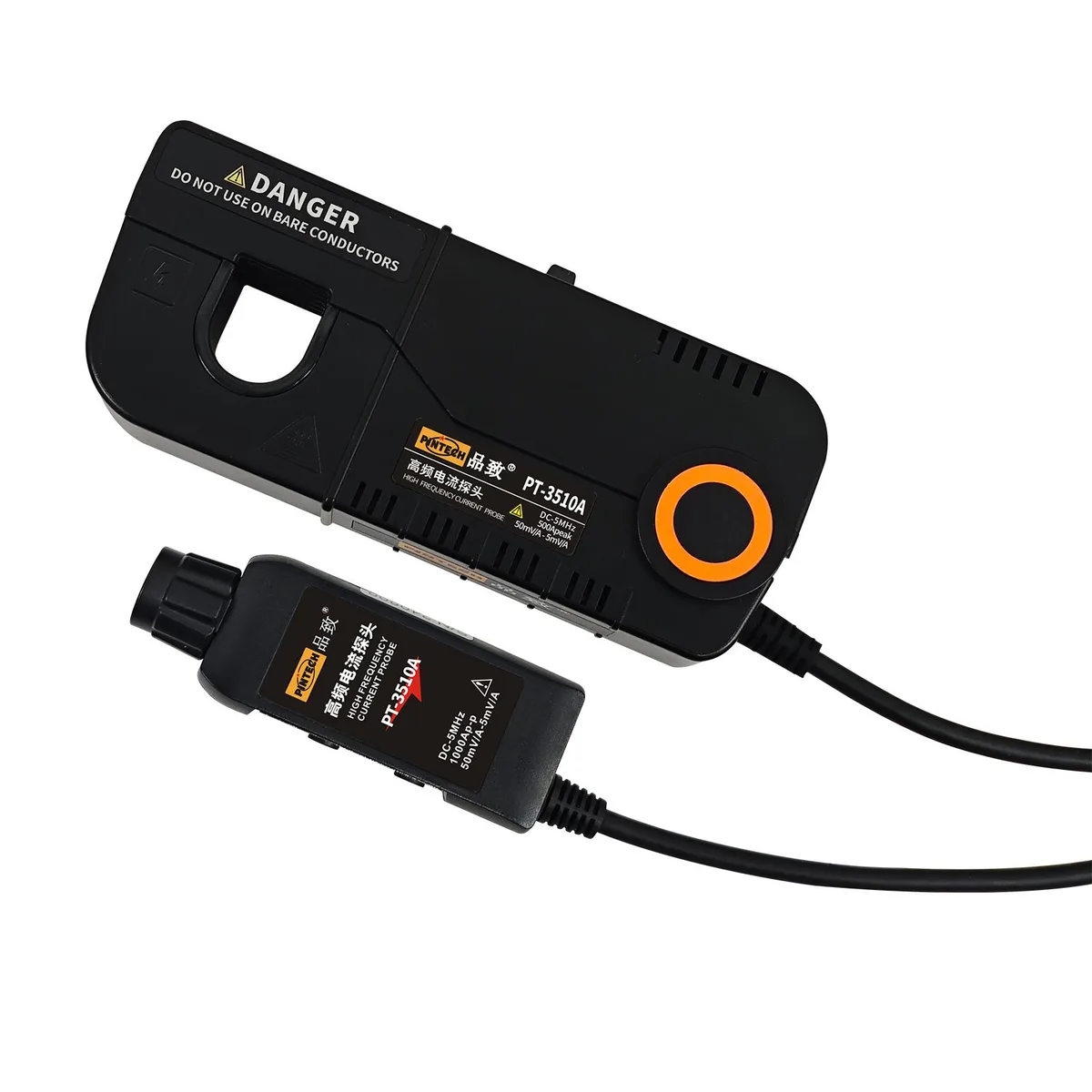

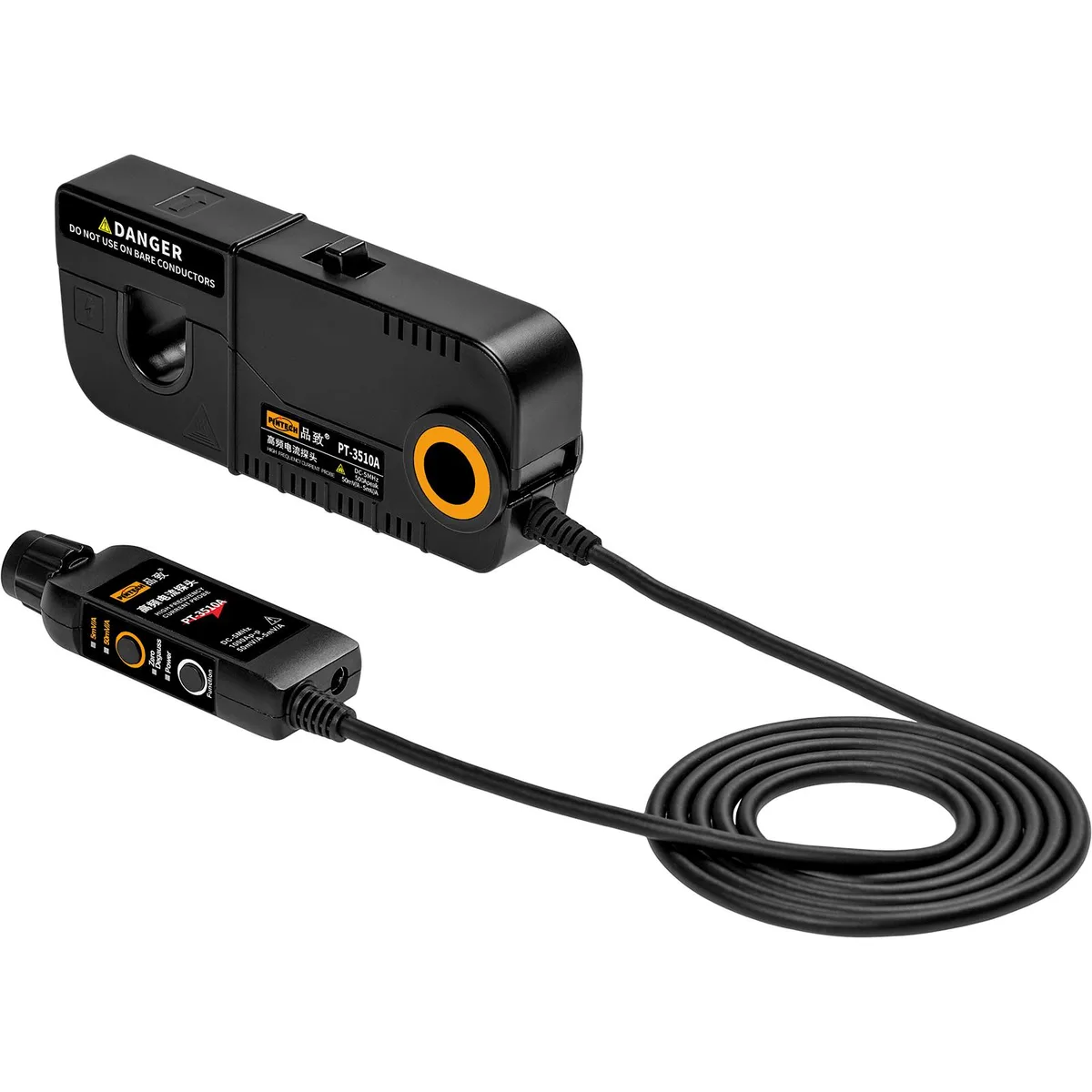

Black clamp-style current probe with BNC cable, 20 mm jaw opening, PT-3510A model

Pintech

Pintech PT-3510A AC/DC current probe 1000A 5MHz measurement tool

SKU CH-X5G3-70Q1P MPN PT-3510A

Measures AC and DC current up to 1000 A with 5 MHz bandwidth and 1 % accuracy via a 20 mm jaw and BNC connector

  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±1%+1mV
  • Standards/CertificationsCE
  • Measures DC and AC currents up to 1000 A peak
  • 5 MHz bandwidth captures fast transients with 70 ns rise time
  • ±1 % accuracy backed by magneto-electric sensor technology
  • 20 mm jaw opening fits conductors up to .79 inch diameter
  • Standard BNC connector works with any oscilloscope

Precision AC/DC current probe

The Pintech PT-3510A measures both alternating and direct current up to 1000 A peak with a DC-to-5 MHz bandwidth. Its 20 mm jaw aperture fits most conductors, and the standard BNC connector plugs directly into any oscilloscope. Engineers and technicians use it for power-supply validation, motor-drive analysis and automotive electrical diagnostics.

1000 A peak with dual-range scaling

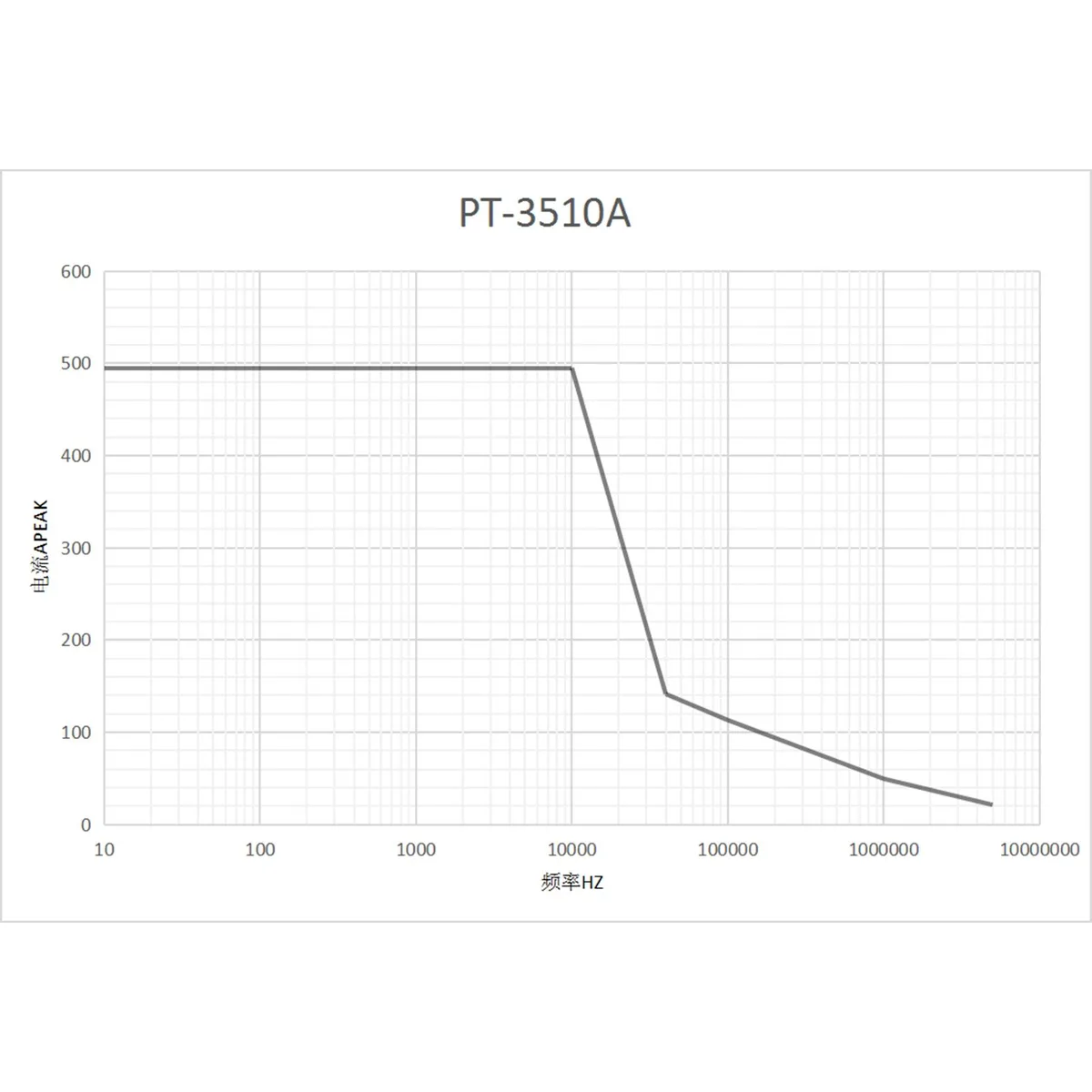

Two selectable transformation ratios — 50 mV/A and 5 mV/A — give 100 A and 1000 A full-scale ranges respectively. Accuracy holds at ±1 % plus 1–2 mV offset, while noise stays at 35 mA rms. The 70 ns rise time captures fast transients, yet the probe saturates above its rated peak, so higher fault currents need a different sensor.

Upgrades clamp meters and shunts

Users moving from handheld clamp meters gain waveform fidelity and oscilloscope integration without breaking the circuit. The jump is worth it when phase timing, inrush profiles or harmonic content matter. It does not suit installations needing permanent mounting, isolated inputs or bandwidth beyond 5 MHz.

Highlights

  • Measures DC and AC currents up to 1000 A peak
  • 5 MHz bandwidth captures fast transients with 70 ns rise time
  • ±1 % accuracy backed by magneto-electric sensor technology
  • 20 mm jaw opening fits conductors up to .79 inch diameter
  • Standard BNC connector works with any oscilloscope

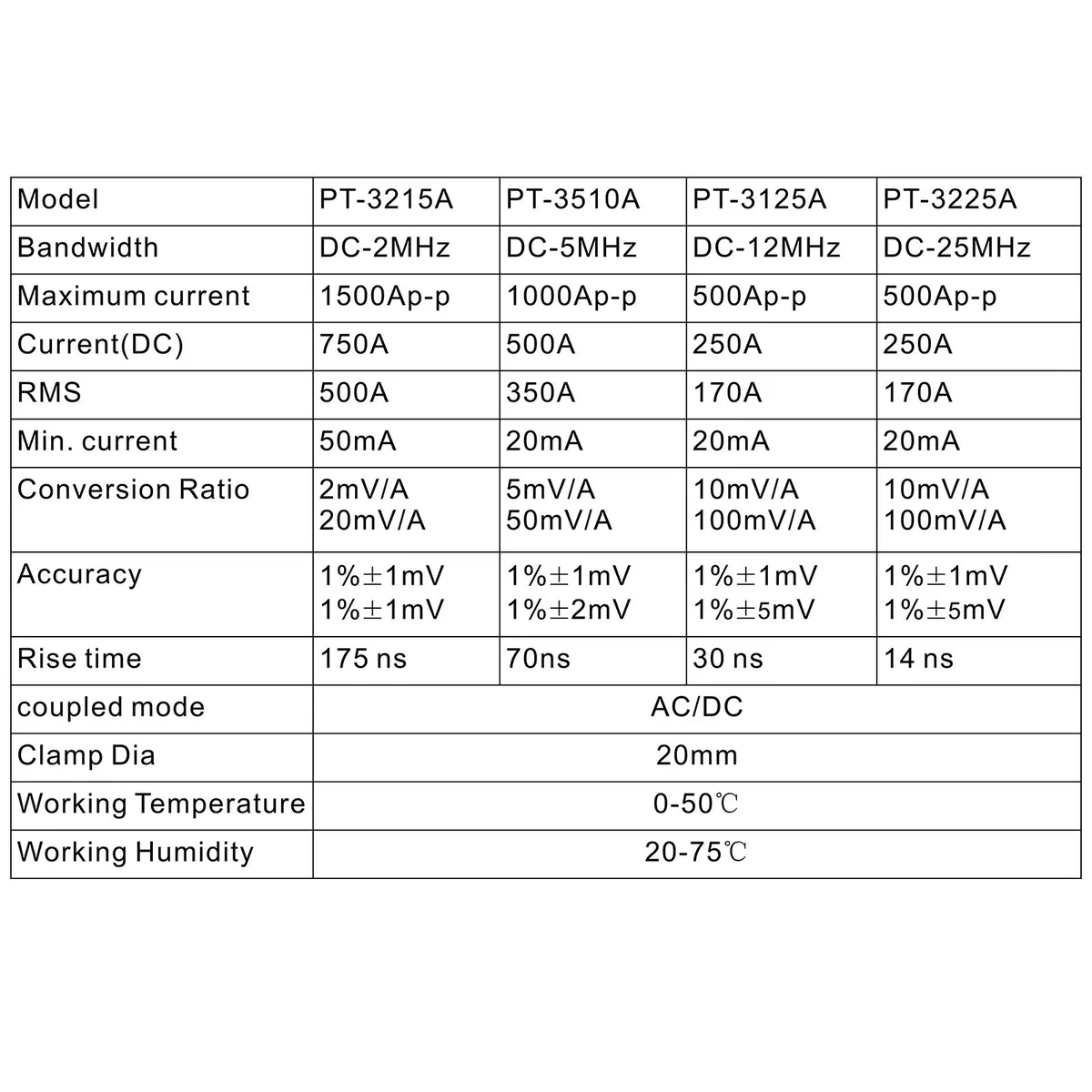

Specifications

BrandPINTECH
ModelPT-3510A
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±1%+1mV
Standards/CertificationsCE

Questions about this item

Will the 20 mm jaw fit around the same cables I use with my older 100 A probe?

The clamp opens to 20 mm, so it accommodates conductors up to that diameter; check your existing cable insulation before connecting.

How do I verify the ±1 % accuracy after I connect the BNC to my scope?

Apply a known DC current, select the 50 mV/A range, and confirm the scope reads within 1 % ± 1 mV of the expected value.

Does the package include the BNC cable and adapters, or do I need to order them separately?

The box contains the PT-3510A probe, one BNC cable, one adaptor and one adapter, plus the manual; no extra items are required for basic operation.
