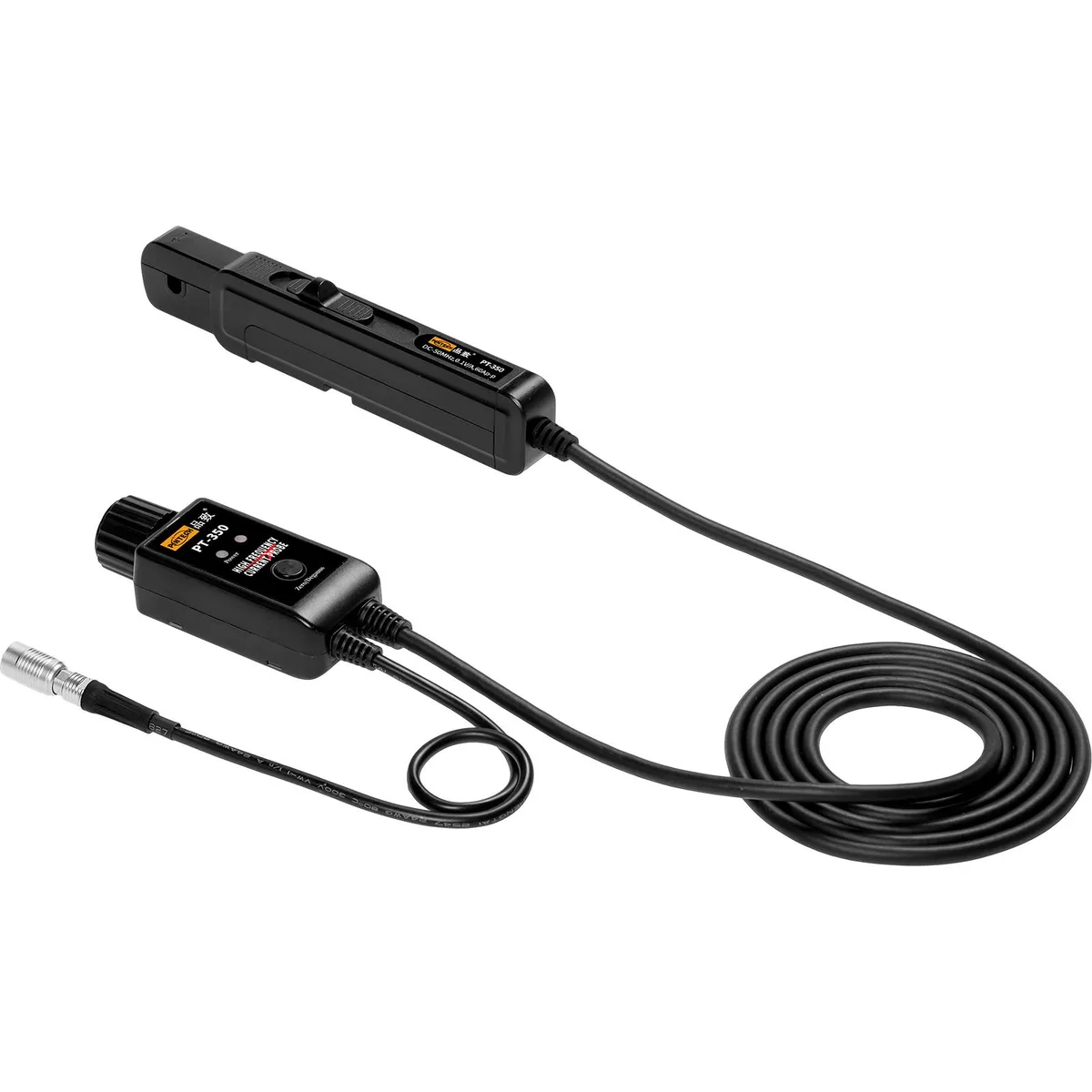

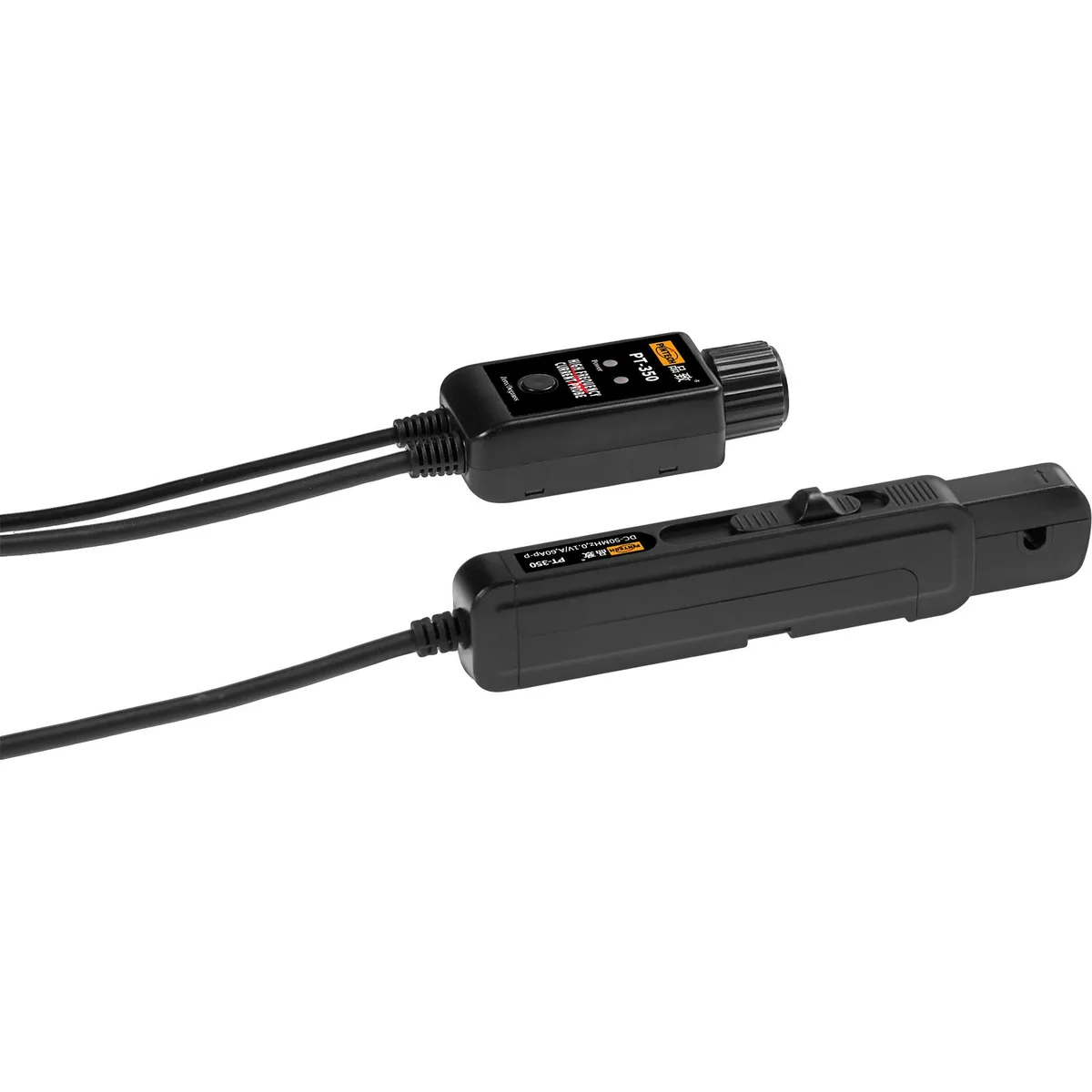

Pintech PT-350 AC/DC current probe, rectangular dark housing 144 by 17 by 29 mm, 5 mm jaw opening, BNC lead attached

Pintech

Pintech PT-350 60A 50MHz AC/DC current probe measurement tool

SKU CH-6FS6-G8308 MPN PT-350

Measures AC and DC currents up to 60 A with 50 MHz bandwidth and ±1% accuracy via a BNC-connected clamp

  • Size/Dimensions144*17*29 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±1%+5mV
  • Standards/CertificationsCE
  • Measures AC and DC currents up to 60 A with 50 MHz bandwidth
  • Typical accuracy of 1 % ± 5 mV for reliable readings
  • 5 mm jaw diameter fits most conductors
  • BNC connector works with any oscilloscope
  • Compact 144 × 17 × 29 mm body weighs 450 g

Precision current probe

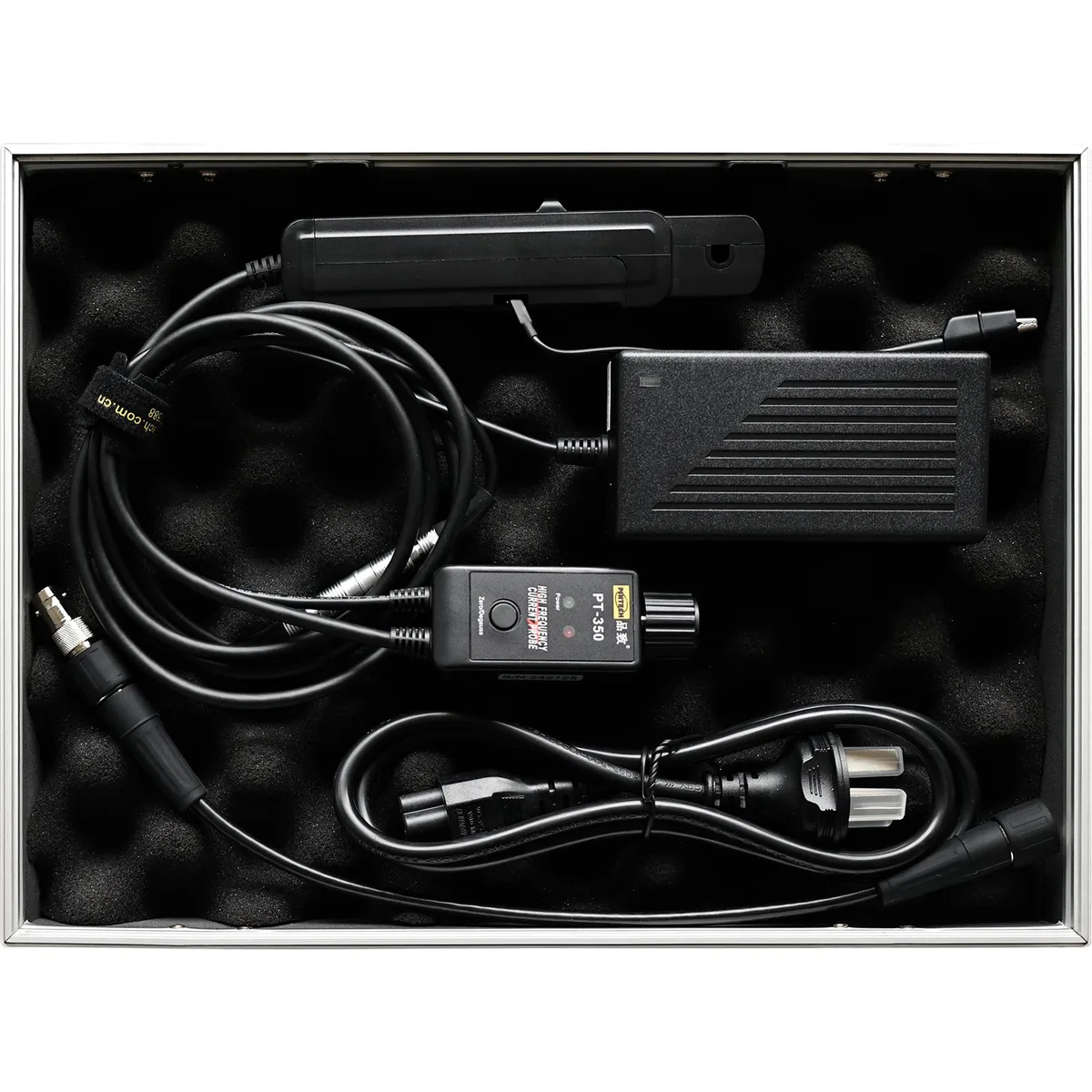

The Pintech PT-350 is a high-frequency AC/DC current probe designed for oscilloscope use. It measures up to 60 A peak AC and 30 A DC with a 50 MHz bandwidth and a 0.1 V/A conversion ratio. The clamp jaw opening is 5 mm and the probe includes a BNC cable, grounding wire, power cable, adapter and manual.

Engineers and technicians

This probe suits engineers and technicians who need to capture fast current waveforms on any oscilloscope with a BNC input. It is not for users who only measure mains-frequency currents or who require a probe that operates without an external power adapter.

50 MHz bandwidth

The single specification that decides fit is the 50 MHz bandwidth combined with a 60 A peak AC rating. If your application demands higher frequency response or greater current capacity, this model will not meet the requirement.

Highlights

  • Measures AC and DC currents up to 60 A with 50 MHz bandwidth
  • Typical accuracy of 1 % ± 5 mV for reliable readings
  • 5 mm jaw diameter fits most conductors
  • BNC connector works with any oscilloscope
  • Compact 144 × 17 × 29 mm body weighs 450 g

Specifications

BrandPINTECH
ModelPT-350
Size/Dimensions144*17*29 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±1%+5mV
Standards/CertificationsCE

Questions about this item

Will the PT-350 clamp onto the same 5 mm conductors I use with older probes?

The jaw opening is 5 mm, so it fits conductors up to that diameter; check your existing wiring against this figure.

How can I verify the probe is performing to its 1 % ± 5 mV typical accuracy after connecting it?

Apply a known DC current and confirm the BNC output reads 0.1 V per ampere within the stated tolerance using your oscilloscope.

Does the package include the BNC cable and power adapter, or must I buy them separately?

The box contains the PT-350 probe, a BNC cable, grounding wire, power cable, adapter and manual — no extra items are required.
