Grey clamp-style current probe with 20mm jaw opening and BNC connector, 500g weight

Pintech

Pintech PT-3215A AC/DC Current Probe 1500A 2MHz measurement tool

SKU CH-G42Q-XYEJZ MPN PT-3215A

Measures AC and DC current up to 1500 A peak with 2 MHz bandwidth and 1% accuracy via a 20 mm jaw and BNC output

  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±1%+1mV
  • Standards/CertificationsCE
  • DC-2 MHz bandwidth captures fast transients
  • ±1 % accuracy ensures reliable readings
  • 1500 A peak range handles high-power circuits

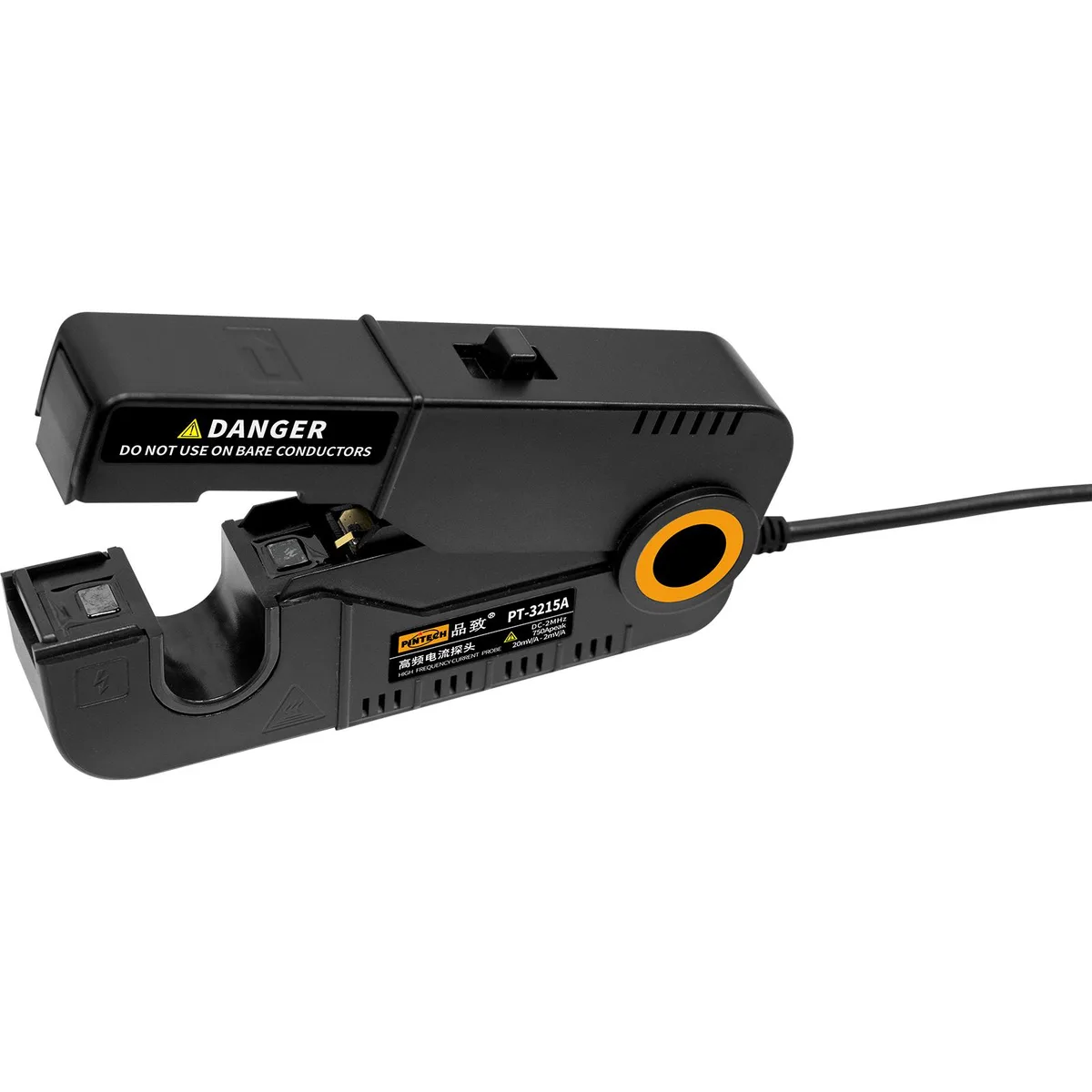

  • 20 mm jaw fits most conductors
  • BNC connector works with any oscilloscope

High-Current AC/DC Probe for Oscilloscopes

The Pintech PT-3215A is a clamp-style current probe built for engineers and technicians who need to visualise high-amplitude waveforms on any oscilloscope with a BNC input. It measures both AC and DC signals up to 1500 Ap-p with a DC-to-2 MHz bandwidth, making it suitable for power-electronics development, automotive diagnostics and industrial maintenance tasks.

Thermal Stability and Low Noise Operation

The probe draws its operating power from the supplied adaptor, so it adds no load to the circuit under test and generates negligible self-heating during extended captures. Its specified noise floor is 50 mA rms, while the 175 ns rise time ensures fast transients are reproduced cleanly without overshoot or ringing.

Replaces Shunt Resistors and Lower-Range Clamps

This unit upgrades from invasive shunt methods or fixed-range probes that saturate well below 750 A DC or 1500 A AC peak. The jump is worth it when the test plan demands non-contact measurement of high-current pulses, motor-drive currents or switch-mode power-supply waveforms without breaking the conductor.

Highlights

  • DC-2 MHz bandwidth captures fast transients
  • ±1 % accuracy ensures reliable readings
  • 1500 A peak range handles high-power circuits
  • 20 mm jaw fits most conductors
  • BNC connector works with any oscilloscope

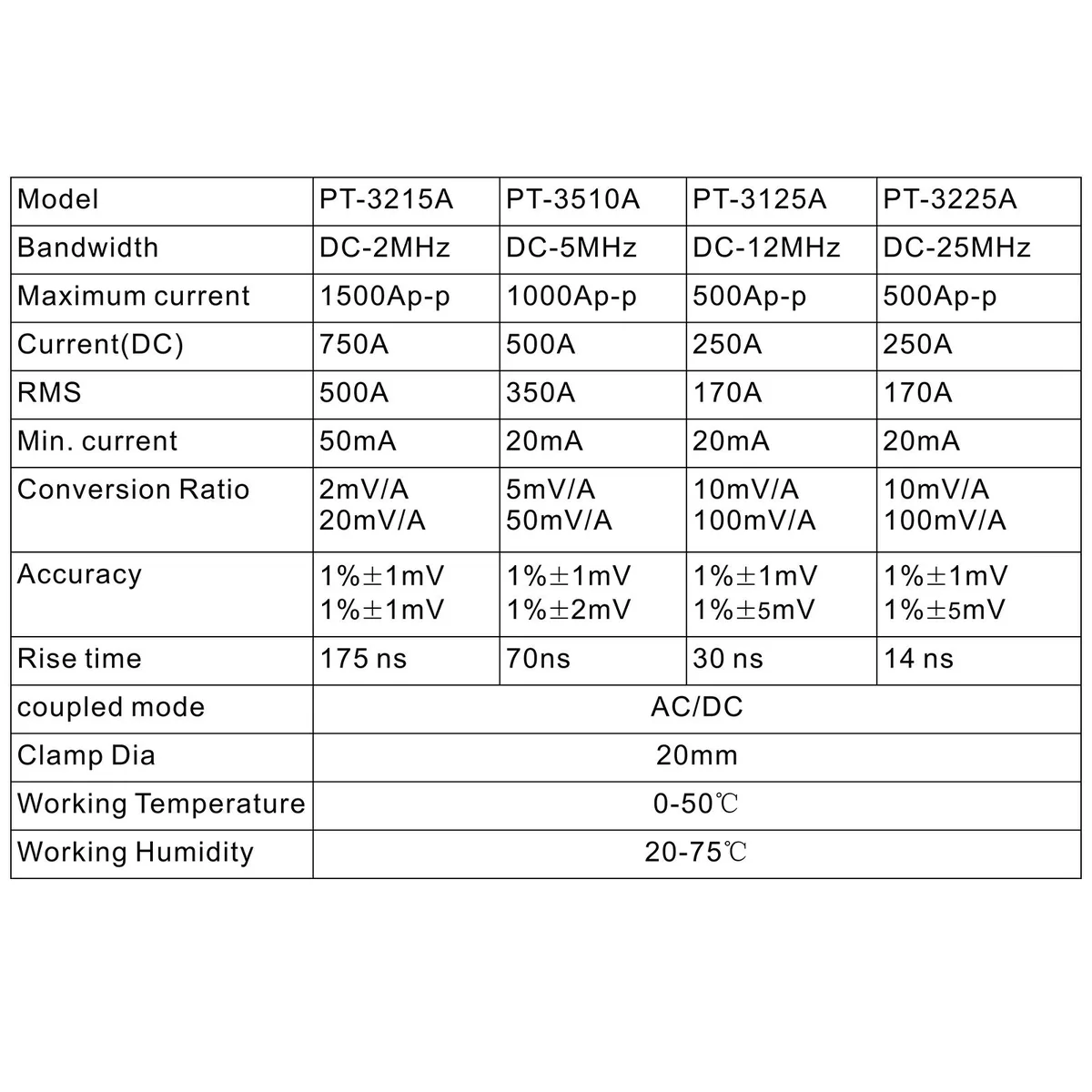

Specifications

BrandPINTECH
ModelPT-3215A
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±1%+1mV
Standards/CertificationsCE

Questions about this item

How do I connect the probe to my oscilloscope and which jaw setting should I use first?

Plug the supplied BNC cable into the probe's BNC output and then into your oscilloscope's BNC input. Open the 20 mm jaws, clamp around a single conductor, and select the 20 mV/A (50:1) range for currents up to 1500 A peak.

What consumable or wearable part will need replacement during the probe's service life?

The probe has no internal battery or user-replaceable sensor. Only the external BNC cable and supplied adapters are subject to wear; replace them if the connectors become loose or the insulation is damaged.

At what current level does the probe's specified accuracy cease to be guaranteed during a long capture?

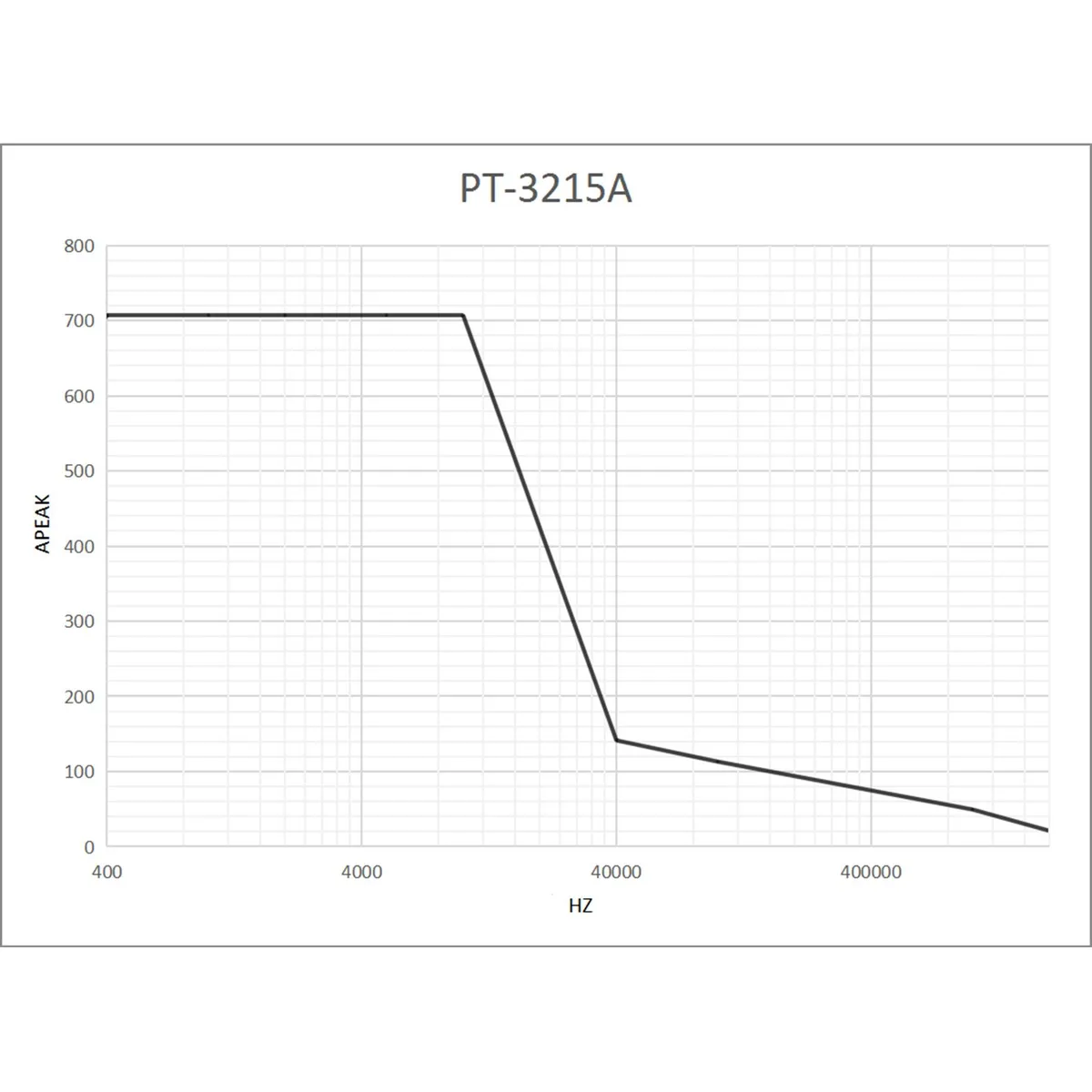

Accuracy of ±1% ±1 mV is specified up to 750 A DC or 1500 A peak AC. Sustained currents above 750 A DC RMS or 500 A AC RMS exceed the rated limits and are not covered by the stated accuracy.
