Pintech PT-3215 AC/DC current probe, clamp jaws .79 inch diameter, BNC connector, grey finish

Pintech

Pintech PT-3215 AC/DC current probe 1500A 2MHz measurement tool

SKU CH-8VDM-PG8Y2 MPN PT-3215

Measures AC up to 1500 A and DC up to 750 A with 2 MHz bandwidth and ±2 % accuracy, BNC output for any oscilloscope

  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±2%
  • Standards/CertificationsCE
  • Measures DC and AC up to 1500 A peak with ±2 % accuracy
  • 2 MHz bandwidth and 175 ns rise time capture fast transients
  • 20 mm jaw opening fits large conductors up to .79 in
  • Standard BNC connector works with any oscilloscope
  • Weighs 1.1 lb and includes adapters, BNC cable, grounding wire and manual

What it is and who it is for

The Pintech PT-3215 is a high-precision AC/DC current probe designed for use with oscilloscopes. It suits engineers and technicians who need to capture accurate current waveforms up to 1500A peak in automotive, industrial, or laboratory testing environments.

The specification that decides fit

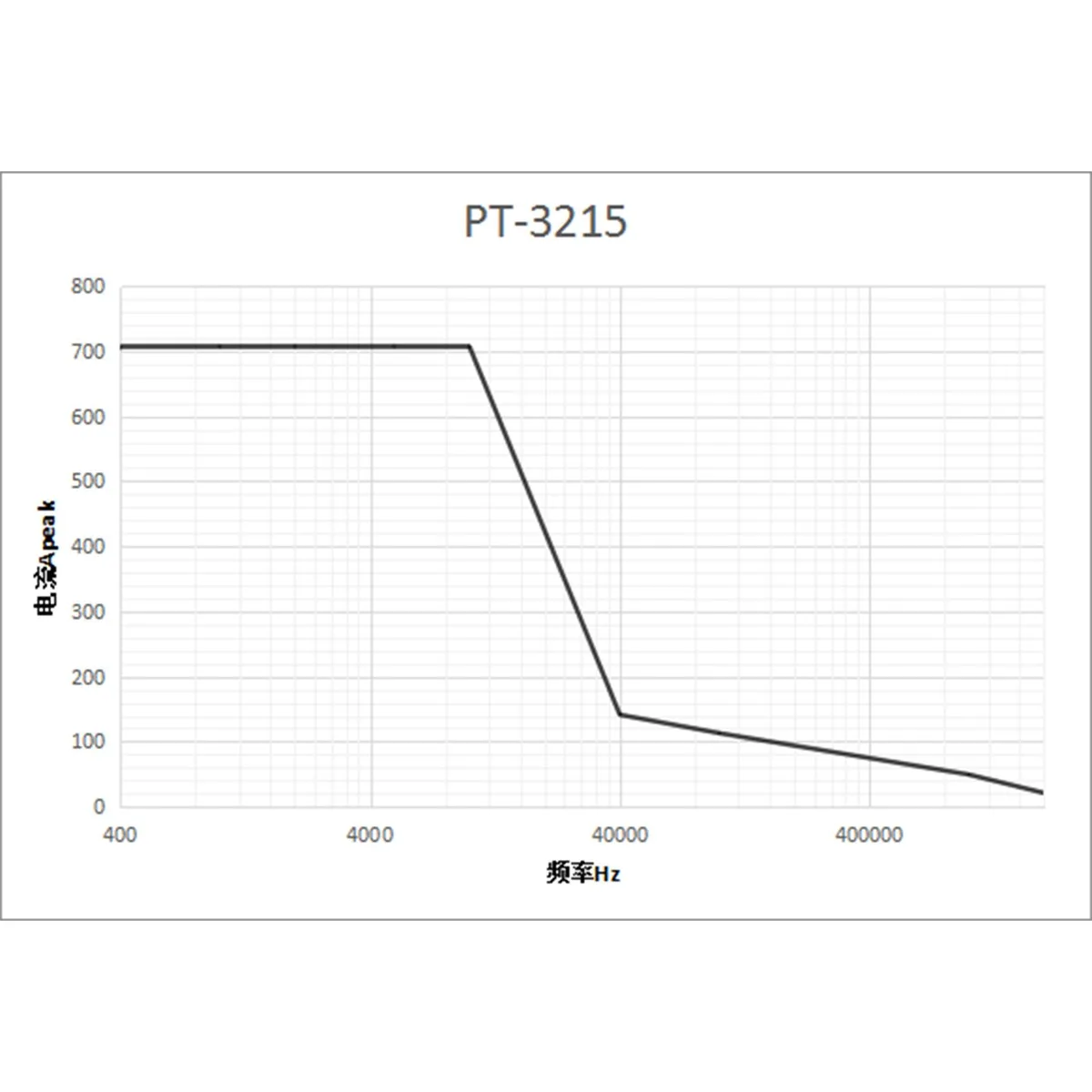

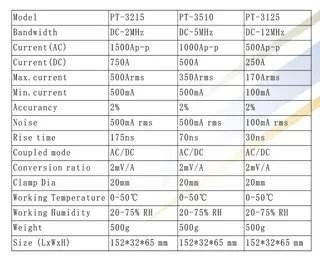

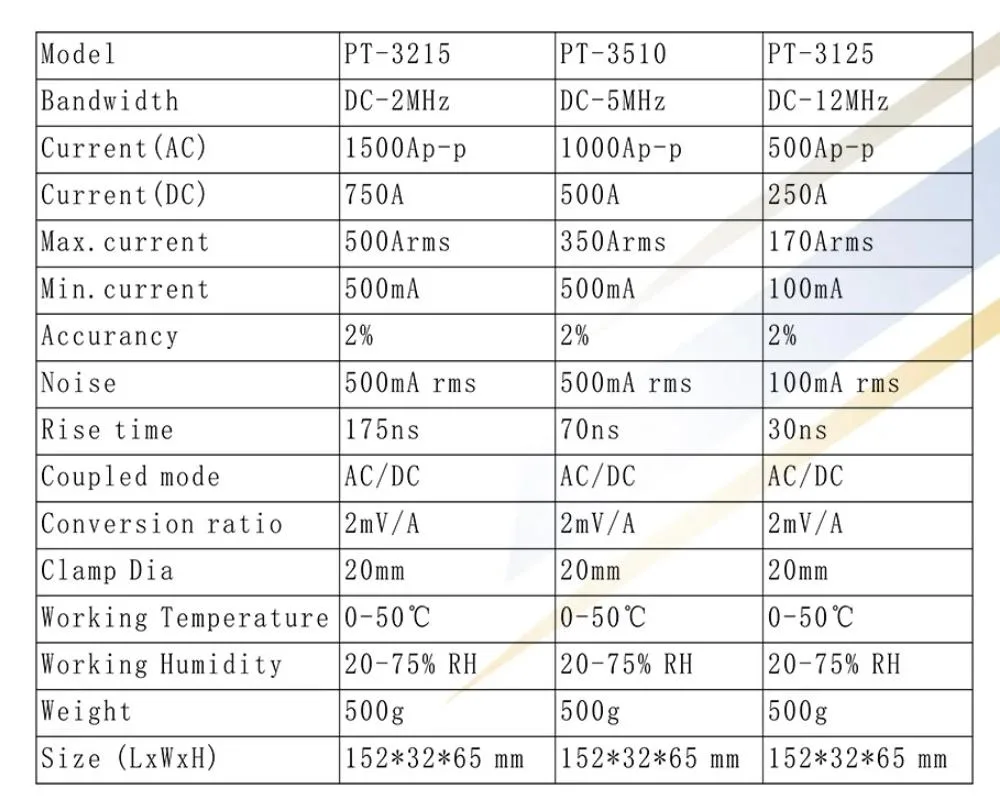

Bandwidth reaches DC to 2MHz with a transformation ratio of 2mV/A (500:1) and ±2% accuracy. It handles 1500A peak AC, 750A DC, and 500A RMS maximum current, with a minimum test threshold of 500mA and 175ns rise time for fast transient capture.

Installation and common issues

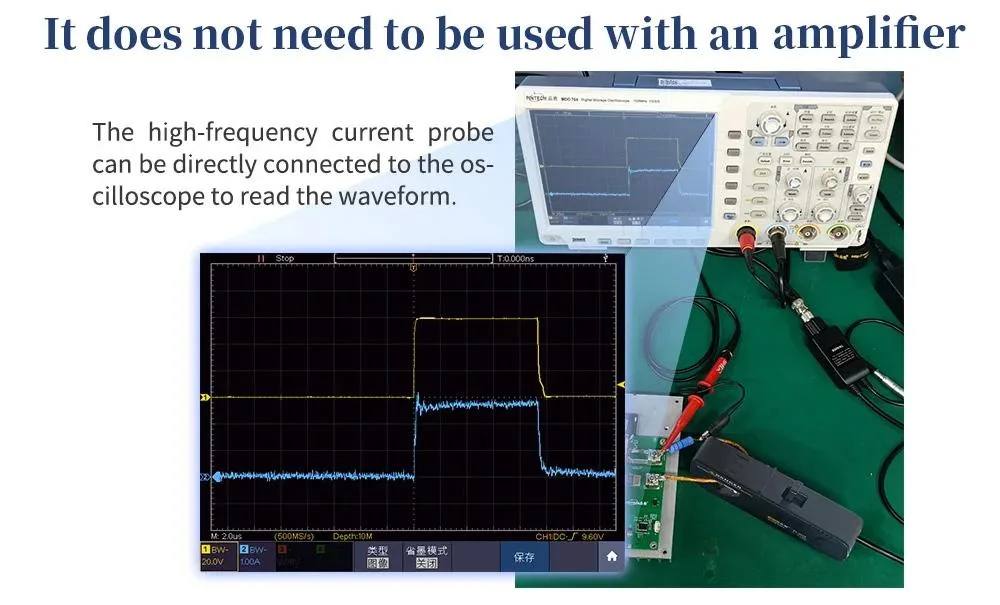

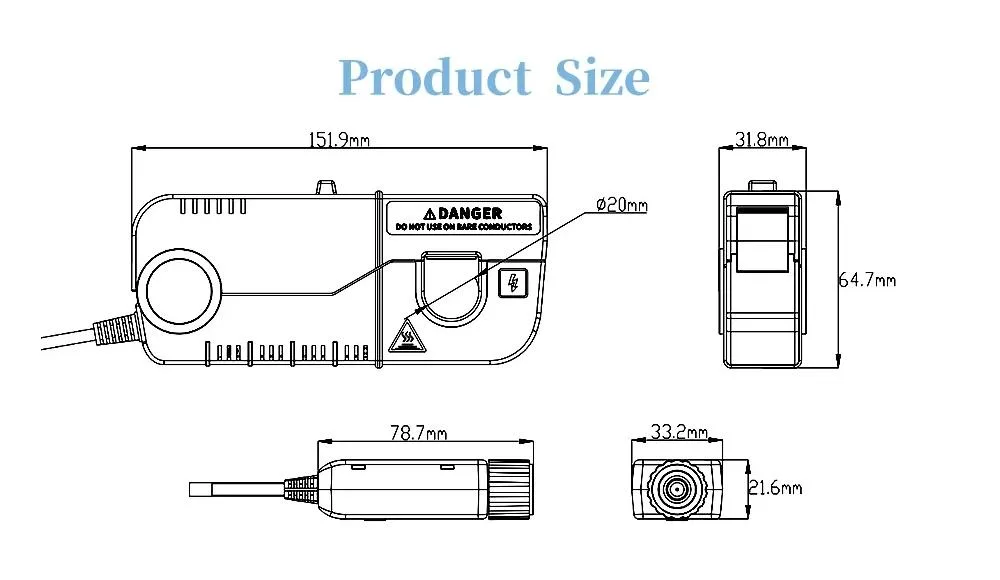

The probe connects via a standard BNC interface compatible with all oscilloscopes and includes adaptors, BNC cable, grounding wire, power cable, adapter, and manual. Jaw opening is 20mm (0.79"), so conductors thicker than this will not fit; ensure the conductor passes cleanly through the clamp for reliable coupling.

Highlights

  • Measures DC and AC up to 1500 A peak with ±2 % accuracy
  • 2 MHz bandwidth and 175 ns rise time capture fast transients
  • 20 mm jaw opening fits large conductors up to .79 in
  • Standard BNC connector works with any oscilloscope
  • Weighs 1.1 lb and includes adapters, BNC cable, grounding wire and manual

Specifications

BrandPINTECH
ModelPT-3215
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±2%
Standards/CertificationsCE

Questions about this item

What does the 1500 A peak rating mean when I am capturing waveforms on an oscilloscope?

The probe measures up to 1500 A peak-to-peak AC or 750 A DC, converting current to voltage at 2 mV per amp so the scope displays the waveform directly.

How does the BNC connector and 2 MHz bandwidth limit what I can see?

The standard BNC plugs into any oscilloscope input; the DC-to-2 MHz bandwidth and 175 ns rise time let you capture transients up to a few megahertz without attenuation.

Will the 20 mm jaw opening fit around the conductors in my panel?

The clamp opens to 20 mm (about .79 in), accommodating most power cables and bus bars while the probe weighs 1.1 lb for handheld use.
