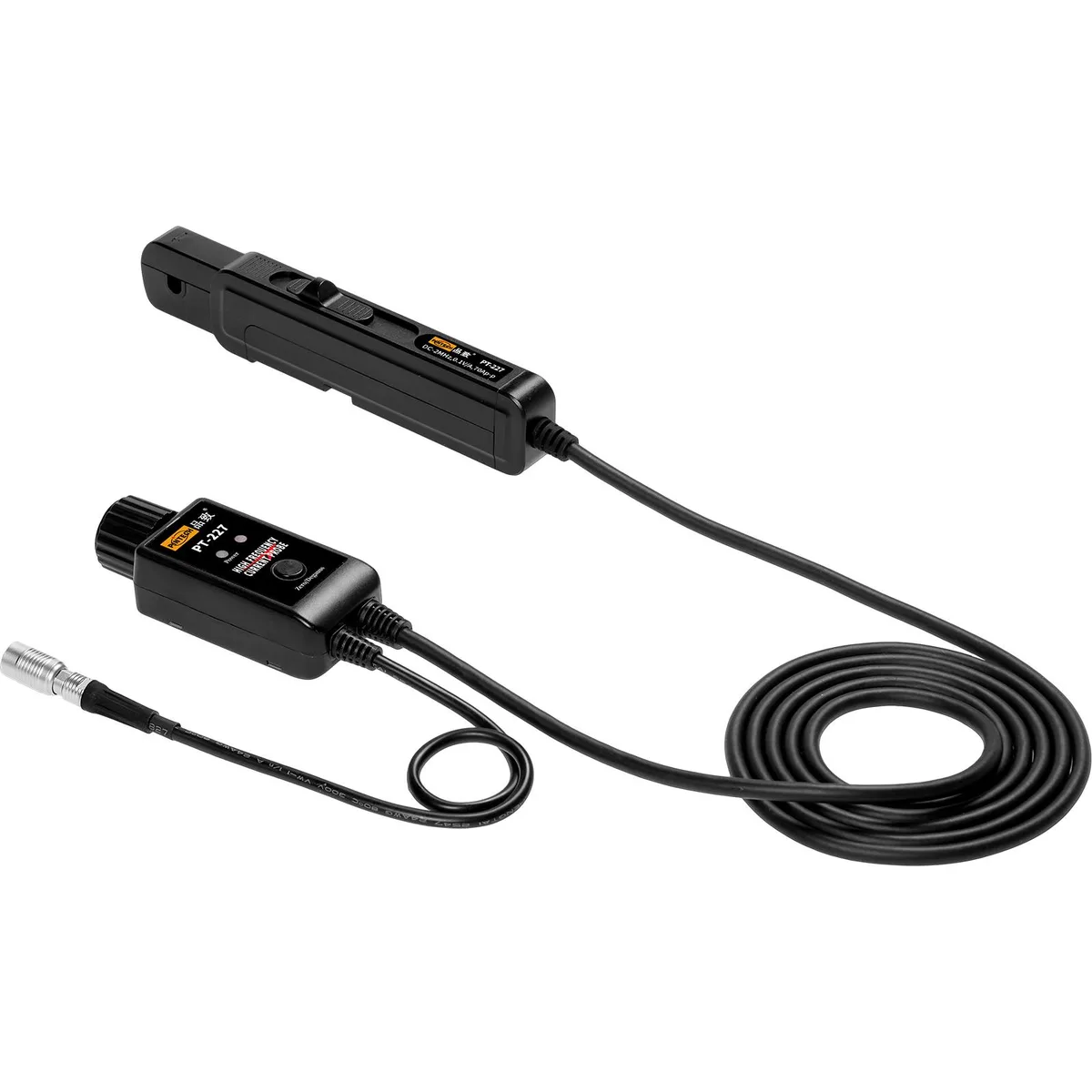

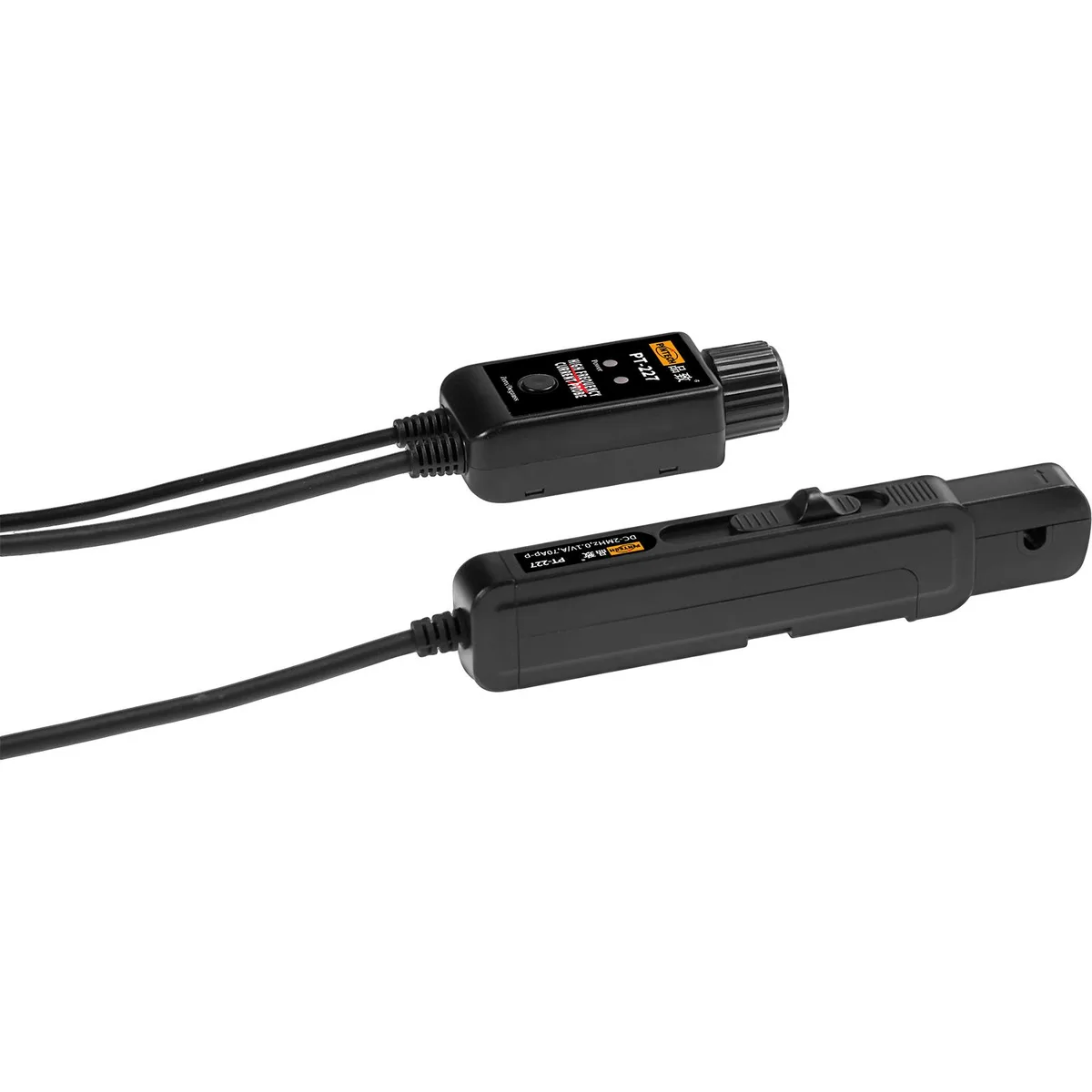

Pintech PT-227 current probe, clamp jaws, BNC connector, grey finish

Pintech

Pintech PT-227 AC/DC current probe 70 A 2 MHz measurement tool

SKU CH-B6CX-ZRMXY MPN PT-227

Measures AC and DC current up to 70 A with 2 MHz bandwidth and ±3 % accuracy using a 5 mm jaw and BNC output

  • Size/Dimensions144*17*29 mm
  • Accuracy±1%+5mV
  • Standards/CertificationsCE
  • Measures DC and AC currents up to 70 A peak
  • 2 MHz bandwidth captures fast transients with 175 ns rise time
  • ±1 % typical accuracy backed by magneto-electric sensor
  • 5 mm jaw diameter fits tight conductors
  • Standard BNC connector works with any oscilloscope

AC/DC current probe for oscilloscopes

The Pintech PT-227 measures both AC and DC currents up to 70 Ap-p with a DC to 2 MHz bandwidth. It connects to any oscilloscope through a standard BNC connector and uses a magneto-electric sensor to capture waveforms with a 175 ns rise time. The transformation ratio is 0.1 V/A and typical accuracy is ±1% ±5 mV.

Suited for engineers and technicians measuring

This probe fits users who need to view DC and AC signals on a single instrument with a 5 mm jaw opening. It is not for buyers who must measure currents above 70 Ap-p or bandwidths beyond 2 MHz. The 24 A rms continuous limit also rules out sustained high-power applications.

70 Ap-p AC and 35 A DC measurement range

The maximum AC peak-to-peak current is 70 A while the DC limit is 35 A, with a 20 mA minimum test current. These figures decide whether the probe covers the signal amplitudes in your test setup.

Highlights

  • Measures DC and AC currents up to 70 A peak
  • 2 MHz bandwidth captures fast transients with 175 ns rise time
  • ±1 % typical accuracy backed by magneto-electric sensor
  • 5 mm jaw diameter fits tight conductors
  • Standard BNC connector works with any oscilloscope

Specifications

BrandPINTECH
ModelPT-227
Size/Dimensions144*17*29 mm
Accuracy±1%+5mV
Standards/CertificationsCE

Questions about this item

Should I pick the 70 A peak AC or the 35 A DC range for my PT-227?

The PT-227 handles both simultaneously; use the 70 A peak AC rating for alternating signals and the 35 A limit for steady DC, staying within the 24 A RMS ceiling for continuous heating.

What does the 2 MHz bandwidth mean when I connect the probe to my oscilloscope?

It lets you capture current transients with a 175 ns rise time, so edges up to a few hundred nanoseconds are displayed without significant attenuation.

How does the standard BNC connector limit what I can measure with this probe?

The BNC output carries a 0.1 V/A scaled signal into any oscilloscope with 1 MΩ input, capping the measurable bandwidth at the probe's 2 MHz specification.
