Pintech N2060Apro 200MHz 6kV differential probe measurement tool

High-voltage differential probe kit

The Pintech N2060Apro is a 200 MHz bandwidth differential probe kit rated for 6 kV peak-to-peak measurement. It suits engineers and technicians who need safe, isolated observation of high-voltage signals on standard oscilloscopes. The kit includes the probe, a BNC cable, two probe hooks, an adapter and a manual. A 6 V power adapter supplies the active circuitry.

Replaces single-ended probing on motor drives

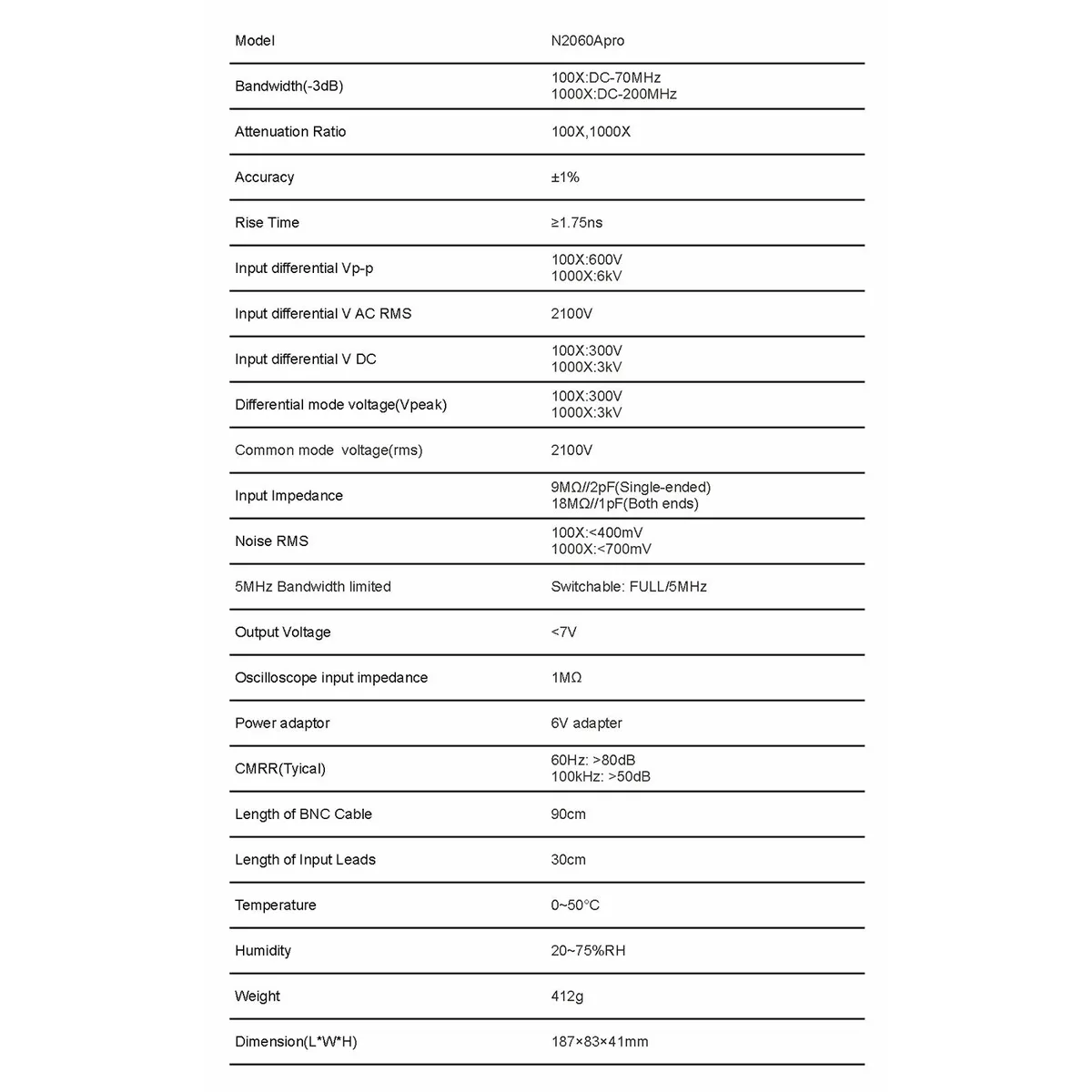

The probe converts any two-point signal into a ground-referenced output, removing the need for floating oscilloscope measurements on motor circuits and power electronics. The jump is worth it when common-mode voltages exceed the oscilloscope’s input rating or when ground-loop currents corrupt the reading. At 1000X attenuation the probe handles 3 kV DC or 6 kV peak-to-peak differential voltage with ±1 % accuracy after a short warm-up.

BNC interface limits cable length and bandwidth

The 90 cm BNC cable sets the practical reach from the probe head to the oscilloscope front panel. Bandwidth at 100X drops to 70 MHz, so fast edges on lower-voltage signals are better captured at 1000X where the full 200 MHz and 1.75 ns rise time apply. Common-mode rejection falls to 50 dB at 100 kHz, so very noisy environments may still couple interference into the measurement.
