Pintech N2015Apro 200MHz 2kV 1000X/100X differential probe measurement tool

200 MHz differential probe for motor-circuit testing

The Pintech N2015Apro is a high-voltage differential probe rated for 200 MHz bandwidth at 1000X attenuation and 70 MHz at 100X attenuation. It converts two-point signals to ground-referenced outputs for oscilloscopes, meters and data-acquisition equipment. The tool is aimed at engineers and technicians who need to measure motor drives, inverters and other floating circuits safely. A ±1 % accuracy specification applies after a short warm-up period.

BNC cable, hooks and adapter simplify connection

The kit ships with a 90 cm BNC cable, two probe hooks and an adapter so the probe plugs directly into any oscilloscope with a 1 MΩ input. A selectable 5 MHz bandwidth limit helps reject high-frequency noise when observing lower-speed waveforms. The 6 V power adapter supplies the active circuitry, removing the need for batteries or a separate bench supply during extended test sessions.

1 kV differential and 700 V common-mode limits

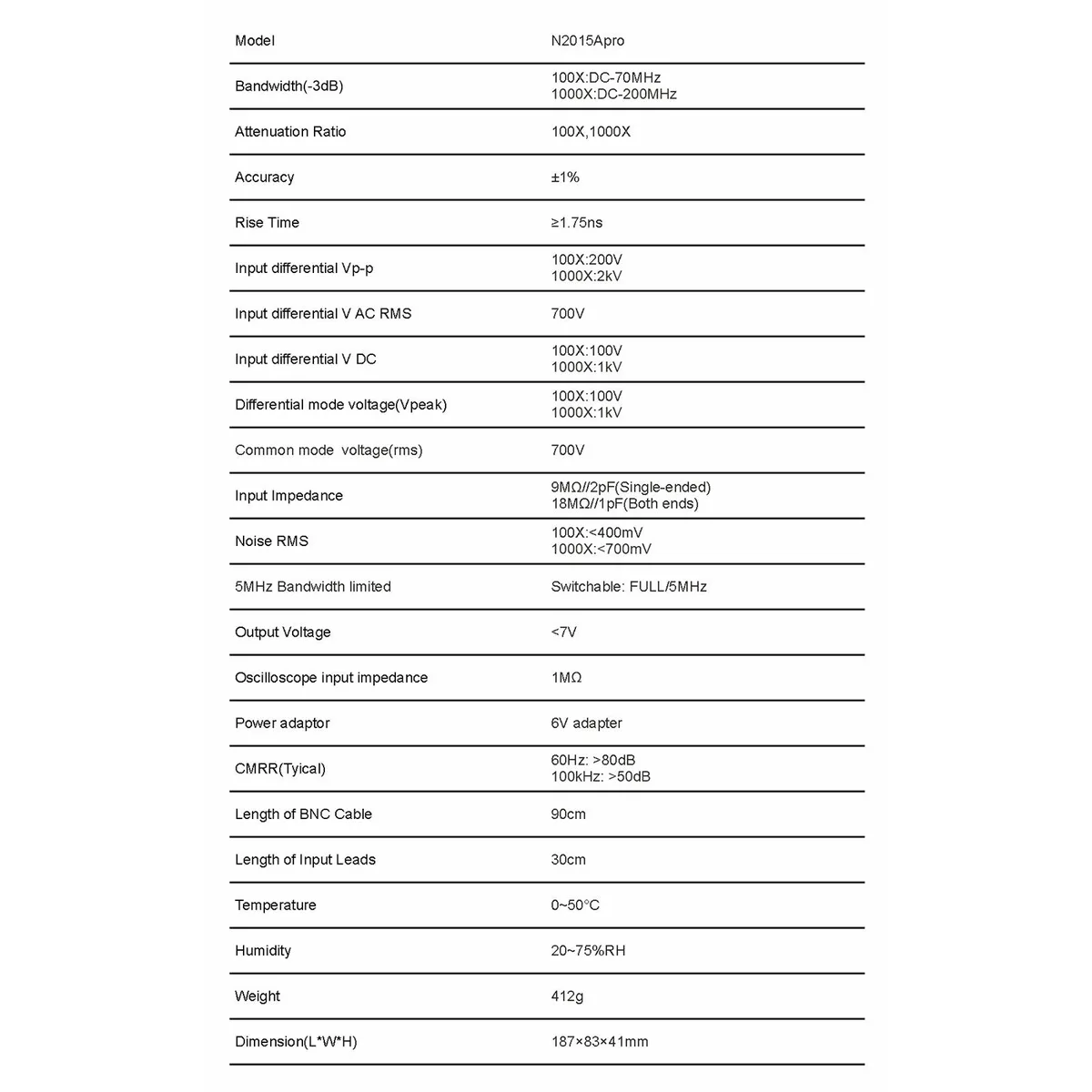

At the 1000X setting the probe accepts 1 kV differential input and 2 kV peak-to-peak, while the 100X setting handles 100 V differential and 200 V peak-to-peak. Common-mode RMS voltage is capped at 700 V regardless of attenuation. Rise time is 1.75 ns, and CMRR drops from above 80 dB at 60 Hz to above 50 dB at 100 kHz, so very fast common-mode transients will not be fully rejected.
