Pintech N1108B differential probe, dark rectangular body, BNC connector, hook clips included

Pintech

Pintech N1108B 100MHz 800V 100X/10X differential probe measurement tool

SKU CH-2WMG-65RB5 MPN N1108B

High-voltage differential probe with 100 MHz bandwidth, 800 V peak-to-peak range, and switchable 10X/100X attenuation for oscilloscope measurements

  • Size/Dimensions166.5*70.7*30 mm
  • Selling UnitEach
  • TypeElectrical Testing & Measuring
  • Accuracy±1%
  • Standards/CertificationsCE
  • 100 MHz bandwidth for fast signal capture
  • 800 V differential range for high-voltage testing
  • ±1 % accuracy for reliable measurements
  • 10X and 100X attenuation for flexible scaling
  • BNC interface fits all oscilloscopes

What this probe measures

The Pintech N1108B is a high-voltage differential probe designed for oscilloscope use. It handles a maximum differential test voltage of 800Vp-p at the 100X attenuation setting and 80Vp-p at the 10X setting. Bandwidth reaches 100MHz at 100X and 50MHz at 10X with a 3.5ns rise time. The unit weighs 284g and measures 166.5x70.7x30 mm.

Who should use it and who should not

Engineers troubleshooting floating or high-common-mode signals up to 800Vp-p will find the 100X range and >80dB CMRR at 60Hz suitable. The ±1% accuracy supports quantitative work. Buyers who need to measure differential voltages above 800Vp-p or require a bandwidth exceeding 100MHz should look at a higher-specified instrument.

What the included accessories provide

The kit ships with the N1008B probe, one adapter and two probe hooks for secure connection to test points. A BNC interface on the probe body ensures direct compatibility with any oscilloscope presenting a 1M input impedance. The printed manual covers setup, the auto-zero function and the 10X/100X attenuation selection.

Highlights

  • 100 MHz bandwidth for fast signal capture
  • 800 V differential range for high-voltage testing
  • ±1 % accuracy for reliable measurements
  • 10X and 100X attenuation for flexible scaling
  • BNC interface fits all oscilloscopes

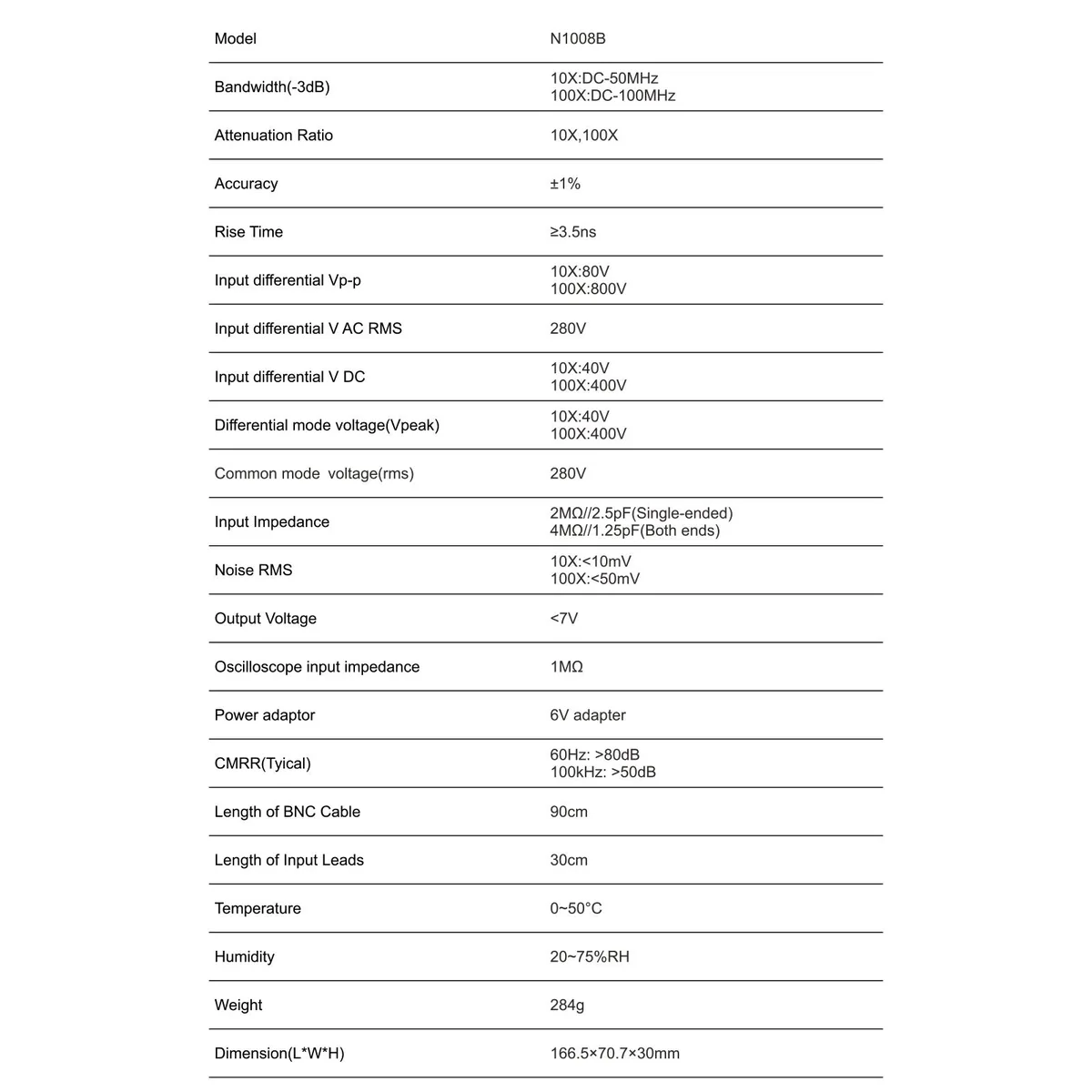

Specifications

BrandPINTECH
ModelN1108B
Size/Dimensions166.5*70.7*30 mm
Selling UnitEach
TypeElectrical Testing & Measuring
Accuracy±1%
Standards/CertificationsCE

Questions about this item

Does this differential probe need a specific oscilloscope input to work?

The probe has a standard BNC interface and is compatible with any oscilloscope that presents a 1 MΩ input impedance.

Will the 100X attenuation setting handle the 400 V peak-to-peak signals from my older inverter circuits?

At 100X the probe accepts up to 800 Vp-p differential and 400 Vp-p single-ended, with a 280 V RMS common-mode limit.

How can I verify the probe is calibrated correctly after connecting it?

Use the built-in auto-zero function, then confirm a flat response up to 100 MHz at 100X or 50 MHz at 10X with a 3.5 ns rise time.
