Black high-voltage probe with long insulated handle and 1000:1 attenuation ratio

Pintech

Pintech HVP-50A 50kV High Voltage Probe 1000:1

SKU CH-WEAH-V6FDE

Measures DC voltages up to 50kV and AC to 35kV with ±1% DC accuracy using a 1000:1 attenuation probe that requires a 10M multimeter

  • Sports Team1 Piece

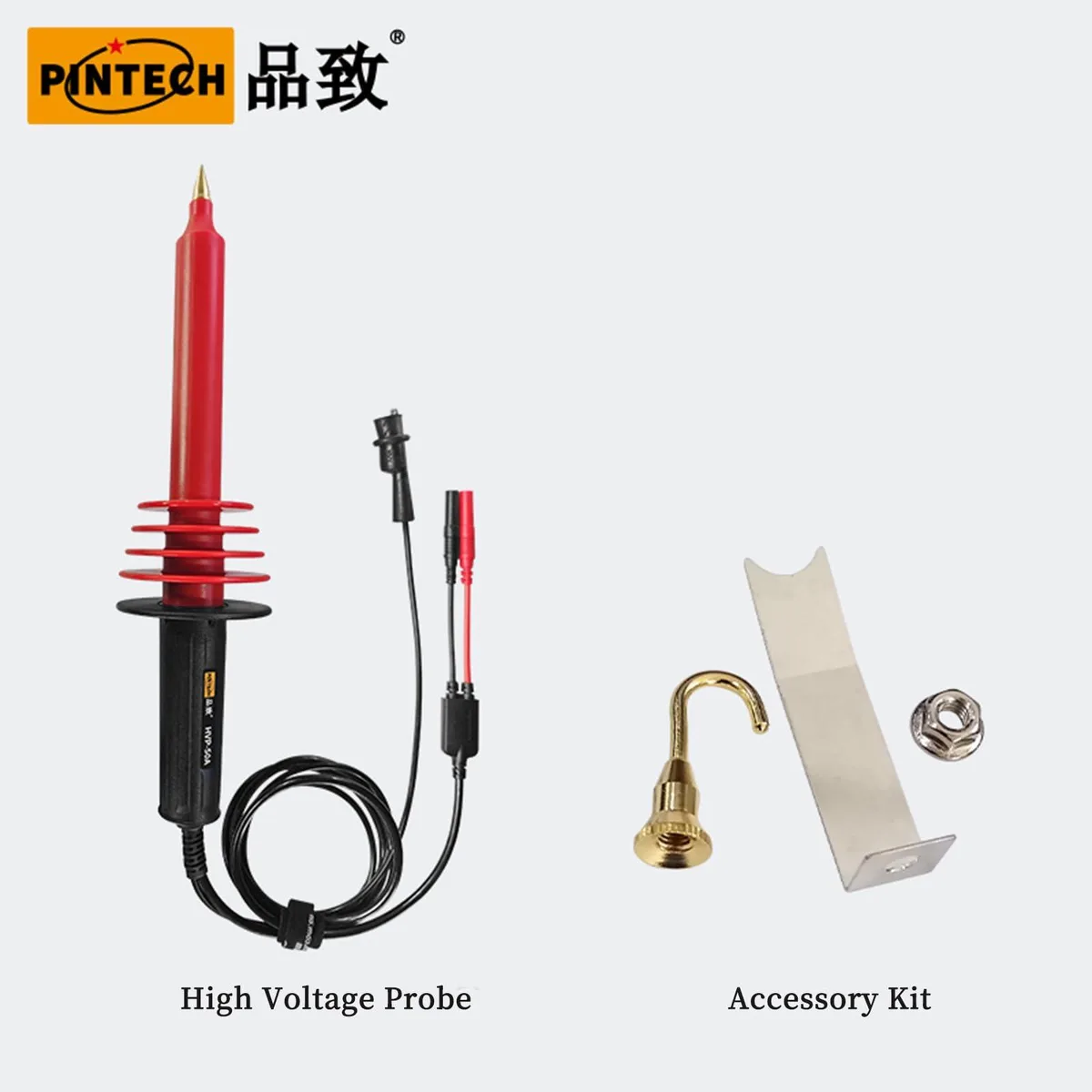

  • IncludesHigh voltage probe x 1, Accessory Kit x 1
  • Standards/CertificationsCE
  • ±1 % DC accuracy at full scale with 1000:1 attenuation
  • AC measurement to 35 kV at 50/60 Hz with ±2 % to 28 kV and ±3 % to 35 kV

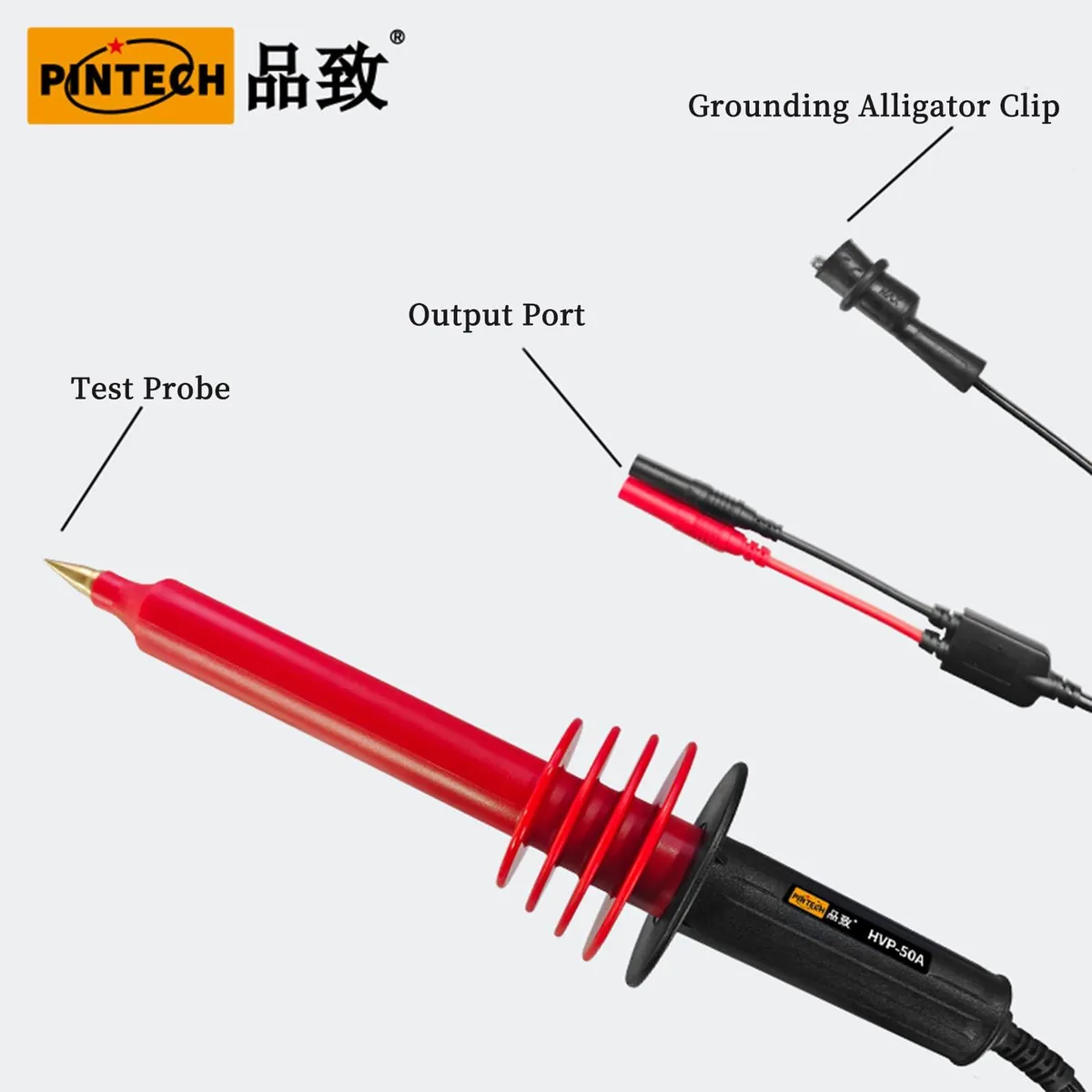

  • Extra-long insulated handle keeps hands clear of live parts
  • 500 MΩ input impedance for safe high-voltage probing
  • Requires 10 MΩ DMM with ±0.5 % accuracy for correct ratio

High-voltage probe for multimeter use

The Pintech HVP-50A is a 1000:1 attenuation probe designed to extend a digital multimeter's range to 50 kV DC or 35 kV AC at 50/60 Hz. It serves technicians who need to measure high-voltage circuits in industrial, laboratory or automotive test environments where standard multimeter leads cannot reach safely. The extra-long insulated handle keeps hands away from live conductors during measurements.

Interface limited to 10 MΩ input meters

Accurate operation requires a digital multimeter with exactly 10 MΩ input impedance and a basic accuracy within ±0.5 %. Meters that differ from this specification will alter the attenuation ratio and produce incorrect readings. The probe presents a 500 MΩ input impedance and draws a maximum load current of 0.1 mA at 50 kV DC, limiting power dissipation to 5 W. AC accuracy is ±2 % up to 28 kV and ±3 % from 28 kV to 35 kV.

Accuracy defined by ±1 % full-scale DC

The single specification that determines suitability is the DC accuracy of ±1 % of full scale, with a temperature coefficient of 100 ppm. This performance level suits calibration, insulation testing and high-voltage supply verification where traceable precision is required. The probe weighs 385 g and operates from 0 °C to +50 °C. CE marking confirms compliance with applicable European safety standards.

Highlights

  • ±1 % DC accuracy at full scale with 1000:1 attenuation
  • AC measurement to 35 kV at 50/60 Hz with ±2 % to 28 kV and ±3 % to 35 kV
  • Extra-long insulated handle keeps hands clear of live parts
  • 500 MΩ input impedance for safe high-voltage probing
  • Requires 10 MΩ DMM with ±0.5 % accuracy for correct ratio

Specifications

Sports Team1 Piece
IncludesHigh voltage probe x 1, Accessory Kit x 1
Standards/CertificationsCE

Questions about this item

Should I choose this 1000:1 probe or a different attenuation ratio?

The HVP-50A has a fixed 1000:1 attenuation ratio and requires a digital multimeter with exactly 10M input impedance and ±0.5% accuracy; any other ratio would need a different probe model.

What does the 50 kV DC rating mean when I connect it to my multimeter?

At 50 kV DC the probe outputs 50 V to the meter, drawing a maximum 0.1 mA load current and dissipating up to 5 W, so the reading on a 10 MΩ DMM will be the true voltage divided by 1000.

How does the CE-marked 1000:1 interface limit real-world use?

The probe only works with a 10 MΩ input-impedance multimeter of ±0.5% accuracy; using any other meter will seriously affect the attenuation ratio and invalidate the ±1% DC and ±2–3% AC specifications.
