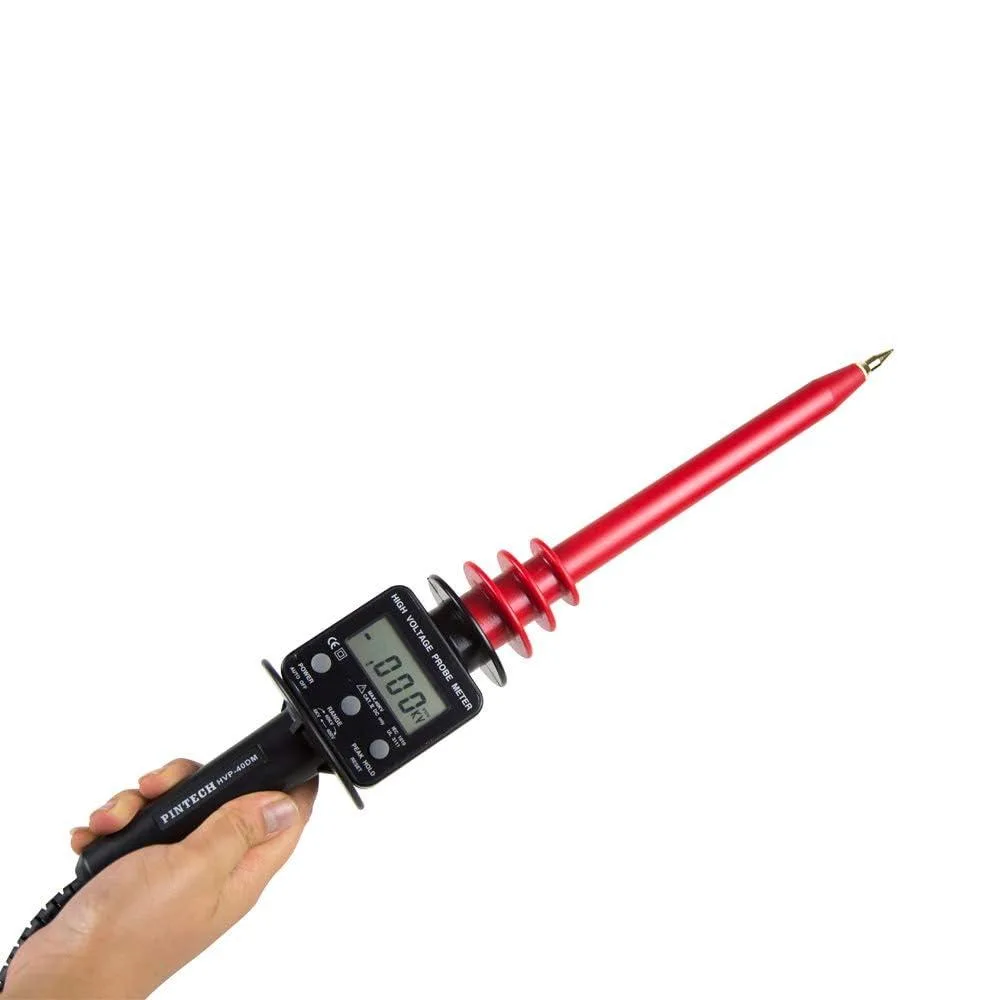

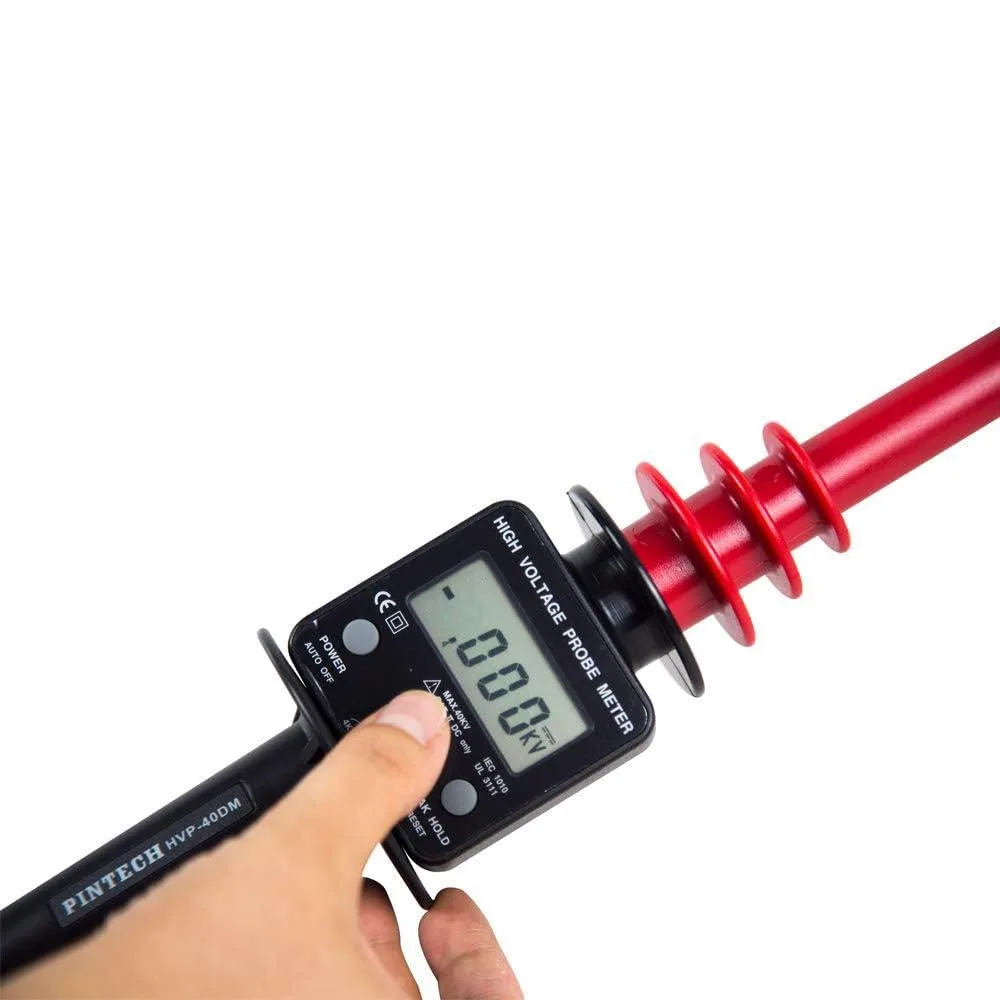

Pintech HVP-40DM high voltage probe with LCD display, 80 by 80 by 420 mm

Pintech

Pintech HVP-40DM 40kV 2000M DC high voltage probe measurement tool

SKU CH-1T7Q-XGC1D MPN HVP-40DM

A DC high-voltage probe measuring up to 40 kV with 2000 MΩ input impedance and 1.0 % accuracy, featuring an LCD readout and three selectable ranges

  • Selling UnitEach
  • Item Count1 Pack
  • TypeOscilloscope Probe
  • Size/Dimensions80*80*420mm
  • Sports Team1 Piece
  • Includeshigh voltage probe x 1, Manual x 1
  • Measures DC voltages up to 40 kV with ≦ 1.0 % ± 2 digit accuracy
  • 2000 MΩ input impedance minimises circuit loading during high-voltage tests
  • Three selectable ranges — 40 kV, 4 kV, 400 V — each with overload protection

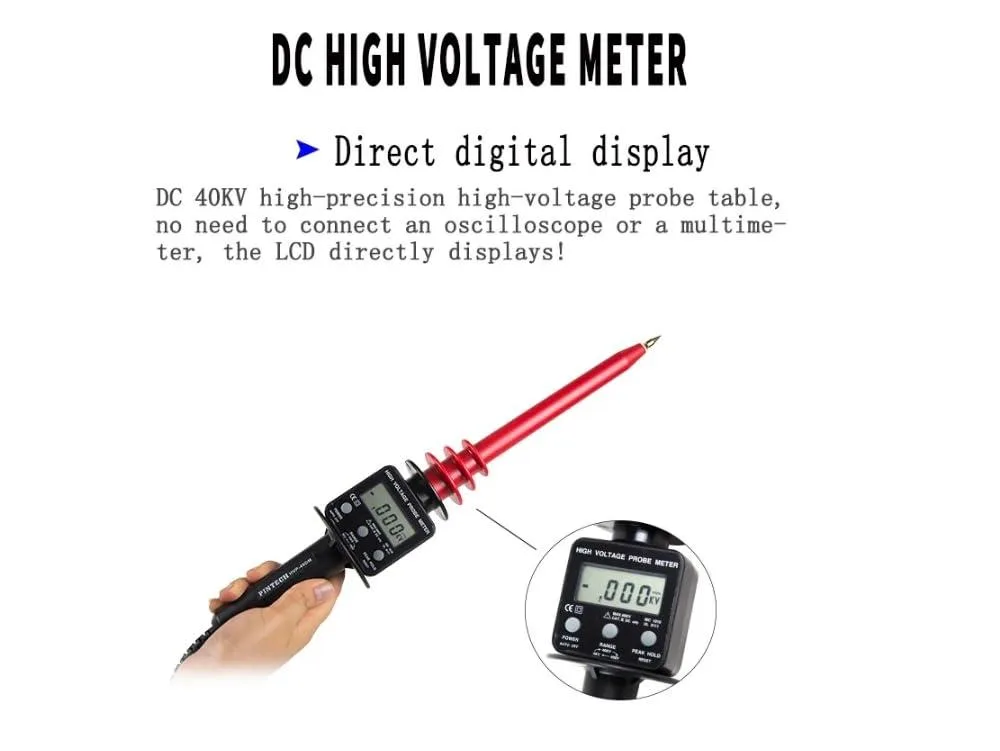

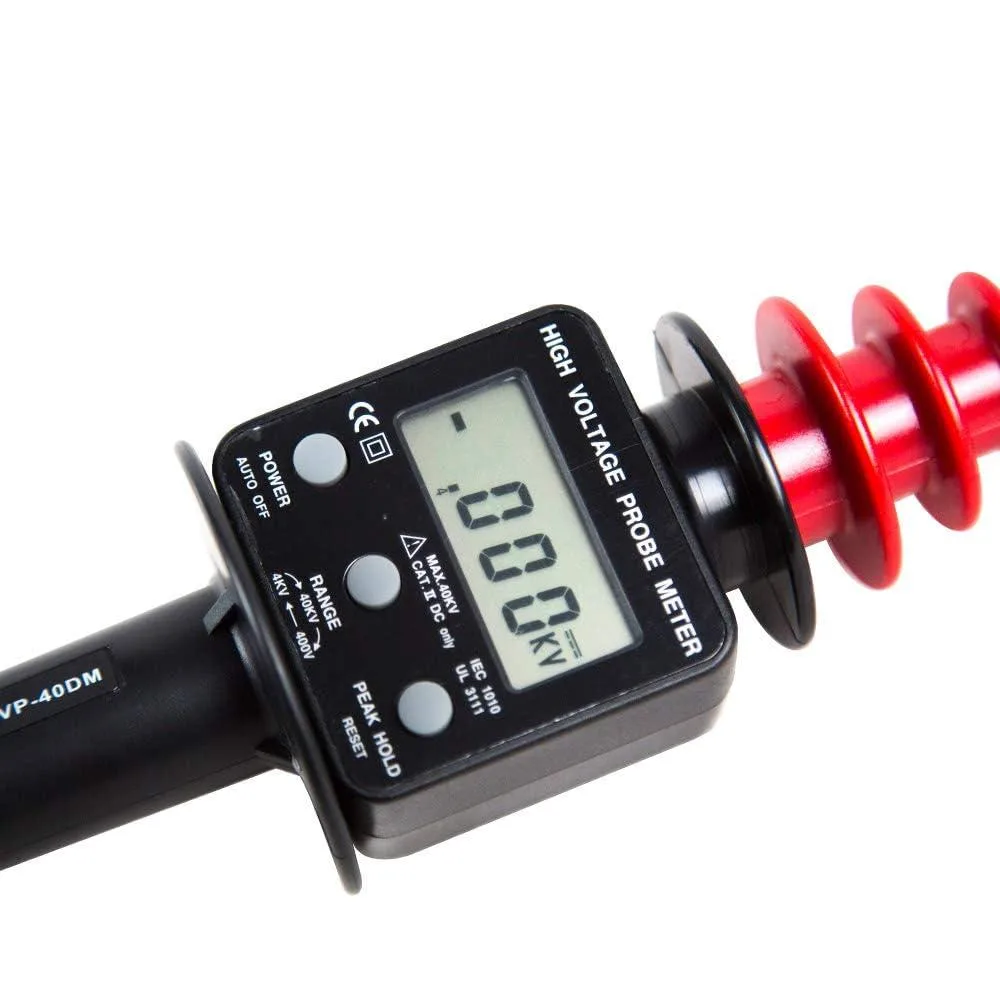

  • Built-in LCD shows readings directly on the probe for quick on-site checks
  • CE certified and supplied new with manual in a single pack

40 kV DC high-voltage probe

The Pintech HVP-40DM is a 40 kV DC high-voltage probe designed for oscilloscope and multimeter measurements. It provides a 2000 MΩ input impedance and an accuracy of ≦ 1.0% ± 2 digits. The unit features a built-in LCD display for direct reading and offers three selectable ranges: 40 kV, 4 kV and 400 V. Overload protection is active on every range.

Electrical engineers and high-voltage technicians

This probe suits professionals who need to measure DC voltages up to 40 kV with a single handheld instrument. It is not intended for AC voltage measurements or for signals that exceed the stated DC range. Users requiring automated data logging or computer connectivity should consider other instruments.

40 kV maximum DC measurement range

The decisive specification is the 40 kV DC maximum measurement capability combined with 2000 MΩ input impedance. This defines the probe’s suitability for high-voltage DC applications such as power supply testing, insulation verification and research work. The ≦ 1.0% ± 2 digit accuracy and three-range selection support precise readings across the 5 V to 40 kV span.

Highlights

  • Measures DC voltages up to 40 kV with ≦ 1.0 % ± 2 digit accuracy
  • 2000 MΩ input impedance minimises circuit loading during high-voltage tests
  • Three selectable ranges — 40 kV, 4 kV, 400 V — each with overload protection
  • Built-in LCD shows readings directly on the probe for quick on-site checks
  • CE certified and supplied new with manual in a single pack

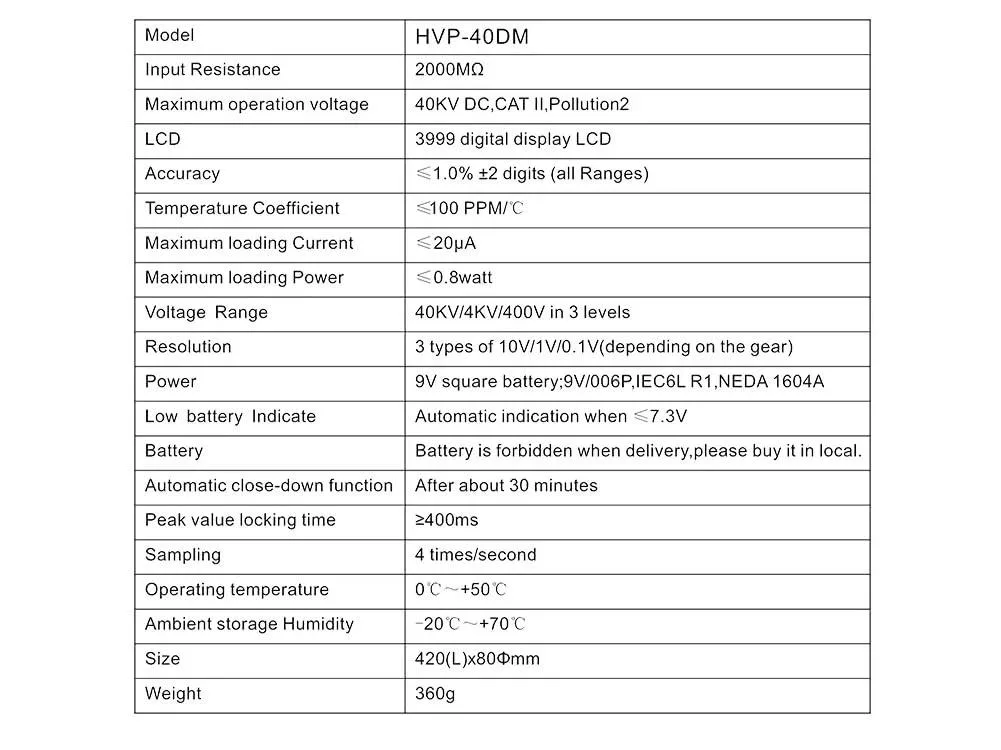

Specifications

Selling UnitEach
Item Count1 Pack
TypeOscilloscope Probe
BrandPINTECH
ModelHVP-40DM
Size/Dimensions80*80*420mm
Sports Team1 Piece
Includeshigh voltage probe x 1, Manual x 1
Accuracy≦ 1.0% ± 2 digit
Standards/CertificationsCE

Questions about this item

Does the HVP-40DM generate noticeable heat or draw extra power during continuous 40 kV measurements?

The probe is a passive attenuation rod with 2000 M input impedance; it draws negligible current from the circuit and has no active cooling, so heat and power draw are minimal during extended use.

What must I already own to use the HVP-40DM with its LCD readout?

You only need the probe itself; the built-in LCD displays the attenuated voltage directly, so no separate oscilloscope, multimeter or external power supply is required.

Will the HVP-40DM work safely alongside older analog meters or lower-voltage test leads I keep on the bench?

Yes — the probe offers three selectable ranges (40 kV, 4 kV, 400 V) with overload protection on every range, letting you measure down to 0.1 V resolution without risk to legacy equipment.
