Pintech HVP-15HF high voltage probe with BNC connector and accessory kit

Pintech

Pintech High Voltage Probe 1000:1 40MHz

SKU CH-KRCA-VVNQD

High-voltage oscilloscope probe measures up to 10kV DC or 20kV AC with 40MHz bandwidth and 1000:1 attenuation for safe signal capture

  • IncludesHigh voltage probe x 1, Accessory kit x 1, Manual x 1
  • Standards/CertificationsCE
  • Measure up to 10 kV DC and 20 kV peak AC safely

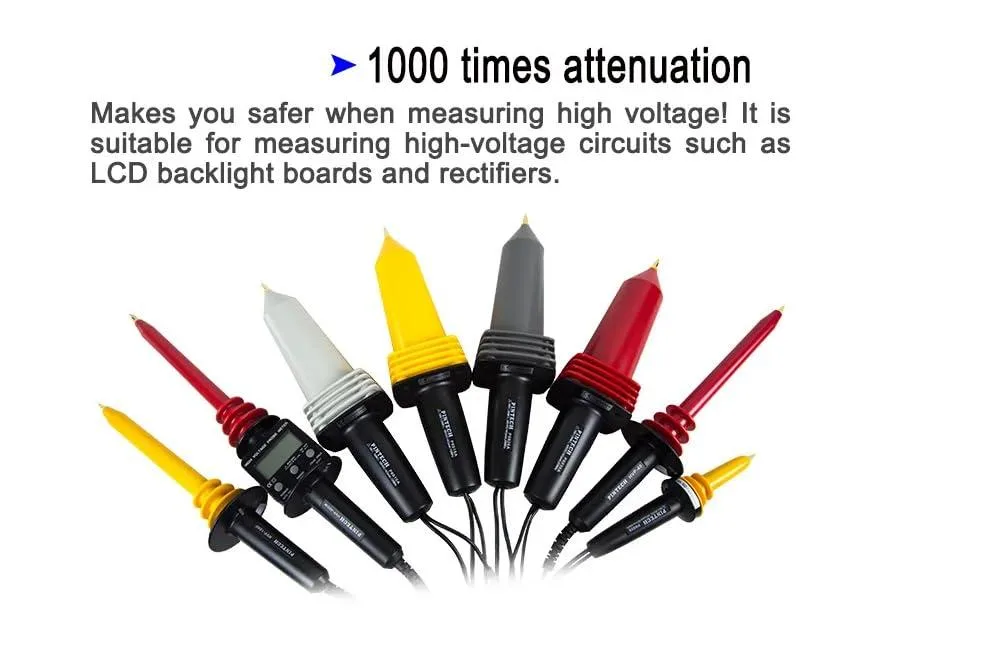

  • 1000:1 attenuation protects the oscilloscope from high voltage
  • 40 MHz bandwidth captures fast transients accurately
  • CE certified for verified safety and performance
  • Standard BNC connector fits any oscilloscope input

What this probe measures

The Pintech HVP-15HF is a 1000:1 high-voltage oscilloscope probe rated for 10 kV DC and 20 kV peak-to-peak AC. It provides a 40 MHz bandwidth with DC accuracy of ±3 % and AC accuracy of ±3 % at 1 kHz. The probe ships with an accessory kit and manual, and carries CE certification.

Check your oscilloscope input

Verify that your oscilloscope accepts a standard BNC connector and presents a 1 MΩ ±5 % input impedance to match the probe specification. Ensure the instrument’s front-end can tolerate the attenuated signal level produced by the 1000:1 division ratio without over-range or damage.

Behaviour during long captures

The probe maintains its stated accuracy and bandwidth during continuous operation within the 10 kV DC or 20 kV AC limits. Thermal drift and compensation stability are managed by the internal attenuation network, so measurements remain consistent across extended test sessions rather than only during brief bursts.

Highlights

  • Measure up to 10 kV DC and 20 kV peak AC safely
  • 1000:1 attenuation protects the oscilloscope from high voltage
  • 40 MHz bandwidth captures fast transients accurately
  • CE certified for verified safety and performance
  • Standard BNC connector fits any oscilloscope input

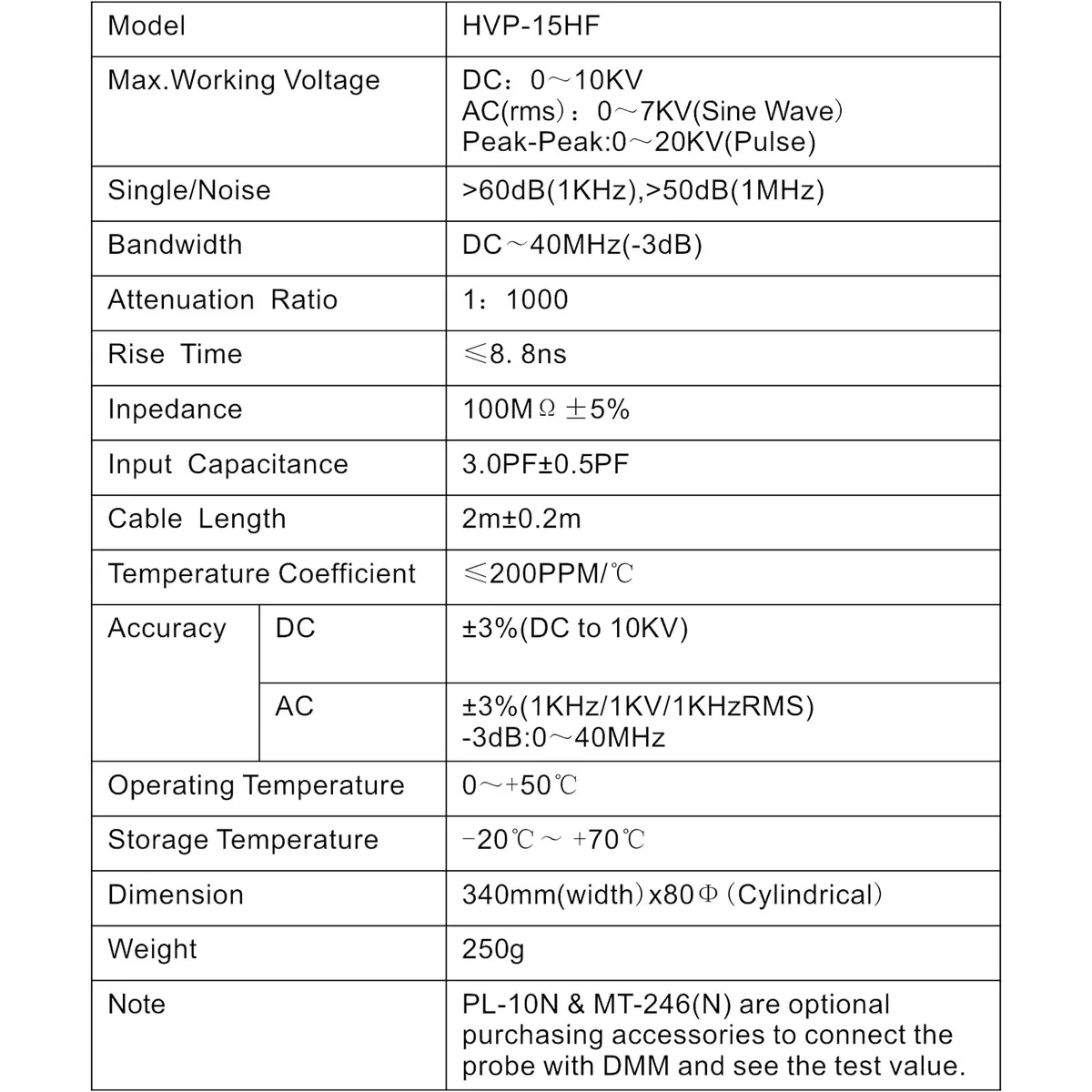

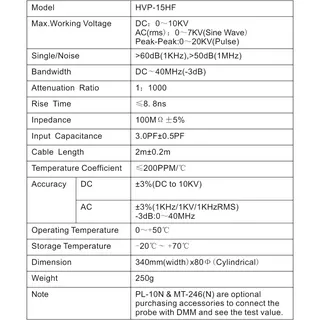

Specifications

IncludesHigh voltage probe x 1, Accessory kit x 1, Manual x 1
Standards/CertificationsCE

Questions about this item

What is included with the probe and what must be purchased separately?

The package includes one high voltage probe, one accessory kit and one manual. A compatible oscilloscope with a standard BNC input is required and is not supplied.

Which attenuation ratio and bandwidth version should I choose for my oscilloscope?

This model provides a fixed 1000:1 attenuation rate and a 40 MHz bandwidth, suitable for measuring up to 10 kV DC or 20 kV peak-to-peak AC on any oscilloscope with a BNC connector.

What does the 10 kV DC rating mean when the probe is connected to a real oscilloscope?

With the 1000:1 divider, a 10 kV DC signal appears as 10 V at the oscilloscope input, allowing safe measurement within the instrument's voltage limits while maintaining ±3 % DC accuracy.
