White rectangular probe unit with BNC connector and attached cables

Pintech

Pintech High Voltage Differential Probe 7000V 50MHz 200X/500X/1000X

SKU CH-GD2F-T00AV

High-voltage differential probe with 7000 V range, 50 MHz bandwidth and selectable 200X, 500X or 1000X attenuation for oscilloscope measurements

  • Includeshigh voltage probe x 1, Manual x 1
  • Measures up to 7000 V for safe high-voltage testing
  • 50 MHz bandwidth captures fast transients accurately
  • Selectable 200X, 500X or 1000X attenuation ratios suit varied signals
  • ±2 % typical accuracy ensures reliable measurement results
  • BNC connector works with any oscilloscope having standard BNC inputs

High-Voltage Differential Probe 7000 V

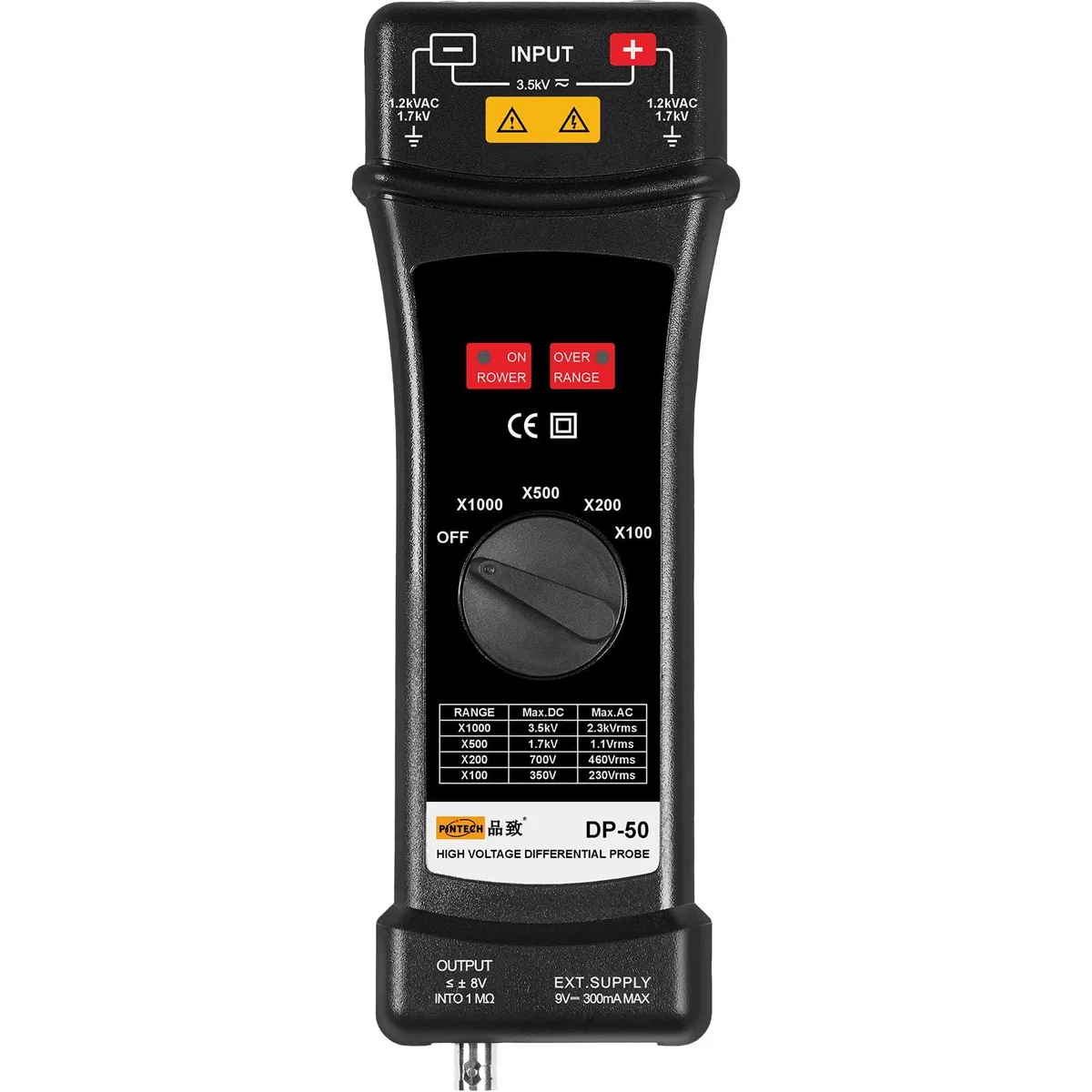

The Pintech DP-50 is a differential active probe built for engineers and technicians who must measure signals up to 7000 V on oscilloscopes with standard BNC inputs. Its 50 MHz bandwidth and selectable attenuation ratios of 100X, 200X, 500X and 1000X cover a wide range of high-voltage debugging tasks. The probe ships with adapters, alligator clips, hook tips and a BNC cable for immediate use.

Replaces Lower-Voltage Single-Ended Probes

Standard passive probes cannot safely float at high common-mode voltages and lack the differential input needed for noisy power-electronics work. The DP-50 adds galvanic isolation between measurement points and the scope ground, so the upgrade is justified whenever the circuit under test exceeds the voltage or common-mode limits of existing probes. It is not for users who only measure low-level logic or audio signals.

Sustained High-Voltage Operation

During continuous measurement the probe maintains its typical ±2 % accuracy thanks to a stable 16 MΩ // 1.2 pF differential input impedance and 8 MΩ // 2.4 pF single-ended impedance. The 50 MHz bandwidth remains flat without thermal drift that can narrow the passband on lesser probes after minutes of use. This stability lets you capture repetitive switching waveforms over long test sessions without recalibration.

Highlights

  • Measures up to 7000 V for safe high-voltage testing
  • 50 MHz bandwidth captures fast transients accurately
  • Selectable 200X, 500X or 1000X attenuation ratios suit varied signals
  • ±2 % typical accuracy ensures reliable measurement results
  • BNC connector works with any oscilloscope having standard BNC inputs

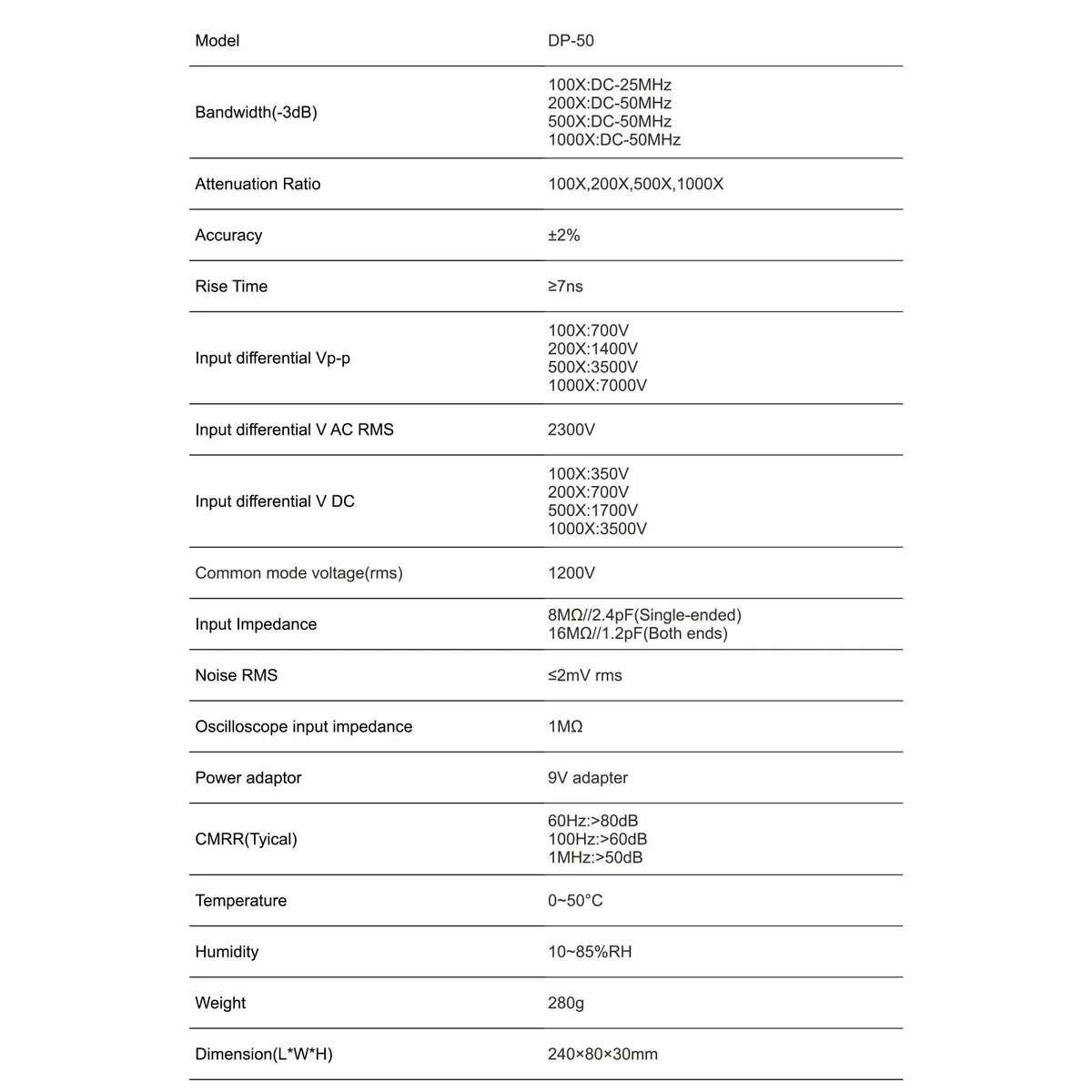

Specifications

Includeshigh voltage probe x 1, Manual x 1

Questions about this item

What oscilloscope connector does the DP-50 probe require?

The probe uses a standard BNC interface, so any oscilloscope equipped with a BNC input will accept it directly.

Which attenuation setting should I select first when connecting to a high-voltage circuit?

Start with the highest 1000X ratio, verify the waveform, then step down to 500X or 200X if more resolution is needed.

What consumable accessories are included that may need replacement after heavy use?

The package supplies two alligator clips and two probe hooks; these contact tips can wear and are the items most likely to need replacement.
