Pintech High Voltage Differential Probe 100MHz 7kV 1000X/100X

High-Voltage Differential Probe 7kV

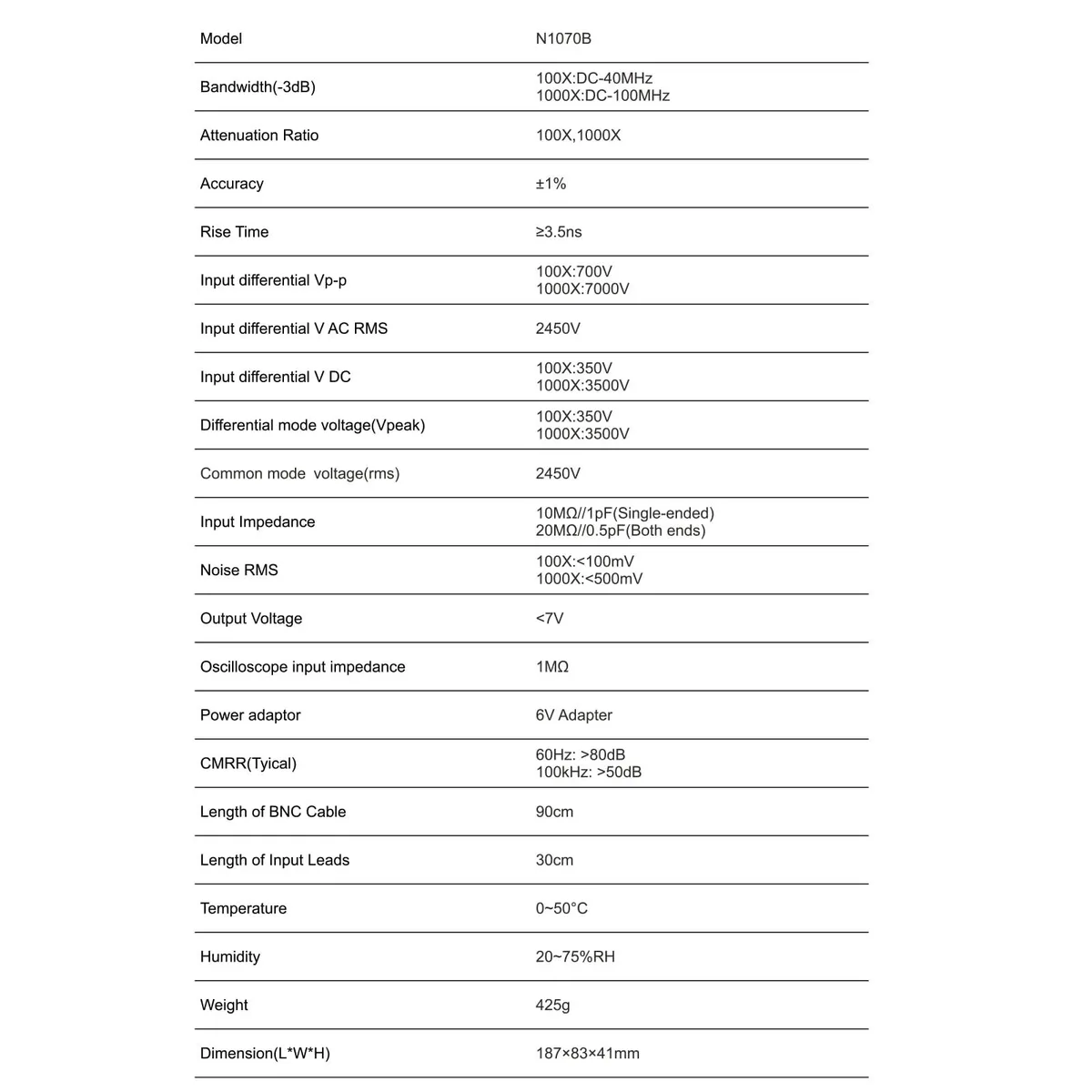

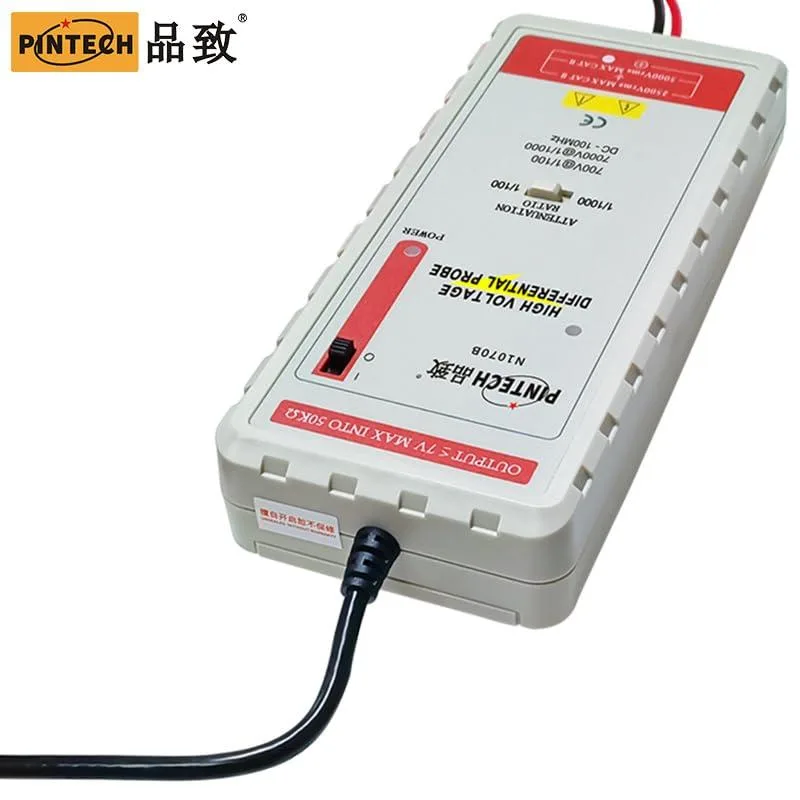

The Pintech N1070B is a 100 MHz differential probe rated for 7 kV peak-to-peak with selectable 1000X and 100X attenuation. It connects to any oscilloscope through a standard BNC interface and delivers ±1 % typical accuracy with a 3.5 ns rise time. An auto-zero function is built in for baseline correction. The unit ships with a power adapter, two probe hooks and a manual; batteries are not included.

Engineers measuring floating or high-voltage signals

This probe suits engineers who need to capture differential waveforms on power electronics, motor drives or similar circuits up to 7 kV. The dual attenuation ranges cover both very high and moderately high voltages without changing probes. Users who require isolated single-ended measurements or bandwidth beyond 100 MHz should look at other instrument types. Buyers needing battery-powered-only operation must supply their own cells.

Sustained high-voltage measurement behaviour

Under continuous load the probe maintains its stated accuracy and bandwidth because the attenuation circuitry is designed for the full 7 kV rating. The selectable 1000X and 100X ratios let the user match the oscilloscope input range without overdriving the front end. Power can be drawn from the included adapter for unlimited bench sessions or from user-supplied batteries for field work where mains power is unavailable.
