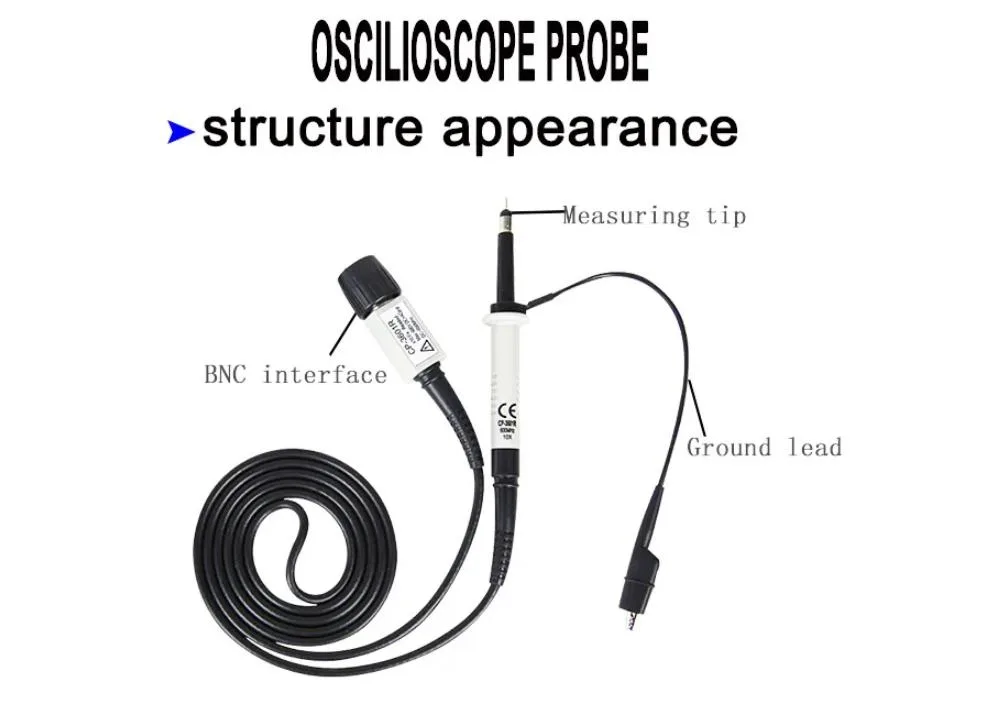

Black passive oscilloscope probe CP-3601R with BNC connector and 1.2m cable

Pintech

Pintech CP-3601R 10X Oscilloscope Probe 600MHz 600V 12pF laboratory supply

SKU CH-JTH6-CNE1Y MPN CP-3601R

A 600 MHz passive oscilloscope probe with 10X attenuation, 12 pF input capacitance and 600 V rating

  • TypeOscilloscope Probe
  • Item Count1 pack
  • Color/FinishBlack
  • Accurate measurements with ±0.5% precision
  • 600 MHz bandwidth captures fast signals
  • 10X attenuation extends 600V measurement range
  • Low 12pF capacitance reduces circuit loading
  • Standard BNC connector fits all oscilloscopes

10X oscilloscope probe for lab use

The Pintech CP-3601R is a 10X passive voltage probe rated for 600MHz bandwidth and 600V maximum input. Its 12pF input capacitance and 10M input impedance suit general-purpose measurement on any oscilloscope with a standard BNC interface. Accuracy is specified at ±0.5% for reliable signal capture.

Thermals noise and power draw

As a passive probe the CP-3601R draws no power and generates no heat or acoustic noise during operation. The 1.2m cable length keeps the measurement point clear of the bench instrument without adding active circuitry that could affect thermal behaviour. Rise time of 0.58ns supports fast-edge observation.

Build quality and daily connectivity

Weighing 90g the probe body is light enough for extended handheld use while the BNC connector locks securely to the oscilloscope front panel. The 10X attenuation ratio extends the instrument voltage range without requiring external power or adapter cables. Black finish resists visible wear in a laboratory environment.

Highlights

  • Accurate measurements with ±0.5% precision
  • 600 MHz bandwidth captures fast signals
  • 10X attenuation extends 600V measurement range
  • Low 12pF capacitance reduces circuit loading
  • Standard BNC connector fits all oscilloscopes

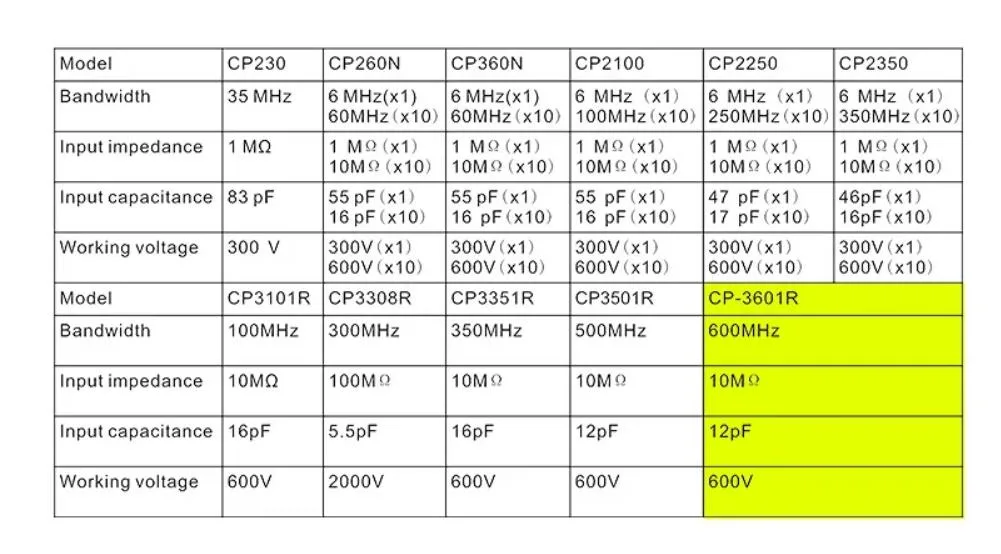

Specifications

TypeOscilloscope Probe
Item Count1 pack
BrandPINTECH
ModelCP-3601R
Color/FinishBlack
Part NumberCP-3601R

Questions about this item

How do I install the CP-3601R probe and what step is often missed?

Connect the BNC connector to the oscilloscope input, then adjust the compensation trimmer on the probe body using the scope's calibration signal until the square wave shows flat tops; skipping this compensation step gives measurement errors.

What maintenance or replacement will the CP-3601R need over time?

The probe tip and ground lead wear with use; replace them when the tip becomes loose or the lead insulation cracks to maintain the specified 12pF input capacitance and 600V rating.

What limit appears first when the CP-3601R is used continuously at high frequency?

At sustained 600MHz operation the 0.58ns rise time and 12pF capacitance load the circuit, so signal fidelity degrades before the 600V voltage rating is reached.
