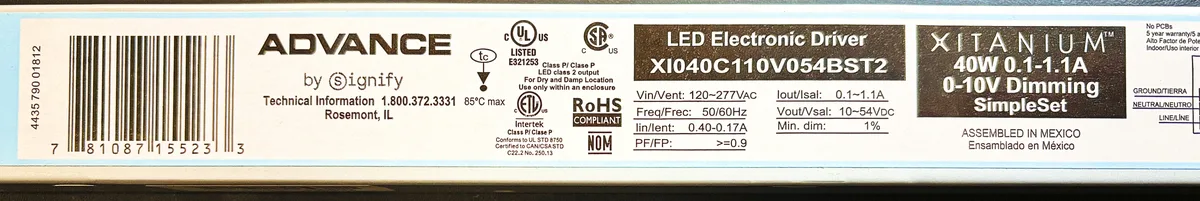

Rectangular black electronic driver with terminal connectors and model label

Philips

Philips Xitanium LED Driver XIO40C110V054BST2 Ballast

SKU CH-CECT-JKMG5

LED driver operating from 108 to 305 Vac with 0-10 V dimming down to 1%

  • Compatible with standard 0-10V dimming systems
  • Smooth dimming performance down to 1% minimum
  • SimpleSet technology enables precise drive current tuning
  • Wide 108–305 Vac operating range for flexibility
  • Slim profile suits linear fixture designs

LED driver for linear fixtures

The Philips Xitanium XIO40C110V054BST2 is an electronic LED driver built for OEM luminaire manufacturers. It operates on mains voltages from 108 Vac to 305 Vac at 50 or 60 Hz and supports standard 0-10V dimming systems. SimpleSet technology allows precise tuning of drive currents and dimming curves during production. The slim profile suits linear lighting designs.

Sustained output and dimming stability

The driver delivers continuous operation across its wide input window without thermal derating in normal ambient conditions. 0-10V control provides smooth dimming down to 1 % minimum level with selectable curves for consistent light output. SimpleSet enables fixed current settings that remain stable over extended run times. No flicker or current drift is introduced during prolonged use.

Thermal and electrical characteristics

The unit runs within its rated temperature range when installed in a ventilated linear housing. Power factor and THD stay within typical electronic driver limits across the 108-305 Vac span. Audible noise is negligible in typical ceiling or recessed installations. The wide voltage tolerance absorbs mains fluctuations without tripping or output variation.

Highlights

  • Compatible with standard 0-10V dimming systems
  • Smooth dimming performance down to 1% minimum
  • SimpleSet technology enables precise drive current tuning
  • Wide 108–305 Vac operating range for flexibility
  • Slim profile suits linear fixture designs

Specifications

Brandphilips

Questions about this item

How much heat does the Xitanium XIO40C110V054BST2 produce when running continuously at 40 W?

The driver operates across 108 to 305 Vac at 50/60 Hz and is rated for 40 W output; typical efficiency in this class keeps case temperature within design limits for enclosed linear fixtures.

What mains voltage and dimming control must already be present for this driver to work?

A supply between 108 and 305 Vac at 50/60 Hz plus a standard 0-10 V dimming circuit are required; the driver uses SimpleSet for current programming but needs the external dimmer for light-level control.

Will the XIO40C110V054BST2 drive older LED modules that only accept 54 V maximum forward voltage?

Yes, the 54 V maximum output voltage matches modules rated at or below 54 V, and the adjustable current down to 10 % via SimpleSet lets you match the module's specified drive current.
