Philips

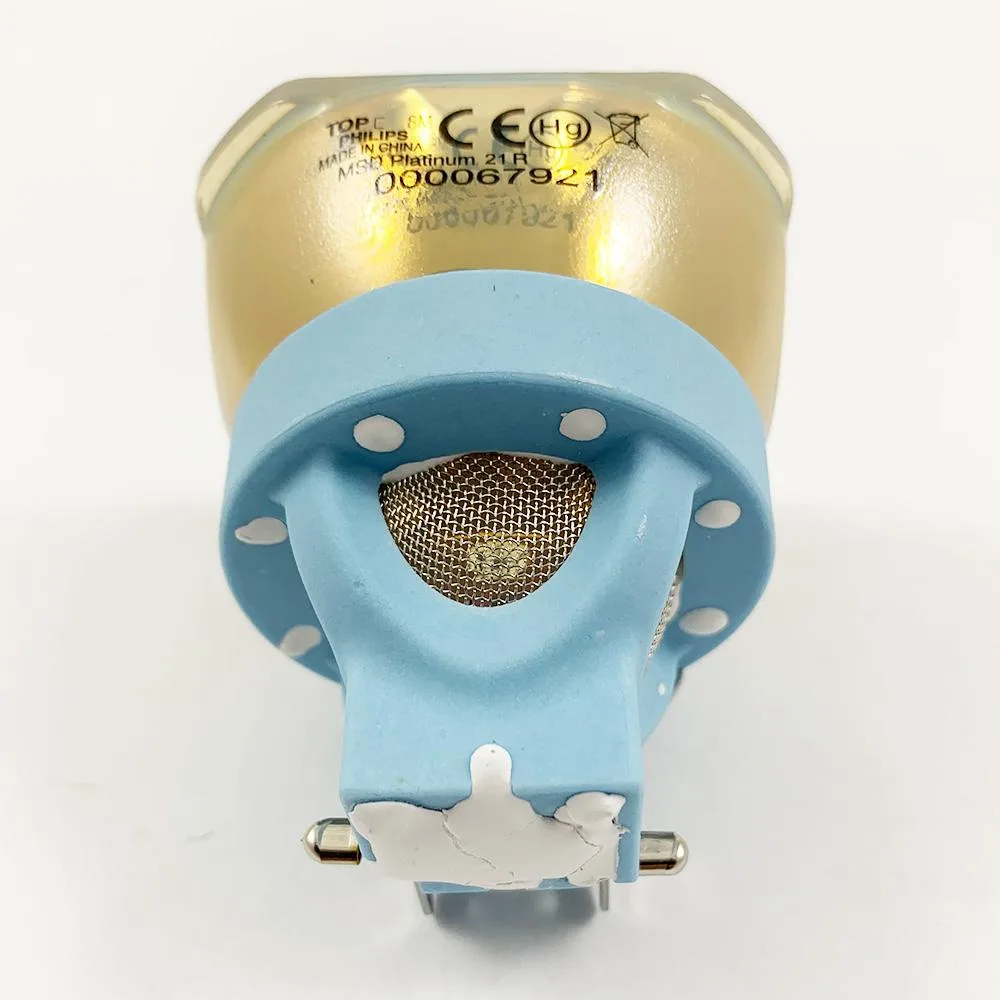

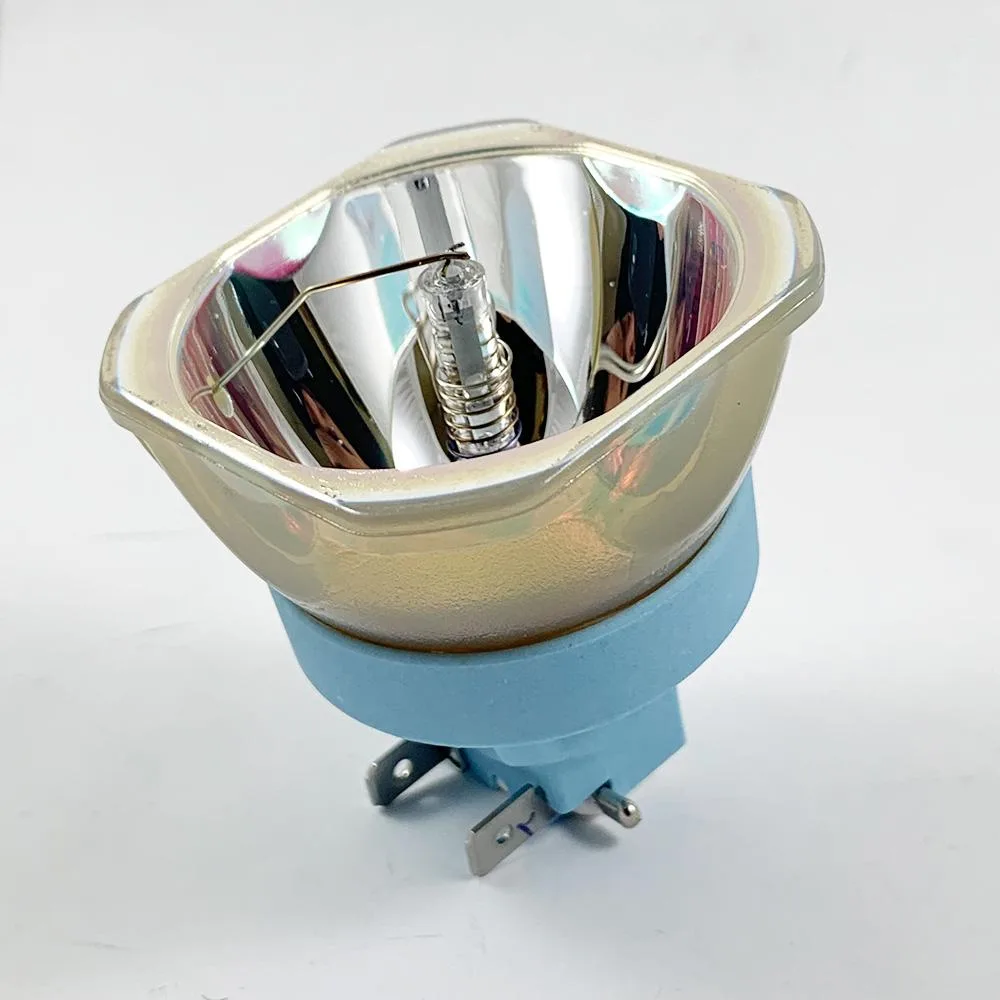

Philips MSD Platinum 21R 323659 300W 8000K 23000lm arc standard bulb
High-intensity arc bulb delivering 23000 lumens at 8000K for stage fixtures
- TypeHigh Intensity Discharge
- Lumen Range23000
- Wattage300
- Color Temperature8000K
- Life Time Hours1500
- Brilliant 8000 K output for vivid stage colour
- 23 000 lm intensity cuts through large venues
- 300 W arc lamp keeps fixtures compact and light
- 1 500-hour rated life reduces relamp downtime
- Fits Elation Proteus Hybrid, Artiste V21BS and Terbly G12WB
High-intensity arc lamp for stage fixtures
The Philips MSD Platinum 21R is a 300 W high-intensity discharge bulb rated at 23 000 lumens and 8 000 K. It is built for follow-spots, profile fixtures and beam fixtures used in touring, Broadway and high-demand event lighting. Professional lighting designers and rental houses who need a compact, short-arc source with consistent output will fit this lamp into compatible moving-head units.
Verify fixture compatibility before ordering
The lamp carries part number 323659 and is listed for specific models including Elation Artiste V21BS, Elation Proteus Hybrid V21BS IP, Terbly G12WB, Elation Proteus Hybrid PRH021 and Terbly G21 Hybrid among others. Cross-reference your fixture manual to confirm the 21R designation and 300 W rating match the approved lamp type. Using this bulb in an unlisted fixture can cause damage or void manufacturer support.
Rated 1 500 hours with fast replacement design
The manufacturer rates service life at 1 500 hours and highlights a compact, lightweight construction that enables quicker lamp changes during show changeovers. No additional accessories, cables or software are bundled with the bulb. The performance gains come from the lamp’s short arc and innovative reflector, which together raise beam intensity and colour reproduction for the fixture it powers.
Highlights
- Brilliant 8000 K output for vivid stage colour
- 23 000 lm intensity cuts through large venues
- 300 W arc lamp keeps fixtures compact and light
- 1 500-hour rated life reduces relamp downtime
- Fits Elation Proteus Hybrid, Artiste V21BS and Terbly G12WB
Specifications
| Brand | Philips |
|---|---|
| Type | High Intensity Discharge |
| Lumen Range | 23000 |
| Wattage | 300 |
| Color Temperature | 8000K |
| Life Time Hours | 1500 |
Questions about this item
What comes with the Philips MSD Platinum 21R 323659 lamp and what must be purchased separately?
The lamp is supplied as a single 300 W arc bulb; a compatible fixture such as an Elation Proteus Hybrid or Terbly G21 Hybrid must be bought separately.
Which version of the MSD Platinum 21R 323659 should I select for my fixture?
Choose the 300 W, 8000 K, 23 000 lm version (part 323659) when your fixture specifies an MSD Platinum 21R lamp.
What does the 23 000 lumen rating mean once the lamp is installed in a working fixture?
It delivers a high-intensity 8000 K beam with 23 000 lm output for up to 1500 hours in compatible follow-spot, profile or beam fixtures.
