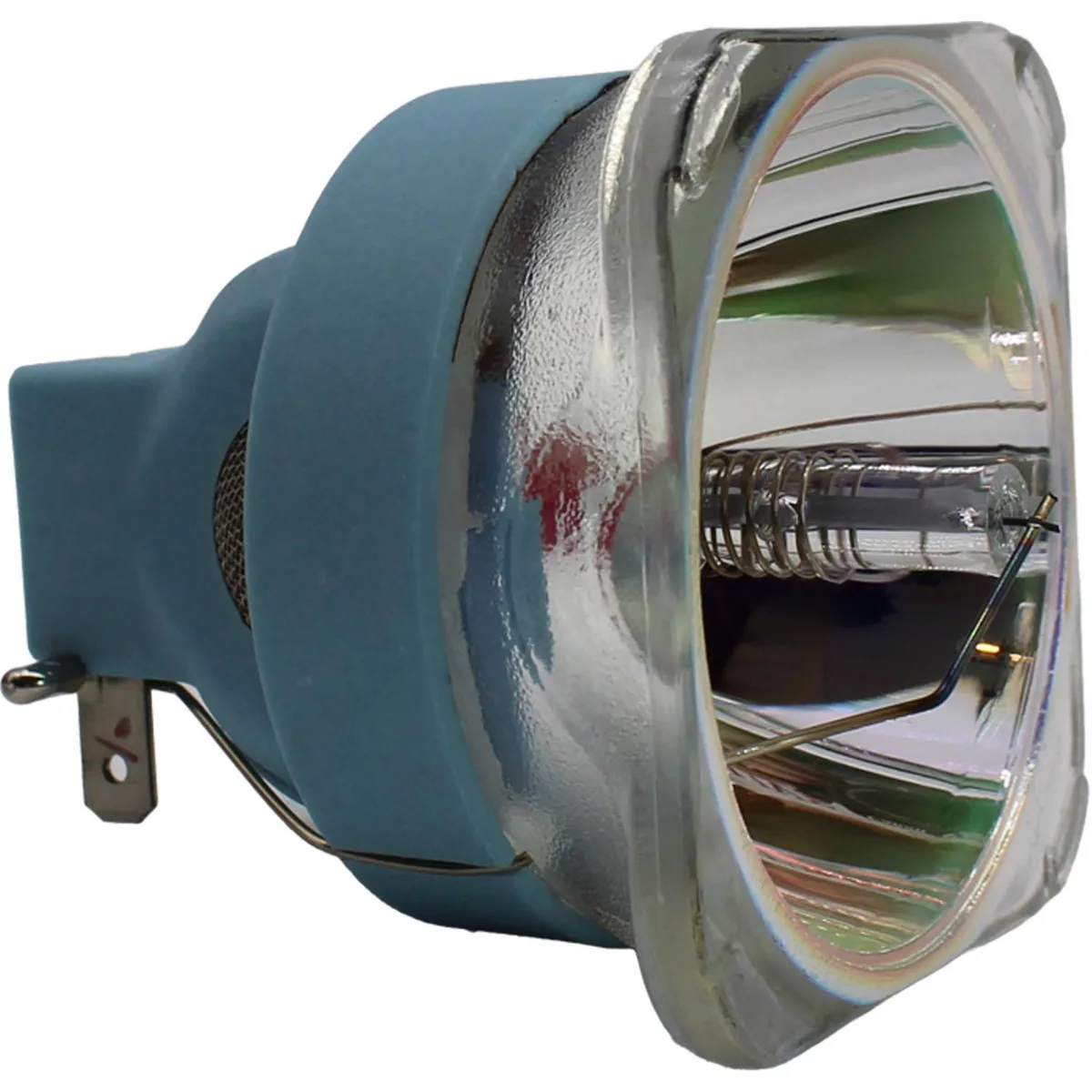

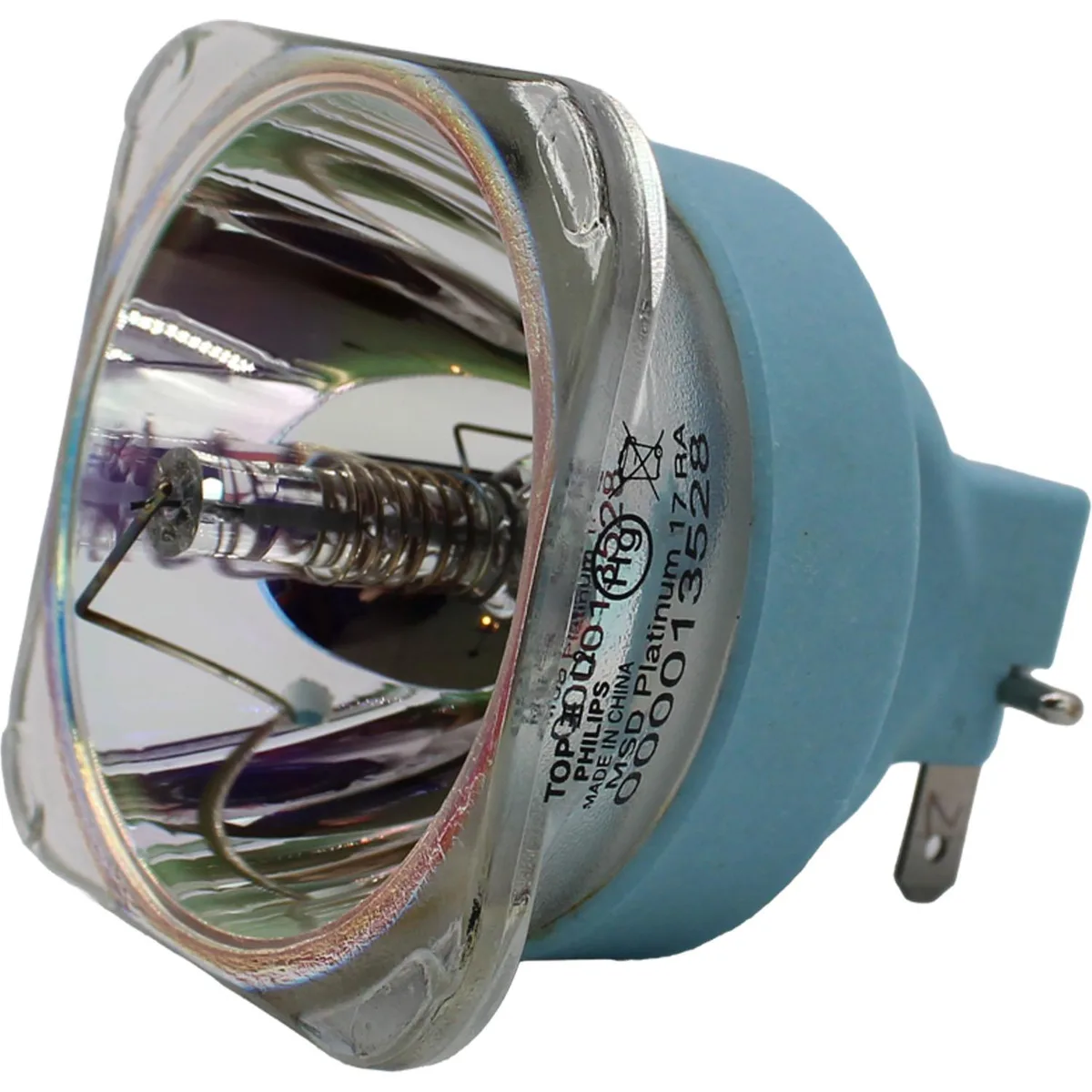

Philips MSD Platinum 17RA 259192 350W DLP replacement lamp, compact metal halide arc bulb with ceramic base and quartz envelope

Philips

Philips MSD Platinum 17RA 259192 350W dlp replacement lamp

SKU CH-0AK4-NW0JB

350 W metal-halide DLP replacement lamp with 1.0 mm arc, 15 250–20 000 initial lumens, 7 000 K colour temperature and 1 500-hour rated life

  • TypeProject Lamp
  • Weight0.2500
  • 350 W output delivers 15 250–20 000 initial lumens for bright stage projection
  • 0 mm arc gap produces sharp 7000 K white light with 85 CRI
  • 1500-hour rated life reduces lamp changes during touring schedules
  • Universal burning position fits Elation Platinum BX, PR Lighting PR-2362 and Vari-Lite SL Hydrus 350
  • Compact 63 mm length and 51.4 mm diameter suit tight fixture housings

Replacement Lamp for Professional Fixtures

The Philips MSD Platinum 17RA is a 350W metal halide discharge lamp built as a direct replacement for moving-head and spot fixtures used in stage, touring and installation lighting. It suits lighting technicians and venue operators who need a reliable, single-ended source that matches the original equipment specification. It is not for buyers who need an LED retrofit or a different wattage class.

Critical Fit: 1.0 mm Arc

The single specification that decides compatibility is the 1.0 mm arc length paired with a 38.7 mm working distance; the lamp must sit at that exact focal point for the fixture optics to produce a clean beam. The universal burning position allows any orientation, but the pinch temperature limit of 350°C means the fixture cooling must meet the original design. If the optical path or cooling differs, the lamp will not perform correctly.

Output Capacity and Service Life

Initial output ranges from 15,250 to 20,000 lumens at a 7000 K colour temperature with a CRI of 85, delivering the intensity and colour quality expected for professional stage wash and beam effects. Rated life is 1500 hours under standard operation; output will gradually decline and colour shift may appear as the lamp ages. It is not for users who require a longer maintenance interval or higher lumen maintenance over extended runs.

Highlights

  • 350 W output delivers 15 250–20 000 initial lumens for bright stage projection
  • 0 mm arc gap produces sharp 7000 K white light with 85 CRI
  • 1500-hour rated life reduces lamp changes during touring schedules
  • Universal burning position fits Elation Platinum BX, PR Lighting PR-2362 and Vari-Lite SL Hydrus 350
  • Compact 63 mm length and 51.4 mm diameter suit tight fixture housings

Specifications

BrandJaspertronics
Model259192
Part Number259192
TypeProject Lamp
Weight0.2500

Questions about this item

What does the 350W rating mean for my fixture's brightness?

The lamp draws 350 watts and produces an initial output of 15,250 to 20,000 lumens at a colour temperature of 7000 K with a CRI of 85.

Does the single-ended 1.0 mm arc fit the same socket as my old lamp?

Yes, it uses a single-ended metal-halide arc with a 1.0 mm gap and a 38.7 mm working distance, matching the electrical and optical alignment of the original MSD Platinum 17RA.

Will the 63 mm length and 51.4 mm diameter fit inside my moving-head housing?

The overall length is 63 mm and the diameter is 51.4 mm, with a universal burning position that allows any mounting orientation inside compatible fixtures.
