Rectangular black electronic driver with bottom cable entry

Philips

Philips Advance Xitanium XI025C100V036DSM1 ballast 25W 0-10V SimpleSet Bottom Entry

SKU CH-QN8S-EVP2B

25 watt LED driver with 0-10V dimming down to 1%, SimpleSet programmable, 50000 hour lifetime, bottom entry

  • 25 watt output powers efficient LED downlights
  • 0-10V dimming delivers smooth control down to 1%
  • SimpleSet programming enables precise current tuning
  • 50000 hour rated lifetime supports long service intervals
  • Bottom entry design simplifies fixture wiring

Philips Advance Xitanium 25 W LED driver

This Philips Advance Xitanium XI025C100V036DSM1 is a 25 watt LED electronic driver built for downlight fixtures. It suits OEMs and installers who need a compact, programmable unit with reliable 0-10 V dimming performance. The driver delivers smooth dimming down to a 1 % minimum level and carries a 50,000 hour rated lifetime. SimpleSet technology allows precise current tuning and selectable dimming curves for flexible luminaire design.

Check voltage, dimming wiring and mounting access

Verify that your mains supply matches the driver’s input specifications before ordering. Confirm the control circuit uses a standard 0-10 V dimming system compatible with the driver’s dimming curve options. Ensure the luminaire housing provides a bottom-entry wiring aperture and enough internal clearance for the driver’s compact dimensions. SimpleSet programming requires the appropriate Philips configuration tool, so check tool availability if field adjustments are planned.

Thermals, noise and power in normal use

The driver operates silently with no moving parts, so audible noise is absent in typical installations. Rated for a 50,000 hour lifetime, it maintains stable output when mounted with adequate thermal contact to the luminaire housing. Power draw corresponds to the connected LED load up to the 25 watt maximum, with efficiency optimised across the programmed current range. Proper heat dissipation in the fixture ensures the driver meets its rated service life without thermal throttling.

Highlights

  • 25 watt output powers efficient LED downlights
  • 0-10V dimming delivers smooth control down to 1%
  • SimpleSet programming enables precise current tuning
  • 50000 hour rated lifetime supports long service intervals
  • Bottom entry design simplifies fixture wiring

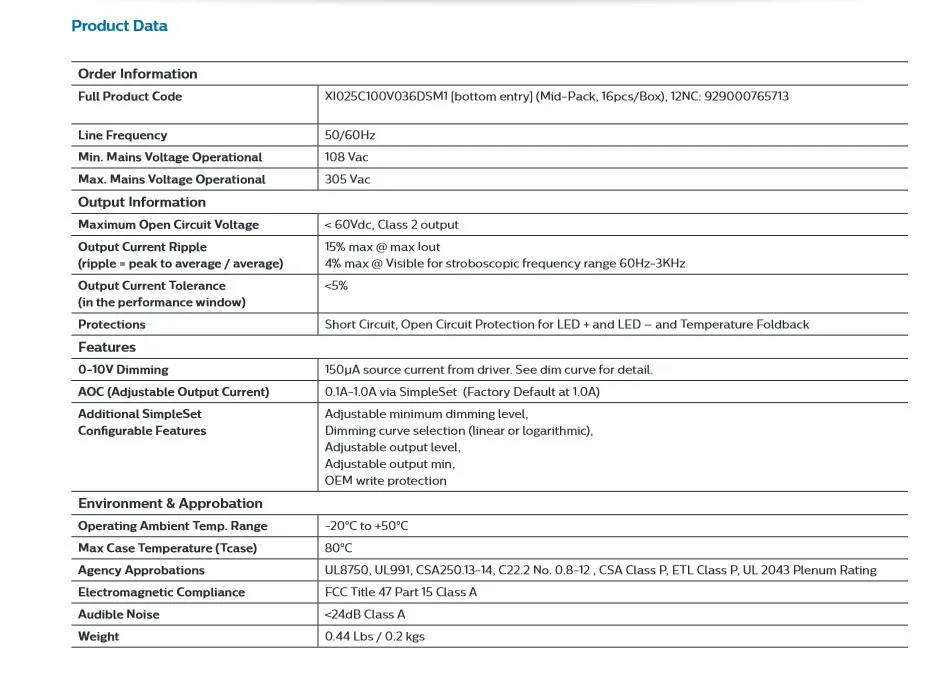

Specifications

Brandsignify

Questions about this item

Does the driver come with wiring or connectors, or must they be purchased separately?

The unit is supplied as the driver only; cables, connectors and mounting hardware are not included and must be sourced separately.

When would I choose this 25 watt, 36 volt model over a different capacity?

Select this driver when the LED load requires up to 25 watts and a forward voltage near 36 volts, matching the 100 volt maximum input rating.

What does the 50000 hour lifetime mean once the driver is installed in a fixture?

It indicates the rated operating hours before failure under normal conditions, giving roughly 5.7 years of continuous use or longer with typical daily cycling.
