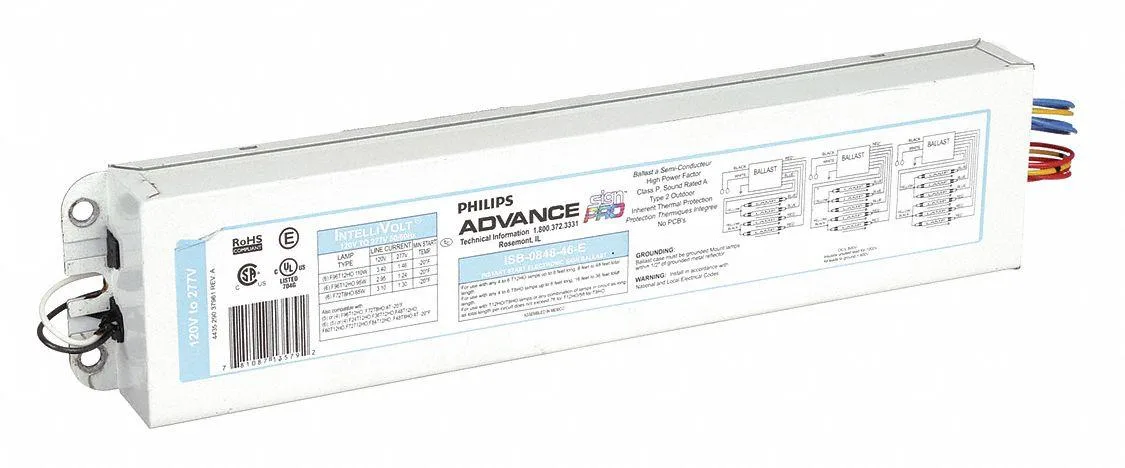

Rectangular metal ballast housing, grey finish, terminal connections visible

Philips

Philips Advance ISB-0848-46-E SignPRO Electronic Sign Ballast 415W

SKU CH-CC7S-HWZV6

Electronic sign ballast powers four to six T8HO or T12HO lamps at up to 415 W across 120/277 V AC

  • Supports 4 to 6 fluorescent lamps for flexible sign configurations
  • Operates T8HO and T12HO bulbs up to 110 watts each
  • Functions reliably in cold environments down to -20°F
  • Handles total bulb footage from 8 to 48 feet for varied sign sizes
  • Certified to CSA, FCC Part 18, RoHS and UL safety standards

Philips Advance SignPRO Ballast 415W

This Philips Advance SignPRO electronic sign ballast operates at 415 watts and supports four, five or six T8HO or T12HO lamps. It is built for commercial signage installations that require reliable starting and consistent light output across a range of lamp configurations.

Sustained load operation

The ballast accepts 120/277V AC input and maintains stable performance across a total bulb footage range of 8 to 48 feet with a maximum per-lamp rating of 110 watts. It is certified to CSA, UL and FCC Part 18 standards for continuous commercial use.

Thermal and electrical characteristics

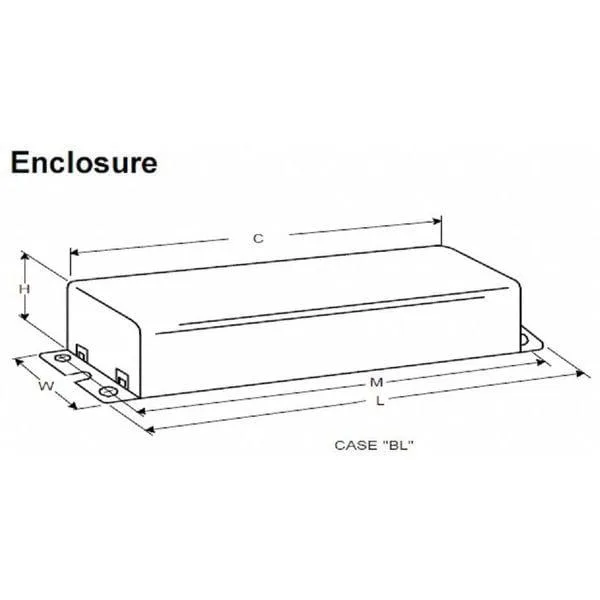

Designed to start reliably at temperatures down to -20 degrees F, the unit measures 14 5/16 inches long by 3 3/16 inches wide by 1 3/8 inches high. RoHS compliance confirms restricted substance limits for environmental safety.

Highlights

  • Supports 4 to 6 fluorescent lamps for flexible sign configurations
  • Operates T8HO and T12HO bulbs up to 110 watts each
  • Functions reliably in cold environments down to -20°F
  • Handles total bulb footage from 8 to 48 feet for varied sign sizes
  • Certified to CSA, FCC Part 18, RoHS and UL safety standards

Specifications

BrandPHILIPS ADVANCE

Questions about this item

How much power does the 415 W ballast draw and how much heat does it add to a sign cabinet running continuously?

The unit is rated at 415 W input; that power becomes heat inside the enclosure, so plan ventilation for the full 415 W load.

What lamp holders and wiring must already be in place for the ballast to strike 4, 5 or 6 T8HO or T12HO lamps?

You need sockets wired for 8 ft to 48 ft total T8HO or T12HO lamps at 120 V or 277 V AC, plus a grounded supply circuit.

Will the ballast start reliably in an unheated sign that sees -20 °F winter nights?

Yes, the minimum starting temperature is rated at -20 °F, so cold starts are supported down to that point.
