Philips
Philips 9281-908-05314 MSD Platinum 5R 189W standard bulb
189 W metal-halide discharge lamp with 1 mm arc, 7 950 lm output, 8 000 K colour temperature and 3 000-hour rated life
- TypeHigh Intensity Discharge Bulbs
- ColorAssorted
- 189W high-intensity discharge lamp for bright stage output
- 7950 initial lumens at 8000 K colour temperature for vivid white light
- 3000-hour rated life reduces replacement frequency in touring fixtures
- Universal burning position allows flexible fixture mounting
- Compatible with Clay Paky Sharpy, Elation Platinum and other 5R moving heads
Professional stage replacement lamp

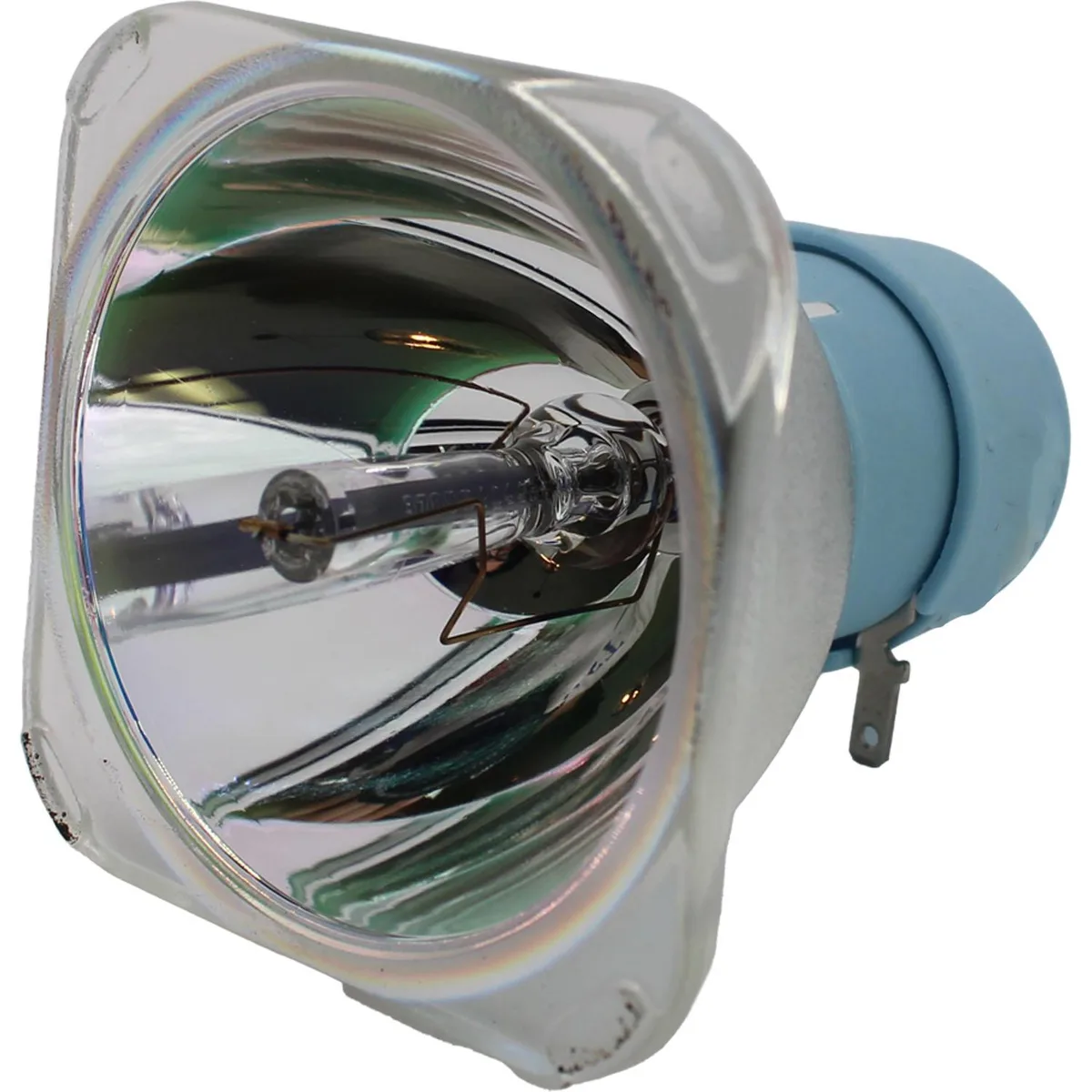

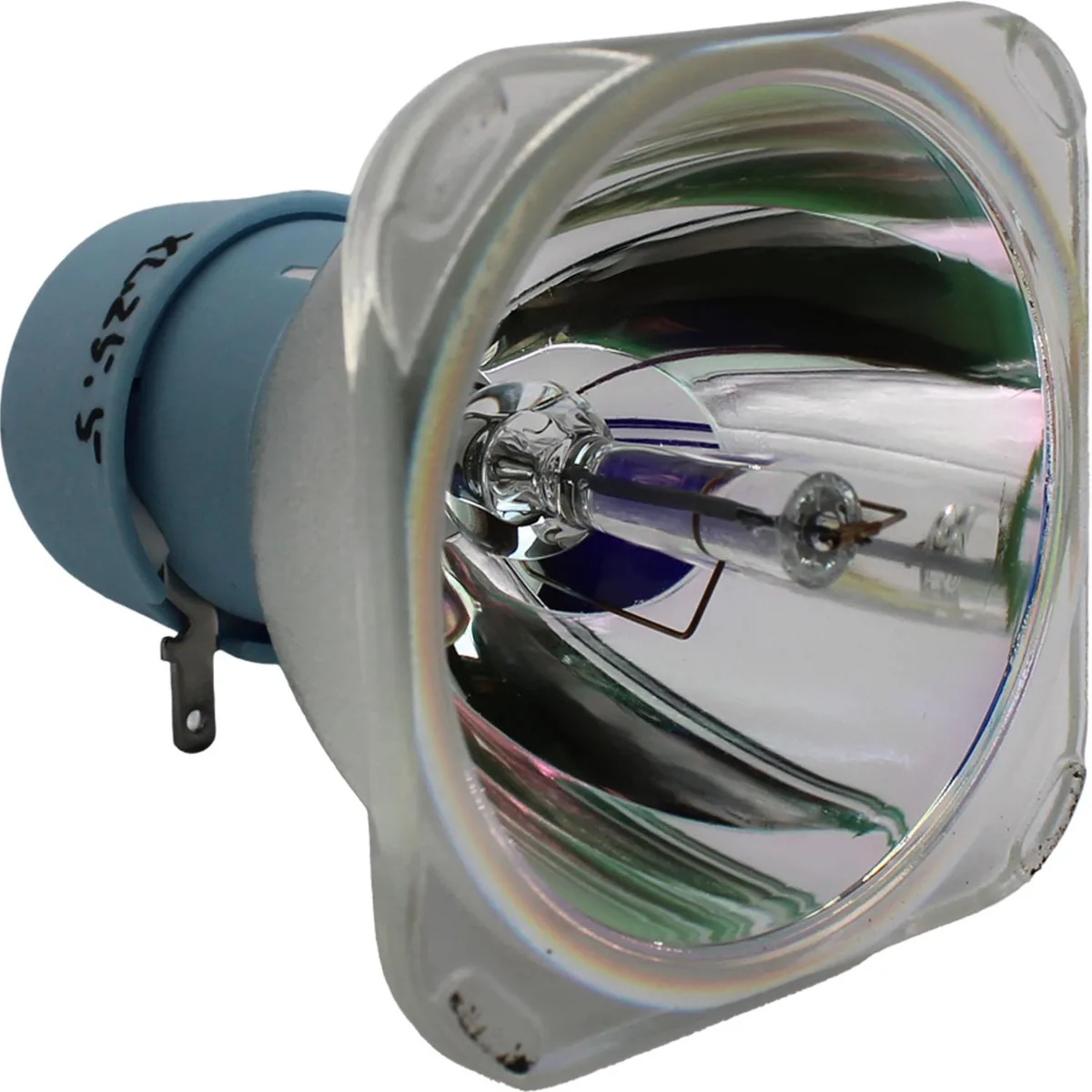

The Philips MSD Platinum 5R is a 189 watt metal halide discharge bulb designed for professional moving-head fixtures in theatres, touring productions and live events. It delivers 7950 initial lumens at an 8000 Kelvin colour temperature with a CRI of 75.
Upgrade from lower-output 5R lamps
This unit replaces earlier 150 watt 5R bulbs where the fixture’s power supply and cooling can support the higher 189 watt rating. The jump is worth it when a show demands brighter output and a 1 mm arc for tighter beam control over a 3000 hour rated life.
Fits single-ended 5R fixtures
The lamp measures 57.1 mm overall length and 51.4 mm diameter with a 34.5 mm working distance, matching the single-ended socket used by Clay Paky Sharpy, Elation Platinum and ADJ Vizi series heads. Universal burning position frees rigging orientation, while the 350 °C pinch temperature requires the fixture’s original cooling design.
Highlights
- 189W high-intensity discharge lamp for bright stage output
- 7950 initial lumens at 8000 K colour temperature for vivid white light
- 3000-hour rated life reduces replacement frequency in touring fixtures
- Universal burning position allows flexible fixture mounting
- Compatible with Clay Paky Sharpy, Elation Platinum and other 5R moving heads
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | 9281-908-05314 |
| Part Number | 9281-908-05314 |
| Type | High Intensity Discharge Bulbs |
| Color | Assorted |
Questions about this item
What are the physical dimensions and pin spacing of the MSD Platinum 5R 9281-908-05314 bulb?
The bulb measures 57.1 mm overall length with a 51.4 mm diameter and requires a 34.5 mm working distance for proper fit in compatible fixtures.
How is the MSD Platinum 5R 9281-908-05314 installed, and what common error should be avoided?
Install by aligning the single-ended base into the fixture socket; the step often missed is verifying the 34.5 mm working distance matches the fixture's optical plane before securing.
When does the MSD Platinum 5R 9281-908-05314 need replacement based on its rated lifespan?
The lamp is rated for 3000 hours of operation; plan replacement when output drops noticeably or after reaching this hour count to maintain 7950 lumens at 8000 K.
