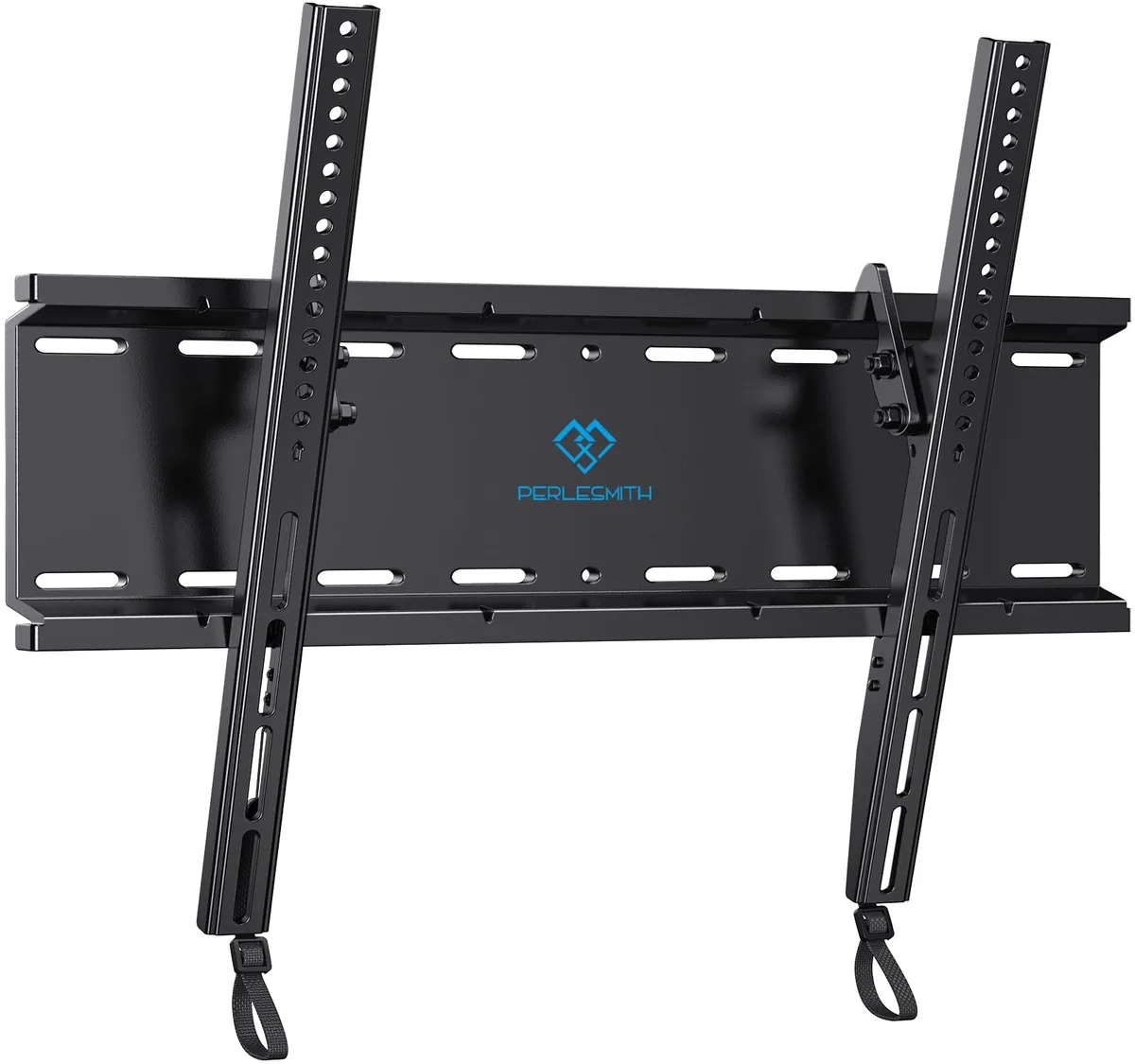

Black steel tilting TV wall mount, low-profile flat plate with VESA brackets visible

PERLESMITH PSMTK1 Tilting TV Wall Mount 23-60" 115lbs

SKU CH-0TQJ-P8FVB

Tilts 23-60" TVs up to 115lbs by 7° for glare reduction, mounts 1.2" from wall on 16" studs with VESA 75-400mm and safety lock

  • Name23-60" Tilt TV Wall Mount
  • Mount StyleWall Mount
  • ColorBlack
  • TV Size Capacity23-60" Tilt TV Wall Mount
  • TV Weight Capacity115 pounds
  • Height1.77 in
  • Fits 23-60" TVs up to 115lbs with VESA 75x75-400x400mm
  • Tilt 7° down to reduce glare and improve viewing comfort
  • Low-profile design holds TV 1.77" from wall for sleek look

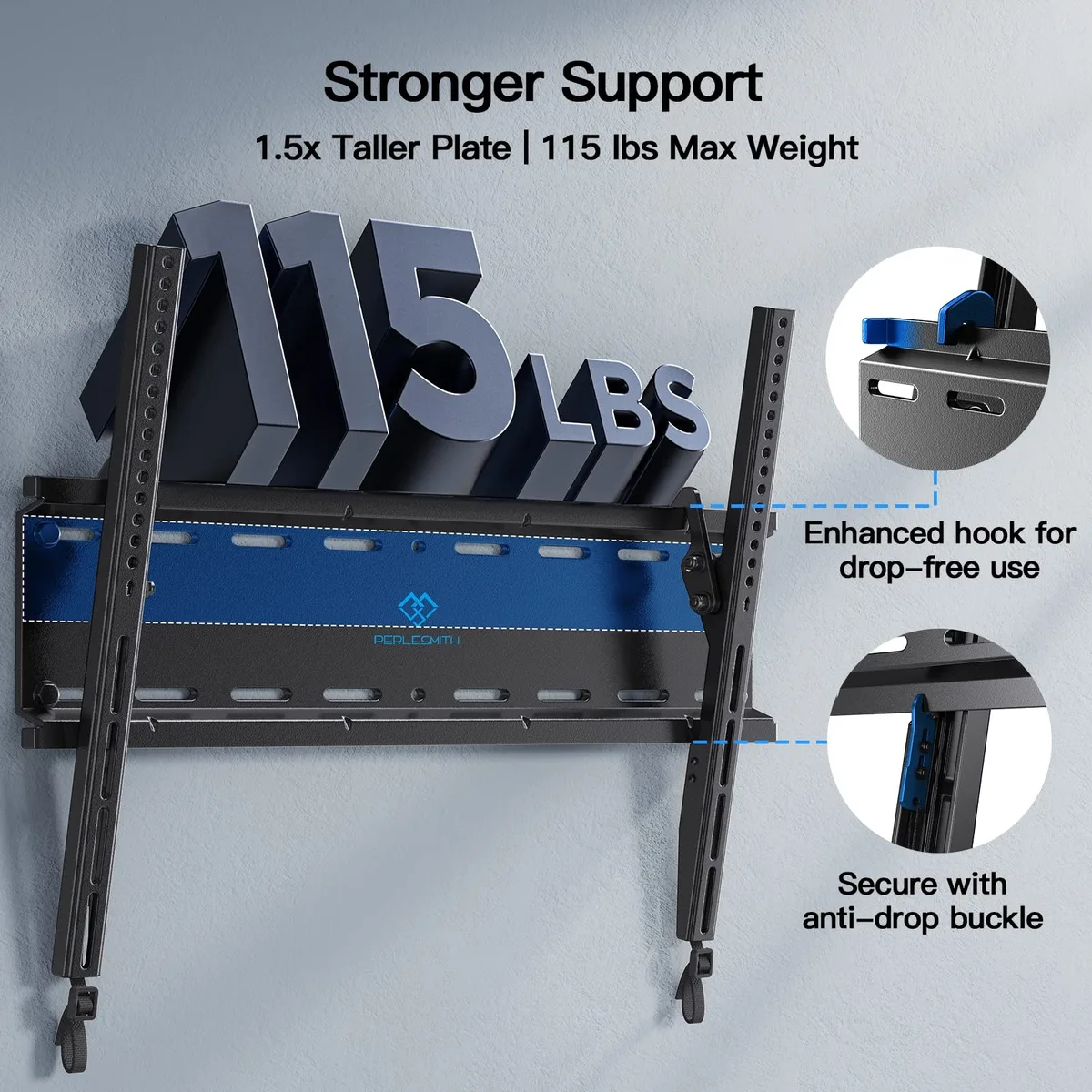

  • Tested to 4x rated weight per UL standard with locking mechanism
  • Mounts on 12 or 16 wood studs, concrete or brick walls

Wide Compatibility Range

The PERLESMITH PSMTK1 tilting TV wall mount supports screens from 23 to 60 inches weighing up to 115 pounds. It fits VESA patterns from 75x75mm up to 400x400mm and installs on 16-inch wood studs, concrete or brick walls. Drywall-only installation is not supported.

Low-Profile Design

The mount holds the TV just 1.2 inches from the wall for a sleek appearance while allowing a 7-degree downward tilt to reduce glare. A built-in bubble level helps achieve a straight installation and a detachable panel aids cable access. High-grade steel construction is tested to four times the rated capacity.

Weight Capacity Limit

The single specification that decides suitability is the 115-pound maximum load rating. Televisions heavier than this cannot be mounted safely regardless of screen size or VESA pattern match.

Highlights

  • Fits 23-60" TVs up to 115lbs with VESA 75x75-400x400mm
  • Tilt 7° down to reduce glare and improve viewing comfort
  • Low-profile design holds TV 1.77" from wall for sleek look
  • Tested to 4x rated weight per UL standard with locking mechanism
  • Mounts on 12 or 16 wood studs, concrete or brick walls

Specifications

BrandPERLESMITH
ModelPSMTK1
Name23-60" Tilt TV Wall Mount
Mount StyleWall Mount
ColorBlack
TV Size Capacity23-60" Tilt TV Wall Mount
TV Weight Capacity115 pounds
Height1.77 in
Width4.22 in
Weight1.129 kilograms

Questions about this item

How do I install the PSMTK1 on 16-inch wood studs and what step is often missed?

Drill pilot holes into the centre of two 16-inch on-centre wood studs, use the supplied lag bolts and washers, and tighten until the bracket sits flush; the step often missed is confirming each bolt bites into solid wood rather than hitting a knot or gap.

What maintenance will the tilting mechanism and locking bar need over time?

Every six months check that the tilt tension bolts remain snug and that the quick-release locking bar engages fully; apply a drop of light machine oil to the pivot points if movement feels stiff.

At what point does the 1.2-inch low-profile gap limit cable access during sustained use?

The 1.2-inch stand-off leaves little room for bulky right-angle HDMI or power plugs; if cables press against the wall they can bend sharply, so use ultra-slim connectors or route cables sideways before final tightening.
