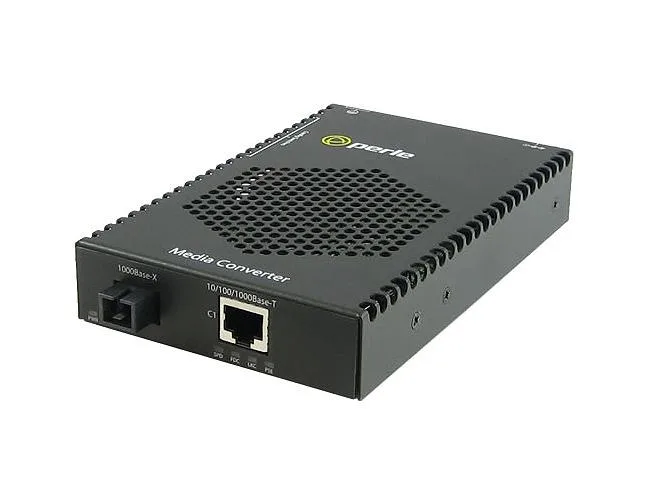

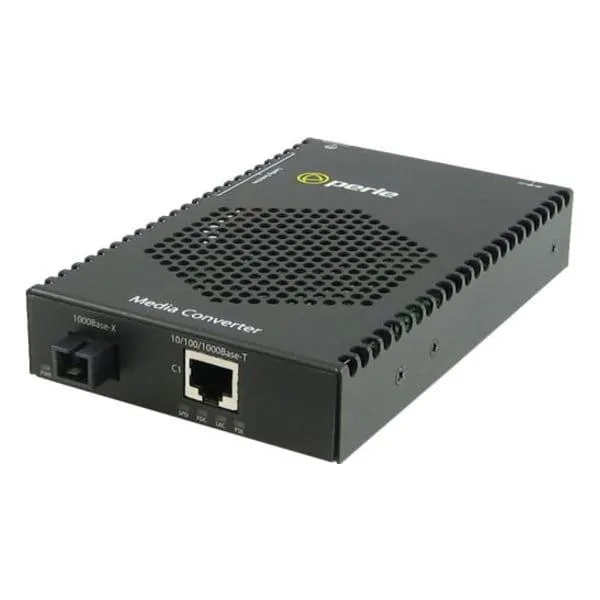

Compact metal media converter with RJ45 and SC fiber ports

Perle

Perle S-1110Ps1Sc10Uxt Media Converter

SKU CH-X4MH-2S55S

Industrial media converter links copper to single-mode fiber with PoE power sourcing

  • TypeData & Communication
  • SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame
  • Media conversion from copper to single-strand fiber at 1310 nm TX / 1490 nm RX
  • Power over Ethernet sourcing supplies remote devices through the RJ-45 port
  • Gigabit throughput with 10,240-byte maximum frame size
  • Single-mode SC link reaches 10 km / 6.2 miles
  • Terminal-block connector accepts external DC power source

Industrial Media Converter with PoE

The Perle S-1110Ps1Sc10Uxt converts 10/100/1000BASE-T copper links to 1000BASE-BX single-strand fibre using 1310 nm TX and 1490 nm RX wavelengths. It supports extended operating temperatures and accepts power through a terminal block for external sources. Network engineers deploy it to extend copper segments beyond 100 m in harsh environments.

PoE Power Sourcing and Single Strand Fibre

The unit provides PoE power sourcing on the RJ-45 port so remote devices such as cameras or access points receive power over the copper link. Single-mode SC connectivity with bidirectional wavelengths reduces fibre count to one strand per link. Maximum frame size reaches 10,240 bytes on Gigabit and 2048 bytes on Fast Ethernet.

Distance Limits and Temperature Range

Copper reach is limited to 100 m or 328 ft while the single-mode fibre link extends to 10 km or 6.2 miles. The extended temperature rating allows installation in industrial cabinets without active cooling. Buyers who need multimode fibre, dual-strand connectors or longer copper runs must select a different model.

Highlights

  • Media conversion from copper to single-strand fiber at 1310 nm TX / 1490 nm RX
  • Power over Ethernet sourcing supplies remote devices through the RJ-45 port
  • Gigabit throughput with 10,240-byte maximum frame size
  • Single-mode SC link reaches 10 km / 6.2 miles
  • Terminal-block connector accepts external DC power source

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Questions about this item

Does the PoE power sourcing equipment inside the S-1110Ps1Sc10Uxt require any periodic maintenance or replacement?

The unit has no user-serviceable PoE components; the only upkeep is keeping the RJ-45 and SC connectors clean and verifying the terminal-block power feed remains secure.

What limit appears first when the converter runs at full 1000BASE-BX throughput for extended periods?

The 10 240-byte maximum frame size on the Gigabit port is the first hard ceiling; sustained traffic at line rate will hit that buffer boundary before any thermal throttle.

How much heat or fan noise does the extended-temperature model produce when powered continuously via the terminal block?

The converter is fanless and rated for industrial temperature ranges, so it generates only passive heat with zero acoustic output during all-day operation.
