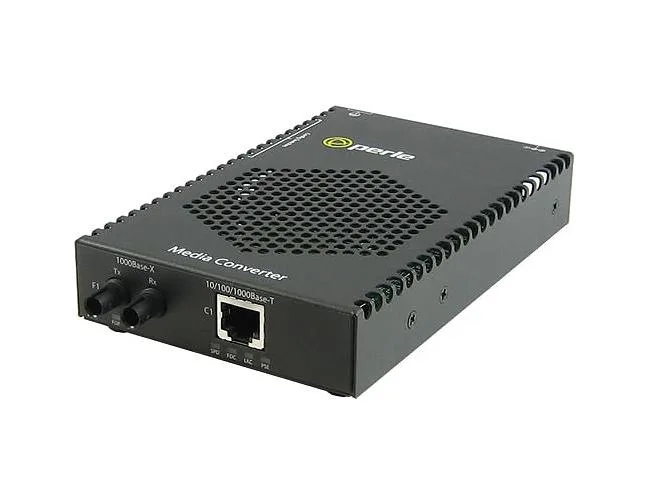

Compact metal network converter box with RJ45 and ST fibre ports

Perle

Perle S-1110Pp-M2St05 10/100/1000Base-T Media Converter

SKU CH-5F0E-65JM4

Converts 10/100/1000BASE-T copper to 1000BASE-SX multimode fibre up to 550 m with PoE+ power sourcing

  • TypeData & Communication
  • SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame
  • PoE+ powers remote devices up to 100 m
  • Gigabit RJ-45 copper reaches 328 ft
  • Multimode fibre extends links to 550 m
  • 850 nm wavelength suits short-range SX optics
  • Jumbo frames up to 10240 bytes supported

Media converter for PoE+ networks

The Perle S-1110Pp-M2St05 converts 10/100/1000Base-T copper links to 1000Base-SX 850 nm multimode fibre with an ST connector. It supplies PoE+ power over the RJ-45 port up to 100 m or 328 ft and includes a US AC power adapter. The unit handles maximum frame sizes of 10,240 bytes on Gigabit and 2,048 bytes on Fast Ethernet segments.

Replaces separate media converters and PoE injectors

A single device now performs rate conversion and Power Sourcing Equipment duties that previously required two boxes and an extra power outlet. The jump is worth it when you need to extend a powered device such as a wireless access point or IP camera beyond the 100 m copper limit onto multimode fibre runs up to 550 m or 1,804 ft.

Fits into managed or unmanaged Ethernet builds

Connect the RJ-45 side to any 10/100/1000 switch port and the ST fibre side to a matching 1000Base-SX transceiver. The converter frees up switch ports by eliminating the need for a mid-span injector and lets you locate powered devices at fibre distances without local mains power.

Highlights

  • PoE+ powers remote devices up to 100 m
  • Gigabit RJ-45 copper reaches 328 ft
  • Multimode fibre extends links to 550 m
  • 850 nm wavelength suits short-range SX optics
  • Jumbo frames up to 10240 bytes supported

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Questions about this item

What mounting hardware is required for the Perle S-1110Pp-M2St05 media converter?

The unit is a compact desktop device that ships with an AC power adapter and USA power cord. No rack brackets, wall-mount kit or DIN-rail clips are included in the supplied facts.

What is the step users most often miss when installing the 10/100/1000Base-T to 1000BASE-SX link?

Connect the RJ-45 copper side first, then the ST multimode fibre, and finally apply AC power. The converter will not pass traffic until both the copper link (up to 100 m) and the 850 nm fibre link (up to 550 m) show active LEDs.

Which replaceable component will need attention first on the S-1110Pp-M2St05?

The external AC power adapter is the only field-replaceable part listed. Keep a spare 05081034 adapter on hand; the converter itself has no user-serviceable fans, batteries or optical modules.
