Industrial media converter with ST fiber port and RJ-45

Perle

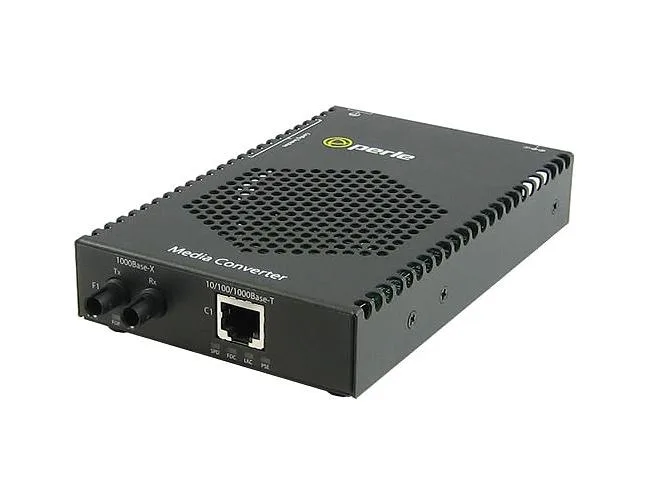

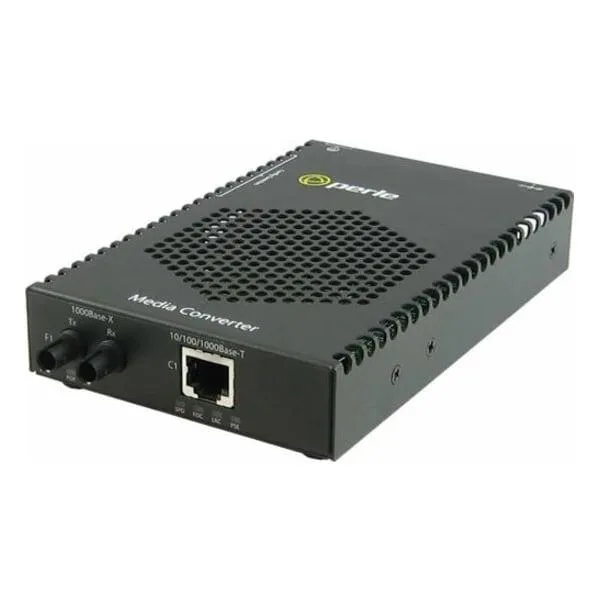

Perle S-1110P-S2St10Xt 10/100/1000Base-T Media Converter

SKU CH-T5MN-NEXB1

Industrial media converter bridges copper to single-mode fibre up to 6.2 miles with PoE power sourcing

  • TypeData & Communication
  • SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame
  • Industrial temperature operation for harsh environments
  • PoE power sourcing delivers power over Ethernet cable
  • 10/100/1000Base-T to 1000Base-LX/LH conversion
  • 10 km single-mode fibre reach at 1310 nm
  • Terminal block connector for external power supply

Industrial Media Converter

The Perle S-1110P-S2St10Xt converts 10/100/1000Base-T copper links to 1000Base-LX/LH single-mode fibre with an ST connector. It accepts terminal-block power for an external supply and operates across an extended temperature range for harsh environments.

Sustained Operation

The unit handles maximum frame sizes of 10,240 bytes on Gigabit ports and 2,048 bytes on Fast Ethernet without dropping packets. PoE power sourcing delivers consistent current to attached devices over the full 100 m copper reach.

Distance Limits

Copper segments run to 100 m or 328 ft before signal regeneration is required. The 1310 nm single-mode fibre path extends to 10 km or 6.2 miles, defining the practical link budget for this converter.

Highlights

  • Industrial temperature operation for harsh environments
  • PoE power sourcing delivers power over Ethernet cable
  • 10/100/1000Base-T to 1000Base-LX/LH conversion
  • 10 km single-mode fibre reach at 1310 nm
  • Terminal block connector for external power supply

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Questions about this item

Will the PoE power sourcing on the S-1110P-S2St10Xt generate noticeable heat during continuous 24/7 operation?

The unit is rated for extended temperature operation and uses a terminal block for external power, so it runs without an internal fan and stays within industrial thermal limits under full PoE load.

What external power source do I need to connect to the terminal block before the converter will pass traffic?

A DC supply matching the terminal-block input range is required; the converter does not draw power from the RJ-45 link itself.

Can I link this gigabit converter to an older 10/100 switch without losing the 10 km single-mode fibre reach?

Yes, the 10/100/1000Base-T RJ-45 port auto-negotiates down to 100 Mbps while the 1310 nm ST fibre interface maintains the full 10 km distance.
