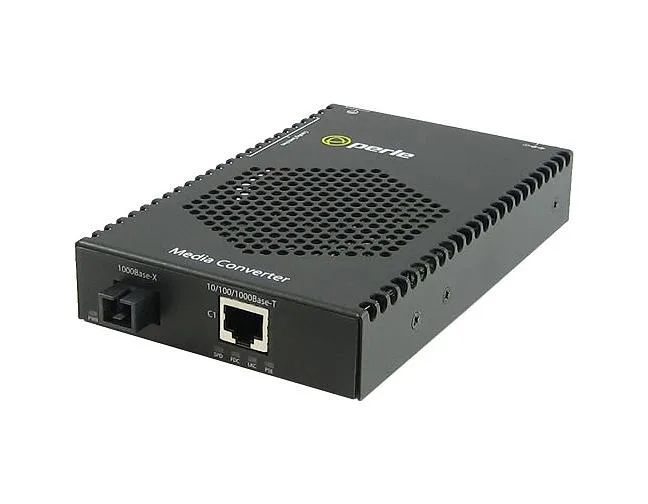

Perle S-1110P media converter mount, compact metal box with RJ-45 and SC fiber ports

Perle

Perle S-1110P-S1SC10U Media Converter Mount

SKU CH-9W93-T0HPG

Mounts a 10/100/1000Base-T media converter with PoE and single-strand SC fibre up to 10 km

  • TypeData & Communication
  • SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame
  • Gigabit copper to 10 km single-mode fiber via SC connector
  • PoE power sourcing delivers data and power over one RJ-45 cable
  • 10/100/1000Base-T auto-negotiation matches legacy and modern networks
  • Maximum frame 10,240 bytes handles jumbo traffic at Gigabit speed
  • Includes USA AC adapter for immediate desktop or rack deployment

Gigabit PoE Media Converter Mount

The Perle S-1110P-S1SC10U is a gigabit media and rate converter designed for network engineers extending copper links over single-mode fibre. It provides Power over Ethernet sourcing on the RJ-45 port so remote devices such as cameras or access points receive power through the same cable.

Copper-to-Fibre Upgrade Path

This unit replaces a simple copper patch when distance exceeds the 100 m or 328 ft limit of twisted pair. The jump is worth it when you need to bridge up to 10 km or 6.2 miles using a single SC strand with 1310 nm TX and 1490 nm RX wavelengths while also delivering PoE to the far end.

Frame Capacity and Distance Headroom

Gigabit traffic is handled with a maximum frame size of 10,240 bytes and Fast Ethernet frames up to 2,048 bytes. The converter runs out of reach beyond the 10 km single-mode specification and cannot support multi-mode fibre or dual-strand connectors without a different model.

Highlights

  • Gigabit copper to 10 km single-mode fiber via SC connector
  • PoE power sourcing delivers data and power over one RJ-45 cable
  • 10/100/1000Base-T auto-negotiation matches legacy and modern networks
  • Maximum frame 10,240 bytes handles jumbo traffic at Gigabit speed
  • Includes USA AC adapter for immediate desktop or rack deployment

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 10,240 bytes -- Gigabit; Maximum frame size of 2048 bytes -- Fast Ethernet

Questions about this item

What physical space does the S-1110P-S1SC10U media converter mount require?

The unit is a standalone media converter with an included AC power adapter and USA power cord, designed for desktop or shelf placement without rack ears or wall brackets mentioned.

How is the converter installed and what step is often missed?

Connect the RJ-45 copper port up to 100 m or 328 ft to the network device, attach the single-strand SC fiber at 1310 nm TX / 1490 nm RX for up to 10 km or 6.2 miles, then plug in the supplied AC adapter — forgetting the fiber wavelength match is the common error.

What maintenance or replacement will the S-1110P-S1SC10U need over time?

The AC power adapter and USA power cord are the only field-replaceable accessories included; the converter itself has no user-serviceable fans, filters or optical modules listed.
