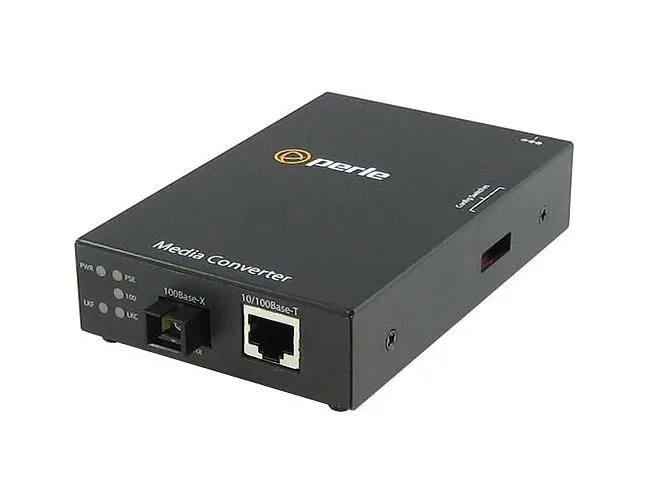

Compact metal box with RJ45 and SC fiber ports

Perle

Perle S-110Pps1Sc20Uxt Media Converter

SKU CH-KMRM-2J0AS

Industrial 10/100Base-TX to 100Base-BX single-strand fibre media converter with PoE+ over 20 km

  • TypeData & Communication
  • SizeMaximum frame size of 2048 bytes
  • Industrial media converter with PoE+ power sourcing
  • 10/100Base-TX RJ-45 to 100Base-BX single strand fiber
  • 1310nm TX / 1550nm RX wavelengths over SC connector
  • 20 km / 12.4 miles single mode fiber reach
  • Extended temperature operation with terminal block power

Industrial Media Converter with PoE+

The Perle S-110Pps1Sc20Uxt is a managed rate converter built for industrial networks. It bridges copper and single-mode fiber links while delivering Power over Ethernet Plus to attached devices. Engineers specify it for extended-temperature environments where reliable long-haul connectivity is required.

Terminal-Block Power and Single-Strand Fiber

A screw-terminal block accepts an external DC source, removing reliance on a standard wall outlet. The SC receptacle carries a single-strand single-mode fiber using 1310 nm transmit and 1550 nm receive wavelengths, reaching 20 km or 12.4 miles. Maximum frame size is 2048 bytes, and the copper port runs at 10/100Base-TX up to 100 m or 328 ft.

Fanless Operation Across Wide Temperatures

With no moving parts, the unit operates silently in harsh climates. Low power draw from the external supply keeps heat minimal inside sealed cabinets. The design targets continuous uptime for security cameras, wireless access points, or sensor arrays that need both data and PoE+ on a single fiber run.

Highlights

  • Industrial media converter with PoE+ power sourcing
  • 10/100Base-TX RJ-45 to 100Base-BX single strand fiber
  • 1310nm TX / 1550nm RX wavelengths over SC connector
  • 20 km / 12.4 miles single mode fiber reach
  • Extended temperature operation with terminal block power

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 2048 bytes

Questions about this item

What maximum frame size does the 10/100Base-TX interface support?

The converter handles frames up to 2048 bytes on the 10/100Base-TX port.

Which connector and wavelength pair does the single-strand fibre port use?

An SC connector transmits at 1310 nm and receives at 1550 nm for the 20 km single-mode link.

How is external power connected to the terminal block?

Insert stripped wires into the terminal block screws and tighten; the step often missed is verifying polarity before applying voltage.
