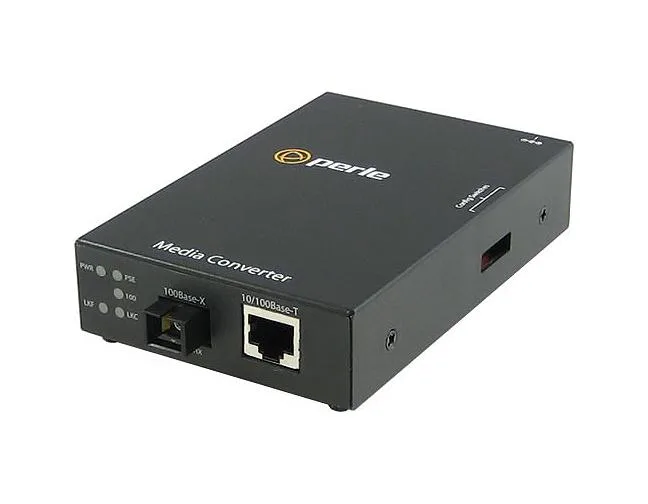

Compact metal network media converter with RJ45 and SC fiber ports

Perle

Perle S-110P-S1SC20D-XT Media Converter

SKU CH-N6YT-8TDK1

Industrial 10/100Base-TX to 100Base-BX single-strand fiber converter with PoE power sourcing, SC connector, 20 km reach and extended temperature range

  • TypeData & Communication
  • SizeMaximum frame size of 2048 bytes
  • Extends network reach up to 20 km over single-strand fiber
  • Powers connected devices via PoE on the RJ-45 port
  • Operates reliably in extended temperature environments
  • Supports 10/100 Mbps copper to 100 Mbps fiber conversion
  • Accepts external power through terminal block connector

Industrial Media Converter with PoE

The Perle S-110P-S1SC20D-XT converts 10/100Base-TX copper signals to 100Base-BX single-strand fibre. It provides Power over Ethernet sourcing from the RJ-45 port for connected devices. Extended temperature operation suits harsh industrial environments. Terminal block input allows connection to an external power source.

Capacity and Distance Limits

Maximum frame size is 2048 bytes for reliable data handling. Copper links reach up to 100 m or 328 ft over standard twisted pair. Single-mode fibre extends the link to 20 km or 12.4 miles for long-haul runs. The fixed 100 Mbps rate caps throughput for high-bandwidth applications.

Single-Strand SC Fibre Interface

Bidirectional optics use 1550 nm for transmit and 1310 nm for receive over one SC connector. This wavelength pairing only works with a matching opposite converter. Installations needing dual-fibre or different connectors cannot use this unit.

Highlights

  • Extends network reach up to 20 km over single-strand fiber
  • Powers connected devices via PoE on the RJ-45 port
  • Operates reliably in extended temperature environments
  • Supports 10/100 Mbps copper to 100 Mbps fiber conversion
  • Accepts external power through terminal block connector

Specifications

BrandPERLE SYSTEMS
TypeData & Communication
SizeMaximum frame size of 2048 bytes

Questions about this item

Will the 10/100Base-TX RJ-45 port link with my existing 10 Mbps switch?

Yes, the copper port operates at 10 or 100 Mbps and will negotiate a link with legacy 10 Mbps equipment over standard twisted-pair cable up to 100 m.

How can I verify the 100Base-BX single-strand fiber link is operating correctly after installation?

Check that the converter's link LEDs show activity on both the RJ-45 and SC ports and that the fiber TX wavelength is 1550 nm while RX is 1310 nm.

Does the package include the external power supply required by the terminal block connector?

The converter ships with the terminal block for external power; a separate power source must be purchased to match the extended temperature rating.
