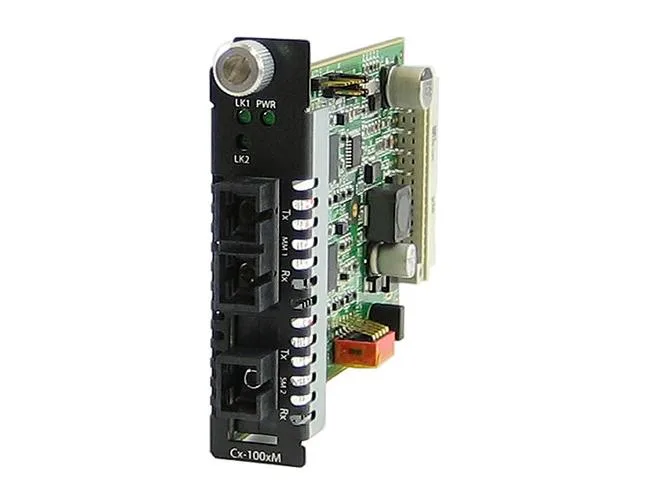

Perle CM-100MM-S1SC40D media converter module with SC ports

Perle

Perle CM-100MM-S1SC40D Media Converter Mount

SKU CH-E88C-W8ANB

Managed Fast Ethernet fiber-to-fiber converter module linking 100BASE-FX multimode at 1310 nm up to 1.2 miles with 100Base-BX single-mode at 1550/1310 nm up to 24.9 miles

  • TypeData & Communication
  • Converts 100BASE-FX multimode to 100Base-BX single strand fiber
  • Extends reach up to 40 km on single-mode fiber
  • Operates at 1310 nm TX and 1550 nm RX wavelengths
  • Supports managed or unmanaged operation modes
  • Connects via SC connectors on both fiber interfaces

Perle CM-100MM-S1SC40D media converter mount

The Perle CM-100MM-S1SC40D is a managed Fast Ethernet fiber-to-fiber converter module designed for network operators extending links between multimode and single-mode infrastructure. It supports managed or unmanaged operation for flexible deployment in enterprise or carrier environments.

Sustained link behaviour across fiber types

The module converts 100BASE-FX 1310 nm multimode signals over SC connectors with a 2 km reach to 100Base-BX 1550 nm TX and 1310 nm RX single-strand single-mode fiber with a 40 km reach. It maintains consistent throughput over the full 24.9 mile single-mode distance without signal regeneration.

Single-strand SC wavelength pairing decides fit

The fixed 1550 nm transmit and 1310 nm receive wavelengths on a single SC strand determine whether this module matches the existing fiber plant; networks requiring dual-strand or different wavelength assignments cannot use this part.

Highlights

  • Converts 100BASE-FX multimode to 100Base-BX single strand fiber
  • Extends reach up to 40 km on single-mode fiber
  • Operates at 1310 nm TX and 1550 nm RX wavelengths
  • Supports managed or unmanaged operation modes
  • Connects via SC connectors on both fiber interfaces

Specifications

BrandPERLE SYSTEMS
TypeData & Communication

Questions about this item

Does the CM-100MM-S1SC40D generate noticeable heat or fan noise when running continuously?

The CM-100MM-S1SC40D is a passive mounting bracket with no active components, so it produces no heat or noise of its own.

What existing Perle hardware is required for the CM-100MM-S1SC40D to function?

The CM-100MM-S1SC40D mounts a Perle 100BASE-FX 1310 nm multimode to 100Base-BX 1550 nm TX/1310 nm RX single-strand converter module.

Will the CM-100MM-S1SC40D fit the older Perle media converter chassis I already have?

The CM-100MM-S1SC40D is designed for the specific managed Fast Ethernet fiber-to-fiber converter module listed in the product data.
