Perle media converter mount, compact metal bracket

Perle

Perle CM-1000MM-S1SC10U Media Converter Mount

SKU CH-6C86-NX5AK

Converts 1000BASE-SX 850 nm multimode fibre to 1000BASE-BX 1310/1490 nm single-mode fibre over 550 m or 10 km distances

  • TypeData & Communication
  • Managed Gigabit fiber-to-fiber conversion for flexible network links
  • 1000BASE-SX 850 nm multimode SC reaches 550 m or 1804 ft
  • 1000BASE-BX single-strand SC single-mode spans 10 km or 6.2 miles
  • TX 1310 nm and RX 1490 nm wavelengths enable bi-directional traffic
  • Managed or unmanaged operation modes suit varied deployment needs

Media converter mount for fiber links

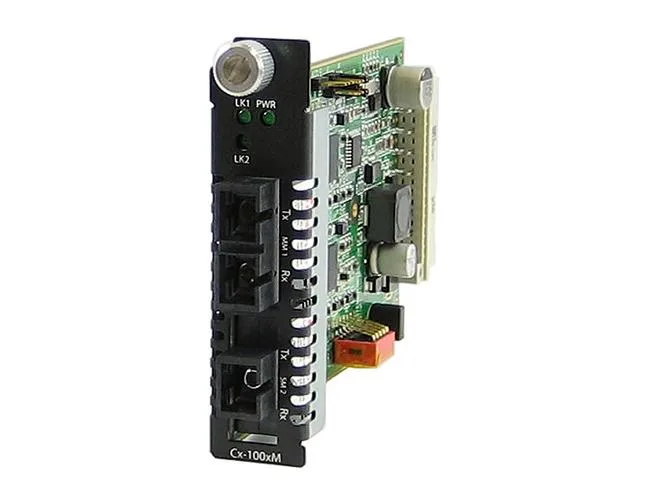

The Perle CM-1000MM-S1SC10U is a managed gigabit fiber-to-fiber converter module designed for network operators extending multimode runs over single-strand single-mode infrastructure. It bridges 1000BASE-SX 850nm multimode and 1000BASE-BX 1310nm TX/1490nm RX wavelengths.

Slot installation with management choice

The module installs into a compatible Perle chassis slot and supports managed or unmanaged operation depending on the host configuration. Incorrect wavelength alignment or mismatched single-strand connectors will prevent link establishment.

Dual-reach conversion up to ten kilometres

The multimode side covers 550 metres or 1804 feet while the single-mode side reaches 10 kilometres or 6.2 miles. It does not serve connections that exceed the single-mode distance budget or require dual-strand fiber interfaces.

Highlights

  • Managed Gigabit fiber-to-fiber conversion for flexible network links
  • 1000BASE-SX 850 nm multimode SC reaches 550 m or 1804 ft
  • 1000BASE-BX single-strand SC single-mode spans 10 km or 6.2 miles
  • TX 1310 nm and RX 1490 nm wavelengths enable bi-directional traffic
  • Managed or unmanaged operation modes suit varied deployment needs

Specifications

BrandPERLE SYSTEMS
TypeData & Communication

Questions about this item

How do I confirm the CM-1000MM-S1SC10U is operating correctly after installation?

Verify the link LEDs show solid green for both the 850 nm multimode side at 550 m and the 1310/1490 nm single-mode side at 10 km, then check the management interface for zero CRC errors and negotiated 1000 Mbps duplex.

What ships with the CM-1000MM-S1SC10U and what must I purchase separately?

The module itself is included; you must supply a compatible managed chassis, SC duplex patch cords for the 850 nm link and a single-strand SC simplex cord for the 1310/1490 nm link, plus any required SFP transceivers if not already installed.

Which version of the CM-1000MM-S1SC10U should I choose for a 10 km single-mode run?

Select the CM-1000MM-S1SC10U with 1310 nm TX / 1490 nm RX single-strand SC optics rated for 10 km (6.2 miles) to match your single-mode distance requirement.
