Metal mounting bracket for Perle media converter module

Perle

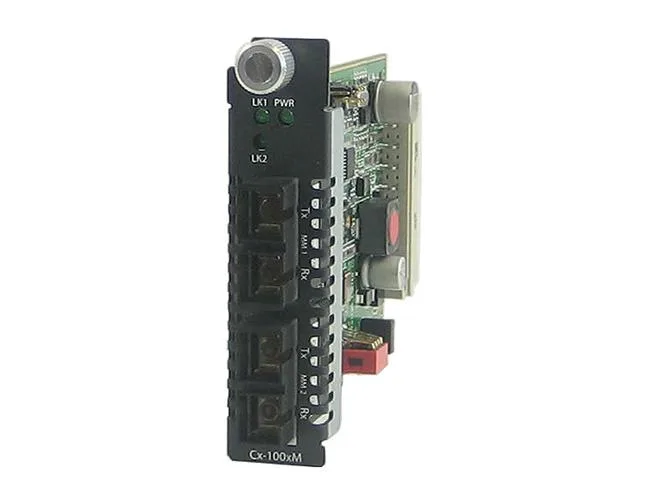

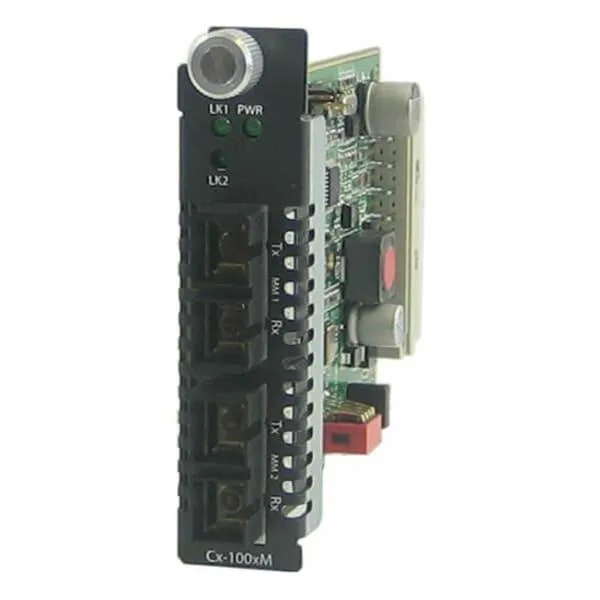

Perle CM-1000MM-M2SC2 Media Converter Mount

SKU CH-DEZQ-TRHBM

Converts 850 nm multimode fibre to 1310 nm extended multimode over 2 km with managed or unmanaged operation

  • TypeData & Communication
  • Managed fiber conversion between 850 nm and 1310 nm wavelengths
  • Extends multimode reach up to 550 m over SC connectors
  • Extends extended multimode reach up to 6562 ft over SC connectors
  • Supports managed or unmanaged operation for flexible deployment
  • Gigabit fiber-to-fiber media converter module for network integration

Media Converter Mount for Managed Fiber Links

The Perle CM-1000MM-M2SC2 is a media converter mount designed for managed Gigabit fiber-to-fiber conversion. It connects 1000BASE-SX 850nm multimode SC interfaces with a 550 m reach to 1000BASE-LX 1310nm extended multimode SC interfaces reaching 2 km. Network administrators use it to bridge dissimilar fiber types in managed or unmanaged operation.

Distance Limits of Multimode

The 1000BASE-SX segment supports links up to 550 m or 1804 ft over 850 nm multimode fiber. The 1000BASE-LX extended multimode segment reaches 2 km or 6562 ft at 1310 nm. These fixed distances define the practical deployment range for each side of the conversion. Buyers needing longer single-mode reach or different wavelengths cannot use this module.

SC Connector Interface Determines Compatibility

The module uses SC connectors on both the 850 nm and 1310 nm ports. This connector type dictates which patch cables and panel adapters will mate with the converter. Installations using ST, LC, or FC connectors require separate adapter cables not included with the mount.

Highlights

  • Managed fiber conversion between 850 nm and 1310 nm wavelengths
  • Extends multimode reach up to 550 m over SC connectors
  • Extends extended multimode reach up to 6562 ft over SC connectors
  • Supports managed or unmanaged operation for flexible deployment
  • Gigabit fiber-to-fiber media converter module for network integration

Specifications

BrandPERLE SYSTEMS
TypeData & Communication

Questions about this item

Should I choose the 550 m multimode link or the 2 km extended multimode link for my installation?

The module converts 1000BASE-SX 850 nm multimode SC at 550 m to 1000BASE-LX 1310 nm extended multimode SC at 2 km, so select the side that matches your existing fibre plant distance.

What does the 1000BASE-SX to 1000BASE-LX conversion mean for my Gigabit Ethernet link?

It bridges 850 nm multimode fibre limited to 550 m with 1310 nm extended multimode fibre reaching 2 km, keeping the link at Gigabit speed across the longer span.

How do the SC connectors and managed operation affect deployment?

Both sides use SC duplex connectors, and the module can run in managed or unmanaged mode, letting you monitor link status or simply plug and play.
